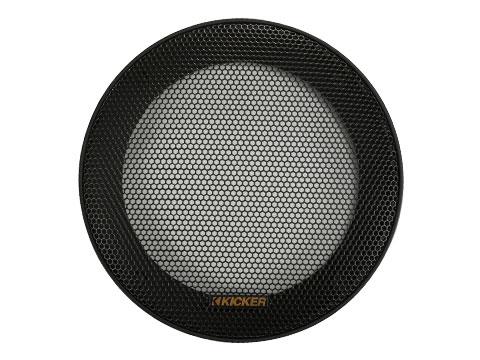

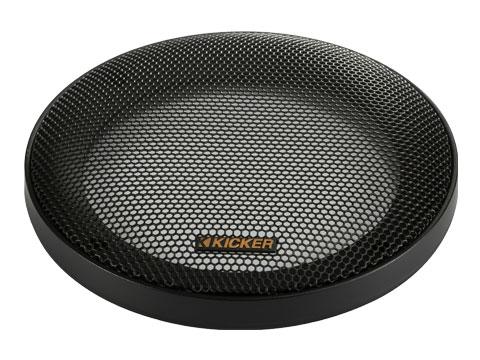

5-1/4-Inch Speaker Grilles for Kicker KS Series Door Speakers
Made to match the Kicker KSC504 speakers perfectly! These grilles prevent damage and give your drives an awesome customized look!
Kicker Bass-Knob for Mono CX, DX and PX Series Amplifiers
Customize your bass, right from your front seat with the Kicker 46CXARC add-on mono-amplifier bass-knob.
Kicker 46CXARC Manual
30-Watt 3.5-Inch Coaxial Speakers, 4-Ohm
These CS series 3.5" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 30W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 3 and a 1/2" speakers work best with 30 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
3 1/2 [89]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.2
Peak Power | Watts
90
Continuous Power | Watts, RMS
30
Sensitivity [SPLo] | dB @ 1W, 1m
88
Effective Frequency Range | Hz
80-20k
Mounting Hole Diameter | in [mm]
3 [78]
Top Mount Depth | in [mm]
1/4 [6]
Bottom Mount Depth | in [mm]
1 11/16 [42]
Tweeter Protrusion | in [mm]
1/8 [3]
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
4-Inch 50-Watt Coaxial Speakers, 4-Ohm
These CS series 4" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 50W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 4" speakers work best with 50 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
4 [100]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
150
Continuous Power | Watts, RMS
50
Sensitivity [SPLo] | dB @ 1W, 1m
88
Effective Frequency Range | Hz
60-20k
Mounting Hole Diameter | in [mm]
3 3/4 [95]
Top Mount Depth | in [mm]
1/4 [6]
Bottom Mount Depth | in [mm]
1 13/16 [46]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
50-Watt 4x6-Inch Coaxial Speakers, 4-Ohm
These CS series 4x6" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 50W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 4 by 6" speakers work best with 50 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
4x6 [100x160]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
150
Continuous Power | Watts, RMS
50
Sensitivity [SPLo] | dB @ 1W, 1m
88
Effective Frequency Range | Hz
50-20k
Mounting Hole Diameter | in [mm]
4 x 6 [101x152]
Top Mount Depth | in [mm]
5/16 [7]
Bottom Mount Depth | in [mm]
1 11/16 [43]
Tweeter Protrusion | in [mm]
0
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual

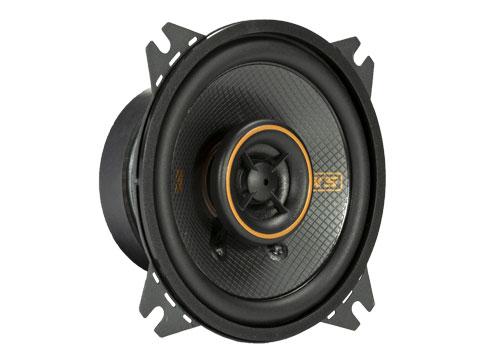

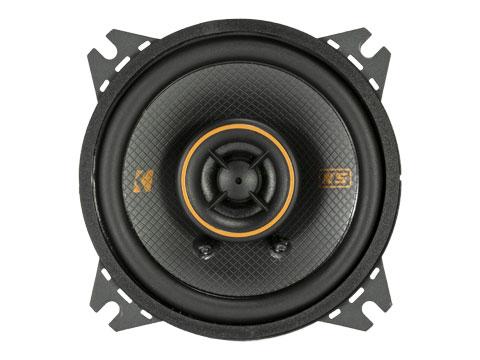

Four-Inch Coaxial Midrange-Tweeter Drivers, 75-Watt RMS
The Kicker KS series four-inch coaxial speakers come with a custom bracket option built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
4, 100
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
60-20k
Mounting Hole Diameter [in, mm]
3-11⁄16, 94
Top Mount Depth [in, mm]
1-13⁄16, 46
Bottom Mount Depth [in,mm]
2-1⁄16, 51
Tweeter Protrusion [in,mm]
1/8, 3
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual

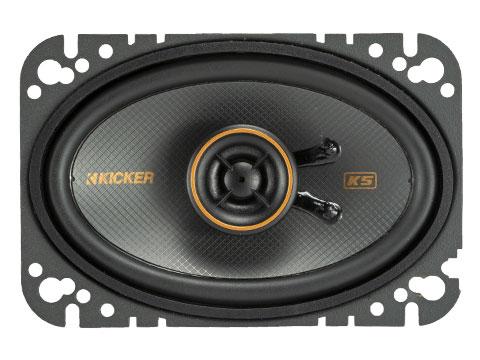

Four-by-Six-Inch Coaxial Speaker Drivers, 75-Watt RMS
The Kicker KS series 4x6-inch coaxial speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Specifications
Speaker Design
2-Way
Woofer [in, mm]
4x6, 100x160
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
50-20k
Mounting Hole Diameter [in, mm]
4x5-5⁄16, 101x151
Top Mount Depth [in, mm]
1-11⁄16, 44
Bottom Mount Depth [in,mm]
2, 51
Tweeter Protrusion [in,mm]
1/16, 2
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 12" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS124 and 44CWCD124 12-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power.
Specifications
Size (IN.,CM)
12, 30
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
Sensitivity (dB 1w/1m)
88.3
Frequency Response (Hz)
27-500
Mounting Depth (in, cm)
5-3/8, 13.6
Mounting Cutout (in, cm)
11, 27.9
Min Sealed Box Vol (cu. ft, L)
1.25, 35.4
Max Sealed Box Vol (cu. ft, L)
3.5, 99.1
Min Vented Box Vol (cu. ft, L)
1.75, 49.6
Max Vented Box Vol (cu. ft, L)
2.25, 63.7
Kicker CompC Subwoofer Manual
10-Inch 400-Watt Subwoofer Driver, 4-Ohm DVC
The 43CWR10 10" subwoofer by Kicker has an advanced suspension system that includes a ribbed polypropylene surround and a large-diameter spider for linear movement, and a distortion-free sound. Bigger magnets, a thicker cone and an improved suspension system help make this 10-Inch 400W CompR sub to be a workhorse of a driver.The Kicker 43CWR104 12" sub work best with a sealed or ported enclosure and 400 watts of recommended power.
Specifications
SIZE [in, cm]:
10, 25
IMPEDANCE [Ohms]:
4 DVC
Recommended Amplifier Power (watts RMS)
400
Peak Power (watts, per ANSI/CTA-2031-A)
800
SENSITIVITY [dB 1w/1m]:
84.6
MOUNTING DEPTH [in, cm]:
5-1/4, 13.3
MOUNTING DIAMETER [in, cm]:
9-1/8, 23.1
MIN SEALED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX SEALED BOX VOL [cu. ft, L]:
1.25, 35.4
MIN VENTED BOX VOL [cu. ft, L]:
1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
Kicker CompR Subwoofer Manual
75-Watt 5 1/4-Inch Coaxial Speakers, 4-Ohm
These CS series 5.25" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 75W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
The Kicker CS series 5 and a 1/4" speakers work best with 75 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
5 1/4 [130]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.4
Peak Power | Watts
225
Continuous Power | Watts, RMS
75
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
45-20k
Mounting Hole Diameter | in [mm]
4 1/2 [115]
Top Mount Depth | in [mm]
1/4 [7]
Bottom Mount Depth | in [mm]
1 3/4 [45]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
100-Watt 6.75-Inch Coaxial Speakers, 4-Ohm
These CS series 6.75" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
The Kicker CS series 6 and a 3/4" speakers work best with 100 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 3/4 [165]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
5 1/2 [140]
Top Mount Depth | in [mm]
3/16 [4]
Bottom Mount Depth | in [mm]
1 13/16 [47]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
75-Watt 6x8-Inch Coaxial Speakers, 4-Ohm
These CS series 6x8" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 75W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 by 8" speakers work best with 75 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6x8 [160x200]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
225
Continuous Power | Watts, RMS
75
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
45-20k
Mounting Hole Diameter | in [mm]
5 x 7 3/16 [126x182]
Top Mount Depth | in [mm]
3/8 [9]
Bottom Mount Depth | in [mm]
2 3/16 [56]
Tweeter Protrusion | in [mm]
0
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
8-Inch 200-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 8" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS84 and 44CWCD84 8-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 200W RMS of amplified power.
Specifications
Size (IN.,CM)
8, 20
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
200
Peak Power (watts, per ANSI/CTA-2031-A)
400
Sensitivity (dB 1w/1m)
85.6
Mounting Depth (in, cm)
3 7/8, 9.8
Mounting Diameter (in, cm)
7, 17.7
Min Sealed Box Vol (cu. ft, L)
0.5, 14.2
Max Sealed Box Vol (cu. ft, L)
1.2, 34
Min Vented Box Vol (cu. ft, L)
0.66, 18.7
Max Vented Box Vol (cu. ft, L)
1.2, 34
Kicker CompC Subwoofer Manual

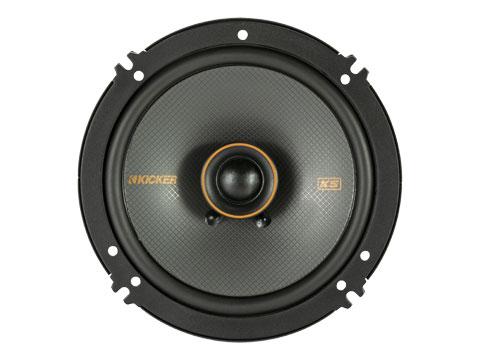

6-1/2-Inch Coaxial Speaker Drivers, 100-Watt RMS
The Kicker KS series six-and-a-half-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 100 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
6-1/2, 160
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-100
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
43-21k
Mounting Hole Diameter [in, mm]
4-13/16, 123
Top Mount Depth [in, mm]
1-13/16, 46
Bottom Mount Depth [in,mm]
2-3/16, 54
Tweeter Protrusion [in,mm]
5/16, 8
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual

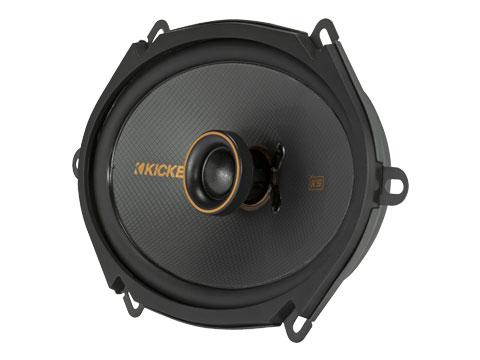

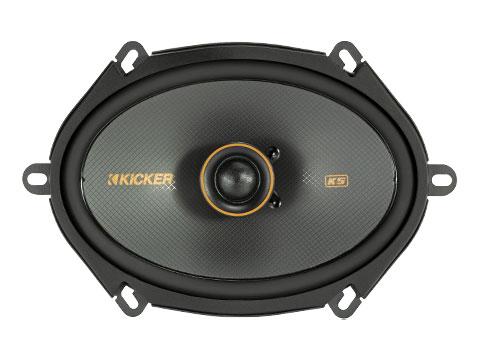

Six-by-Eight-Inch Coaxial Speaker Drivers, 75-Watt RMS
The Kicker KS series six-by-8-inch coaxial speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
6 x 8, 160 x 200
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
45-21k
Mounting Hole Diameter [in, mm]
5 x 7-3/16, 127 x 182
Top Mount Depth [in, mm]
2-1/4, 58
Bottom Mount Depth [in,mm]
2-5/8, 67
Tweeter Protrusion [in,mm]
1/16, 2
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual

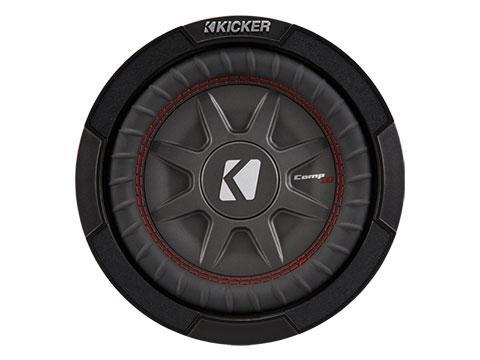

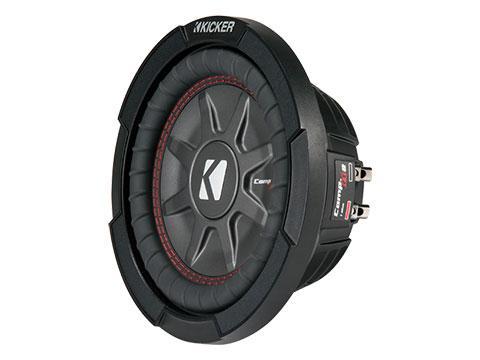

8-Inch 300-Watt Thin Subwoofer Driver, 2-Ohm DVC
The CompRT 8" thin subwoofer by Kicker is a weather resistant thin sub with a 2Ω dual voice coil design. This thin 8 inch sub magnet structure delivers 300W RMS of power with a chassis mounting depth of just under 2 3/4". The Kicker designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to keep this 8" CompRT thin subwoofer driver nice and cool.The CompRT 8-Inch subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power.
Specifications
SIZE [in, cm]:
8, 20
IMPEDANCE [Ohms]:
2 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
SENSITIVITY [dB 1w/1m]:
81.8
MOUNTING DEPTH [in, cm]:
2 11/16, 6.7
MOUNTING DIAMETER [in, cm]:
7, 17.7
MIN SEALED BOX VOL [cu. ft, L]:
0.2, 5.66
MAX SEALED BOX VOL [cu. ft, L]:
1.0, 28.32
MIN VENTED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX VENTED BOX VOL [cu. ft, L]:
1.2, 34
Kicker CompR Subwoofer Manual
8-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The 48CWR8 8" subwoofer is available in a 2Ω or 4Ω dual voice coil design, making it easy to get the most out of your amp.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion. KICKER developed Forced Air Cooling to helps their subs run 25% cooler.The Kicker 48CWR82 and 48CWR84 8" subs work best with a sealed or ported enclosure and 300 watts of recommended power.
Specifications
SIZE [in, cm]:
8, 20
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
SENSITIVITY [dB 1w/1m]:
82.1
MOUNTING DEPTH [in, cm]:
4-1/8, 10.5
MOUNTING DIAMETER [in, cm]:
7, 17.7
MIN SEALED BOX VOL [cu. ft, L]:
0.4, 11.3
MAX SEALED BOX VOL [cu. ft, L]:
1.0, 28.52
MIN VENTED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX VENTED BOX VOL [cu. ft, L]:
1.2, 34
Kicker CompR Subwoofer Manual
12-Inch 500-Watt Subwoofer Driver, 4-Ohm DVC
The 43CWR12 12" subwoofer by Kicker has an advanced suspension system that includes a ribbed polypropylene surround and a large-diameter spider for linear movement, and a distortion-free sound. Bigger magnets, a thicker cone and an improved suspension system help make this 12-Inch 500W CompR sub to be a workhorse of a driver.The Kicker 43CWR124 12" sub work best with a sealed or ported enclosure and 500 watts of recommended power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY [dB 1w/1m]:
86.9
MOUNTING DEPTH [in, cm]:
5 3/4, 14.6
MOUNTING DIAMETER [in, cm]:
11, 27.9
MIN SEALED BOX VOL [cu. ft, L]:
1.0, 28.3
MAX SEALED BOX VOL [cu. ft, L]:
2.0, 56.64
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker CompR Subwoofer Manual
100-Watt 6.5-Inch Coaxial Speakers, 4-Ohm
These CS series 6.5" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 and a 1/2" speakers work best with 100 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 1/2 [160]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
4 13/16 [123]
Top Mount Depth | in [mm]
3/8 [9]
Bottom Mount Depth | in [mm]
1 11/16 [43]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
10-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 10" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS104 and 44CWCD104 10-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power.
Specifications
Size (IN.,CM)
10, 25
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
500
Sensitivity (dB 1w/1m)
86.2
Frequency Response (Hz)
30-500
Mounting Depth (in, cm)
4 13/16, 12.2
Mounting Cutout (in, cm)
9 1/8, 23.1
Min Sealed Box Vol (cu. ft, L)
1.0, 28.3
Max Sealed Box Vol (cu. ft, L)
2.4, 68
Min Vented Box Vol (cu. ft, L)
1.25, 35.4
Max Vented Box Vol (cu. ft, L)
1.75, 49.6
Kicker CompC Subwoofer Manual
6.75-Inch 150-Watt Thin Subwoofer Driver, 1-Ohm or 2-Ohm DVC
The CompRT 6.75" thin subwoofer by Kicker is a weather resistant thin sub with a 1Ω or 2Ω dual voice coil design. This thin 6.75 inch sub magnet structure delivers 150W RMS of power with a chassis mounting depth of 2 3/4". The Kicker designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to keep this 6.75" CompRT thin subwoofer driver nice and cool.The CompRT 6.75-Inch subwoofer works best with a sealed or ported enclosure and 150 watts of recommended power.
Specifications
SIZE [in, cm]:
6 13/16, 17.3
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
150
Peak Power (watts, per ANSI/CTA-2031-A)
300
SENSITIVITY [dB 1w/1m]:
82.6
MOUNTING DEPTH [in, cm]:
2 3/4, 7
MOUNTING DIAMETER [in, cm]:
5 5/8, 14.3
MIN SEALED BOX VOL [cu. ft, L]:
0.18, 5.1
MAX SEALED BOX VOL [cu. ft, L]:
0.75, 21.24
Kicker CompRT Subwoofer Manual
150-Watt 6x9-Inch Coaxial Speakers, 4-Ohm
These CS series 6x9" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 150W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 by 9" speakers work best with 150 watts of recommended power.
Specifications
Speaker Design
3 - way
Woofer Size | in [mm]
6x9 [160x230]
Mid Size | in [mm]
2 [50]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
450
Continuous Power | Watts, RMS
150
Sensitivity [SPLo] | dB @ 1W, 1m
92
Effective Frequency Range | Hz
30-20k
Mounting Hole Diameter | in [mm]
5 5/8 x 8 7/16 [143x215]
Top Mount Depth | in [mm]
7/16 [12]
Bottom Mount Depth | in [mm]
3 3/16 [81]
Tweeter Protrusion | in [mm]
1/16 [1]
Grilles
Yes
Tweeter Magnet Material
Electric Crystal Motor
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual

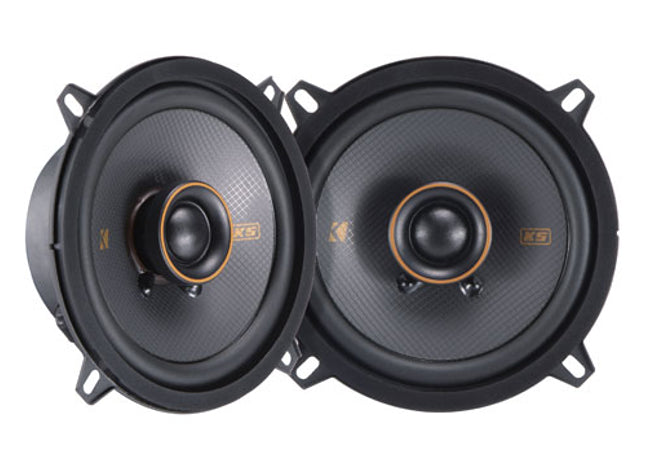

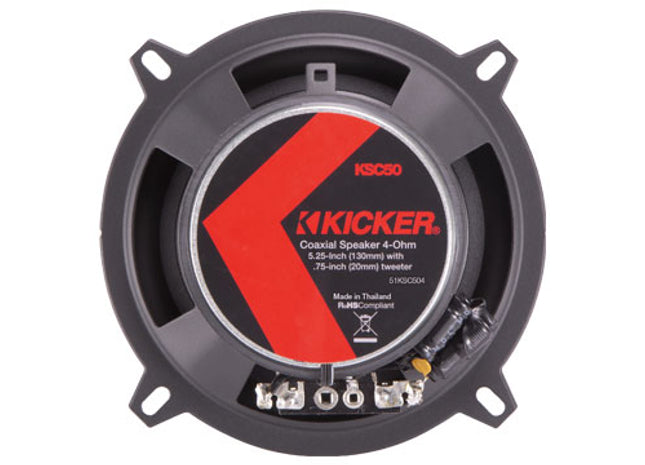

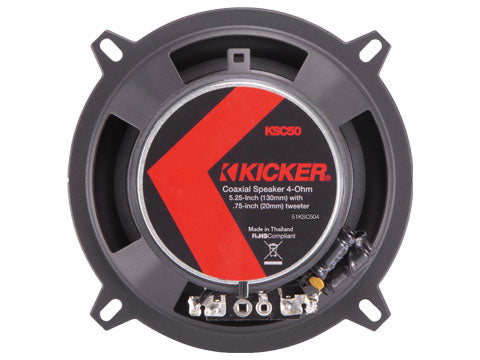

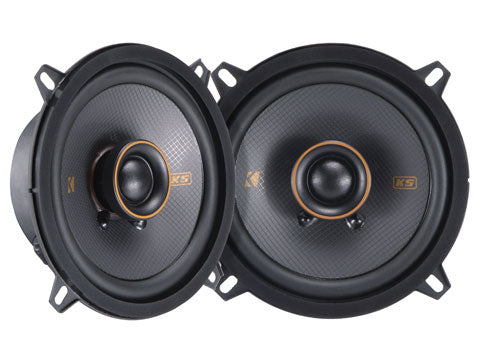

5-1/4-Inch Coaxial Speaker Drivers, 75-Watt RMS
KICKER KS-Series Speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and midbass, while high-quality silk-dome tweeters deliver natural, detailed highs.
With less than a 2-inch mounting depth and one millimeter of tweeter protrusion, the KSC50 is a perfect fit in almost every vehicle on the road today. They work best with 15 to 75 watts of recommended power. See below for more details.
High power handling
Silk-dome tweeters for a smooth sound
Polypropylene woofer and tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Specifications
Speaker Design
2-Way
Woofer [in, mm]
5-1/4, 130
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
45-21k
Mounting Hole Diameter [in, mm]
4-1/2, 115
Top Mount Depth [in, mm]
1-3/4, 45
Bottom Mount Depth [in,mm]
2, 52
Tweeter Protrusion [in,mm]
0, 1
Grilles
KSC5G
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
10-Inch 400-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The 48CWR10 10" subwoofer is available in a 2Ω or 4Ω dual voice coil design, making it easy to get the most out of your amp.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion. KICKER developed Forced Air Cooling to helps their subs run 25% cooler.The Kicker 48CWR102 and 48CWR104 12" subs work best with a sealed or ported enclosure and 400 watts of recommended power.
Specifications
SIZE [in, cm]:
10, 25
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
400
Peak Power (watts, per ANSI/CTA-2031-A)
800
SENSITIVITY [dB 1w/1m]:
84.6
MOUNTING DEPTH [in, cm]:
5-1/4, 13.3
MOUNTING DIAMETER [in, cm]:
9-1/8, 23.1
MIN SEALED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX SEALED BOX VOL [cu. ft, L]:
1.25, 35.4
MIN VENTED BOX VOL [cu. ft, L]:
1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
Kicker CompR Subwoofer Manual
12-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The 48CWR12 12" subwoofer is available in a 2Ω or 4Ω dual voice coil design, making it easy to get the most out of your amp.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion. KICKER developed Forced Air Cooling to helps their subs run 25% cooler.The Kicker 48CWR122 and 48CWR124 12" subs work best with a sealed or ported enclosure and 500 watts of recommended power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY [dB 1w/1m]:
86.9
MOUNTING DEPTH [in, cm]:
5 3/4, 14.6
MOUNTING DIAMETER [in, cm]:
11, 27.9
MIN SEALED BOX VOL [cu. ft, L]:
1.0, 28.3
MAX SEALED BOX VOL [cu. ft, L]:
2.0, 56.64
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker CompR Subwoofer Manual
8-Inch 300-Watt Thin Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompRT 8-inch subwoofer is an all-weather thin bass driver with a pair of 2-Ohm or 4-Ohm voice coils. With a mounting depth under three inches and plenty of power handling, this go-anywhere sub is as flexible as it is powerful. A UV-resistant cone and surround help make the CompRT sound great wherever the road (or trail) takes you.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. To make Kicker subs even more reliable, their engineers developed Forced-Air Cooling™ to help these thin subs run 20 percent cooler than before.
Kicker signature red double stitching makes an outstanding bond between the improved Santoprene surround and polypropylene woofer cone. Revolutionary SoloKon™ technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.
The CompRT 8-Inch 48CWRT82 and 48CWRT84 subwoofers work best with a sealed or ported enclosure and 300 watts of recommended power.
Specifications
SIZE [in, cm]:
8, 20
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
SENSITIVITY [dB 1w/1m]:
81.8
MOUNTING DEPTH [in, cm]:
2 11/16, 6.7
MOUNTING DIAMETER [in, cm]:
7, 17.7
MIN SEALED BOX VOL [cu. ft, L]:
0.2, 5.66
MAX SEALED BOX VOL [cu. ft, L]:
1.0, 28.32
MIN VENTED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX VENTED BOX VOL [cu. ft, L]:
1.2, 34
Kicker CompRT Subwoofer Manual
6x9-Inch 125-Watt Component or Coaxial Mountable Speaker System
Kicker KS-Series door-speakers let you play at concert-like volume while pleasing even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs.
These 6x9" Kicker speakers component system with separate tweeters, or convert them to a coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 125 watts of recommended power. See below for more details.
High power handling
Silk-dome tweeters for a smooth sound
Polypropylene woofer and tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Four tweeter mounting options
Articulating tweeter pod included
Smaller crossover makes mounting even easier
Grilles included
Specifications
Woofer [in, mm]
6x9, 160x230
Tweeter [in,mm]
1, 25
Dome Material
Silk
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-150
Sensitivity [1W, 1m]
92
Frequency Response [Hz]
35-21k
Woofer Mounting Hole Diameter [in, mm]
5-5⁄8x8-7⁄16, 143x215
Woofer Bottom Mount Depth [in, mm]
2-15⁄16, 75
Flush Mount Tweeter Hole Diameter [in,mm]
1-¾, 45
Flush Mount Tweeter Depth [in,mm]
11⁄16 , 17
High Pass [dB], at Frequency [Hz]
12, 4,000
Low Pass [dB], at Frequency [Hz]
none
High Frequency Output Attenuation [dB]
0, 4.5, 9
Kicker KS Series Component Speaker Manual
75-Watt Component Speakers Six-x-Eight" Drivers
The CS Series 6-x-8 inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality.
The Kicker CS Series six-by-eight" speakers work best with up to 75-watts of recommended power.
Specifications
Woofer Size | in [mm]
6x8 [160x200]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power | [watts]
225
Continuous Power | [watts RMS]
75
Effective Frequency Range | Hz
40-21k
Woofer Mounting Hole Diameter | in [mm]
5 x 7 3/16 [126x182]
Woofer Bottom Mount Depth | in [mm]
2 3/16 [56]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
No
Kicker CS Component Speaker Manual
100-Watt Component Speakers 6.75-Inch Drivers
The CS Series 6-3/4-inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality.
The Kicker CS Series 6-3/4" speakers work best with up to 100-watts of recommended power.
Specifications
Woofer Size | in [mm]
6 3/4 [165]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power | [watts]
300
Continuous Power | [watts RMS]
100
Effective Frequency Range | Hz
35-21k
Woofer Mounting Hole Diameter | in [mm]
5 1/2 [140]
Woofer Bottom Mount Depth | in [mm]
1 13/16 [47]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
Yes
Kicker CS Component Speaker Manual
100-Watt Component Speakers Six-1/2" Drivers
The CS Series 6-1/2-inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality.
The Kicker CS Series 6-1/2" speakers work best with up to 100-watts of recommended power.
Specifications
Woofer Size | in [mm]
6 1/2 [160]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power | [watts]
300
Continuous Power | [watts RMS]
100
Effective Frequency Range | Hz
35-21k
Woofer Mounting Hole Diameter | in [mm]
4 13/16 [123]
Woofer Bottom Mount Depth | in [mm]
1 11/16 [43]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
Yes
Kicker CS Component Speaker Manual
15-Inch 600-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 15" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS154 and 44CWCD154 15-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 600W RMS of amplified power.
Specifications
Size (IN.,CM)
15, 38
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
90.3
Frequency Response (Hz)
25-500
Mounting Depth (in, cm)
7, 17.7
Mounting Cutout (in, cm)
13 3/4, 35
Min Sealed Box Vol (cu. ft, L)
2.25, 63.7
Max Sealed Box Vol (cu. ft, L)
5.0, 141.6
Min Vented Box Vol (cu. ft, L)
3.0, 85
Max Vented Box Vol (cu. ft, L)
4.0, 113.3
Kicker CompC Subwoofer Manual
6 3/4-Inch 150-Watt RMS Loaded Dual Thin Subwoofer Enclosure, 2-Ohm Final Impedance
The CompRT Thin Profile 6-¾-Inch subwoofer enclosure comes loaded with a Reflex subwoofer and RT sub, then carpeted and loaded with a single 2Ω terminal.
Covered in sleek black carpeting and built with stout MDF construction & rounded corners, these tough enclosures take plenty of power, yet fit nearly anywhere.
The Kicker 43TCWRT672 enclosure works best with 150 watts of RMS power.
Specifications
Woofer [in, cm]
6-¾, 165
Recommended Amplifier Power (watts RMS)
150
Peak Power (watts, per ANSI/CTA-2031-A)
300
Rated Impedance [Ω]
2
Frequency Response [Hz]
35-500
BOX TOP DEPTH (in, cm):
3-5⁄16 , 8.5
BOX BOTTOM DEPTH (in, cm):
5-11⁄16 , 14.5
BOX HEIGHT (in, cm):
10, 25.4
BOX WIDTH (in, cm):
15-¼, 38.7
Kicker CompRT Subwoofer Enclosure Manual
Mono Amplifier, 300-Watts at 2-Ohm, 150-Watts at 4-Ohm
This CX-Series 1-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
This Kicker 46CXA4001t amplifier delivers as much as 400W into one bass channel at 1-Ohm.
Specifications
MODEL
CXA400.1
Power (watts/ch) 4 Ohm
150x1
Power (watts/ch) 2 Ohm
300x1
Power (watts/ch) 1 Ohm
400x1
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm): (all models 2 3/8, 5.9H x 6 3/4, 17W x ...L)
8 1/8, 20.6
Frequency Response (Hz):
25-200, +0/-1dB
Input Sensitivity:
250mV-10V (Low Level)1V-40V (High Level)
Signal-to-Noise Ratio:
>95dB, a-weighted, re: rated power
Active Crossover:
Variable Lo-pass 50Hz–200Hz, 12dB/octave
Subsonic Filter:
25Hz @24dB/octave
KickEQ™ Boost
Variable 0-6dB @40Hz
Kicker CXA Mono Amplifier Manual
150-Watt Component Speakers Six-x-Nine" Drivers
The CS Series 6-x-9 inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality.
The Kicker CS Series six-by-nine" speakers work best with up to 150-watts of recommended power.
Specifications
Woofer Size | in [mm]
6x9 [160x230]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power | [watts]
450
Continuous Power | [watts RMS]
150
Effective Frequency Range | Hz
30-21k
Woofer Mounting Hole Diameter | in [mm]
5 5/8 x 8 7/16 [143x215]
Woofer Bottom Mount Depth | in [mm]
3 3/16 [81]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
Yes
Kicker CS Component Speaker Manual
8-Inch Square 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The audiophile competition 8" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 8 inch 750W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 8 inch square sub nice and cool.
This 8" L7 square sub can handle up to 750W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
8, 20.32
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
450
Peak Power (watts, per ANSI/CTA-2031-A)
900
Sensitivity (dB 1w/1m)
83.6
Frequency Response (Hz)
28-100
Mounting Depth (IN.,CM)
4 3/4, 12.1
Mounting Cutout, Square (IN.,CM)
7 1/4, 18.4
Min Rec Sealed Box Volume (CU. FT., Liters)
.5, 14.16
Max Rec Sealed Box Volume (CU. FT., Liters)
.75, 21.24
Min Rec Vented Box Volume (CU. Ft., Liters)**
.66, 18.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.0, 28.3
Kicker Solo-Baric L7 Subwoofer Manual
8-Inch Thin Subwoofer Driver, 350-Watt RMS, 2-Ohm or 4-Ohm Dual-Voice-Coil
The Kicker Solo-Baric® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Uses a sealed or ported enclosure
Square sub design moves 20% more air than round subwoofers
Easily mounts under or behind a deat
Dual voice coil design
Ribbed santoprene surround resists heat And degrading
Bumped top plate for more excursion & smoother performance
SoloKon™ cone with 360-degree back bracing
UniPlate™ solid pole pPiece & backplate for excellent heat dissipation
Durable steel basket
Specifications
Size (IN.,CM)
8, 20
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
350
Peak Power (watts, per ANSI/CTA-2031-A)
700
Sensitivity (dB 1w/1m)
84.835
Frequency Response (Hz)
30-100
Mounting Depth (IN.,CM)
2-3/4, 7
Mounting Cutout, Square (IN.,CM)
7-3/8, 18.8
Min Rec Sealed Box Volume (CU. FT., Liters)
0.2, 5.66
Max Rec Sealed Box Volume (CU. FT., Liters)
.75, 21.2
Min Rec Vented Box Volume (CU. Ft., Liters)**
.8, 22.7
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.2, 34
Kicker L7T Subwoofer Manual
10-Inch 400-Watt Thin Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompRT 10-inch subwoofer is an all-weather thin bassb driver with a pair of 2-Ohm or 4-Ohm voice coils. With a mounting depth under four inches and plenty of power handling, this go-anywhere sub is as flexible as it is powerful. A UV-resistant cone and surround help make the CompRT sound great wherever the road (or trail) takes you.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. To make Kicker subs even more reliable, their engineers developed Forced-Air Cooling™ to help these thin subs run 20 percent cooler than before.
Kicker signature red double stitching makes an outstanding bond between the improved Santoprene surround and polypropylene woofer cone. Revolutionary SoloKon™ technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.The CompRT 10-Inch 48CWRT102 and 48CWRT104 subwoofers work best with a sealed or ported enclosure and 400 watts of recommended power.
Specifications
SIZE [in, cm]:
10, 25
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
400
Peak Power (watts, per ANSI/CTA-2031-A)
800
SENSITIVITY [dB 1w/1m]:
84.8
MOUNTING DEPTH [in, cm]:
3 7/16, 8.8
MOUNTING DIAMETER [in, cm]:
9 1/8, 23.1
MIN SEALED BOX VOL [cu. ft, L]:
0.4, 11.3
MAX SEALED BOX VOL [cu. ft, L]:
1.25, 35 .4
MIN VENTED BOX VOL [cu. ft, L]:
1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
10-Inch 500-Watt Square Subwoofer Driver, 2-Ohm or 4-Ohm DVC
This L7 series 10" square woofer by Kicker hosts a heavy-duty motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. On board the chassis of this 500W driver you will find dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, ribbed santoprene surround with blue stitching and a UniPlate™ back plate and pole piece, plus perimeter venting for thermal heat management.
The Kicker 45L7R102 and 45L7R104 square subwoofers are rated for 500W of RMS amplified power.
Specifications
SIZE [in, cm]:
10, 25
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY [dB 1w/1m]:
85.9
MOUNTING DEPTH [in, cm]:
6 1/8, 15.7
MOUNTING DIAMETER [in, cm]:
9 5/16, 23.7
MIN SEALED BOX VOL [cu. ft, L]:
.66, 18.7
MAX SEALED BOX VOL [cu. ft, L]:
1, 28.3
MIN VENTED BOX VOL [cu. ft, L]:
1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker L7R Subwoofer Manual
10-Inch 250-Watt Thin Subwoofer Enclosure, 2-Ohm Final Impedance
The CompC Thin Profile 10-Inch Subwoofer Enclosure includes a single 2 Ohm terminal.
Features:
Fits Perfectly Under Or Behind A Seat
Genuine CompC Subwoofer Reengineered for Increased Excursion and Deeper Bass
Sub Incorporates Forced-Air Cooling™ for Outstanding Durability
Custom Port Design
Made Of Heavy MDF
Spring Loaded Speaker Terminal
Thick Black Carpet Protects the Enclosure
Emblazoned KICKER Logo
This enclosure works best with 250 watts of recommended power. See below for more details.
Specifications
Subwoofer (in, cm)
10, 25
Impedance (Ohms)
2
Recommended Amplifier Power (watts RMS)
250
Peak Power (watts, per ANSI/CTA-2031-A)
500
Sensitivity (dB 1w/1m)
91
Box Top Depth (in, cm)
4 3/8, 11
Box Bottom Depth (in, cm)
7 7/8, 20
Box Height (in, cm)
15, 38.1
Box Width (in, cm)
21 1/2, 54.6
Kicker CompC Subwoofer Enclosure Manual
Kicker CX-Series Four-Channel Amplifier, 60-Watts x 4-Channel at 4-Ohm or 65-Watts x 4-Channel at 4-Ohm
This CX-Series 4-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
This Kicker 46CXA3604t amplifier delivers as much as 90W into 4 audio channels.
Specifications
MODEL
CXA360.4
Power (watts/ch) 4 Ohm Stereo
65W x 4ch
Power (watts/ch) 2 Ohm Stereo
90W x 4ch
Power (watts/ch) 4 Ohm Mono
180W x 2ch
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm)
(all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)12-1/2, 31.7
Frequency Response (Hz):
10Hz-20kHz
Input Sensitivity:
250mV-10V (Low Level)1V-40V (High Level)
Signal-to-Noise Ratio:
95dB
Active Crossover:
HI, LO or OFF; Variable 50–200Hz @ 12dB/Octave
Subsonic Filter:
n/a
KickEQ™ Boost
Variable 0-6dB @40Hz
Kicker 46CXA3604t Manual
12-Inch 500-Watt Thin Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompRT 12-inch subwoofer is an all-weather thin bassb driver with a pair of 2-Ohm or 4-Ohm voice coils. With a mounting depth under four inches and plenty of power handling, this go-anywhere sub is as flexible as it is powerful. A UV-resistant cone and surround help make the CompRT sound great wherever the road (or trail) takes you.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. To make Kicker subs even more reliable, their engineers developed Forced-Air Cooling™ to help these thin subs run 20 percent cooler than before.
Kicker signature red double stitching makes an outstanding bond between the improved Santoprene surround and polypropylene woofer cone. Revolutionary SoloKon™ technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.The CompRT 12-Inch 48CWRT122 and 48CWRT124 subwoofers work best with a sealed or ported enclosure and 500 watts of recommended power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY [dB 1w/1m]:
85.5
MOUNTING DEPTH [in, cm]:
3 3/4,9.6
MOUNTING DIAMETER [in, cm]:
11, 27.9
MIN SEALED BOX VOL [cu. ft, L]:
0.55, 15.57
MAX SEALED BOX VOL [cu. ft, L]:
2.0, 56.64
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker CompRT Subwoofer Manual
10-Inch Thin Subwoofer Driver, 500-Watt RMS, 2-Ohm or 4-Ohm Dual-Voice-Coil
The Kicker Solo-Baric® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Uses a sealed or ported enclosure
Square sub design moves 20% more air than round subwoofers
Easily mounts under or behind a deat
Dual voice coil design
Ribbed santoprene surround resists heat And degrading
Bumped top plate for more excursion & smoother performance
SoloKon™ cone with 360-degree back bracing
UniPlate™ solid pole pPiece & backplate for excellent heat dissipation
Durable steel basket
Specifications
Size (IN.,CM)
10, 25
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
Sensitivity (dB 1w/1m)
85.98
Frequency Response (Hz)
25-100
Mounting Depth (IN.,CM)
3-3/4, 9.5
Mounting Cutout, Square (IN.,CM)
9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters)
.4, 11.3
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 28.3
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Kicker L7T Subwoofer Manual
8-Inch 300-Watt Loaded Dual Thin Subwoofer Enclosure, 2-Ohm Final Impedance
The CompRT Thin Profile 8-Inch subwoofer enclosure comes loaded with a Reflex subwoofer and RT sub, then carpeted and loaded with a single 2Ω terminal.
Covered in sleek black carpeting and built with stout MDF construction & rounded corners, these tough enclosures take plenty of power, yet fit nearly anywhere.
The Kicker 43TCWRT82 enclosure works best with 300 watts of RMS power.
Specifications
TYPE:
thin-profile
NO. OF WOOFERS/SIZE (in, cm):
8, 20
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
SENSITIVITY (dB 1w/1m):
85.5
BOX TOP DEPTH (in, cm):
3 9/16, 9
BOX BOTTOM DEPTH (in, cm):
6 7/16, 16.4
BOX HEIGHT (in, cm):
11 13/16, 39
BOX WIDTH (in, cm):
19-5/16, 49
Kicker CompRT Subwoofer Enclosure Manual
12-Inch 600-Watt Square Subwoofer Driver, 2-Ohm or 4-Ohm DVC
This L7 series 12" square woofer by Kicker hosts a heavy-duty motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. On board the chassis of this 600W driver you will find dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, ribbed santoprene surround with blue stitching and a UniPlate™ back plate and pole piece, plus perimeter venting for thermal heat management.
The Kicker 45L7R122 and 45L7R124 square subwoofers are rated for 600W of RMS amplified power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
SENSITIVITY [dB 1w/1m]:
86.7
MOUNTING DEPTH [in, cm]:
6 7/8, 17.4
MOUNTING DIAMETER [in, cm]:
11 1/16, 28.1
MIN SEALED BOX VOL [cu. ft, L]:
.88, 24.92
MAX SEALED BOX VOL [cu. ft, L]:
2, 56.64
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
3.25, 92
Kicker L7R Subwoofer Manual
Dual 8-Inch Thin Subwoofer Enclosure, 300-Watt RMS, 2-Ohm
The Kicker CompRT series down-firing 8-inch subwoofer enclosure comes loaded with a passive reFLEX™ subwoofer and Kicker CompRT sub, then carpeted and loaded with a single 2Ω terminal.
Covered in stylish black carpeting and built with thick MDF, these tough enclosures take serious power without taking up needed space.
The TRTP 8-inch subwoofer enclosure works best with 300-watts of recommended power.
Specifications
TYPE:
thin-profile
WOOFER SIZE (in, cm):
8, 20
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
SENSITIVITY (dB 1w/1m):
85.5
BOX TOP DEPTH (in, cm):
12-1/4, 31
BOX BOTTOM DEPTH (in, cm):
12-1/4, 31
BOX HEIGHT (in, cm):
5-3/8, 13.8
BOX WIDTH (in, cm):
23-5/8, 60
Kicker TRTP Subwoofer Enclosure Manual
10-Inch Square 600-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The audiophile competition 10" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 10 inch 600W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 10 inch square sub nice and cool.
This 10" L7 square sub can handle up to 600W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
10, 25.4
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
86.8
Frequency Response (Hz)
24-100
Mounting Depth (IN.,CM)
6-1/4, 15.9
Mounting Cutout, Square (IN.,CM)
9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters)
1, 28.32
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)**
2.25, 63.8
Kicker Solo-Baric L7 Subwoofer Manual
