Description
12-Inch 500-Watt Subwoofer Driver, 4-Ohm DVC

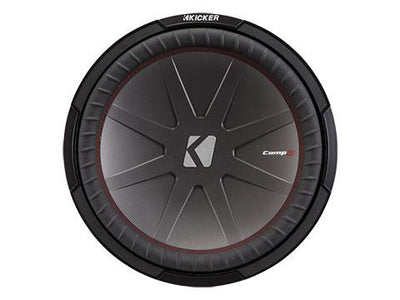

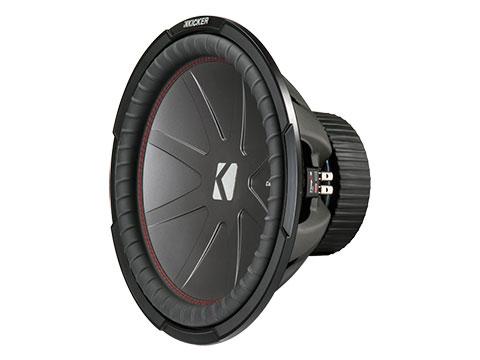

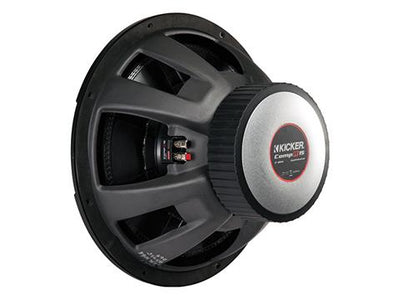

The 43CWR12 12" subwoofer by Kicker has an advanced suspension system that includes a ribbed polypropylene surround and a large-diameter spider for linear movement, and a distortion-free sound. Bigger magnets, a thicker cone and an improved suspension system help make this 12-Inch 500W CompR sub to be a workhorse of a driver.
The Kicker 43CWR124 12" sub work best with a sealed or ported enclosure and 500 watts of recommended power.
Specifications
-
| SIZE [in, cm]: |
12, 30 |
| IMPEDANCE [Ohms]: |
4 DVC |
| Recommended Amplifier Power (watts RMS) |
500 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
1000 |
| SENSITIVITY [dB 1w/1m]: |
86.9 |
| MOUNTING DEPTH [in, cm]: |
5 3/4, 14.6 |
| MOUNTING DIAMETER [in, cm]: |
11, 27.9 |
| MIN SEALED BOX VOL [cu. ft, L]: |
1.0, 28.3 |
| MAX SEALED BOX VOL [cu. ft, L]: |
2.0, 56.64 |
| MIN VENTED BOX VOL [cu. ft, L]: |
1.75, 49.6 |
| MAX VENTED BOX VOL [cu. ft, L]: |
2.25, 63.7 |
