Description
10-Inch 400-Watt Subwoofer Driver, 4-Ohm DVC.

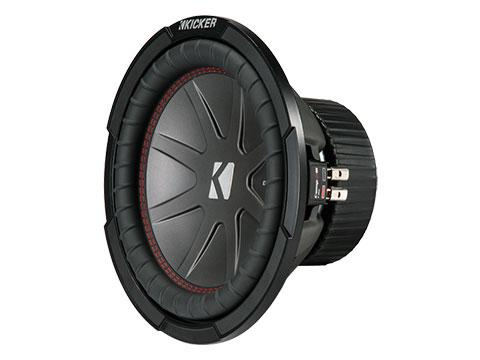

The 43CWR10 10" subwoofer by Kicker has an advanced suspension system that includes a ribbed polypropylene surround and a large-diameter spider for linear movement, and a distortion-free sound. Bigger magnets, a thicker cone and an improved suspension system help make this 10-Inch 400W CompR sub to be a workhorse of a driver.
The Kicker 43CWR104 12" sub work best with a sealed or ported enclosure and 400 watts of recommended power.
Specifications
-
SIZE [in, cm]:
|
10, 25
|
IMPEDANCE [Ohms]:
|
4 DVC
|
Recommended Amplifier Power (watts RMS)
|
400
|
Peak Power (watts, per ANSI/CTA-2031-A)
|
800
|
SENSITIVITY [dB 1w/1m]:
|
84.6
|
MOUNTING DEPTH [in, cm]:
|
5-1/4, 13.3
|
MOUNTING DIAMETER [in, cm]:
|
9-1/8, 23.1
|
MIN SEALED BOX VOL [cu. ft, L]:
|
0.8, 22.7
|
MAX SEALED BOX VOL [cu. ft, L]:
|
1.25, 35.4
|
MIN VENTED BOX VOL [cu. ft, L]:
|
1.25, 35.4
|
MAX VENTED BOX VOL [cu. ft, L]:
|
1.75, 49.6
|
