RBC-Series Remote Bass Control Knob for Select JL Amplifiers
The RBC-1 remotely controls the Bass Level of the following JL Audio amplifiers:
JD-Series: JD250/1, JD500/1, JD1000/1
JX-Series: JX250/1, JX250/1D, JX500/1, JX500/1D, JX1000/1D
HX-Series: HX300/1 in Low Pass Mode (Note: M-RBC-1 is also available)
MHX-Series: MHX300/1 in Low Pass Mode (Note: M-RBC-1 is also available)
MX-Series: MX300/1, MX500/1 in Low Pass Mode (Note: M-RBC-1 is also available)
RD-Series: RD500/1, RD1000/1, RD1500/1, RD900/5
When the RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The RBC-1 remotely controls the Bass Level of the following JL Audio subwoofer systems:
PowerWedge+: All ModelsMicroSub+: All Models
When the RBC-1 is connected to the above subwoofer systems, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers:
Slash v3 Series: 600/1v3, 1200/1v3
Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
Original Slash Series: 500/1, 1000/1, 450/4, 500/5
G-Series: All Models
A-Series: All Models
e-Series: All Models (including marine versions)
M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600
When the RBC-1 is connected to the above amplifiers, the on-board "Boost" control of the amplifier is defeated and the RBC-1 becomes the active controller.
The RBC-1 kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
JL Audio RBC-1 Manual
Remote Bass Control Knob for Select JL Audio Amplifiers
The HD-RLC remotely controls the Bass Level of the following JL Audio amplifiers:
HD-Series: All modelsXD-Series: All modelsMHD-Series: All modelsM-Series: All models
When the HD-RLC is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The HD-RLC kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
A satin-finish aluminum knob can be purchased separately.
JL Audio HD-RLC Manual
Water-Resistant Remote Bass-Knob for Select JL Audio Amplifiers
The MHD-RLC remotely controls the Bass Level of the following JL Audio amplifiers:
HD-Series: All models
XD-Series: All models
MHD-Series: All models
M-Series: All models
When the MHD-RLC is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The MHD-RLC kit includes the rotary control with a black ABS knob, mounting hardware and one 16.4 ft. (5 m) cable.
A satin-finish aluminum knob can be purchased separately.
Remote Bass Control Knob for Select JL Audio Amplifiers

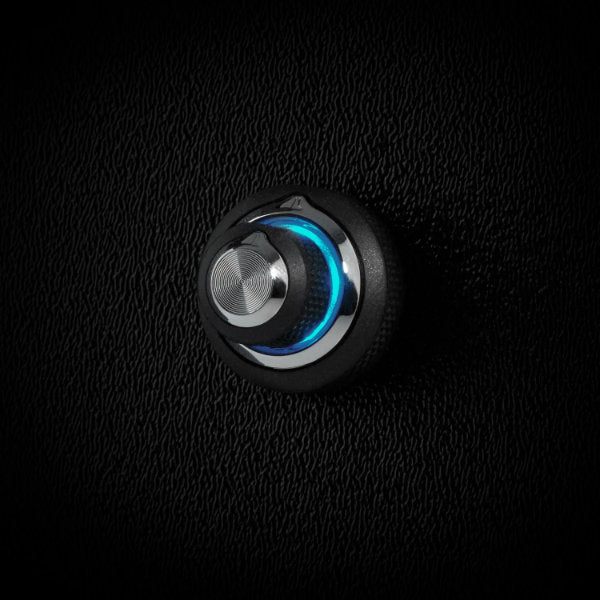

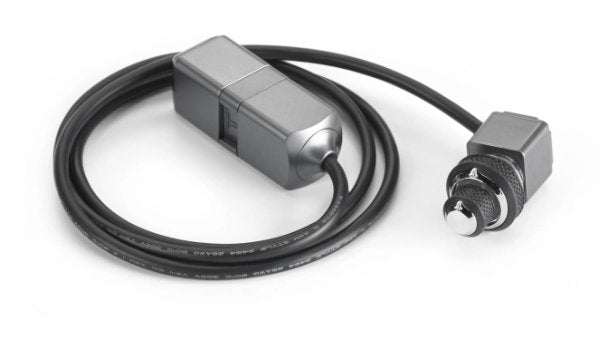

The DRC-205 is a panel-mount, wired digital remote controller designed to connect to the JLid port of compatible JL Audio electronics.
Functions:
Dual-concentric rotary controls with stops
Push-button mode selector
Status indicator (RGB LED)
Common uses include:
Master Volume
Subwoofer Volume
Preset or Mode Selection
The specific audio functionality of the DRC-205 controller will be determined by the device it is connected to.
The DRC-205 is compatible with the following JL Audio products:
FiX® OEM Integration DSP: All modelsTwK® System Tuning DSP: All modelsVXi-Series Amplifiers: All models
JL Audio DRC-205 Manual
