C1-Series 0.75-Inch Aluminum Dome 60-Watt Tweeters C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 0.75-inch aluminum domes with silk suspensions, the C1-075ct component tweeters provide smooth, detailed reproduction of treble frequencies from 4 – 24 kHz. The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability. When it comes to value, C1 is the real deal! Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included. General Specifications Continuous Power Handling (RMS) 50 W Peak Music Power* 150 W Recommended Amplifier Power (RMS) 20 - 50 W / Ch. System Efficiency 91.0 dB @ 1 W / 1 m System Nominal Impedance 6 Ω System Frequency Response 4 kHz - 24 KHz ± 3 dB JL Audio C1-075ct Manual

Read more less

C1-Series 1-Inch Aluminum Dome 60-Watt Tweeters C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 1.0-inch aluminum domes with silk suspensions, the C1-100ct component tweeters provide smooth, detailed reproduction of treble frequencies from 3.6 – 22 kHz. The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability. When it comes to value, C1 is the real deal! Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included. General Specifications Continuous Power Handling (RMS) 60 W Peak Music Power* 150 W Recommended Amplifier Power (RMS) 20 - 60 W / Ch. System Efficiency 91.5 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 3.6 kHz - 22 KHz ± 3 dB JL Audio C1-100ct Manual

Read more less

C2-Series 0.75-Inch 60-Watt Silk Dome Tweeters The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance. The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C2-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave. Sonic character: Clean and Powerful Sold as a pair. General Specifications Continuous Power Handling (RMS) 60 W Peak Music Power* 150 W Recommended Amplifier Power (RMS) 25 - 100 W / Ch. System Efficiency 91.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 4 kHz - 22 KHz ± 3 dB JL Audio C2-075ct Manual

Read more less

C3-Series 1-Inch 75-Watt Silk Dome Tweeters The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance. The C3 component tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be installed coaxially onto the C3 woofers using the fixtures included with the C3 Component / Coaxial Systems. Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C3-100ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave. Sonic character: Clean and Powerful Sold as a pair. General Specifications Continuous Power Handling (RMS) 75 W Peak Music Power* 225 W Recommended Amplifier Power (RMS) 25 - 150 W / Ch. System Efficiency 90.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 4 kHz - 25 KHz ± 3 dB JL Audio C3-650 Manual

Read more less

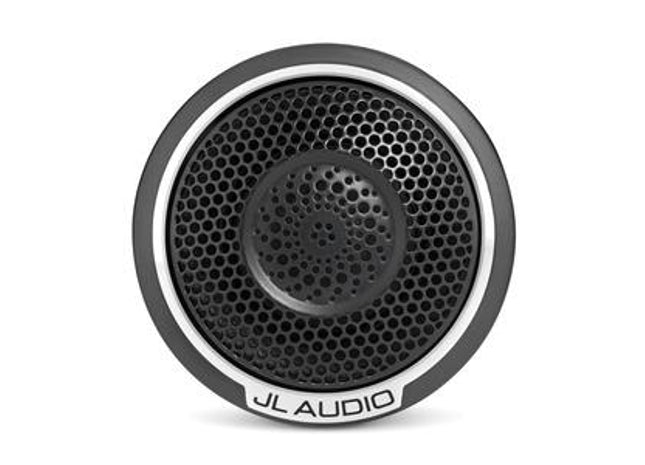

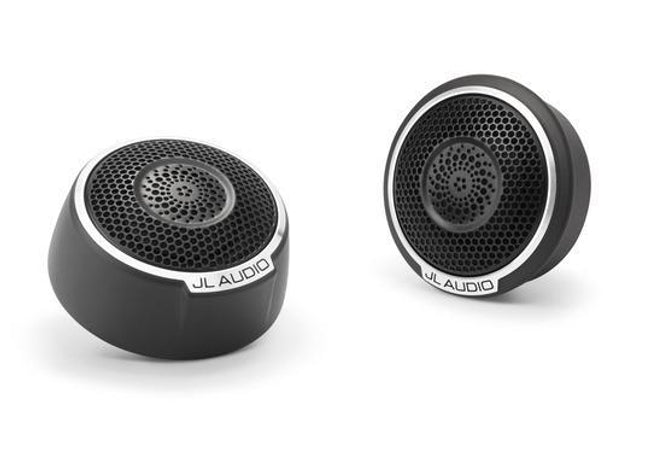

C7-Series 1-Inch 100-Watt Aluminum Dome Component Tweeter C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from their most advanced development tools and a complete commitment to precision manufacturing. The C7-100ct component tweeter is designed to deliver unparalleled high-frequency performance. Utilizing a corundum ceramic-coated aluminum alloy diaphragm suspended via a treated silk, s-roll surround, it provides spectacularly detailed reproduction of treble frequencies with outstanding off-axis response. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors. Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, and a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance. C7-100ct Design Notes:Dome Diaphragm: Corundum ceramic coated aluminum alloy diaphragm exhibits high stiffness, very low mass and excellent environmental stability. It also helps the tweeter dome to hold its shape and operate as a true piston at higher frequencies, without a penalty in moving mass. Suspension Design: The diaphragm's motion is centered, sprung and damped by a treated silk, s-roll surround. Ferrofluid in the magnetic gap acts as a rear suspension element in this design. The two combine to provide optimum damping without unduly restricting excursion. Motor Design: The C7-100ct employs a high-density magnetic circuit with a neodymium magnet and U-Yoke motor topology. An under-hung voice coil is employed, wound with copper-clad aluminum wire onto an aluminum voice coil former. Motor magnetics have been precisely optimized utilizing advanced FEA tools to lower even order distortion and IMD/AMD. Acoustical Design: The shape of the tweeter housing is designed to boost sensitivity in a very specific bandwidth, helping to flatten the frequency response. It also provides improved control of directivity. Design Bandwidth:With 48 dB/octave filters: 3,000 Hz - 30,000 HzWith 24 dB/octave filters: 4,000 Hz - 30,000 HzWith 12 dB/octave filters: 5,000 Hz - 30,000 Hz Sold individually, with flush and surface mounting fixtures and hardware. One 15μF tweeter protection capacitor is also included. The performance of every C7 driver is tested and verified, then assigned a unique serial number. Register your C7 loudspeaker online to receive a copy of its specific Acoustical Test Report. General Specifications Continuous Power Handling (RMS) 100 W Peak Music Power 200 W Recommended Amplifier Power (RMS) 50 - 150 W / Ch. Nominal Impedance 4 Ω Frequency Response 3 kHz - 30 KHz ± 3 dB JL Audio C7-100ct Manual
