Description
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.

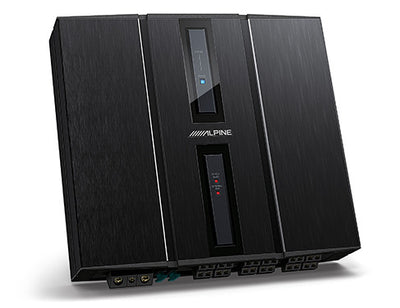

Building a sound system while overcoming acoustical challenges in the interior environment of the vehicle is no easy feat, however, the HDP-D90 14-Channel Hi-Res Digital Sound Processor Amplifier provides flexible system building and Hi-Res processing power up to 192kHz/24 Bit for an infallible listening experience.
Custom developed for Hi-Res Playback, the HDP-D90 has a 192kHz/64Bit internal sampling rate and an ultra-wide audio bandwidth of 10Hz-110kHz for recording studio-level sound. Intentional designs, like a copper-plated chassis, bring the signal-to-noise ratio up to >110dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.
The HDP-D90 includes multiple source inputs for flexible system building for the option to retain a factory head unit, add an aftermarket head unit, or the Alpine Status HDS-990 Digital Media Controller. For older vehicles with no source player, the HDP-D90 can also function as a standalone music source and can receive music sent directly from a smartphone with Bluetooth® wireless streaming.
When paired with the Hi-Res HDS-990 Digital Media Player, you unlock even more control options for your processor while getting the highest-quality playback possible in your vehicle.
With 12-channels of amplifier outputs, the HDP-D90 can be used as a standalone source to power a 2-Way Speaker System, or for a more dynamic listening experience, includes 10- channels of RCA output for adding additional amplifiers to power a 3-way speaker system.
The Alpine Status System is sold separately and can be used to build a custom sound system. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
- High-Performance 14-Channel Digital Sound Processor Amplifier
- Hi-Res Audio Playback (192kHz/24Bit)
- PC Tuning Application
- Selectable pre-configured sound system configurations
- Embedded RTA signals for sound tuning
- Bluetooth® audio streaming with included external module
- Optional Controller
Specifications
- Hi-Res Audio Playback (192kHz/24Bit)
- 14-Channel Inputs (All DSP control)

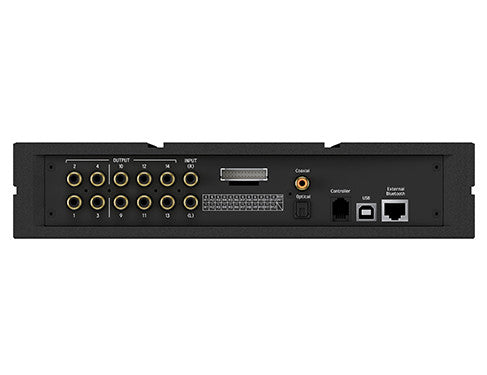

- Inputs: 12-Channel Hi-level/2-Channel RCA/Optical (SPDIF)/Coaxial (Digital)

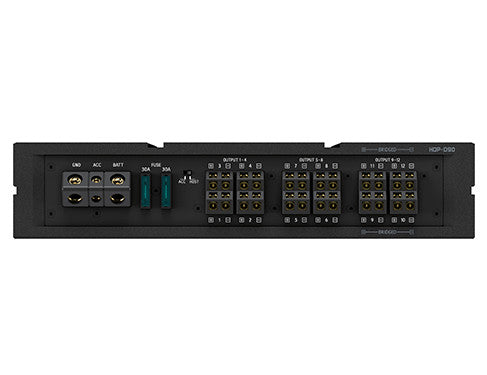

- Outputs: 10-Channel RCA output/ 12-Channel High-Level amplified outputs (50W x 8 @ 4ohm + 80W x 4 @4ohm)
- 31 Band Parametric or Graphic EQ
- Channel mixing by Matrix Input Summing
- Sampling Rate = Internal: 192kHz/32Bit
- S/N: >110dB, THD: <0.001%
- Hi pass/low pass crossover per channel
- Time correction: up to7mm delay per channel
- Sigma DSP (ADAU1467x2)
