Description
300-Watt Door-Speaker and Add-On Subwoofer Kit for Select 2018-2023 Jeep Wrangler, Gladiator Vehicles
Complete Sound System Upgrade Package for the four-door, non-amplified 2018-23 Jeep Wrangler and non-amplified 2020-2023 Jeep Gladiator. Also compatible with two-door, non-scissor front seats in 2019-2023 Jeep Wrangler

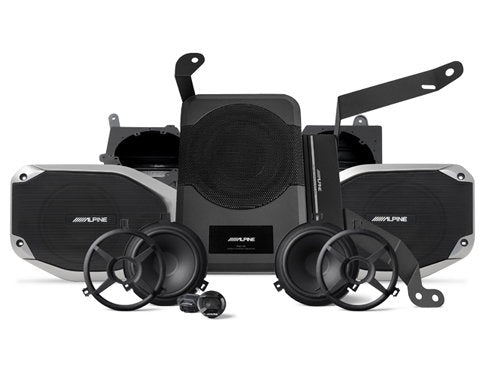

Go beyond your wildest expectations for sound with this complete sound upgrade package. The PSS-24WRA has 5-channels of powered sound that replaces your factory system. The package includes two sets of 6.5” weather-resistant mid-bas drivers and 1” weather-resist tweeters that replace the front and rear soundbar factory speakers, an 8” powered, compact subwoofer and a 4-channel power pack amplifier.
Specifications
- Complete, five-channel powered sound system upgrade package
- Compatible with four-door, non-amplified 2018-23 Jeep® Wrangler and non-amplified 2020-23 Jeep® Gladiator (not compatible with OEM Alpine amplified system)
-
Compatible with two-door, non-scissor front seats in 2019-23 Jeep® Wrangler
- Includes Alpine’s SPV-65X-WRA, SPV-65-JLT, PWE-S8, and KTP-445U
- 180W, 4-channel Power Pack amplifier
- 120W, 8” powered subwoofer
- (2x) 6.5” weather-resistant mid-bass drivers
- (2x) 1” weather-resistant teteron dome tweeters with vehicle-specific connectors and crossovers
- Vehicle-specific front speaker pods with vehicle-specific connectors
- Tweeter adapter plates allow for the use of the original factory tweeter locations
- SPV-65-JLT weather-resistant rear soundbar speaker system
- Rugged, premium grills designed to emulate the factory look and appeal
- Vehicle-specific connectors for plug-and-play speaker installation
- Utilizes factory bolt locations
- Durable stamped, steel frame speaker basket design
- Includes template for mounting
- Vehicle-specific T-harness for installation with OEM radio into compatible 2018-23 Jeep® Wrangler and 2020-23 Jeep® Gladiator vehicles
- Vehicle-specific mounting brackets allow for the powered sub and amp to be secured under the passenger seat without drilling
What's in the Box:
- KTP-445U Universal 4-Channel Power Amplifier
- PWE-S8 8" Compact Powered Subwoofer
- SPV-65X-WRA Front Component Speakers
- SPV-65-JLT Rear Sound Bar Speakers
- ALP-POD-JLT Front Speaker Pod
- PSU-BKT-JL-R PWE Right Bracket JL
- PSU-BKT-JL-L PWE Left Bracket JL
- ALP-HRN-PSU300 PSU Power Harness
- ALP-THRN-CH2 Chrysler T-Harness
- CT6 6" Cable Ties
- PHPSM412 Pan Head Phillips Screw M4x12
- SLWM4 M4 Split Lock Washers
- PHSCR832 8-32 Pan Head Phillips screws
- PSS-WRA-IM Installation Manual
Specifications
-
Front (SPV-65X-WRA)
- Power handling: 75 watts RMS (225 watts peak)
- Frequency response: 65kHz – 22kHz
- Nominal impedance: 4 ohms
- Weather-resistant: IP55
-
Rear (SPV-65-JLT)
- Power handling: 90 watts RMS (270 watts peak)
- Frequency response: 50kHz – 22kHz
- Nominal impedance: 4 ohms
- Weather-resistant: IP55
-
Powered Subwoofer (PWE-S8)
- 120 watts RMS (240 watts peak)
- Frequency response: 32 - 150Hz
- Variable low-pass crossover (80-200 Hz)
- Variable phase control (0-180 degrees)
- preamp- and speaker-level inputs
-
Four Channel Power Pack Amplifier (KTP-445U)
- 45 watts RMS x 4 at 4 or 2 ohms
- 90 watts RMS x 2 bridged at 4 ohms
- Selectable high-pass filters (60, 80, or 120 Hz at 12 dB/octave)
- Switchable RCA or speaker-level inputs|
-
Dimensions:
- 27” L x 18.5” W x 19.5” H
- 40lbs
-
Direct fit for non-amplified 2018–Up 4-door Jeep Wrangler JL Unlimited
- Direct fit for non-amplified 2019–Up 2-door Jeep Wrangler
- Direct fit for non-amplified 2020–Up Jeep Gladiator JT
