Description
JL Audio TW3-Series 10-Inch 400-Watt Automotive Subwoofer Driver, 4Ω or 8Ω DVC
The 10" TW3 thin subwoofer driver by JL Audio delivers a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than JL's W3v3 subwoofers!

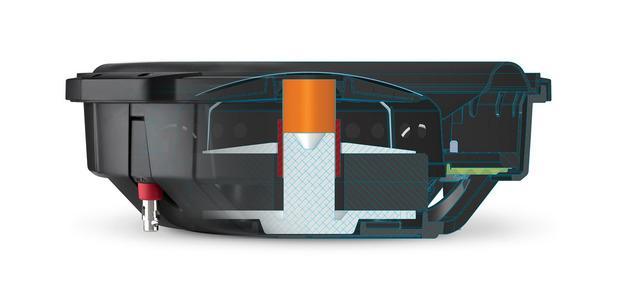

JL Audio’s patented thin-line woofer technology compresses the architecture of the 10TW3 using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional 10-Inch thin subwoofer designs.
The 10TW3-D4 and 10TW3-D8 subwoofers are optimized for small enclosures and offer JL's tab-ear mounting design to maximize cone area within their mounting footprints.
- Very shallow mounting depth (3.25 / 3.50 Inches)
- No pole vent: permits mounting close to rear wall of enclosure.
- Very small sealed enclosure volume requirements
- Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
- DMA-optimized motor designs
- “concentric tube” architecture
- Patented “floating cone attach method” technology
- Cast alloy frame
- Injection molded, mica-filled polypropylene cone
- Rubber surround
- Aluminum-alloy dust cap and rear cap with JL Audio logo
- Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
| Continuous Power Handling | 400W RMS |
| Recommended Amplifier Power | 200W - 400W RMS |
| Nominal Impedance |
Dual 4Ω/8Ω |
Physical Specifications
| Nominal Diameter | 10 in / 250 mm |
| Overall Diameter (A) | A1: 11.2 in / 284 mm A2: 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 9.625 in / 244 mm |
| Bolt Hole Circle Diameter (C) | 10.5 in / 267 mm |
| Motor Outer Diameter (D) | 5.1 in / 130 mm |
| Mounting Depth (E) | 3.25 in / 83 mm |
| Driver Displacement | 0.019 cu ft / 0.54 L |
| Net Weight | 10.1 lb / 4.6 kg |
Parameters
| Free Air Resonance (Fs) | 32.30 Hz |
| Electrical “Q” (Qes) | 0.656 |
| Mechanical “Q” (Qms) | 11.35 |
| Total Speaker “Q” (Qts) | 0.62 |
| Equivalent Compliance (Vas) | 0.700 cu ft / 19.82 L |
| One-Way Linear Excursion (Xmax)* | 0.6 in / 15.2 mm |
| Reference Efficiency (no) | 0.23% |
| Efficiency (1 W / 1 m)** | 82.10 dB SPL |
| Effective Piston Area (Sd) | 56.532 sq in / 0.0365 sq m |
| DC Resistance (Re)*** | 9.036 Ω |
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.
