C2-Series 6-Inch 60-Watt Component Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.
The C2-600 system features 6-inch (150 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

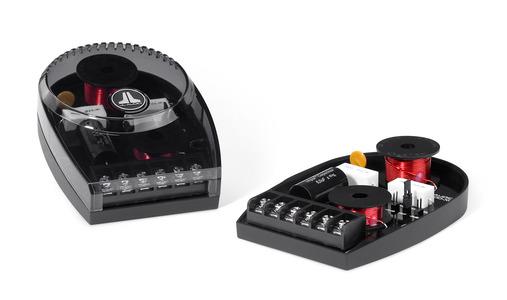

C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
|Continuous Power Handling (RMS)||60 W|
|Peak Music Power||225 W|
|Recommended Amplifier Power (RMS)||15 - 100 W / Ch.|
|System Efficiency||90.5 dB @ 1 W / 1 m|
|System Nominal Impedance||4 Ω|
|System Frequency Response||59 Hz - 22 KHz ± 3 dB|
|Frame Outer Diameter* (A)||6.21 in / 158 mm|
|Grille Tray Outer Diameter (B)||6.51 in / 163 mm|
|Motor Outer Diameter (C)||3.15 in / 80 mm|
|Frontal Coaxial Tweeter Protrusion (D)||N/A|
|Frontal Grille Protrusion** (E)||0.91 in / 23 mm|
|Mounting Hole Diameter (F)||5.00 in / 127 mm|
|Mounting Depth (G)||2.38 in / 60 mm|
|Flush Mount Fixture Diameter (A1)||1.87 in / 48 mm|
|Surface Mount Fixture Diameter (A2)||1.69 in / 43 mm|
|Flush Mount Mounting Hole Diameter (B)||1.625 in / 41 mm|
|Flush Mount Mounting Depth (C)||0.76 in / 19 mm|
|Flush Mount Tweeter Frontal Protrusion (D1)||0.29 in / 7 mm|
|Surface Mount Tweeter Frontal Protrusion (D2)||0.92 in / 23 mm|
|Width (W)||3.36 in / 85 mm|
|Depth (H)||1.44 in / 37 mm|
|Depth (D)||4.72 in / 120 mm|
