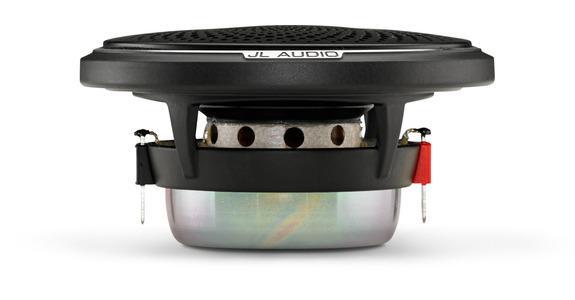

Driver Depth 2.5-2.75"

C2-Series 5.25-Inch 60-Watt Component Speaker System The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs. The C2-525 system features 5.25-inch (130 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector. Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo. Sonic character: Clean and Dynamic Sold as a pair. General Specifications Continuous Power Handling (RMS) 60 W Peak Music Power 225 W Recommended Amplifier Power (RMS) 15 - 100 W / Ch. System Efficiency 89.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 63 Hz - 22 KHz ± 3 dB JL Audio C2-525 Manual

Read more less

C3-Series 5x7" 75-Watt Convertible Component Speaker System There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems. The C3-570 system features 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures. C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations! Woofer grilles are not available for this product. Sonic character: Clean and Powerful Sold as a pair. General Specifications Continuous Power Handling (RMS) 75 W Peak Music Power 225 W Recommended Amplifier Power (RMS) 25 - 150 W / Ch. System Efficiency 90.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 48 Hz - 25 KHz ± 3 dB JL Audio C3-570 Manual

Read more less

C3-Series 6.5-Inch 75-Watt Convertible Component Speaker System There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures. C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations! Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo. Sonic character: Clean and Powerful Sold as a pair. General Specifications Continuous Power Handling (RMS) 75 W Peak Music Power 225 W Recommended Amplifier Power (RMS) 25 - 150 W / Ch. System Efficiency 90.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 48 Hz - 25 KHz ± 3 dB JL Audio C3-650 Manual

Read more less

C6-Series 6.5-Inch 100-Watt Component Audiophile Speaker System Pairing a full-frame 6.5-inch woofer with a 1-inch silk dome tweeter, the C6 series offers advanced sound technology for an exceptional car audio listening experience. When purchased as a component system, premium passive crossover networks are included with the speakers. Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality. The woofer’s center cap is designed to optimize its high-frequency response for seamless tweeter transition. An edge-driven pure silk dome tweeter design, when paired with the C6 woofer, produces sparkling detail with excellent off-axis response and damping for balanced coverage in your listening environment. An automatic, solid-state tweeter protection circuit minimizes the possibility of tweeter failure. Included with each C6 component system, these premium filter networks offer 4 levels of tweeter adjustment. The three-way component system includes an additional 4 levels of midrange adjustment. All incorporate polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective polycarbonate cover. Benefiting from years of woofer design experience, the robust JL Audio 6.5-inch C6 component speakers feature purpose-engineered cast-alloy frames outfitted with our Elevated Frame Cooling technology. On a wide range of car audio applications, the C6 speaker system delivers superb sound when powered by an amplifier in the 25- to 150-watt range. The woofer’s oversized voice coil offers extended power handling capability while minimizing thermal compression and distortion at higher volume levels. Speakers are sold as a pair. General Specifications SIZES 6.5" CONTINUOUS POWER HANDLING (RMS) 100 W SENSITIVITY (SPL @ 1 W/1 M) 2.75": 83.50 dB6.5": 87.37 dB SENSITIVITY (SPL @ 1 W/0.5 M) 1": 96 dB SENSITIVITY (SPL @ 2.83 V/1 M) 2.75": 86.50 dB6.5": 90.33 dB FREQUENCY RESPONSE (+/- 3 DB) 53 Hz-21 KHz NOMINAL IMPEDANCE 4 Ω RECOMMENDED AMPLIFIER POWER (RMS) 25-150 W/Channel VOICE COIL DIAMETER 2.75": 0.8" (20.5 mm)6.5": 1.27" (32 mm) CONE MATERIAL Vacuum-formed, mineral-filled polypropylene TWEETER TYPE Silk Dome TWEETER SIZE 1" (25 mm) GRILLE(S) INCLUDED Yes WARRANTY 1 year Mounting Depth FRAME OUTER DIAMETER 2.75": 2.52" (77 mm)6.5": 6.5" (165 mm) MOUNTING DEPTH CLEARANCE 2.75": 1.42" (36 mm)6.5": 2.60" (66 mm) FRONTAL GRILLE PROTRUSION 2.75": 0.47" (12 mm)6.5": 1" (25 mm) MOUNTING HOLE 2.75": 2.52" (64 mm)6.5": 5.46" (139 mm) GRILLE TRAY OUTER DIAMETER 2.75": 3.58" (91 mm)6.5": 6.76" (172 mm) BOLT HOLE CIRCLE 2.75": 3.03" (77 mm)6.5": 6.12" (156 mm) MOTOR OUTER DIAMETER 2.75": 2.75" (69 mm)6.5": 3.54" (90 mm) Specifications FREE AIR RESONANCE (FS) 1": 1500 Hz2.75": 185 Hz6.5": 52.8Hz ELECTRICAL “Q” (QES) 2.75": 0.7696.5": 0.647 MECHANICAL “Q” (QMS) 2.75": 7.8486.5": 5.076 TOTAL “Q” (QTS) 2.75": 0.7006.5": 0.574 EQUIVALENT COMPLIANCE (VAS) 2.75": 0.0353 cu ft (0.125 L)6.5": 0.532 cu ft (15.069 L) ONE-WAY LINEAR EXCURSION (XMAX; SPECS ARE DERIVED VIA ONE-WAY VOICE COIL OVERHANG METHOD WITH NO CORRECTION FACTORS APPLIED) 2.75": 0.059" (1.50 mm)6.5": 0.148" (3.75 mm) REFERENCE EFFICIENCY (NO) 2.75": 0.1414%6.5": 0.344% MOVING MASS (MMS) 2.75": 4.65 g6.5": 16.42 g MECHANICAL COMPLIANCE (CMS) 2.75": 0.00031 m/N6.5": 0.000581 m/N MAGNETIC STRENGTH (BL) 2.75": 5.03 N/A6.5": 5.186 N/A EFFECTIVE PISTON AREA (SD) 2.75": 3.66 in² (0.00236 m²)6.5": 21.4 in² (0.013807 m²) DC RESISTANCE (RE) 1"/6.5": 3.20 Ω2.75": 3.58 Ω JL Audio C6-650 Manual

Read more less

C6-Series 6.5-Inch 100-Watt 3-Way Component Audiophile Speaker System Pairing a full-frame 6.5-inch woofer with a 1-inch silk dome tweeter, the C6 series offers advanced sound technology for an exceptional car audio listening experience. When purchased as a component system, premium passive crossover networks are included with the speakers. Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality. The woofer’s center cap is designed to optimize its high-frequency response for seamless tweeter transition. An edge-driven pure silk dome tweeter design, when paired with the C6 woofer, produces sparkling detail with excellent off-axis response and damping for balanced coverage in your listening environment. An automatic, solid-state tweeter protection circuit minimizes the possibility of tweeter failure. Included with each C6 component system, these premium filter networks offer 4 levels of tweeter adjustment. The three-way component system includes an additional 4 levels of midrange adjustment. All incorporate polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective polycarbonate cover. Benefiting from years of woofer design experience, the robust JL Audio 6.5-inch C6 component speakers feature purpose-engineered cast-alloy frames outfitted with our Elevated Frame Cooling technology. On a wide range of car audio applications, the C6 speaker system delivers superb sound when powered by an amplifier in the 25- to 150-watt range. The woofer’s oversized voice coil offers extended power handling capability while minimizing thermal compression and distortion at higher volume levels. Speakers are sold as a pair. General Specifications SIZES 6.5" CONTINUOUS POWER HANDLING (RMS) 100 W SENSITIVITY (SPL @ 1 W/1 M) 2.75": 83.50 dB6.5": 87.37 dB SENSITIVITY (SPL @ 1 W/0.5 M) 1": 96 dB SENSITIVITY (SPL @ 2.83 V/1 M) 2.75": 86.50 dB6.5": 90.33 dB FREQUENCY RESPONSE (+/- 3 DB) 53 Hz-21 KHz NOMINAL IMPEDANCE 4 Ω RECOMMENDED AMPLIFIER POWER (RMS) 25-150 W/Channel VOICE COIL DIAMETER 2.75": 0.8" (20.5 mm)6.5": 1.27" (32 mm) CONE MATERIAL Vacuum-formed, mineral-filled polypropylene TWEETER TYPE Silk Dome TWEETER SIZE 1" (25 mm) GRILLE(S) INCLUDED WARRANTY 1 year Mounting Dimensions FRAME OUTER DIAMETER 2.75": 2.52" (77 mm)6.5": 6.5" (165 mm) MOUNTING DEPTH CLEARANCE 2.75": 1.42" (36 mm)6.5": 2.60" (66 mm) FRONTAL GRILLE PROTRUSION 2.75": 0.47" (12 mm)6.5": 1" (25 mm) MOUNTING HOLE 2.75": 2.52" (64 mm)6.5": 5.46" (139 mm) GRILLE TRAY OUTER DIAMETER 2.75": 3.58" (91 mm)6.5": 6.76" (172 mm) BOLT HOLE CIRCLE 2.75": 3.03" (77 mm)6.5": 6.12" (156 mm) MOTOR OUTER DIAMETER 2.75": 2.75" (69 mm)6.5": 3.54" (90 mm) Specifications FREE AIR RESONANCE (FS) 1": 1500 Hz2.75": 185 Hz6.5": 52.8Hz ELECTRICAL “Q” (QES) 2.75": 0.7696.5": 0.647 MECHANICAL “Q” (QMS) 2.75": 7.8486.5": 5.076 TOTAL “Q” (QTS) 2.75": 0.7006.5": 0.574 EQUIVALENT COMPLIANCE (VAS) 2.75": 0.0353 cu ft (0.125 L)6.5": 0.532 cu ft (15.069 L) ONE-WAY LINEAR EXCURSION (XMAX; SPECS ARE DERIVED VIA ONE-WAY VOICE COIL OVERHANG METHOD WITH NO CORRECTION FACTORS APPLIED) 2.75": 0.059" (1.50 mm)6.5": 0.148" (3.75 mm) REFERENCE EFFICIENCY (NO) 2.75": 0.1414%6.5": 0.344% MOVING MASS (MMS) 2.75": 4.65 g6.5": 16.42 g MECHANICAL COMPLIANCE (CMS) 2.75": 0.00031 m/N6.5": 0.000581 m/N MAGNETIC STRENGTH (BL) 2.75": 5.03 N/A6.5": 5.186 N/A EFFECTIVE PISTON AREA (SD) 2.75": 3.66 in² (0.00236 m²)6.5": 21.4 in² (0.013807 m²) DC RESISTANCE (RE) 1"/6.5": 3.20 Ω2.75": 3.58 Ω

Read more less
