C3-Series 6.5-Inch 75-Watt Convertible Component Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

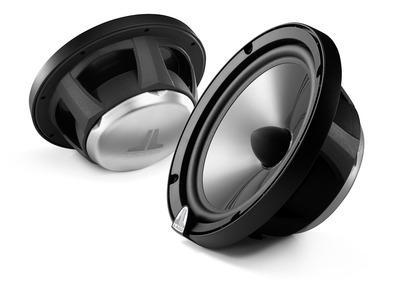

The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

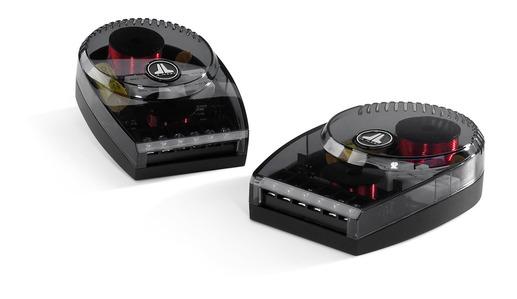

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

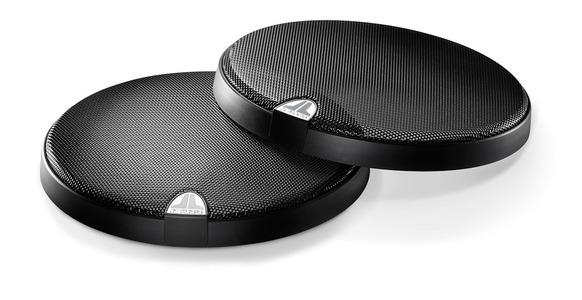

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
|Continuous Power Handling (RMS)||75 W|
|Peak Music Power||225 W|
|Recommended Amplifier Power (RMS)||25 - 150 W / Ch.|
|System Efficiency||90.0 dB @ 1 W / 1 m|
|System Nominal Impedance||4 Ω|
|System Frequency Response||48 Hz - 25 KHz ± 3 dB|
|Frame Outer Diameter (A)||6.50 in / 165 mm|
|Grille Tray Outer Diameter (B)||6.74 in / 171 mm|
|Motor Outer Diameter (C)||4.08 in / 104 mm|
|Frontal Coaxial Tweeter Protrusion* (D)||0.75 in / 19 mm|
|Frontal Grille Protrusion** (E)||1.03 in / 26 mm|
|Mounting Hole Diameter (F)||5.56 in / 141 mm|
|Mounting Depth (G)||2.55 in / 65 mm|
|Flush Mount Fixture Diameter (A1)||2.12 in / 54 mm|
|Surface Mount Fixture Diameter (A2)||1.93 in / 49 mm|
|Flush Mount Mounting Hole Diameter (B)||1.875 in / 48 mm|
|Flush Mount Fixture Mounting Depth (C)||0.71 in / 18 mm|
|Flush Mount Tweeter Frontal Protrusion (D1)||0.32 in / 8 mm|
|Surface Mount Tweeter Frontal Protrusion (D2)||0.95 in / 24 mm|
|Width (W)||3.36 in / 85 mm|
|Height (H)||1.44 in / 37 mm|
|Depth (D)||4.72 in / 120 mm|
