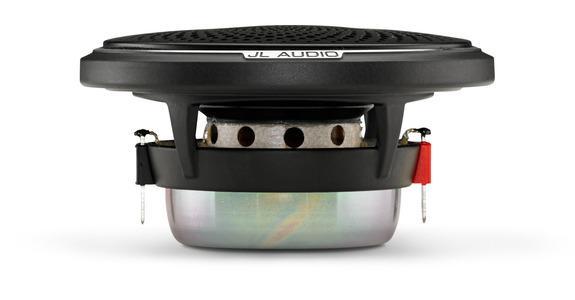

Driver Depth 2.5-2.75"

C3-Series 5x7-Inch 75-Watt Component Woofer with Grille There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems. The C3-570cw is a 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. Woofer grilles are not available for this product. Sonic character: Clean and Powerful Sold individually. Includes Component Phase Plug and Tweeter Post (Tweeter sold separately). General Specifications Continuous Power Handling (RMS) 75 W Recommended Amplifier Power (RMS) 25 - 150 W / Ch. System Efficiency 90.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 48 Hz - 25 KHz ± 3 dB Physical Specifications Frame Outer Diameter* (A) 5.52 x 7.68 in / 140 x 195 mm Grille Tray Outer Diameter (B) N/A Motor Outer Diameter (C) 4.08 in / 104 mm Frontal Coaxial Tweeter Protrusion** (D) 0.78 in / 20 mm Frontal Grille Protrusion (E) N/A Mounting Hole Diameter (F) N/A Mounting Depth (G) 2.52 in / 64 mm JL Audio C3-570cw Manual
