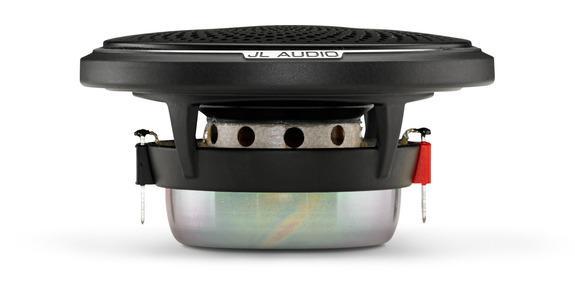

Driver Depth 2.25-2.5"

C2-Series 6-Inch 60-Watt Component Speaker System The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs. The C2-600 system features 6-inch (150 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker. The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector. Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo. Sonic character: Clean and Dynamic Sold as a pair. General Specifications Continuous Power Handling (RMS) 60 W Peak Music Power 225 W Recommended Amplifier Power (RMS) 15 - 100 W / Ch. System Efficiency 90.5 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 59 Hz - 22 KHz ± 3 dB JL Audio C2-600 Manual

Read more less

C2-Series 6-Inch 60-Watt Component Woofer, with Grille The C2-600cw is a 6-inch (150 mm) component woofer capable of accurate reproduction between 59 Hz and 7 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. A grille is included, consisting of a black grille tray and a black steel mesh grille. Sonic character: Clean and Powerful Sold individually. General Specifications Continuous Power Handling (RMS) 60 W Peak Music Power 150 W Recommended Amplifier Power (RMS) 15 - 100 W / Ch. System Efficiency 90.5 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 59 Hz - 7 KHz ± 3 dB JL Audio C2-600 Manual

Read more less

C2-Series 6-Inch 60-Watt Coaxial Speaker System The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs. The C2-600x system features 6-inch (150 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. The 6-inch (150 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker. Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles. Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo. Sonic character: Clean and Dynamic Sold as a pair. General Specifications Continuous Power Handling (RMS) 60 W Peak Music Power 225 W Recommended Amplifier Power (RMS) 15 - 100 W / Ch. System Efficiency 90.5 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 59 Hz - 22 KHz ± 3 dB JL Audio C2-600x Manual

Read more less

C3-Series 6-Inch 75-Watt Convertible Component Speaker System There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. The new C3-600 expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker. The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures. C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations! Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo. Sonic character: Clean and Powerful Sold as a pair. General Specifications Continuous Power Handling (RMS) 75 W Peak Music Power 225 W Recommended Amplifier Power (RMS) 25 - 150 W / Ch. System Efficiency 89.5 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 50 Hz - 25 KHz ± 3 dB JL Audio C3-600 Manual

Read more less

C3-Series 6-Inch 75-Watt Component Woofer with Grille There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. The new C3-600cw expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker. The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo. Sonic character: Clean and Powerful Sold individually. Includes Component Phase Plug and Tweeter Post (Tweeter sold separately). General Specifications Continuous Power Handling (RMS) 75 W Recommended Amplifier Power (RMS) 25 - 150 W / Ch. System Efficiency 89.5 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 50 Hz - 25 KHz ± 3 dB Physical Specifications Frame Outer Diameter (A) 6.21 in. / 157.7 mm Grille Tray Outer Diameter (B) 6.46 in. / 164.1 mm Motor Outer Diameter (C) 4.08 in. / 103.6 mm Frontal Coaxial Tweeter Protrusion* (D) 0.81 in. / 20.6 mm Frontal Grille Protrusion** (E) 1.03 in. / 26.2 mm Mounting Hole Diameter (F) 5.00 in. / 127 mm Mounting Depth (G) 2.49 in. / 63 mm JL Audio C3-600cw Manual

Read more less
