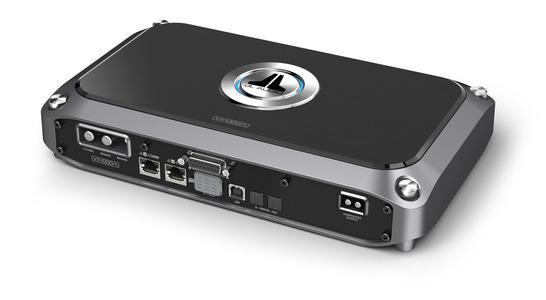

180W x 1 @ 4Ω

5-Channel Class-D System Amplifier with Integrated DSP, 75-Watt x 4 @ 4-Ohm + 300-Watt x 1 @ 2-Ohm Designed to simplify great audio, every VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor. Employing JL's second generation NexD2™ amplifier technology, the VX700/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel. The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces. Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed. Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Harness, 6 ft A/B USB Cable TüN™ Software Applications Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices.= Unprecedented, Onboard DSP Tuning Power Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM® Hi-Res audio processing at 24 bit/96 kHz High-performance AKM® A/D and D/A converters 10 Bands of fully parametric EQ, per output channel, including pre-outs Shelving EQ option for Band 1 and Band 10 High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes: Linkwitz-Riley: 12, 24, 48 dB/octaveButterworth: 6, 12, 18, 24, 36, 48 dB/octave Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm) All-Pass Filter (Phase EQ), with variable "Q" and corner frequency Polarity Reversal (0 or 180 deg.) Output Level Trim in 0.1 dB steps NexD2™ Switching Amplifier Technology JL's latest generation of high-speed switching technology delivers superb low frequency power and efficiency. Specially optimized for subwoofer applications Ultra-Versatile Analog and Digital Inputs High-performance, differential-balanced analog inputs for outstanding noise rejection Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input. Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz) Automatic turn-on options via Signal-Sensing or DC-Offset sensing Functional Compact Chassis Design Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces. Configurable LED logo ring displays status and can display audio preset color code or user-defined color Logo badge can be oriented in 90 degree increments Corner caps engineered to conceal mounting holes and hardware JLid™ System Command and Control with Networking Capabilities JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including: DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat. VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device. VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers. Specifications Frequency Response (Main Channels) 12 Hz - 24 kHz (+0, -1dB) Frequency Response (Subwoofer Channel) 12 Hz - 1 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels) 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel) 102 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Digital Inputs - Main Channels) 82 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >50 / 50 Hz THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch. THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 60 A (AFS, AGU or MaxiFuse™) Main Channels @ 4 Ω 75 W RMS x 4 Main Channels @ 2 Ω 100 W RMS x 4 Main Channels - Bridged @ 4Ω 200 W RMS x 2 Subwoofer Channel @ 4 Ω 180 W RMS x 1 Subwoofer Channel @ 3 Ω 240 W RMS x 1 Subwoofer Channel @ 2 Ω 300 W RMS x 1 Subwoofer Channel @ 1.5 Ω N/A JL Audio VX700/5i Manual

Read more less

XDM-Series Three-Channel Class-D Marine-Grade Amplifier, 75-Watts x Two-Channels @ 4-Ohm and 300-Watt Mono @ 2-Ohm Small enough to fit in just about any tight space application, the XDM500/3 is the perfect amplifier for a simple audiophile-grade, subwoofer / satellite system. With its three channels of versatile output, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300W to your subwoofer system. The technology that makes this much power possible in such a small chassis is JL-Audio's advanced NexD switching amplifier design. Suitable for car or boat installations, the XDM500/3 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. The XDM500/3 includes a 12dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access. Specifications Main Channels @ 4 Ω 75 W RMS x 2 @ 14.4V Main Channels @ 2 Ω 100 W RMS x 2 @ 14.4V Main Channels - Bridged @ 4Ω 200 W RMS x 1 @ 14.4V Subwoofer Channel @ 4 Ω 180 W RMS x 1 @ 14.4V Subwoofer Channel @ 3 Ω 240 W RMS x 1 @ 14.4V Subwoofer Channel @ 2 Ω 300 W RMS x 1 @ 14.4V Subwoofer Channel @ 1.5 Ω N/A Main Channels @ 4 Ω 60 W RMS x 2 @ 12.5V Main Channels @ 2 Ω 90 W RMS x 2 @ 12.5V Main Channels - Bridged @ 4Ω 180 W RMS x 1 @ 12.5V Subwoofer Channel @ 4 Ω 180 W RMS x 1 @ 12.5V Subwoofer Channel @ 3 Ω 240 W RMS x 1 @ 12.5V Subwoofer Channel @ 2 Ω 300 W RMS x 1 @ 12.5V Subwoofer Channel @ 1.5 Ω N/A Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB) Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >120 / 50 Hz Damping Factor @ 2 Ω >60 / 50 Hz THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch. THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) Filter Mode(s): Channels 1 & 2 (front) High-Pass only Filter Slope(s): Channels 1 & 2 (front) 12 dB/octave Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 500 Hz Filter Mode(s): Channels 3 & 4 (rear) N/A Filter Slope(s): Channels 3 & 4 (rear) N/A Filter Frequency Range: Channels 3 & 4 N/A Filter Mode(s): Subwoofer Channel Low-Pass only Filter Slope(s): Subwoofer Channel 12/24 dB/octave Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Infrasonic Filter: Subwoofer Channel none Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant) Remote Level Modes Sub Ch. or All Channels Channel Input Mode Switch Yes (2/4 ch.) Pass-Through Preamp Output Buffered Source Channel Selection for PreOuts Yes (1&2/Sum/Sub) Height (H) 2.05 in / 52 mm Width (W) 8.52 in / 216 mm Depth (D) 7.09 in / 180 mm Net Weight 4.8 lb / 2.18 kg JL Audio XDM500/3v2 Manual

Read more less

XDM-Series Five-Channel Class-D Marine-Grade Amplifier, 75-Watts x Four-Channels @ 4-Ohm and 300-Watt Mono @ 2-Ohm The XDM700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and fits comfortably in just about any vehicle or vessel. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75W x 4 @ 4Ω), while also generating a solid 300W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is JL-Audio's high-speed NexD switching amplifier design. Suitable for car or boat installations, the XDM700/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. The XDM700/5 includes a 12dB / octave high-pass filter for one main channel pair, a 12dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500Hz or 500-5000Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access. Specifications Main Channels @ 4 Ω 75 W RMS x 4 @ 14.4V Main Channels @ 2 Ω 100 W RMS x 4 @ 14.4V Main Channels - Bridged @ 4Ω 200 W RMS x 2 @ 14.4V Subwoofer Channel @ 4 Ω 180 W RMS x 1 @ 14.4V Subwoofer Channel @ 3 Ω 240 W RMS x 1 @ 14.4V Subwoofer Channel @ 2 Ω 300 W RMS x 1 @ 14.4V Subwoofer Channel @ 1.5 Ω N/A Main Channels @ 4 Ω 60 W RMS x 4 @ 12.5V Main Channels @ 2 Ω 90 W RMS x 4 @ 12.5V Main Channels - Bridged @ 4Ω 180 W RMS x 2 @ 12.5V Subwoofer Channel @ 4 Ω 180 W RMS x 1 @ 12.5V Subwoofer Channel @ 3 Ω 240 W RMS x 1 @ 12.5V Subwoofer Channel @ 2 Ω 300 W RMS x 1 @ 12.5V Subwoofer Channel @ 1.5 Ω N/A Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB) Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch. THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 60 A (AFS, AGU or MaxiFuse™) Filter Mode(s): Channels 1 & 2 (front) High-Pass only Filter Slope(s): Channels 1 & 2 (front) 12 dB/octave Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 5 kHz Filter Mode(s): Channels 3 & 4 (rear) High-Pass or Bandpass Filter Slope(s): Channels 3 & 4 (rear) 12 dB/octave Filter Frequency Range: Channels 3 & 4 50 Hz - 500 Hz Filter Mode(s): Subwoofer Channel Low-Pass only Filter Slope(s): Subwoofer Channel 12/24 dB/octave Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Infrasonic Filter: Subwoofer Channel none Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant) Remote Level Modes Sub Ch. or All Channels Channel Input Mode Switch Yes (2/4/6 ch.) Pass-Through Preamp Output None Source Channel Selection for PreOuts N/A Height (H) 2.05 in / 52 mm Width (W) 10.23 in / 260 mm Depth (D) 7.09 in / 180 mm Net Weight 6.15 lb / 2.79 kg JL Audio XDM700/5 Manual

Read more less
