Dual 10-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2003-2015 Nissan-Titan King or Crew-Cab Trucks
Accu-Tuned 10” Dual sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2003 – 2015 Nissan Titan or Crew Cab trucks to ensure an OEM fit without impeding the operation of the back seat.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
.85 Cubic Feet Net Volume internal air space (per sub) is ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 5.125” which is ideal for lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium OEM Grade Carpeting for factory look and durability.
Dimensions Sub Cut Out: 9.125”, Mounting Depth: 5.125”, Width: 49.25” Height: 7.625”, Depth: 13”
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width:49.25"
Height:6.88"
Depth:13.00"
Max Mounting Depth:5.00"
Gross VolumePer Sub:2.80
Net Volume Per Sub:2.00

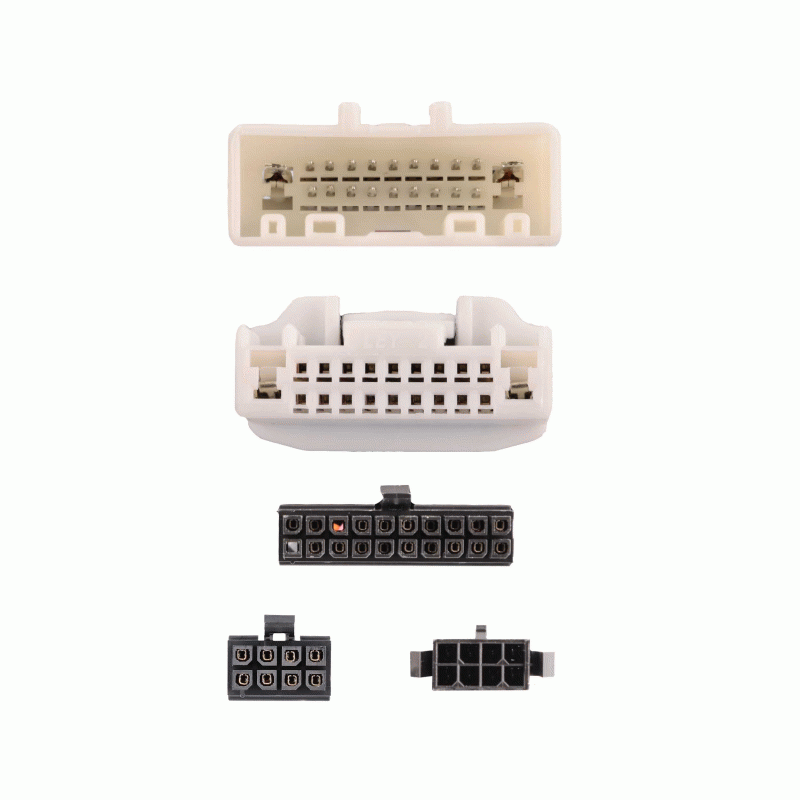

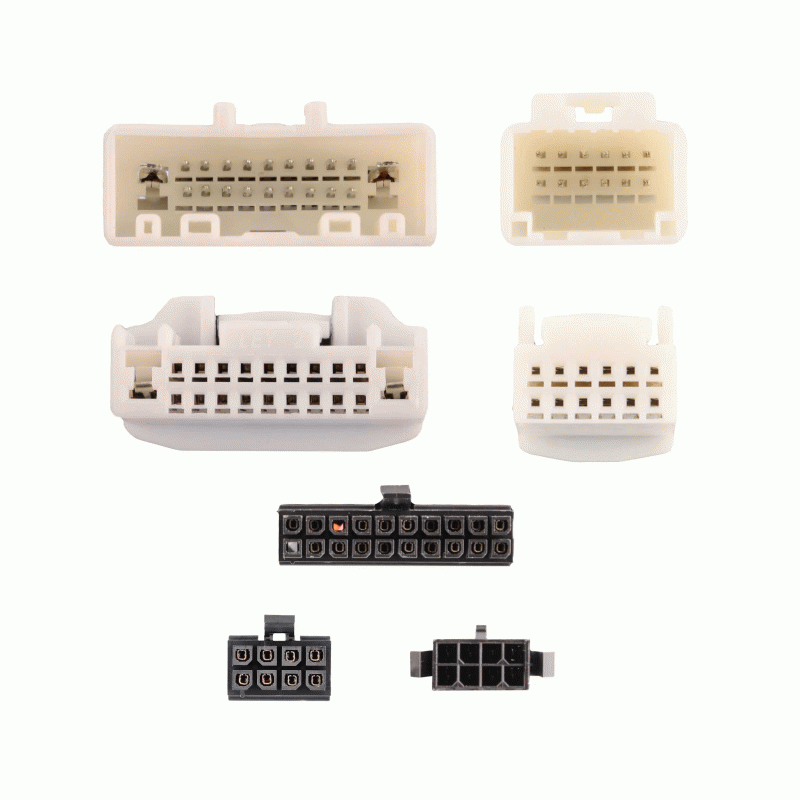

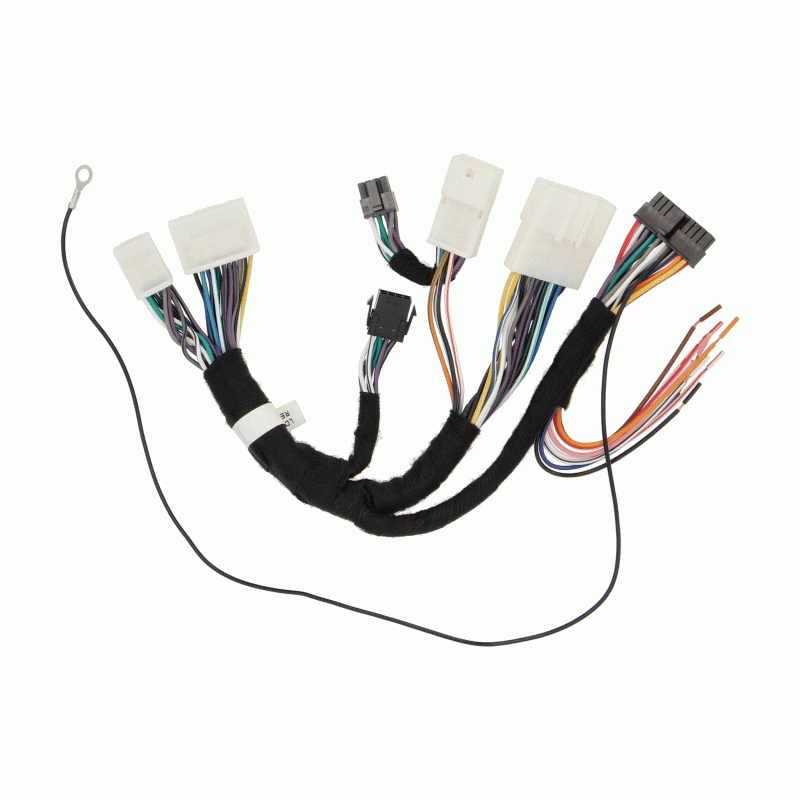

Amplifier Add-On OEM Line-Converter T-Harness for Select 2008-2017 Amplified and Non-Amplified Nissan Vehicles
For use with the Axxess AXDSP-L line converter.
Applications - confirmed as of 2/7/2023
NISSAN
2013
Altima (Coupe)
2010-2012
Altima
2008-2017
Armada
2009-2014
Maxima
2009-2014
Murano
2011-2012
Murano Cabriolet
2016
Pathfinder S
Axxess AXDSPH-NI2 ManualAxxess AXDSPL-NI2 Manual
Add-On Amplifier OEM Integration Interface for Select 1995-2013 Non-Amplified Infinity and Nissan Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-NIS Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications
Infiniti
FX35 2003-2008
FX45 2003-2008
G20 1995-1996
Nissan
200SX 1995-1998
240SX 1995-1998
350Z 2003-2009
Altima 1995-2006
Armada 2004-2007
Frontier 1998-2012
Hardbody Pickup 1995-1997
Maxima 1995-2006
Murano 2003-2007
Pathfinder S 2008-2012
Pathfinder 1995-2007
Pathfinder Armada 2004-2005
Quest 2004-2009
Sentra 1995-2006
Titan 2004-2012
Xterra 2000-2013
Axxess AXLOC-NIS Manual

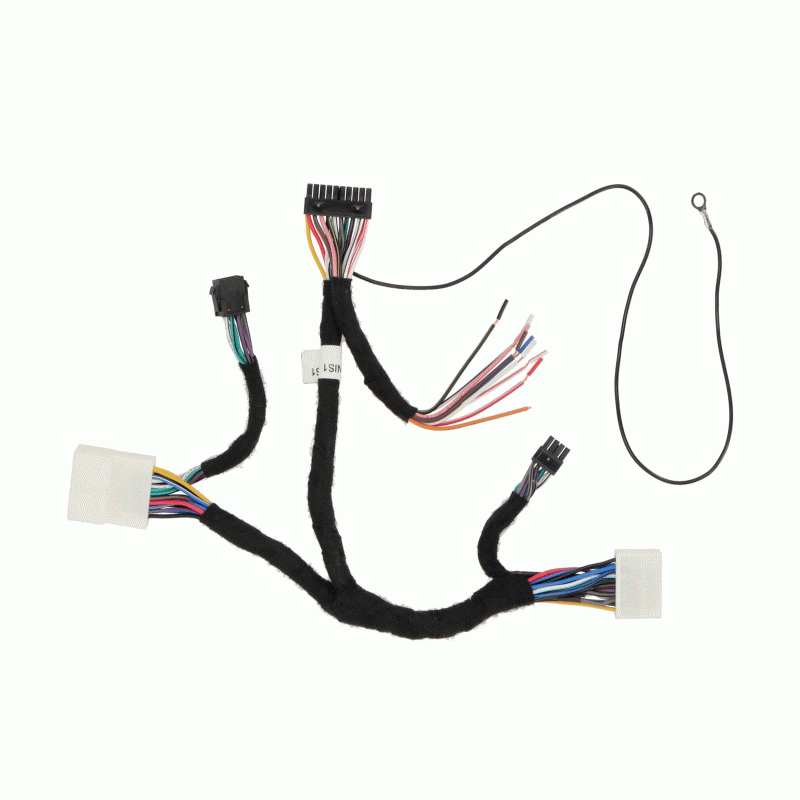

Add-On Amplifier OEM Integration Interface for Select 2007-2021 Non-Amplified Nissan, Subaru and Suzuki Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-NIS1 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Nissan
370Z 2009-2021
Altima 2007-2021
Cube 2009-2014
Frontier 2008-2021
Juke 2011-2017
Kicks 2018-2021
Leaf 2012-2021
Maxima 2007-2021
Murano 2009-2021
Murano (Cross-Cabriolet) 2011-2014
NV – 1500/2500/3500 2012-2021
NV200 2013-2021
Pathfinder 2013-2020
Quest 2011-2016
Rogue 2008-2017
Sentra 2007-2019
Titan, Titan XD 2017-2021
Titan 2008-2015
Versa 2007-2021
Versa Note 2014-2019
Xterra 2008-2015
Subaru
Forester 2009-2015
Impreza 2008-2014
Legacy 2010-2014
Outback 2010-2014
WRX 2015
XV Crosstrek 2013-2014
Suzuki
Equator 2009-2011
Axxess AXLOC-NIS1 Manual
Dual 10-Inch 1000-Watt Subwoofer-Enclosure for Select 2003-2008 Nissan-350Z
When Nissan resurrected the legendary Z-car, JL immediately started receiving requests for a unique Stealthbox® solution. JL Audio's design team sprang into action and came up with this beautiful system. To ensure smooth and powerful performance, the 350-Z Stealthbox® uses twin 10-inch subwoofers. In addition, the enclosure is situated to preserve the Z's handling balance and integrate beautifully with the interior.
The Hard Data: Contains two 10W3v3-4 subwoofers in a sealed enclosure. 1000 watt power handling. Wired for 2 ohm mono. Installs ahead of the rear strut brace. Will not fit the 350Z convertible model or Infiniti G35 Coupe. Installation requires removal of the child safety seat "LATCH" System.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-N-350/10W3v3 Installation Manual
Dual 10-Inch 1000-Watt Subwoofer-Enclosure for Select 2009-2022 Nissan-370Z
Nissan's thoroughbred sports car offers an impressive combination of finesse and brute force, just like a Stealthbox®.
For the 370Z, the JL Audio design team arrived at a solution housing twin 10W3v3 subwoofer in a sealed enclosure that mounts ahead of the rear axle, so as to preserve precious cargo space and maintain the car's excellent weight distribution. The enclosure is carefully form fitted to the space to extract maximum useful volume and blends beautifully with the Z's interior panels.
With up to 1000W of power handling, this Stealthbox® will transform your Z into a serious music playback machine that will add enjoyment to every minute you spend on the road.
The Hard Data: Contains two 10W3v3-4 subwoofers in a sealed enclosure. 1000 watt power handling. Wired for 2 ohm mono. Installs behind front seats in the forward section of the cargo area. Steel mesh grilles are included to protect the subwoofer drivers. Will not fit the 370Z convertible model.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-N-370/10W3v3 Installation Manual
Dual 10-Inch 600-Watt Subwoofer-Enclosure for Select 2004-2015 Nissan-Titan Crew-Cab Pickups
Let's face it... your Titan's factory subwoofer is a toy. This one isn't, employing two 10-inch JL Audio subwoofers in a powerful sealed enclosure to deliver rich, deep bass performance worthy of Nissan's big truck.
The Stealthbox® installs neatly under the rear seat, leaving plenty of room next to it for amplifier mounting and installation.
The Hard Data: Contains two 10W1v3-4 subwoofers in a sealed enclosure. 600 watt power handling. Wired for 2 ohm mono. Installs under rear bench seat. Will not fit Titan King Cab.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-N-TTNCRW/10W1v3/BK Installation Manual
Dual 10-Inch 2-Ohm 800-Watt Subwoofer-Enclosure for Select 2016-2022 Nissan-Titan Crew-Cab Vehicles
Nissan's full-size truck is built to offer loads of capabilities for work and play, along with a spacious interior cabin. Sadly, the factory audio systems leave a lot to be desired in bass output and performance.
Fortunately, JL-Audio engineers developed a subwoofer solution that fills your Crew Cab with loads of powerful bass output. Featuring a 100% fiberglass, sealed enclosure design, this Stealthbox houses two of JL's innovative 10TW3 thin-line subwoofers and installs neatly under the rear seat, without compromising rear seat comfort or folding.
The Hard Data: Contains two 10TW3-D8 Subwoofers in a sealed enclosure. 800 watt power handling. Wired for 2 ohm mono. Installation requires removal of rear underseat storage compartment, if equipped.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-N-TTNCRW2G/10TW3 Installation Manual

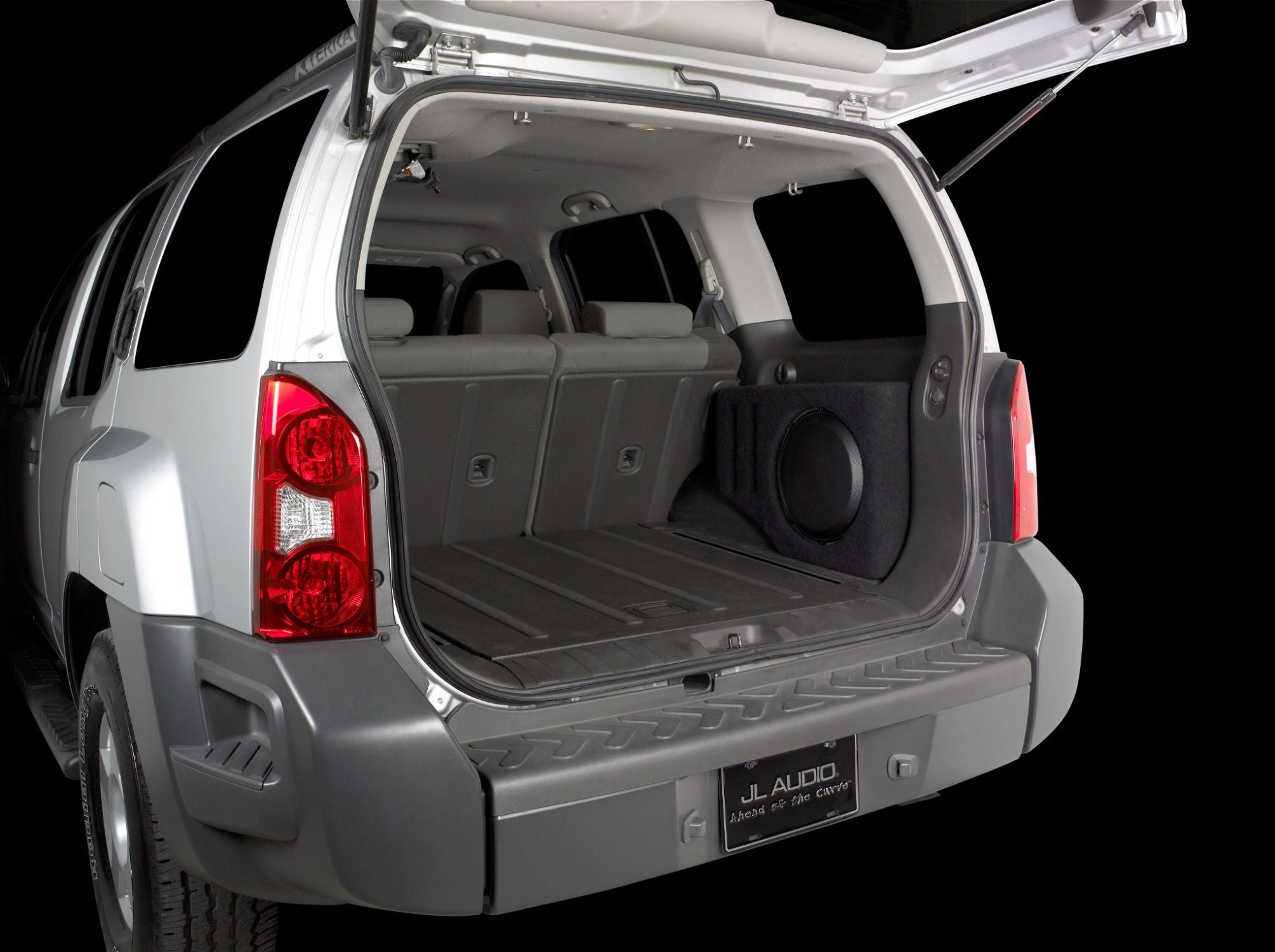

Single 12-Inch 500-Watt Subwoofer-Enclosure for Select 2005-2015 Nissan-Xterra Vehicles
The Xterra has been a solid success for Nissan thanks to its utility, ruggedness and versatility. When considering a subwoofer upgrade, you don't want to give any of that up... you just want great bass added to the Xterra's long list of bonuses.
To accomplish this, the Stealthbox® tucks neatly into the side panel of the cargo area and sacrifices very little cargo space while also staying out of the way of the rear speaker locations and cargo cover.
Lurking inside is a single 12-inch subwoofer that packs a wallop and delivers outstanding fidelity. The subwoofer driver is protected from loose cargo by the included steel mesh grille, so you can load up your hatch without worries.
The Hard Data: Contains one 12W3v3-2 in a sealed enclosure. 500 watt power handling. Wired for 2 ohm mono. Stealthbox® installs in passenger side rear cargo area. A steel mesh grille is included to protect the subwoofer driver.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-N-XTERR2/12W3v3 Installation Manual
