Description
Add-On Amplifier OEM Integration Interface for Select 1985-UP Nissan, Subaru and Suzuki Vehicles

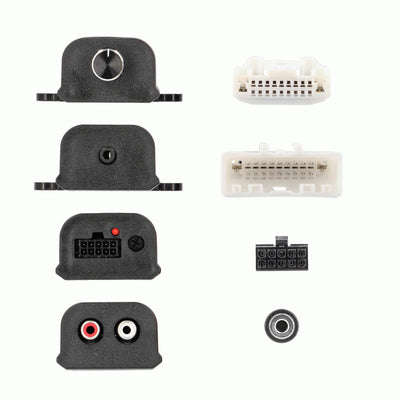

This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
- Designed to provide (2) channels of low-level audio output from the factory system
- Allows for the installation of an amplifier for speakers or subwoofers
- Gain Controller included to adjust the overall output
- 12v-500mA remote wire activated with signal sense
- 55 watts per channel

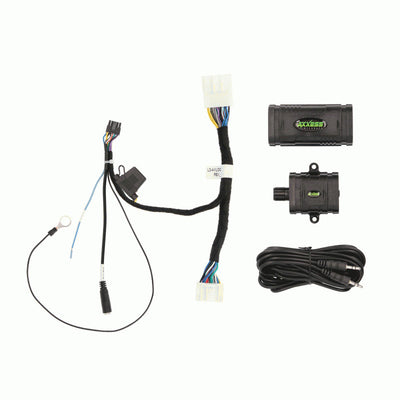

Contents
- AXLOC-NIS1 Wiring Harness
- Gain Controller
- 12v-500mA Remote Wire
- Auxiliary Cable
Applications
-
| NISSAN |
|
|
| 370z |
non-amplified |
2009-2020 |
| Altima |
non-amplified |
2007-2018 |
| ARMADA |
non-amplified |
2008-2017 |
| Cube |
non-amplified |
2009-2014 |
| Frontier |
non-amplified |
2008-2018 |
| Juke |
non-amplified |
2011-2017 |
| Kicks |
non-amplified |
2018-Up* |
| Leaf |
non-amplified |
2012-2018 |
| Maxima |
non-amplified |
2007-2016 |
| Murano |
non-amplified |
2003-2017 |
| Murano (Cabriolet) |
non-amplified |
2011-2014 |
| NV (1500/2500/3500) |
non-amplified |
2012-2018 |
| NV 200 |
non-amplified |
2012-2018 |
| Pathfinder |
non-amplified |
2013-2020 |
| PATHFINDER |
non-amplified |
2010-2017 |
| Quest |
non-amplified |
2011-2016 |
| Rogue |
non-amplified |
2008-2018 |
| Sentra |
non-amplified |
2007-2019 |
| Titan |
non-amplified |
2008-2015 |
| Titan/ Titan XD |
non-amplified |
2017-Up* |
| Versa |
non-amplified |
2007-2018 |
| Versa Note |
non-amplified |
2014-2018 |
| Xterra |
non-amplified |
2008-2014 |
| SUBARU |
|
|
| Forester |
non-amplified |
2009-2015 |
| Impreza |
non-amplified |
2008-2014 |
| IMPREZA WRX |
non-amplified |
2008-2014 |
| Legacy |
non-amplified |
2010-2014 |
| Outback |
non-amplified |
2010-2014 |
| WRX |
non-amplified |
2012-2021 |
| XT COUPE |
non-amplified |
1985-1990 |
| XV CROSSTREK |
non-amplified |
2013-2015 |
| SUZUKI |
|
|
| Equator |
non-amplified |
2009-2011 |
