300W RMS

300-Watt Door-Speaker and Add-On Subwoofer Kit for Select 2018-2023 Jeep Wrangler, Gladiator Vehicles Complete Sound System Upgrade Package for the four-door, non-amplified 2018-23 Jeep® Wrangler and non-amplified 2020-23 Jeep® Gladiator. Also compatible with two-door, non-scissor front seats in 2019-23 Jeep® Wrangler Go beyond your wildest expectations for sound with this complete sound upgrade package. The PSS-24WRA has 5-channels of powered sound that replaces your factory system. The package includes two sets of 6.5” weather-resistant mid-bas drivers and 1” weather-resist tweeters that replace the front and rear soundbar factory speakers, an 8” powered, compact subwoofer and a 4-channel power pack amplifier. Specifications Complete, five-channel powered sound system upgrade package   Compatible with four-door, non-amplified 2018-23 Jeep® Wrangler and non-amplified 2020-23 Jeep® Gladiator (not compatible with OEM Alpine amplified system) Compatible with two-door, non-scissor front seats in 2019-23 Jeep® Wrangler Includes Alpine’s SPV-65X-WRA, SPV-65-JLT, PWE-S8, and KTP-445U  180W, 4-channel Power Pack amplifier  120W, 8” powered subwoofer  (2x) 6.5” weather-resistant mid-bass drivers  (2x) 1” weather-resistant teteron dome tweeters with vehicle-specific connectors and crossovers  Vehicle-specific front speaker pods with vehicle-specific connectors  Tweeter adapter plates allow for the use of the original factory tweeter locations  SPV-65-JLT weather-resistant rear soundbar speaker system Rugged, premium grills designed to emulate the factory look and appeal   Vehicle-specific connectors for plug-and-play speaker installation   Utilizes factory bolt locations   Durable stamped, steel frame speaker basket design  Includes template for mounting Vehicle-specific T-harness for installation with OEM radio into compatible 2018-23 Jeep® Wrangler and 2020-23 Jeep® Gladiator vehicles  Vehicle-specific mounting brackets allow for the powered sub and amp to be secured under the passenger seat without drilling What's in the Box: KTP-445U Universal 4-Channel Power Amplifier  PWE-S8 8" Compact Powered Subwoofer  SPV-65X-WRA Front Component Speakers SPV-65-JLT Rear Sound Bar Speakers ALP-POD-JLT Front Speaker Pod PSU-BKT-JL-R PWE Right Bracket JL PSU-BKT-JL-L PWE Left Bracket JL ALP-HRN-PSU300 PSU Power Harness  ALP-THRN-CH2 Chrysler T-Harness  CT6 6" Cable Ties PHPSM412 Pan Head Phillips Screw M4x12 SLWM4 M4 Split Lock Washers PHSCR832 8-32 Pan Head Phillips screws PSS-WRA-IM Installation Manual Specifications Front (SPV-65X-WRA) Power handling: 75 watts RMS (225 watts peak)  Frequency response: 65kHz – 22kHz  Nominal impedance: 4 ohms  Weather-resistant: IP55   Rear (SPV-65-JLT) Power handling: 90 watts RMS (270 watts peak)  Frequency response: 50kHz – 22kHz  Nominal impedance: 4 ohms  Weather-resistant: IP55 Powered Subwoofer (PWE-S8) 120 watts RMS (240 watts peak)  Frequency response: 32 - 150Hz  Variable low-pass crossover (80-200 Hz)  Variable phase control (0-180 degrees)  preamp- and speaker-level inputs  Four Channel Power Pack Amplifier (KTP-445U) 45 watts RMS x 4 at 4 or 2 ohms  90 watts RMS x 2 bridged at 4 ohms  Selectable high-pass filters (60, 80, or 120 Hz at 12 dB/octave)  Switchable RCA or speaker-level inputs| Dimensions:  27” L x 18.5” W x 19.5” H 40lbs Direct fit for non-amplified 2018–Up 4-door Jeep Wrangler JL Unlimited Direct fit for non-amplified 2019–Up 2-door Jeep Wrangler Direct fit for non-amplified 2020–Up Jeep Gladiator JT Alpine PSS-24WRA Installation Manual

Read more less

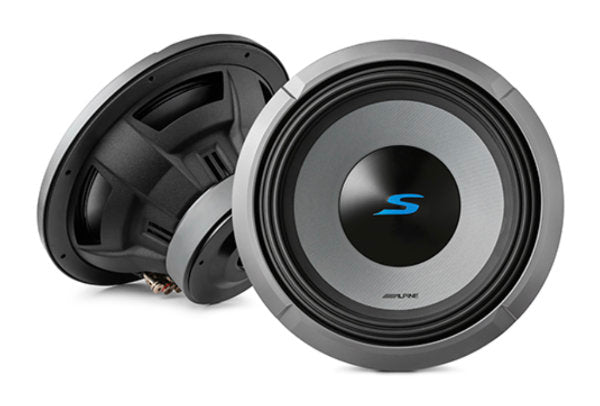

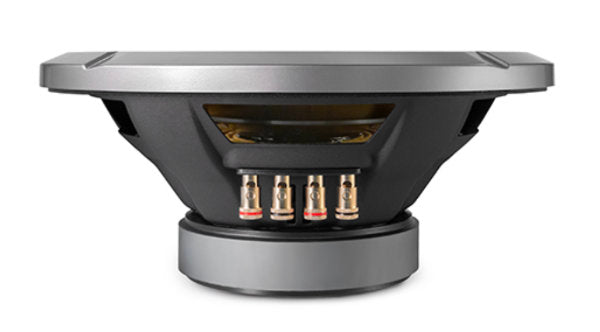

Alpine S-Series 300-Watt 8-Inch Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil Don’t think you have room for a subwoofer? Think again. The new S-W8D2 and S-W8D4 8” S-Series subwoofers have a shallow mounting depth of just 3-3/4” and can be used in a sealed box enclosure as small as .15 cubic foot. It is perfect for under seats, behind rear bench seats in trucks, or even in some door applications. Specifications 8" DVC High Performance Subwoofer Power Handling: 300W RMS/900W Peak Push-type Insert Terminals with DVC jumper system Concealed Mount Gasket/Grille* System(*Grille sold separately) Frequency Response: 34Hz-200Hz Mounting Depth 3-3/4” Alpine S-W8D2, S-W8D4 Manual

Read more less

Alpine 350-Watt Loaded 10-Inch Subwoofer-Enclosure for 2007-2018 Jeep-Wrangler JK-Unlimited, 2Ω Final Impedance When you have a Wrangler, you don’t have extra space to spare. Alpine engineered the SBV-10-WRA to conveniently fit under the front passenger’s seat making efficient use of space. The SBV-10-WRA is a custom-shaped enclosure that fits snugly under the seat frame, so no mounting hardware is required. (NOTE: designed for fitment in Jeeps with the factory carpet. Fitment is not guaranteed with aftermarket or removed carpet) Enjoy impactful bass, with your Wrangler’s top on or off. The SBV-10-WRA loads the lower frequency sound into the passenger’s foot well to deliver quality sound and maximized bass extension at all times, so your music continues even when the asphalt ends. Specifications 10” Pre-loaded Sealed Custom-fit Enclosure Weather Resistant (IP66 rating) Power Handling: 350WRMS/1050W Peak Nominal Impedance 2Ω Frequency Response: 45-200Hz OEM-grade Molex 2-pin connector w/pigtail wire harness Alpine SBV-10-WRA Manual

Read more less
