Aftermarket Add-On Amplifier Wiring Harness and Factory OEM Amplifier Bypass for Select 2015-UP Alfa Romeo,Chrysler, Dodge, Jeep and RAM Vehicles
Amplifier bypass harness
Vehicle-specific harness to bypass the factory amplifier
Allows loose wires to wire to an aftermarket amplifier
Saves the installer unnecessary labor and wire
Applications
Ford
2011-2017
Edge
2013-2016
Escape
2015-2016
Expedition
2011-2017
Explorer
2013-2017
F-150, F-250, F-350
F-150 Sony amplifier is under the center console shifter - add 1/2hr for removal and replacement.
2013-2017
Flex
2012-2017
Focus
2013-2016
Fusion
2013-2017
Taurus
Axxess AXABH-FD1 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Aftermarket Add-On Amplifier Wiring Harness and Factory OEM Amplifier Bypass for Select 2010-2015 Lexus Vehicles
Allows the factory amplifier to be bypassed without altering the factory wiring
20 gauge wires
Length – 12 inches
Applications
LEXUS
IS 250
2010-2013
IS 350
2010-2013
IS 250C
2010-2015
IS 350C
2010-2015
Axxess AXABH-LX3 BrochureAxxess AXABH-LX3 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

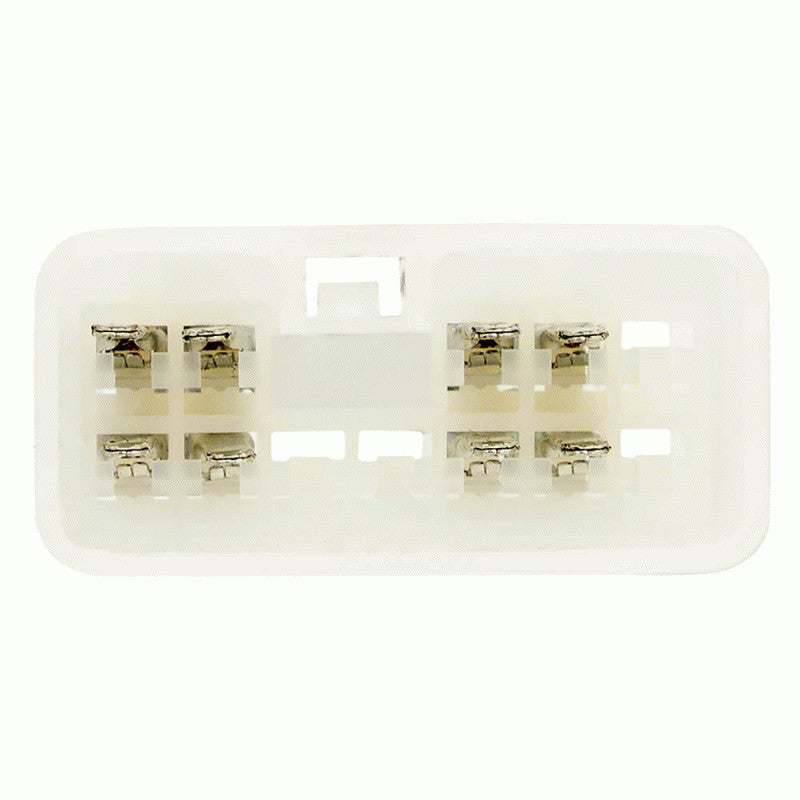

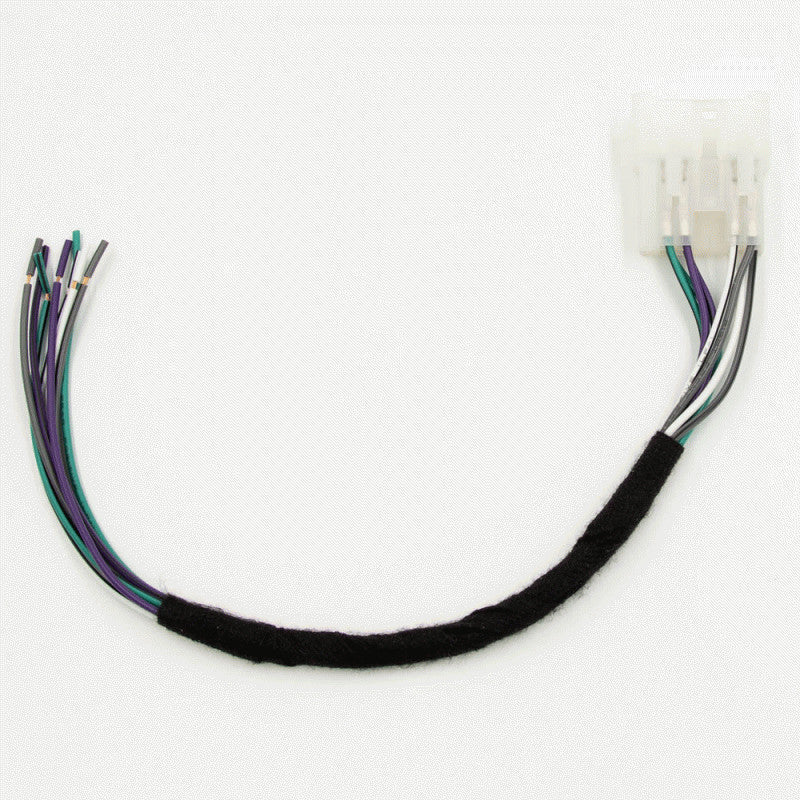

Aftermarket Add-On Amplifier Wiring Harness and Factory OEM Amplifier Bypass for Select 2005-2006 Toyota Tundra Access-Cab Vehicles
Allows the factory amplifier to be bypassed without altering the factory wiring
20 gauge wires
Length – 12 inches
Applications
Toyota
2005-2006
Tundra (Access Cab)
Axxess AXABH-TY3 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

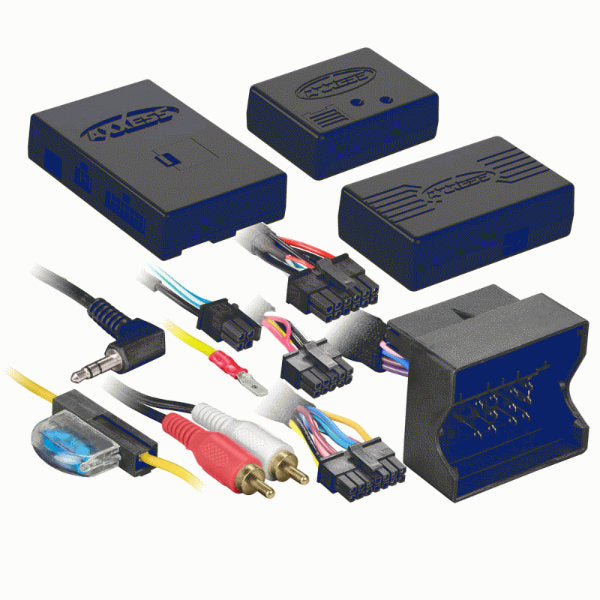

Amplified Head-Unit Replacement Wiring-Harness Interface for Select 2006-2013 BMW 1-Series and 3-Series Vehicles
Provides accessory power (12 volt 10 amp)
Retains R.A.P. (retained accessory power)
Designed for amplified models
Retains audio controls on the steering wheel
Retains phone buttons (radio dependent)
Retains factory features: date, time, temperature display
Warning and parking sensor chimes are not retained
Micro-B USB updatable
*Note:* Warning and Parking sensor chimes are not retained
Applications
BMW
1 Series
2008-2013
3 Series
2006-2013
Axxess AXDIS-BW122 Installation Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

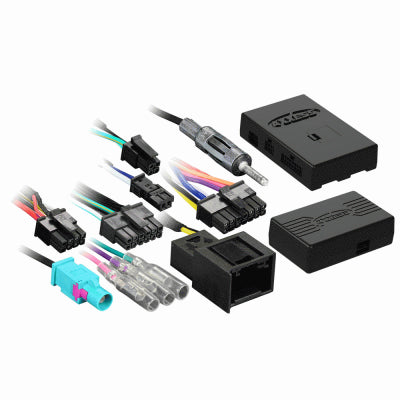

Amplified Head-Unit Replacement Wiring-Harness Adapter for Select 2003-2011 Mercedes CLS, E and SLK Class Vehicles
Provides accessory power
Designed for amplified models
Provides NAV outputs (parking brake, reverse, speed sense)
Retains audio controls on the steering wheel
Retains balance
Micro B USB updatable
Applications
MERCEDES
CLS-Class
2006-2011
E-Class
2003-2008
Axxess Interface AXDIS-MB132 Installation ManualAxxess Interface AXDIS-MB132 Can Hub Tech Tip
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Amplified Head-Unit Replacement Wiring-Harness Interface for Select 2005-2011 Mercedes-Benz E-Class, SLK, ML and GL Vehicles
*There are two different radio possibilities for this year range of vehicle, please see below for ways to distinguish between which interface kit you will need.
*Vehicles equipped with Command NTG1 will use the AXDIS-MB132. NTG1 radios will be built by Harman/Becker and have the 6-Disc Changer separate from the radio, if equipped with a SINGLE-disc player, it will be built in to the radio. They will typically have buttons on the sides of, and below the radio screen, also the optical light will come from the fiber cable when removed.
*Vehicles equipped with Command NTG2.5 will use the AXDIS-MB82. NTG2.5 radios will be built by Alpine, and have the 6-Disc changer built in to the radio. They will not have buttons directly below the radio screen, and the optical light will come from the radio when the fiber cable is removed.
Applications
MERCEDES
E-Class
2009
GL-Class
2007-2012
ML-Class
2006-2011
SLK-Class
2005-2011
Axxess Interface AXDIS-MB82 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Amplifier Add-On OEM Line-Converter T-Harness for Select 2011-UP Amplified and Non-Amplified Chrysler Vehicles
For use with the Axxess AXDSP-L line converter.
Applications - confirmed as of 2/7/2023
CHRYSLER
300
2011-2014
DODGE
Charger
2011-2014
Journey
2011-2022
Axxess AXDSPH-CH3 ManualAxxess AXDSPL-CH3 Manual
Amplifier Add-On OEM Line-Converter T-Harness for Select 2007-2017 Amplified and Non-Amplified Chrysler and Jeep Vehicles
For use with the Axxess AXDSP-L line converter.
Applications - confirmed as of 2/7/2023
JEEP
Grand Cherokee
2011-2013
Wrangler (JK)
2007-2017
RAM
1500
2010-2012
Axxess AXDSPH-CH4 ManualAxxess AXDSPL-CH4 Manual
Amplifier Add-On OEM Line-Converter T-Harness for Select 2014-UP Amplified and Non-Amplified Chrysler and Jeep Vehicles
For use with the Axxess AXDSP-L line converter.
Applications - confirmed as of 2/7/2023
CHRYSLER
200
2015-2017
300
2015-2022
Pacifica
2017-2020
DODGE
Challenger
2015-2022
Charger
2015-2022
Durango
2014-2020
Viper
2015-2017
JEEP
Cherokee
2014-2020
Compass
2017-2022
Grand Cherokee
2014-2022
Wrangler (JL)
2018-2022
RAM
1500
2013-2021
Axxess AXDSPH-CH5 ManualAxxess AXDSPL-CH5 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Amplifier Add-On OEM Line-Converter T-Harness for Select 2006-2014 Amplified and Non-Amplified Ford Vehicles
For use with the Axxess AXDSP-L line converter.
Applications - confirmed as of 2/7/2023
FORD
Edge
2007-2010
Escape
2008-2012
Expedition
2007-2014
F-150
2006-2013
Flex
2009-2012
Focus
2008-2011
Fusion
2006-2012
Mustang
2006-2014
Taurus
2008-2011
Axxess AXDSPH-FD1 ManualAxxess AXDSPL-FD1 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Amplifier Add-On OEM Line-Converter T-Harness for Select 2016-UP Amplified Honda Vehicles
For use with the Axxess AXDSP-L line converter.
Applications - confirmed as of 2/7/2023
HONDA
Accord
2018-2022
Civic / Si
2016-2019
CR-V
2017-2020
Axxess AXDSPH-HN3 ManualAxxess AXDSPL-HN3 Manual
Amplifier Add-On OEM Line-Converter T-Harness for Select 2018-UP Amplified and Non-Amplified Scion and Toyota Vehicles
For use with the Axxess AXDSP-L line converter.
Applications - confirmed as of 2/7/2023
TOYOTA
4Runner
2020-2022
Avalon
2019-2022
Camry
2018-2022
C-HR
2019-2022
Highlander
2020-2022
Mirai
2016-2022
RAV-4
2019-2022
Sequoia
2020-2022
Axxess AXDSPH-TY3 ManualAxxess AXDSPL-TY3 Manual
Amplifier Add-On OEM Line-Converter T-Harness for Select 2012-2019 Amplified Toyota Vehicles
For use with the Axxess AXDSP-L line converter.
Applications - confirmed as of 2/7/2023
TOYOTA
4Runner
2014-2019
Avalon
2011-2018
Camry
2012-2017
Highlander
2014-2019
Prius
2012-2019
Prius V
2013-2018
RAV-4
2015-2018
Sequoia
2013-2019
Sienna
2015-2017
Tacoma
2014-2019
Tundra
2014-2019
Venza
2015
Yaris
2012-2016
Axxess AXDSPH-TY4 ManualAxxess AXDSPL-TY4 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Amplifier Add-On OEM Line-Converter & T-Harness for Select 2011-UP SPDIF-Amplified Hyundai and KIA Vehicles
Upgrade your sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness along with an amplifier bypass harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.
Retain Features with a Built-in InterfaceWhile this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.
Complete Tuning ControlThere are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.
Package includes the AXDSP-L and vehicle-specific T-harness
15-band graphic EQ or 5-band Parametric EQ
Selectable high pass, low pass, or bandpass filters on each channel
4 inputs and 6 individually assignable outputs
Independent equalization on each of the 6 outputs
Selectable slope (12, 24, 36, or 48db per octave)
Each channel can be delayed independently for up to 10 ms
Easy behind the radio installation in most applications
Can be used with OE and aftermarket radios
Clipping detection and limiting circuits
Internal header port for adding interface modules
Bass knob included
Retains OE voice prompts (Blue Link®/UVO) with adjustable level
Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
Designed for S/PDIF amplified models
Retains the ability to work with S/PDIF digitally controlled amplified systems
Factory amplifier does NOT need to be retained
Wiring to be completed at the amplifier location
Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
Read, write, and store configurations for future recall
Password-protect feature is available in the mobile app
Micro “B” USB updatable
1-year limited warranty
Applications - confirmed as of 2/7/2023
HYUNDAI
Azera
2012-2017
Elantra
2011-2016
Equus
2011-2016
Sonata
2011-2022
Tucson
2011-2019
Veloster
2012-2017
KIA
Cadenza
2014-2016
Optima
2011-2018
Soul
2012-2016
Sportage
2011-2016
Axxess AXDSPL-HK2 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Amplifier Add-On OEM Line-Converter & T-Harness for Select 2017-UP SPDIF-Amplified Hyundai and KIA Vehicles
Upgrade your sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness along with an amplifier bypass harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.
Retain Features with a Built-in InterfaceWhile this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.
Complete Tuning ControlThere are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.
Package includes the AXDSP-L and vehicle-specific T-harness
15-band graphic EQ or 5-band Parametric EQ
Selectable high pass, low pass, or bandpass filters on each channel
4 inputs and 6 individually assignable outputs
Independent equalization on each of the 6 outputs
Selectable slope (12, 24, 36, or 48db per octave)
Each channel can be delayed independently for up to 10 ms
Easy behind the radio installation in most applications
Can be used with OE and aftermarket radios
Clipping detection and limiting circuits
Internal header port for adding interface modules
Bass knob included
Retains OE voice prompts (Blue Link®/UVO) with adjustable level
Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
Designed for S/PDIF amplified models
Retains the ability to work with S/PDIF digitally controlled amplified systems
Factory amplifier does NOT need to be retained
Wiring to be completed at the amplifier location
Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
Read, write, and store configurations for future recall
Password-protect feature is available in the mobile app
Micro “B” USB updatable
1-year limited warranty
Applications - confirmed as of 2/7/2023
Hyundai
2017-2020
Elantra
2018-2022
Elantra GT
2018-2022
Kona
2013-2022
Santa Fe
KIA
2017-2020
Cadenza
2019-2022
Forte
2019-2020
Niro (EV)
2020-2022
Niro (Hybrid Electrical)
2018-2020
Niro (Plug-In Hybrid)
2019-2022
Optima
2017-2022
Sorento
2017-2022
Soul
2020-2022
Soul EV
2017-2022
Sportage
Axxess AXDSPL-HK4 Manual
Amplified Head-Unit Replacement Wiring-Harness for Select 2002-2010 Chrysler and Dodge Vehicles
The AXTO-CH2 interface is designed to allow the user to replace the OEM radio with an aftermarket unit in amplified 2002-2004 Dodge Ram and 2004-2008 Chrysler Pacifica vehicles. Retains the use of the OEM amplified audio system.
Provides accessory power (12-volt 10-amp)
Retains R.A.P. (retained accessory power)
Designed for amplified systems
Provides NAV outputs (parking brake, reverse, speed sense)
Pre-wired ASWC-1 harness (ASWC-1 sold separately)
Adjustable gain control for overall volume
High level speaker input
Retains balance and fade
Micro-B USB updatable
Applications
CHRYSLER
Pacifica
2004-2008
DODGE
Ram Pickup 1500
2002-2004
Ram Pickup 2500, 3500
2003-2004
Viper
2008-2010
Axxess Interface AXTO-CH2 Manual
Amplified Head-Unit Replacement Wiring Interface-Harness for Select 2002-2010 Chrysler and Dodge Vehicles
The CHTO-02 interface is designed to allow the user to replace the OEM radio with an aftermarket unit in amplified 2002-2004 Dodge Ram, 2004-2008 Chrysler Pacifica and retain the use of the OEM amplified audio system.
Provides accessory power (12-volt 10-amp)
Retains R.A.P. (retained accessory power)
Designed for amplified systems
Provides NAV outputs (parking brake, reverse, speed sense)
Pre-wired ASWC-1 harness (ASWC-1 sold separately)
Adjustable gain control for overall volume
High level speaker input
Retains balance and fade
Micro-B USB updatable
Applications
CHRYSLER
Pacifica
2004-2008
DODGE
Ram Pickup 1500
2002-2004
Ram Pickup 2500, 3500
2003-2004
Viper
2008-2010
Axxess Interface CHTO-02 Manual - new part#AXTO-CH2
Amplified Head-Unit Wiring-Harness Adapter for Select 2003-2006 Ford, Lincoln and Mercury Vehicles
For models with factory NAV and without THX audio
Plugs in to car harness at radio location
Retains OE Subwoofer Amplifier
Retains Rear Seat Entertainment
Retains NAV Wires – VSS and Reverse
Retains SWC Control Wire (grey/red)
Applications
Ford
Escape (Hybrid)
2005-2007
Expedition
2003--2006
Lincoln
Navigator
2003-2006
Mercury
Mariner Hybrid
2006-2007
Amplified Head-Unit Replacement Wiring-Harness Adapter for Select 1988-1998 Audi and Volkswagen Vehicles
Tuner Bypass
5 inch long
Applications
AUDI
80 Series
1988-1992
90 Series
1988-1995
100 Series
1989-1994
200 Series
1989-1991
A6
1995-1997
Cabriolet
1994-1998
Coupe Quattro
1990-1991
S4
1992-1994
S6
1995
V8 Quattro
1990-1994
VOLKSWAGEN
Corrado
1990-1993
Amplified Head-Unit Replacement Wiring-Harness Adapter for Select 1993-2004 Audi and Volkswagen Vehicles
Amplifier integration wiring harness for fast and easy radio installation
Plugs into the car’s original radio connectors on one side
Designed for models with factory amplifiers or models with Bose systems
Uses the power wire side of the 70-1784 (front speaker output only on some models)
Includes a 20-way connector and RCA plugs
Color-coded wires on the other side are connected to the aftermarket radio
No wire cutting needed for factory radio connectors
Provides electrical power to the radio for a four-speaker connection
Applications
AUDI
A4, S4
w/ Symphony radio
2000-2001
A4
w/ Concert radio
2000-2005
A4
1996-1999
A6
1998-2001
A8, S8
1997-2003
Allroad Quattro
2001-2003
TT
2000-2001
PORSCHE
Boxter (986)
1997-2002
VOLKSWAGEN
Beetle
1998
Golf
1986-1997
Jetta
1993-1997
Aftermarket Head-Unit Replacement Amplified Wiring-Harness for Select 1986-2000 Ford, Lincoln, Mazda, Mercury and Nissan Vehicles
Install a new car radio faster with this factory amplifier integration wiring harness that plugs right into the vehicle’s connectors, allowing you to hook up the radio into the vehicle’s electrical system. On one side, the wiring harness is color-coded with wires that you'll connect or solder into the aftermarket radio/receiver. The other side has a vehicle-specific adapter that connects directly into the original radio connectors for a quicker installation without having to cut each of the wires.
Keep in mind that you may need additional parts to complete your installation, including a dash kit, antenna adapter, and, depending on your vehicle, a special interface adapter to retain audio controls on your steering wheel or other important vehicle functions like navigation, video, and more. Look up your vehicle for more information.
Factory amplifier integration wiring harness for fast and easy radio installation
Plugs into the car's original radio connectors on one side
Designed for all amplified systems using a 35-watt or greater radio
Includes radio power wiring harness and radio speaker wiring harness with RCAs
No wire cutting needed for factory radio connectors
Applications
FORD
Bronco
1973-1996
Contour
1995-2000
Crown Victoria
1992-1994
Econoline
1994-1996
Explorer
1991-1994
F-150
1992-1998
F-250/350
1992-1997
Mustang
1994-2000
Probe
1993-1997
Taurus
1990-1995
Thunderbird
1989-1997
Windstar
1995-1998
LINCOLN
Continental
1990-1994
Mark VIII
1993-1994
Mark VII
1990-1992
Town Car
1990-1994
MAZDA
Navajo
1991-1994
MERCURY
Cougar
1989-1997
Grand Marquis
1990-1994
Mystique
1995-2000
Sable
1990-1995
Villager
1993-1998
NISSAN
Quest
1993-1995
Amplified Head-Unit Replacement Wiring-Harness Adapter for Select 1998-2005 Ford, Lincoln and Mercury Vehicles
Ford premium with RCAs
Pre amp plug 3
Applications
FORD
Explorer
1998-2005
LINCOLN
Aviator
2003
Navigator
1999-2002
MERCURY
Mountaineer
1998-2005
Amplified Head-Unit Replacement Wiring-Harness Adapter for Select 1998-2011 Ford Ranger Vehicles
Included in Ford Ranger Tremor package
Tremor audio system amp integration
Comes with 70-1771 and an 8-pin harness with 2 pairs of RCAplugs
Applications
FORD
Ranger
1998-2011
Amplified Head-Unit Replacement Wiring-Harness Adapter for Select 2003-2012 Ford, Lincoln and Mercury Vehicles
Wiring harness for fast and easy radio installation
Plugs into the car’s original radio connectors on one side
Designed for base amplified sound systems (excludes Sony/THXsound systems)
Includes a power harness and an 8-pin harness with RCA jacks for retaining the factory sub-woofer
Color-coded wires on the other side are connected to the aftermarket radio
No wire cutting needed for factory radio connectors
Provides electrical power to the radio for a four-speaker connection
Applications
FORD
Crown Victoria
2003-2011
Escape
2004-2007
Escape Hybrid
2005-2007
Expedition
2003-2006
Explorer
2004-2010
Explorer Sport Trac
2006-2010
F-150
2004-2008
F-250/350/450/550
2005-2012
Five Hundred
2005-2007
Focus
2005-2007
Freestyle
2005-2007
Fusion
2006-2009
Mustang
2004-2008
Taurus
2008-2009
Taurus X
2008-2009
Thunderbird
2004-2005
LINCOLN
Aviator
2004-2005
LS series
2003-2006
Mark LT
2005-2008
Navigator
2003-2006
Town Car
2003-2011
MERCURY
Grand Marquis
2003-2010
Marauder
2003-2004
Mariner
2005-2007
Milan
2006-2008
Montego
2005-2007
Monterey
2004-2007
Mountaineer
2004-2010
Sable
2008-2009
Amplified Head-Unit Replacement Wiring-Harness Adapter for Select 1995-2004 Ford, Lincoln, Mercury and Mazda Vehicles
For all amplified systems using a 35 Watt or greater radio
Amplifier Integration Harness
12 inch long
Applications
FORD
Crown Victoria
1995-1997
Escort
1997-2002
Escort ZX2
1997-2002
Expedition
1997-1998
Explorer
1995-1997
F-250
1998-2004
F-350/450/550
1999-2004
Ranger
1995-1997
LINCOLN
Continental
1995-1997
Mark VIII
1995-1998
Navigator
1997-1998
MAZDA
B-Series Pickup
1995-1997
MERCURY
Grand Marquis
1995-1997
Mountaineer
1997
