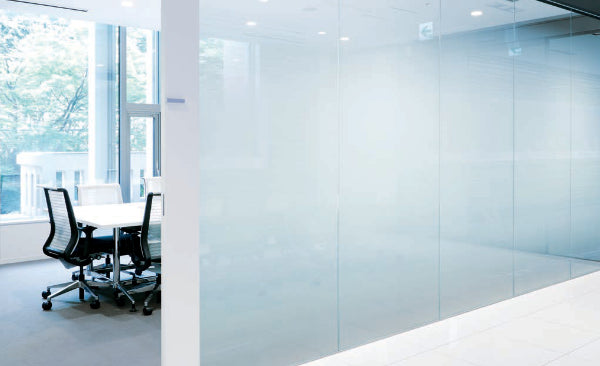

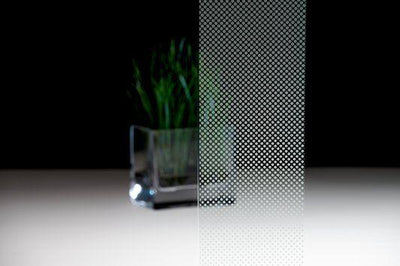

3M Illumina Silky-W SH2SSIM-W : Gradient Style Window Film

Description

Illumina Silky-W and Illumina Silky-S are provided in single panel sheets with the print direction down the sheet length, wound on a small roll. The printed area for Illumina Silky does not continue all the way to the width of the sheets.

  • Illumina Silky-W
    • A center gradation which becomes
    • transparent at both ends of the sheet.
    • Sheet size: 2950mm x 1524mm
    • Printed area: 2400mm x 1450mm
    • Sheet size: 2950mm x 1270mm
    • Printed area: 2400mm x 1210mm
  • Illumina Silky-S
    • A single gradation that becomes
    • transparent on one end of the sheet.
    • Sheet size: 1980mm x 1524mm
    • Printed area: 1900mm x 1450mm
    • Sheet size: 1980mm x 1270mm
    • Printed area: 1900mm x 1210mm

The Gradation Series works harmoniously with its setting to maximize available light. A space where light is not only welcomed, but encouraged, ensuring privacy is kept without creating a sense of closure. With a variety of configurations to capture your privacy and design needs, the range of patterns deliver a simple elegance while enhancing space and natural light into your built environment.

3M FASARA window films are decorative glass finishes available in 50+ designs. These decorative film coatings can be used to control light and privacy while enhancing interiors aesthetics. 3M FASARA provides the advantages of glazing flat-glass windows with etched, cut, sandblasted, and textured glass film at a fraction of the cost of replacing the window.

  • Provides a gradation of light transmission to control your level of privacy through glass
  • Each gradation design ranges from high transparency for more natural light to high opacity for privacy
  • Center gradation designs provide privacy in the middle of your glass
  • Available in a variety of subtle gradation patterns and textures in neutral colors
  • Single (S) gradation designs provide privacy from the bottom of the glass
  • Privacy (PR) gradation designs have a larger gradation area for more privacy coverage


Suggested Applications

  • Conference Rooms
  • Lobbies
  • Retail Environments
  • Partitions
  • Verandas
  • Private Offices

Price per sheet (Master Order Quantity 4 Sheets). - Does not include installation.

Specifications

Adhesive Features Pressure-sensitive
Adhesive Type Acrylic
Application Method Wet
Application Surface Flat
Brands Fasara™
Design Pattern Gradation
Factory ISO Certification No ISO Certification information available
Features LEED Points
Film Type Polyester
Interior/Exterior Interior
Line FASARA™ Glass Finishes
Liner Material Silicone-coated Polyester
Maximum Application Temperature (Celsius) 38 ℃
Maximum Application Temperature (Fahrenheit) 100.4 ℉
Minimum Application Temperature (Celsius) 10 ℃
Minimum Application Temperature (Fahrenheit) 50 ℉
Performance Level Premium
Product Code SH2SSIM-W
Product Color White
Specifications Met CSI Division 08, Class A - ASTM E84 Fire Classification
Substrate Glass
Visible Light Reflectance 36 %
Visible Light Transmittance 54 %

3M Fasara Film Tech Data Sheet

Product form

Illumina Silky-W and Illumina Silky-S are provided in single panel sheets with the print direction down the sheet length, wound on a small roll. The... Read more

In-store pickup or installation our shop location

SKU: SH2SSIM-W-50

Pre-Order Today!

$660.29

Description

Illumina Silky-W and Illumina Silky-S are provided in single panel sheets with the print direction down the sheet length, wound on a small roll. The printed area for Illumina Silky does not continue all the way to the width of the sheets.

  • Illumina Silky-W
    • A center gradation which becomes
    • transparent at both ends of the sheet.
    • Sheet size: 2950mm x 1524mm
    • Printed area: 2400mm x 1450mm
    • Sheet size: 2950mm x 1270mm
    • Printed area: 2400mm x 1210mm
  • Illumina Silky-S
    • A single gradation that becomes
    • transparent on one end of the sheet.
    • Sheet size: 1980mm x 1524mm
    • Printed area: 1900mm x 1450mm
    • Sheet size: 1980mm x 1270mm
    • Printed area: 1900mm x 1210mm

The Gradation Series works harmoniously with its setting to maximize available light. A space where light is not only welcomed, but encouraged, ensuring privacy is kept without creating a sense of closure. With a variety of configurations to capture your privacy and design needs, the range of patterns deliver a simple elegance while enhancing space and natural light into your built environment.

3M FASARA window films are decorative glass finishes available in 50+ designs. These decorative film coatings can be used to control light and privacy while enhancing interiors aesthetics. 3M FASARA provides the advantages of glazing flat-glass windows with etched, cut, sandblasted, and textured glass film at a fraction of the cost of replacing the window.

  • Provides a gradation of light transmission to control your level of privacy through glass
  • Each gradation design ranges from high transparency for more natural light to high opacity for privacy
  • Center gradation designs provide privacy in the middle of your glass
  • Available in a variety of subtle gradation patterns and textures in neutral colors
  • Single (S) gradation designs provide privacy from the bottom of the glass
  • Privacy (PR) gradation designs have a larger gradation area for more privacy coverage


Suggested Applications

  • Conference Rooms
  • Lobbies
  • Retail Environments
  • Partitions
  • Verandas
  • Private Offices

Price per sheet (Master Order Quantity 4 Sheets). - Does not include installation.

Specifications

Adhesive Features Pressure-sensitive
Adhesive Type Acrylic
Application Method Wet
Application Surface Flat
Brands Fasara™
Design Pattern Gradation
Factory ISO Certification No ISO Certification information available
Features LEED Points
Film Type Polyester
Interior/Exterior Interior
Line FASARA™ Glass Finishes
Liner Material Silicone-coated Polyester
Maximum Application Temperature (Celsius) 38 ℃
Maximum Application Temperature (Fahrenheit) 100.4 ℉
Minimum Application Temperature (Celsius) 10 ℃
Minimum Application Temperature (Fahrenheit) 50 ℉
Performance Level Premium
Product Code SH2SSIM-W
Product Color White
Specifications Met CSI Division 08, Class A - ASTM E84 Fire Classification
Substrate Glass
Visible Light Reflectance 36 %
Visible Light Transmittance 54 %

3M Fasara Film Tech Data Sheet
