Description

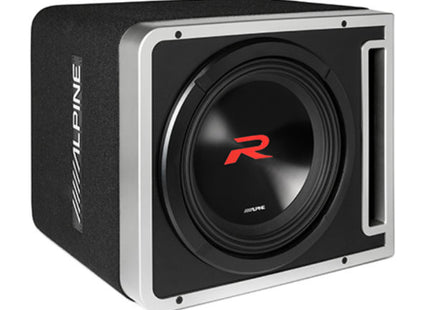

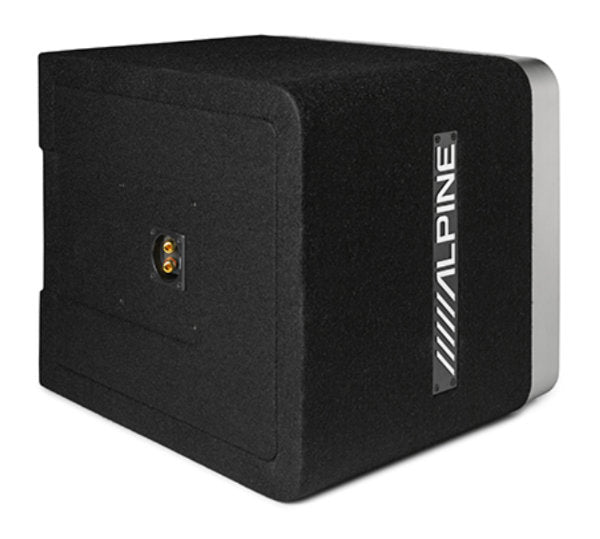

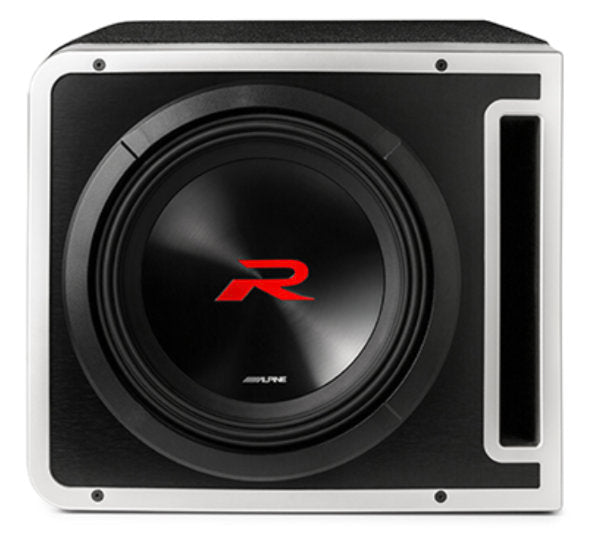

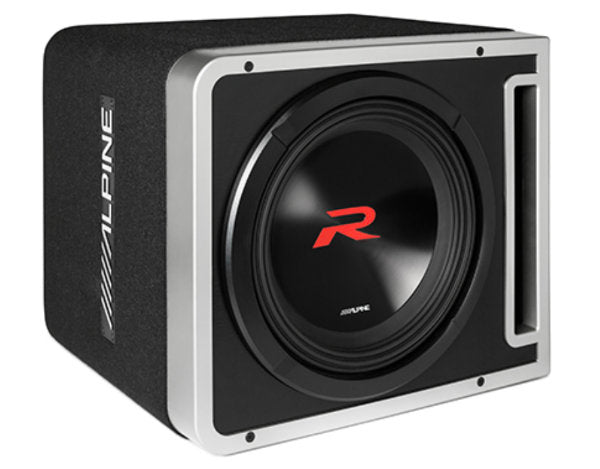

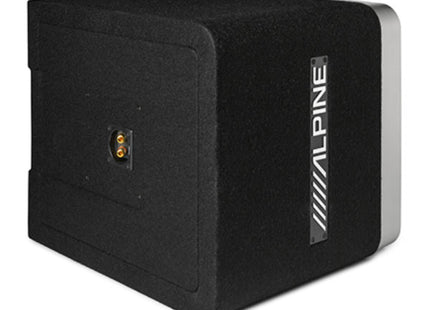

12-Inch 750-Watt Alpine R-Series Halo Loaded Subwoofer Enclosure with ProLink Connectivity
Alpine’s unique ProLink technology was designed with the sound system builder in mind. ProLink allows more flexibility in both power and price to start with a single subwoofer enclosure and add an additional subwoofer using a Linking Kit (sold separately) to link two enclosures together to create a dual system when more bass is desired.
The enclosures share the premium, unmistakable design of the Alpine Halo Family. The enclosures pull design cues from the Alpine Halo Display with unique, curved edges outlined by a silver trim and a front baffle for a matching system aesthetic. Built with sturdy, 3/4” MDF construction and covered in a premium black carpet, these enclosures give the impression of a custom look, without the custom work.
Features
- Groundbreaking Alpine Halo Design
- ProLink™ ported enclosure design
- Polypropylene/Ceramic Composite Dust Cap
- Kevlar Reinforced Pulp Cone High-Performance subwoofers
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Large Double-Stacked Magnets
- CARB compliant 3/4-inch MDF construction
- Premium black carpet
- Silver Alpine embossed side logo badge
- Brushed aluminum finished metallic front baffle
- Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
Specifications
- Dimensions: 17” W x 14.625” H x 15” D
- 750W RMS
- 2250W Peak Power Handling
- Frequency Response: 24Hz-200Hz
- Sensitivity (1W/1m): 85dB
- Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
- Voice Coil: 65.5mm
- X-Max: 20mm
- Magnet Weight: 144oz
- 12 Gauge OFC Speaker Box Wire
- CTA-2031 Compliant
