Description

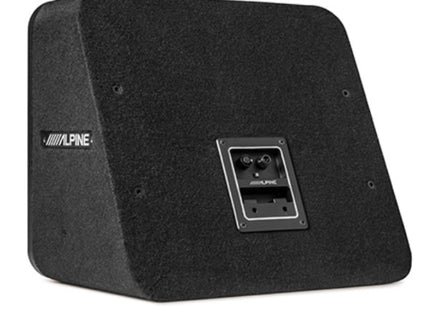

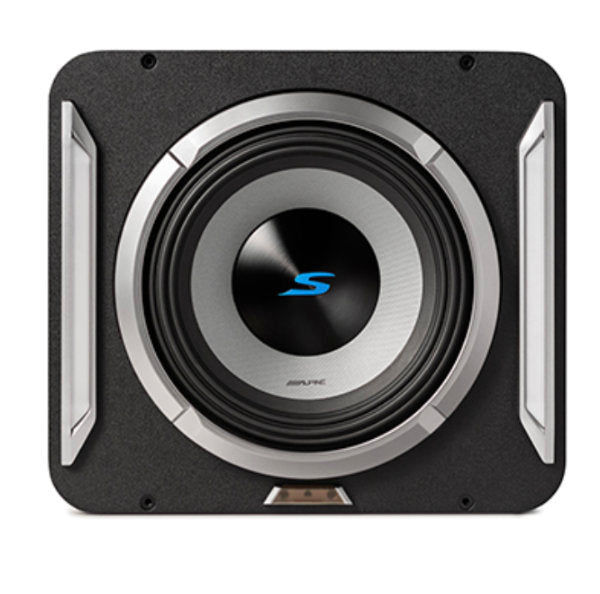

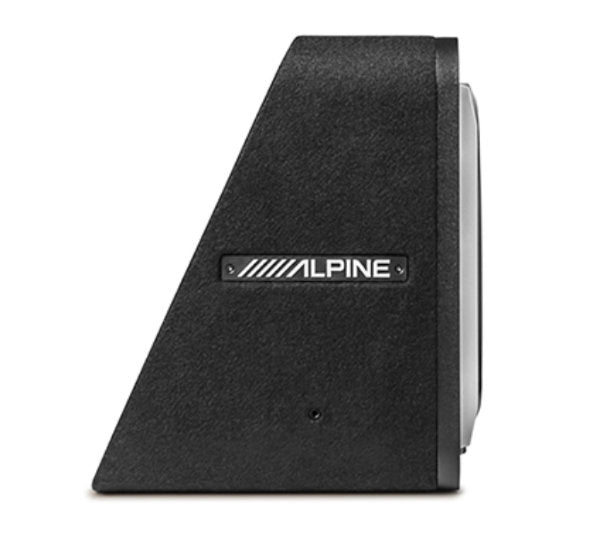

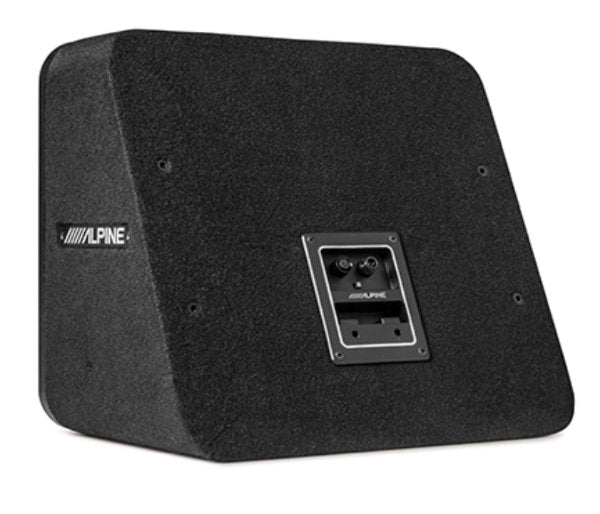

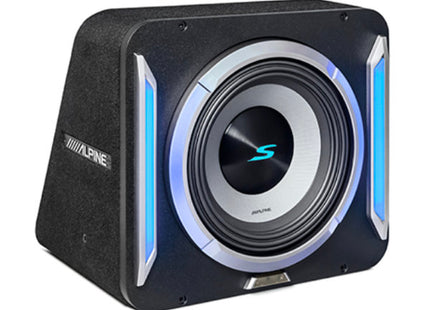

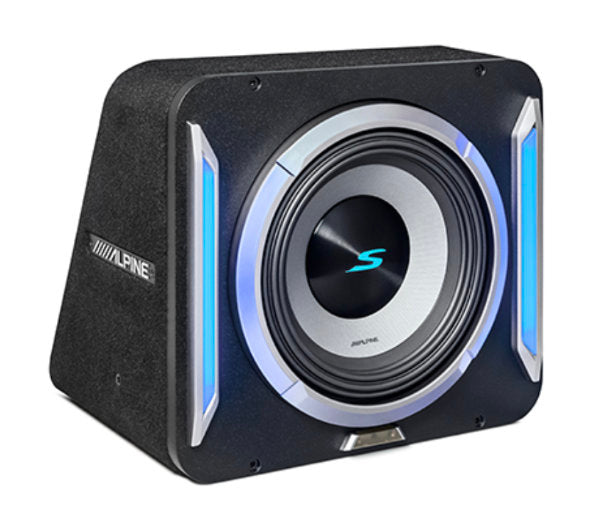

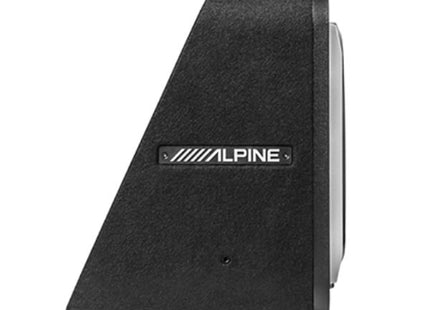

10-Inch 600-Watt Alpine S-Series Loaded Subwoofer Enclosure with PrismaLink Lighting
Color and sound collide to bring you an intentionally crafted 10-inch wedge style subwoofer enclosure, designed for optimal bass performance and vehicle fitment, and an integrated RGB lighting system that’s multi-link capable for single, dual, and even quad-enclosure installations.
Manage the integrated RGBW trim bars effortlessly through the intuitive Lighting Link control screen on the PrismaLink compatible Alpine receivers. With a simple touch, users can easily change the ambiance, adjust colors, and change modes on the PrismaLink® enclosures. Whether it's setting the perfect vibe for a late-night drive or enhancing the atmosphere of a weekend getaway, the intuitive interface empowers users to tailor their lighting experience with precision and ease.
Features
- Preloaded S2-W10D4 10” S-Series Subwoofer
- Sealed Wedge Style Enclosure Design
- RGBW Multi-color Trim Bar Lighting with IR Remote included
- Lighting Modes:12 Static Colors, 4-Dynamic Modes
- Multi-Link Capable (Link 2 or more enclosures together)
- Lighting Link Control via iLX-W670 Head Unit
- Carbon Fiber / Poly Propylene Subwoofer Cone
- Lightweight Construction, High Output, Low Distortion
- Enhanced “Punch” and Accurate Bass
- High-Amplitude Multi-Roll (HAMR) Surround for High Excursion
- Compatible with the KTX-EBKT Mounting Brackets
- Compatible with the KTX-LK10 10” Linking Bracket for Multi-Link Application
Specifications
- Enclosure Dimensions: 14.5” (W) x 13” (H) x 11.25” (D)
- Power Handling: 600W RMS / 1800W Peak
- Nominal Impedance: 2Ω
- Frequency Response: 25Hz - 215Hz
- Sensitivity: 85dB
- X-Max (1-Way): 15mm
- Voice Coil: 2.6”
- Magnet Weight: 64oz
- Dual 4Ω voice coils wired in parallel for a 2Ω load
