Description
Add-On Amplifier OEM Integration Interface for Select 2011-UP Ford Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
- Designed to provide (2) channels of low-level audio output from the factory system
- Allows for the installation of an amplifier for speakers or subwoofers
- Gain Controller included to adjust the overall output
- 12v-500mA remote wire activated with signal sense
- 55 watts per channel
Contents

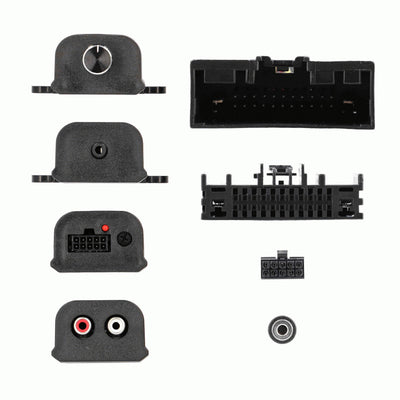

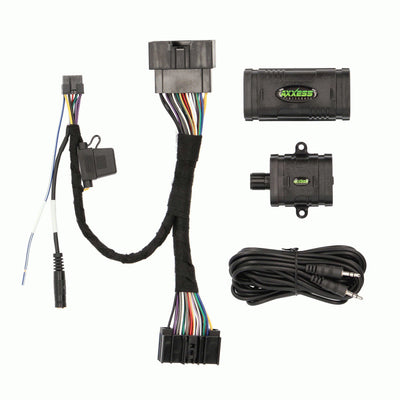

- AXLOC-FD2 Wiring Harness
- Gain Controller
- 12v-500mA Remote Wire
- Auxiliary Cable
Applications
-
| FORD |
|
|
| Edge |
non-amplified |
2011-2020 |
| Escape |
non-amplified |
2013-2019 |
| Explorer |
non-amplified |
2011-2019 |
| F-150 |
non-amplified |
2013-2020 |
| F250/F350/F450/F550 |
non-amplified |
2013-2019 |
| Fiesta |
non-amplified |
2011-Up* |
| FLEX |
non-amplified |
2013-2019 |
| Focus |
non-amplified |
2012-2018 |
| Fusion |
non-amplified |
2013-2020 |
| Mustang |
non-amplified |
2015-2020 |
| Ranger |
non-amplified |
2019-2020 |
| TAURUS |
non-amplified |
2013-2019 |
| Transit 150/250/350 |
non-amplified |
2015-2019 |
| Transit Connect |
non-amplified |
2014-2018 |
