Description
HD-Series 5-Channel Class-D System Amplifier, 100-Watts x 4ch + 500-Watts x 1ch @ 1.5-4-Ohms
Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using JL's Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100W x 4 to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

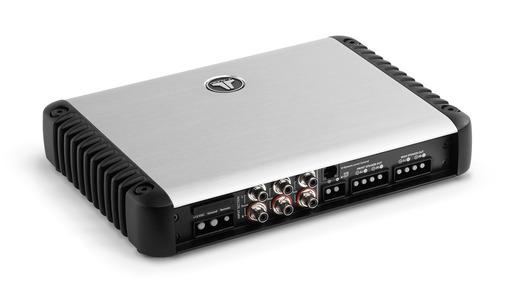

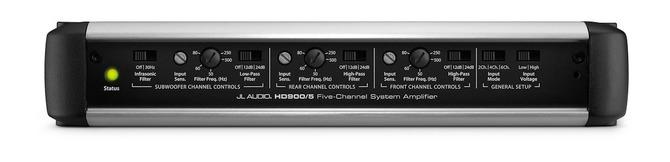

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
General Specifications
| Frequency Response (Main Channels) |
12 Hz - 28 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) |
12 Hz - 10 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Main Channels) |
>108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Main Channels) |
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω |
>400 / 50 Hz |
| Damping Factor @ 2 Ω |
>200 / 50 Hz |
| THD+N @ Rated Power (Main Channels) |
<0.03% @ 4 Ω |
| THD+N @ Rated Power (Subwoofer Channel) |
<0.05% @ 4 Ω |
| Input Voltage Range @ RCA Inputs |
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge |
Accepts up to 4 AWG wire |
| Fuse Rating |
60 A (AFS, AGU or MaxiFuse™) |
| Main Channels @ 4 Ω |
100 W RMS x 4 |
| Main Channels @ 3 Ω |
75 W RMS x 4 |
| Main Channels @ 2 Ω |
75 W RMS x 4 |
| Main Channels @ 1.5 Ω |
75 W RMS x 4 |
| Main Channels - Bridged @ 8 Ω |
200 W RMS x 2 |
| Main Channels - Bridged @ 4 Ω |
150 W RMS x 2 |
| Subwoofer Channel @ 4 Ω |
500 W RMS x 1 |
| Subwoofer Channel @ 3 Ω |
500 W RMS x 1 |
| Subwoofer Channel @ 2 Ω |
500 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω |
500 W RMS x 1 |
