Description

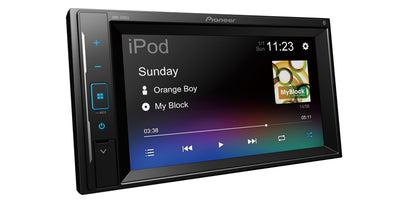

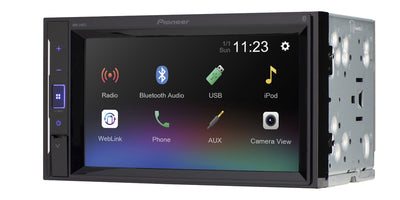

DDIN-Size 6.2-Inch Touchscreen Digital Mechless Media Receiver with Bluetooth
The DMH-241EX is a new entry-level in-dash multimedia A/V receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in bluetooth for hands-free calling and audio streaming, audio/video playback from USB, safety features such as backup camera ready and much more.
Pioneer's DMH-241EX is ready to roll with direct connectivity to your iPhone for music and video via USB. Song, artist, time and album information are beautifully displayed on the touchscreen. The system's wired USB connection provides direct digital signal transfer from the device for clean, clear sound while providing 1.5 amp of current to keep your iPod/iPhone charged.
Users of devices running Android OS version 4.0 or later can connect to the DMH-241EX and listen to music stored on the device without the need for an app. The process is made possible using Media Transfer Protocol (MTP), which allows the receiver to recognize the Android smartphone as a music storage device. Operate basic functions like FF, REW, Play, Pause, Random Play, and Repeat and view metadata information such as track, artist, and album name.
Stay safe and obey local hands-free laws with built-in bluetooth (HFP). Easily pair a bluetooth enabled phone to the DMH-241EX without having to go through complicated settings. When a registered bluetooth device is in proximity to the receiver, the auto connection function automatically pairs the two units.
From hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP profile), bluetooth wireless technology has made life in the vehicle much more convenient.
The DMH-241EX with bluetooth also includes superior call quality reception using Wideband Speech Handsfree Profile 1.6. Wideband Speech nearly doubles the bandwidth of frequencies of a normal bluetooth call (when compared to calls without Wideband Speech)
Back-up camera input enables you to add a reverse (rear facing) camera that can assist with rear visibility, towing, or parking.
Select from among five colors (blue/red/amber/green/violet) for the display and 112 different key colors to match unit illumination to your vehicle's interior lighting. Also choose from several background images to suit your mood.
Specifications
Continuous Power Output 22 W x 4-Channel
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output 50 W x 2-ch 4 ohm + 70 W X 1-ch (subwoofer) 2 Ohm
RCA Preout Voltage 4V
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm
Back Light LED
Brightness Control Yes
Color Customization 5 display colors, 112 key colors
Device (Non-DIN/Modular Unit) 2-DIN
Dimmer Automatic with vehicle illumination, Timer Controlled, Manual
Display Off Mode Yes
Home Screen Customization Yes
Monitor Mechanism Fixed
Resolution WVGA (800 x 480)
Screen Size/Aspect Ratio 6.2"/16:9
Touch Screen Resistive
Advanced Audio Distribution Profile (A2DP) Yes
AVRCP Yes
Built-in Bluetooth® Yes
Hands-Free Yes
Microphone Included
Secure Simple Pairing (SSP) Yes
Serial Port Profile (SPP) Yes
Best Station Memory Yes
Local Seek tuning Yes
Presets 18 FM, 6 AM
RDS Yes
Mobile Operating System Android
Music Playback (MTP) Yes
Audio Playback via USB MP3 Audio Playback / WMA Audio Playback / WAV Audio Playback (Hi-Res) / AAC Audio Playback / DivX Audio Playback
Audio Video Playback via USB .avi / .mpg/mpeg / .divx / H.263 / H.264
Image Display via USB BMP / JPEG
Auto EQ (CD-MC20 Microphone sold separately) Yes
Customizable Graphic Equalizer 13 Band
DA Converter 24 Bit
Digital Signal Processor Built In
Loudness High/Mid/Low/Off
Speaker Output 4-Channel
Subwoofer Control Yes
Time Alignment Manual
OEM Integration iDatalink® Maestro™ - RR Using W/R input for SWC
RCA Video Output Yes
USB Single Rear Type-A (5V, 1.5 A)
USB Direct Control for iPhone® 5s and newer
Input 1 Backup Camera Dedicated
Input 2 AUX (Minijack)
Detachable Face Security Fixed
Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser USB
Remote Control Optional
