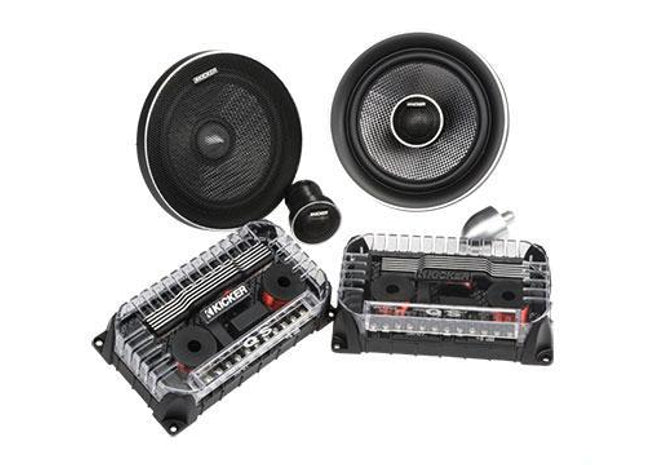

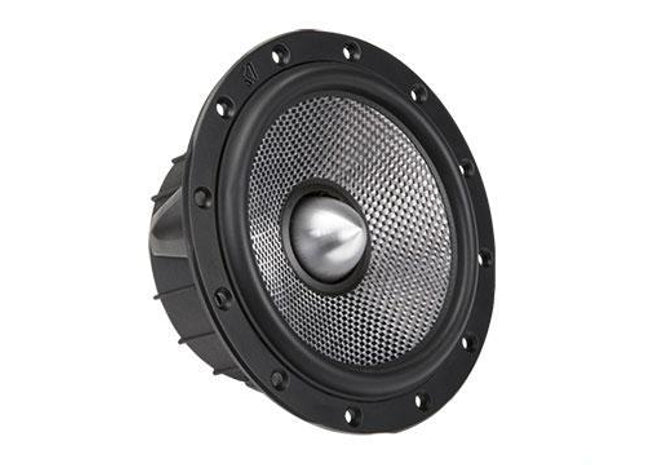

6.75-Inch 100-Watt RMS Convertible Component Automotive Door Speakers
The 6.75" QS series audiophile component door speakers by Kicker offer stunning midrange drivers, audiophile precise tweeters and a superior crossover network. The QS 6-3/4 Inch convertible speakers are a matched component system, built for pure sonic reproduction.
The Kicker 41QSS674 crossovers allow you to use a single amplifier channel, or use bi-amplification for even more flexibility and control. These 6.75" QS series convertible speakers can be installed as a pair of components or a coaxial configuration. These Kicker speakers work best with 100 watts of recommended power. See below for more details.
Specifications
Woofer (in., mm)
6-3/4, 165
Tweeter (in., mm)
1-3/16, 30
Tweeter dome material
Tetoron®
Rated Impedance [Ω]
4
Recommended Amplifier Power (watts RMS)
100
Peak Power (watts, per ANSI/CTA-2031-A)
200
Sensitivity [1W, 1m]
87dB
Frequency Response [Hz]
40-22k
Woofer Mounting Hole Diameter [in, mm]
5-7/16, 138
Woofer Bottom Mount Depth [in, mm]
2-1/2, 63.5
Flush Mount Tweeter Hole Diameter [in,mm]
1-13/16, 46
Flush Mount Tweeter Depth [in,mm]
1-1/8, 29
High Pass [dB], at Frequency [Hz]
24, 2800
Low Pass [dB], at Frequency [Hz]
12, 2800
High Frequency Output Attenuation [dB]
0, +3, +6
Kicker QSS Series Manual
6-3/4" 100-Watt Coaxial Speakers
This pair of QS series 6.75" coaxial audiophile speaker drivers by Kicker feature neodymium magnets on the woofer and tweeter, and are bi-amp capable.
Incased within the speaker chassis is you will find a 25mm Teteron® dome tweeter with Kicker's custom wave guide technology for near perfect phase alignment for smooth frequency response. The injection-molded Polypropylene cone of this coaxial door speaker is impregnated with carbon-fiber for tight, accurate midrange. An NBR rubber surround provides superior damping, and complemented by a signature blue double surround stitching.
The independent 18dB crossover has been optimized for size, and features built-in tweeter protection. Utilizing Metallized Polypropylene capacitors, high-powered resistors and audiophile-grade air-core inductors, the crossover delivers outstanding overall sound quality and easy mounting in a door or under a seat.
These Kicker QS 6-and-3/4 inch door speakers have an amplified RMS power range of 100W. This pair of drivers also has speaker adaptor rings, allowing them to be installed using select factory location mounting.
Specifications
Woofer (in., mm)
6 ¾, 165
Tweeter (in., mm)
1, 25
Tweeter dome material
Teteron®
Rated Impedance [Ω]
4
Recommended Amplifier Power (watts RMS)
100
Peak Power (watts, per ANSI/CTA-2031-A)
200
Sensitivity [1W, 1m]
86dB
Frequency Response [Hz]
40-20k
Woofer Mounting Hole Diameter [in, mm]
5 9/16, 141
Woofer Mounting Depth [in, mm]
2 9/16, 64.9
High Pass [dB], at Frequency [Hz]
18, 5.5k
Low Pass [dB], at Frequency [Hz]
18, 5.5k
Comments
Crossover is bi-amp capable.
Kicker QS Series Coaxial Speaker Manual
100-Watt 6.75-Inch Coaxial Speakers, 4-Ohm
These CS series 6.75" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
The Kicker CS series 6 and a 3/4" speakers work best with 100 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 3/4 [165]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
5 1/2 [140]
Top Mount Depth | in [mm]
3/16 [4]
Bottom Mount Depth | in [mm]
1 13/16 [47]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam

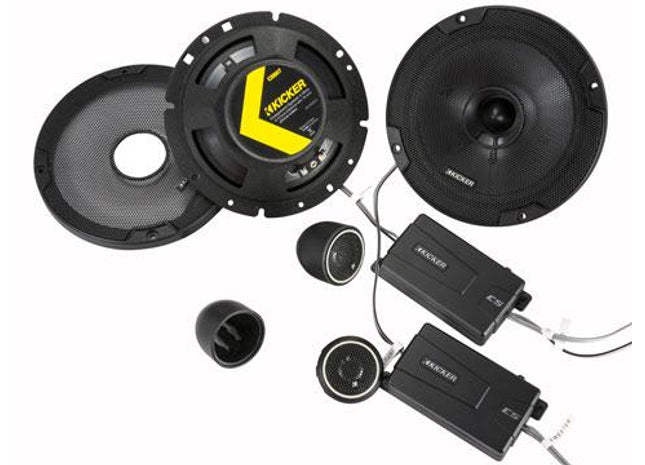

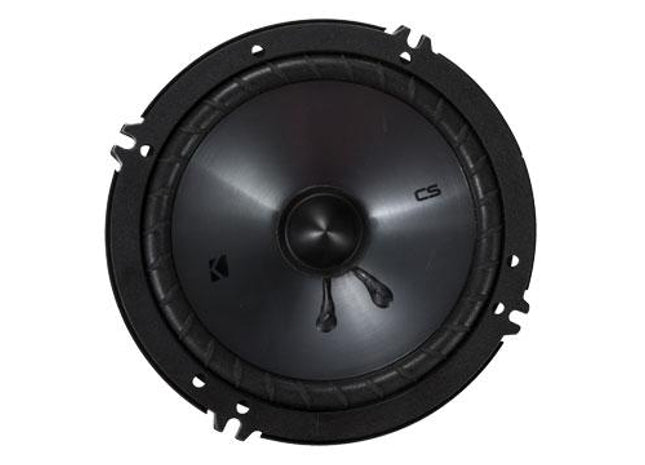

100-Watt Component Speakers 6.75-Inch Drivers
The CS Series 6-3/4-inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality.
The Kicker CS Series 6-3/4" speakers work best with up to 100-watts of recommended power.
Specifications
Woofer Size | in [mm]
6 3/4 [165]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power | [watts]
300
Continuous Power | [watts RMS]
100
Effective Frequency Range | Hz
35-21k
Woofer Mounting Hole Diameter | in [mm]
5 1/2 [140]
Woofer Bottom Mount Depth | in [mm]
1 13/16 [47]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
Yes
Kicker CS Component Speaker Manual
6.75-Inch Coaxial Speaker Drivers, 100-Watt RMS
The Kicker KS series six-and-three-quarter-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 100 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
6-3/4, 165
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-100
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
40-21k
Mounting Hole Diameter [in, mm]
5-9/16, 141
Top Mount Depth [in, mm]
1-13/16, 46
Bottom Mount Depth [in,mm]
2, 50
Tweeter Protrusion [in,mm]
3/8, 10
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual

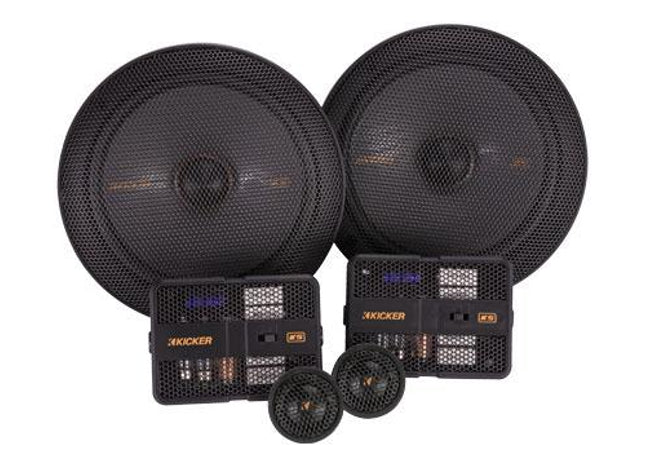

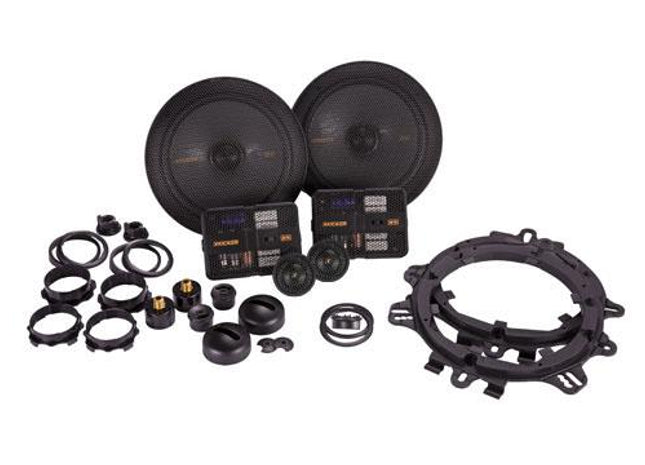

6.75-Inch 125-Watt Component or Coaxial Mountable Speaker System
Kicker KS-Series door-speakers let you play at concert-like volume while pleasing even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs.
These 6.75" Kicker speakers component system with separate tweeters, or convert them to a coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 125 watts of recommended power. See below for more details.
High power handling
Silk-dome tweeters for a smooth sound
Polypropylene woofer and tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Four tweeter mounting options
Articulating tweeter pod included
Smaller crossover makes mounting even easier
Grilles included
Specifications
Woofer [in, mm]
6-¾, 165
Tweeter [in,mm]
1, 25
Dome Material
Silk
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-125
Sensitivity [1W, 1m]
91
Frequency Response [Hz]
35-21k
Woofer Mounting Hole Diameter [in, mm]
5-9⁄16 , 141
Woofer Bottom Mount Depth [in, mm]
1-13⁄16 , 46
Flush Mount Tweeter Hole Diameter [in,mm]
1-¾, 45
Flush Mount Tweeter Depth [in,mm]
11⁄16 , 17
High Pass [dB], at Frequency [Hz]
12, 4,000
Low Pass [dB], at Frequency [Hz]
none
High Frequency Output Attenuation [dB]
0, 4.5, 9
Kicker KS Series Component Speaker Manual
6.75-Inch 150-Watt Thin Subwoofer Driver, 1-Ohm or 2-Ohm DVC
The CompRT 6.75" thin subwoofer by Kicker is a weather resistant thin sub with a 1Ω or 2Ω dual voice coil design. This thin 6.75 inch sub magnet structure delivers 150W RMS of power with a chassis mounting depth of 2 3/4". The Kicker designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to keep this 6.75" CompRT thin subwoofer driver nice and cool.The CompRT 6.75-Inch subwoofer works best with a sealed or ported enclosure and 150 watts of recommended power.
Specifications
SIZE [in, cm]:
6 13/16, 17.3
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
150
Peak Power (watts, per ANSI/CTA-2031-A)
300
SENSITIVITY [dB 1w/1m]:
82.6
MOUNTING DEPTH [in, cm]:
2 3/4, 7
MOUNTING DIAMETER [in, cm]:
5 5/8, 14.3
MIN SEALED BOX VOL [cu. ft, L]:
0.18, 5.1
MAX SEALED BOX VOL [cu. ft, L]:
0.75, 21.24
Kicker CompRT Subwoofer Manual
6 3/4-Inch 150-Watt RMS Loaded Dual Thin Subwoofer Enclosure, 2-Ohm Final Impedance
The CompRT Thin Profile 6-¾-Inch subwoofer enclosure comes loaded with a Reflex subwoofer and RT sub, then carpeted and loaded with a single 2Ω terminal.
Covered in sleek black carpeting and built with stout MDF construction & rounded corners, these tough enclosures take plenty of power, yet fit nearly anywhere.
The Kicker 43TCWRT672 enclosure works best with 150 watts of RMS power.
Specifications
Woofer [in, cm]
6-¾, 165
Recommended Amplifier Power (watts RMS)
150
Peak Power (watts, per ANSI/CTA-2031-A)
300
Rated Impedance [Ω]
2
Frequency Response [Hz]
35-500
BOX TOP DEPTH (in, cm):
3-5⁄16 , 8.5
BOX BOTTOM DEPTH (in, cm):
5-11⁄16 , 14.5
BOX HEIGHT (in, cm):
10, 25.4
BOX WIDTH (in, cm):
15-¼, 38.7
Kicker CompRT Subwoofer Enclosure Manual
Six-Inch to Six-3/4" Door-Speaker Replacement Adapter-Plates for Select 2015-UP Chevy and GMC Vehicles
Vehicle specific spacer designed for installation of 6 to 6.75 inch aftermarket speakers
Will work: front door speaker locations (Sierra/Silverado) rear deck (Malibu)
One pair of adapters included in each package
Front Speaker Applications
BUICK
Enclave
Bose
2018-2023
Enclave
2018-2023
Envision
2016-2020
CADILLAC
Escalade
Incl. ESV
2015-2020
XT5 Crossover
9 Speakers
2017-2024
XT5 Crossover
7 Speakers
2017-2024
XTS
9 Speakers
2013-2019
XTS
7 Speakers
2013-2019
CHEVROLET
Blazer
2019-2020
Silverado 1500
Crew Cab
2019-2024
Silverado 2500 HD, 3500 HD
Crew Cab
2020-2024
GMC
Acadia
2017-2023
Canyon
Extended Cab
2015-2024
Canyon
4 door
2015-2024
Sierra / Sierra Denali 1500
Crew/Extended Cab
2019-2024
Sierra / Sierra Denali 1500
Standard Cab
2019-2024
Sierra / Sierra Denali 2500 HD, 3500 HD, Chassis Cab
Crew Cab
2015-2024
Sierra / Sierra Denali 2500 HD, 3500 HD, Chassis Cab
Standard Cab
2015-2024
Sierra / Sierra Denali 2500 HD, 3500 HD, Chassis Cab
Extended Cab
2015-2024
Sierra / Sierra Denali 1500 Limited
Crew Cab
2019-2019
Sierra / Sierra Denali 1500 Limited
Extended Cab
2019-2019
Sierra / Sierra Denali 1500 Limited
Standard Cab
2019-2019
Sierra / Sierra Denali 1500
Crew Cab
2014-2018
Sierra / Sierra Denali 1500
Standard Cab
2014-2018
Sierra / Sierra Denali 1500
Extended Cab
2014-2018
Terrain
2018-2024
Yukon/Yukon XL/Yukon Denali
2021-2024
Yukon/Yukon XL/Yukon Denali
2015-2020
Rear Speaker Applications
CHEVEROLET
Malibu
2016-2020
Universal 1/2-Inch Thick Replacement Speaker Trim Ring for 6-inch to 6.75-Inch Drivers
1/2 inch spacer designed for installation of 6 to 6-3/4 inch aftermarket speakers & works with all varieties of speakers including component drivers
One pair of adapters included in each package
6.5" Replacement Speaker Adapter Plate for 2015-UP Ford F-Series Vehicles
Accommodates 6 to 6.75 inch speaker
Will work front door speaker locations
Packaged as a pair
Front Speaker Applications
FORD
Expedition
2018-2024
Expedition Max
2018-2024
Explorer
Bang Olufsen
2020-2024
Explorer
2020-2024
F-150
Bang Olufsen
2021-2024
F-150
2015-2024
F-250 / F-350 / F-450 / F-550
Bang Olufsen
2023-2024
F-250 / F-350 / F-450 / F-550
2017-2024
LINCOLN
Continental
2017-2020
Navigator
2018-2023
Navigator L
2018-2023
Six-Inch to 6-3/4-Inch Door Speaker Trim Ring Adapter for Select 2002-UP Lexus, Subaru and Toyota Vehicles
Accommodates 6 to 6.75 inch speaker – pair
Front Speaker Applications
LEXUS
CT 200h
2011-2013
GX Series
2010-2014
GX Series
2003-2009
LS 460
2010-2012
LS 460
2007-2009
LS 600h L
2013-2014
LS 600h L
2010-2012
LS 600h L
2008-2009
LS Series
2013-2014
SUBARU
Crosstrek
2018-2020
Impreza
2017-2020
Legacy
2015-2020
Outback
2018-2018
TOYOTA
(Camry) Solara
2004-2008
4Runner
2015-2020
4Runner
2010-2014
4Runner
2003-2009
Avalon
2013-2014
Avalon
2011-2012
Avalon
2005-2010
Camry
w/o JBL
2002-2011
FJ Cruiser
2007-2014
Highlander
2008-2012
Land Cruiser
2008-2014
Prius
2012-2015
Prius
2010-2011
Sequoia
2008-2014
Tacoma
2005-2015
Tundra
2014-2018
Tundra
crew cab
2007-2013
Venza
2009-2015
Replacement Six-Inch to 6-3/4-Inch Door Speaker Trim Ring Adapter for Select 2001-2007 Toyota Vehicles
Mounting adapter
For 6-6.75 inch speakers
Front door location
Sold as a pair
Applications
TOYOTA
Sequoia
2003-2007
Sequoia
2001-2002
Tundra
w/o JBL
crew cab
2004-2006
6.5-Inch to 6.75-Inch Door-Speaker Replacement Trim-Ring Adapter for Select 2015-2020 Subaru WRX Vehicles
Allows installation of aftermarket 6.5 to 6 3/4 inch speakers in the front doors
Includes one pair of adapters
Front Speaker Applications
SUBARU
WRX, WRX STI
2016-2020
6.5-Inch to 6.75-Inch Door-Speaker Replacement Trim-Ring Adapter for Select 2000-2010 Audi Vehicles
Allows installation of aftermarket 6.5 to 6 3/4 inch speakers in the front doors
Includes one pair of adapters
Front Speaker Applications
AUDI
A3
2008-2013
A4
2009-2016
A4
Convertible
2003-2009
A4
2000-2001
A4 / RS 4 / S4
Sedan
2002-2008
A4 / RS 4 / S4
Wagon
2002-2008
Aftermarket Dash-Speaker Replacement Enclosure Pods for Select 2018-Up Jeep Wrangler and 2020-Up Gladiator JL & JT Vehicles
Each pair of pods has an ABS housing that utilizes the factory mounting locations for a secure fit that will heighten the listening experience. The pods use the factory grommet and wiring and a Metra speaker adapter harness is included.
Driver and passenger specific dash replacement sealed speaker pods to install 6in to 6.75in speaker
Mounting positions for Chrysler three hole mount used by specific speaker manufacturers such as Alpine
Sealed enclosure (1) with a hole for the factory wiring grommet
4-inch speaker depth
Includes 12" speaker harness
Significant disassembly of the Dash is required to access these speaker pod locations. Add 2-hours to installation time.
Applications
JEEP
Gladiator
2020-2023
Wrangler
AKA "JL" for 2018
2018-2023
Metra JP-1014 Installation Manual
