12-Inch 600-Watt Square Subwoofer Driver, 2-Ohm or 4-Ohm DVC
This L7 series 12" square woofer by Kicker hosts a heavy-duty motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. On board the chassis of this 600W driver you will find dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, ribbed santoprene surround with blue stitching and a UniPlate™ back plate and pole piece, plus perimeter venting for thermal heat management.
The Kicker 45L7R122 and 45L7R124 square subwoofers are rated for 600W of RMS amplified power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
SENSITIVITY [dB 1w/1m]:
86.7
MOUNTING DEPTH [in, cm]:
6 7/8, 17.4
MOUNTING DIAMETER [in, cm]:
11 1/16, 28.1
MIN SEALED BOX VOL [cu. ft, L]:
.88, 24.92
MAX SEALED BOX VOL [cu. ft, L]:
2, 56.64
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
3.25, 92
Kicker L7R Subwoofer Manual
Dual 12-Inch 2-Ohm 800-Watt Thin Subwoofer-Enclosure for Select 2019-UP (Gen 4) Chevrolet-Silverado and GMC-Sierra 1500 Crew-Cab Trucks, 2020-UP for 2500 and 3500 HD
This generation of Chevrolet/GMC trucks is bringing new levels of interior refinement and technology to the full-size truck segment. JL's Stealthbox® enhances all this by adding impressive, high-quality bass without losing any of your precious people space or interior functionality.
The Stealthbox® slips under the truck's rear seat and features two of JL Audio's revolutionary 12TW3 thin-line subwoofers, giving you absolutely stellar sub-bass impact and quality. We even left a perfect spot in the middle of the enclosure for a clean, hidden amplifier installation!
The Hard Data: Contains two 12TW3-D8 subwoofers in a down-firing sealed enclosure. 800 watt power handling. Wired for a 2 ohm load. Installs under rear seat. Will not affect the folding of the rear seat or rear leg room.
Applications
CHEVROLET
Silverado 1500
2019-2024
Silverado 2500 HD, 3500 HD
2020-2024
GMC
Sierra 1500
2019-2024
Sierra 2500 HD, 3500 HD
2020-2024
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-GM-SLVCC4/12TW3 Installation Manual

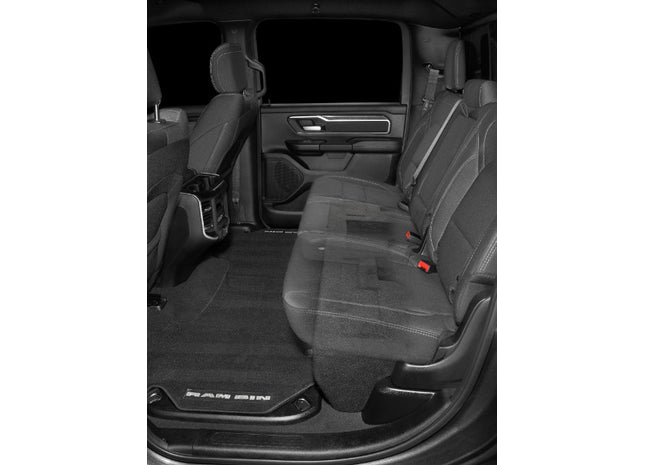

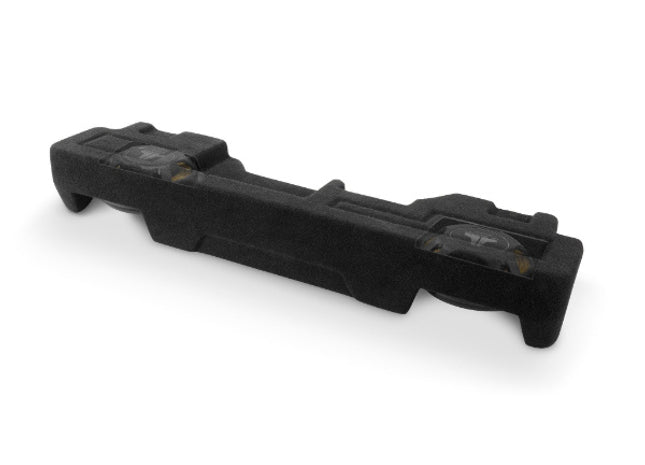

Dual 12-Inch 2-Ohm 800-Watt Subwoofer-Enclosure for Select 2019-UP RAM-1500 Crew-Cab Models with Fixed Rear-Seat
This generation of RAM’s big hauler combines a bold new design with major advancements in aerodynamics, technology and towing capabilities. Unfortunately, the factory sound systems are greatly deficient in the bass reproduction department.
Fortunately, JL's engineers tackled this challenge head on and developed a subwoofer solution that fills your Crew Cab with stunning amounts of deep bass output. Featuring a 100% fiberglass, sealed enclosure design, this Stealthbox® houses two of JL Audio's revolutionary 12TW3 thin-line subwoofers and installs neatly under the rear seat, without compromising rear seat comfort. Rear seat folding is unaffected, and we even left space on the enclosure that’s perfect for a clean, hidden amplifier installation!
Specifications
The Hard Data: Contains two 12TW3-D8 Subwoofers in a sealed enclosure. 800 watt power handling. Wired for 2 ohm mono. Fits 1500 Crew Cab with fixed (non- reclining) rear seat. Will not fit 2500 or 3500 models.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-D-5GRAMCCF/12TW3 Installation Manual
Dual 12-Inch 2-Ohm 800-Watt Thin Subwoofer-Enclosure for Select 2007-2013 Chevrolet-Silverado and GMC-Sierra Crew-Cab Trucks with Ebony-Interior
Whether your truck is used to work hard or play even harder, this vehicle brings a whole lot to the table: from great towing and hauling capabilities to powerful engine options, a spacious interior and a smooth ride. Amidst an evolving truck market complicated with special features and touch screens, the massive GM Crew Cab trucks have stuck to their model of simplicity and comfort.
JL Audio's Stealthbox® enhances this design by adding quality bass without losing precious space or functionality. The Stealthbox® slips under the truck's rear seat and features two of JL's revolutionary 12TW3 thin-line subwoofers, giving you absolutely stellar sub-bass impact and quality. They even left a perfect spot for a clean amplifier installation!
The Hard Data: Contains two 12TW3-D8 subwoofers in a down-firing sealed enclosure. 800 watt power handling. Wired for a 2 ohm load. Installs under rear seat. Will not affect the folding of the rear seat or rear leg room.Will not fit “Classic” models.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-GM-SLVCC2/12TW3/BK Installation Manual
Dual 12-Inch 800-Watt 2-Ohm Carpeted Fiberglass Subwoofer-Enclosure for Select 2009-Up Ford F-150 SuperCrew, 2017-Up SuperDuty Crew Cab Trucks
The Ford F-150 is an American icon with impressive hauling capabilities and a spacious interior, especially in SuperCrew configurations. Unfortunately, Ford’s factory sound systems leave a lot to be desired in the low frequency department.
JL's Stealthbox® for F-150 SuperCrew and SuperDuty Crew Cab trucks fills your truck with stunning sub bass output and quality, with no intrusion on cab space. Featuring an all-fiberglass, sealed enclosure design, this Stealthbox® houses two of JL Audio's revolutionary 12TW3 thin-line subwoofers and installs neatly under the rear seat, without compromising rear seat comfort.
The Hard Data: Contains two 12TW3-D8 subwoofers in a sealed enclosure. 800 watt power handling. Wired for 2 ohm mono. Installs under rear bench seat and requires removal of under-seat storage tray, if so equipped. Installation requires removal of OEM “subwoofer”, if so equipped. Does not affect folding or reclining of seat.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-F-150-SCDBL/12TW3 Installation Manual
High Output Series 12-Inch 1000-Watt Enclosed Subwoofer System, 3Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates just above the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W7AE driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 12W7AE-3 and has been fine-tuned through extensive real-world listening. The high power handling of the 12W7AE, combined with the efficiency of this subwoofer system, produce a devastating performance combination.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. While no grille is provided, the recessed mounting baffle provides some protection for the woofer.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 400 - 1000WNominal Impedance: 3Ω
General Specifications
Continuous Power Handling (RMS)
1000 W
System Nominal Impedance
3 Ω
Enclosure Type
Chamber-coupled, slot-ported, rear-firing design
Finish
Dark gray carpet with black insert
Grille Included
No
Physical Specifications
External Width (W)
34.0 in / 864 mm
External Height (H)
17.0 in / 432 mm
External Depth (D1)
20.5 in / 521 mm
External Top Surface Depth (D2)
14.5 in / 368 mm
Net Weight
119.0 lb / 53.95 kg
JL Audio HO112R-W7AE Brochure
12-Inch Quad-Loaded Subwoofer Enclosure, 2400-Watt, 2-Ohm Final Impedance
With 2,400-watts of RMS power handling, this computer-designed bass-head subwoofer system makes rattling your ride easier than ever! Four KICKER L7R 12-inch subs come pre-loaded in this enclosure. The port is flared perfectly and tuned to 31Hz for some serious bump - without the expense of a custom enclosure.
This Kicker quad-sub box is made to take the pressure! Heavy, birch-veneer plywood construction and thick internal bracing keeps the enclosure stable, even under extreme SPL levels. Covered in durable black carpet and custom embroidered with the Kicker logo, the 47QL7R12 is pre-wired to a pair of two-Ohm terminals and 2400W of RMS power.
Specifications
Type
QUAD
Woofers/size [in, cm]
4 Solo-Baric L7R 12, 30
Impedance [Ohms]
Dual 2-Ohm Terminals
Recommended Amplifier Power (watts RMS)
2400
SENSITIVITY [dB 1w/1m]
98
Box Depth (in, mm):
28, 711
Box Height (in, mm):
20-1/4, 514
Box Width (in, mm):
35-7/8, 912
What's in the box?
1 47QL7R122, 1 enclosure hardware pack, 1 instruction manual, 2 KICKER stickers,1 47QL7R122, 1 massive sub enclosure, 1 enclosure mounting bracket kit,Customer Info Card w/link to product page (via QR Code).
ProWedge-Series 12-Inch 1000-Watt Enclosed Subwoofer System, 3Ω Sealed Enclosure
For those who seek the ultimate in compact-enclosure sub-bass fidelity, we offer this sealed ProWedge™ system, in which the superb performance capabilities of the W7AE subwoofer driver are harnessed within a compact, sealed enclosure. This system has it all: extension, impact, detail and smooth response... at any listening level.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12W7AE-3 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Black, high-grade automotive carpet, with gloss-black laminated decorative front baffle trim. Three solid aluminum bars provide stylish and rugged woofer protection.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 400 - 1000WNominal Impedance: 3 Ω
General Specifications
Continuous Power Handling (RMS)
1000 W
System Nominal Impedance
3 Ω
Enclosure Type
Sealed, rear-firing design
Finish
Black carpet / laminate
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
21.25 in / 540 mm
External Height (H)
16.50 in / 419 mm
External Depth (D1)
17 in / 432 mm
External Top Surface Depth (D2)
11.25 in / 286 mm
Net Weight
81.7 lb / 37.10 kg
JL Audio CLS112RG-W7AE Brochure
Single 12-Inch 2-Ohm 600-Watt Subwoofer-Enclosure for Select 2016-Up Chevrolet-Camaro Coupe Vehicles
Chevrolet’s 6th generation Camaro delivers a powerful shot of adrenalin and all-American, classic muscle car looks. Unfortunately, its stock sound system lacks real low-frequency punch and definitely needs some help in the bass department.
This Stealthbox® is designed to produce powerful amounts of ultra-deep bass with minimal loss of useful cargo space. Its 100% fiberglass sealed enclosure houses a highly potent 12W6v3 JL Audio 12-inch subwoofer and neatly tucks into the driver side, rear corner of the trunk. Rear-seat pass-through functionality remains unaffected, and full access to the under floor battery compartment is retained. Also available in 12TW3 driver model.
The Hard Data: Contains one 12W6v3-D4 in a sealed enclosure. 600 watt power handling. Wired for a 2 ohm load. Installs in the driver side rear corner of the trunk. Minimal loss of trunk space. Black steel mesh woofer grille included. Installation requires permanent modification to the driver’s side trunk liner. Will not fit convertible models!
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-GM-CAM6G/12W6v3 Installation Manual

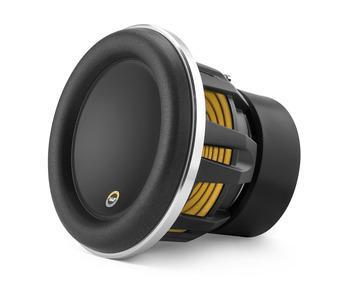

W7-Series 12-Inch 1000-Watt Subwoofer Driver, 3-Ohm SVC
The JL Audio 12" W7AE audiophile reference subwoofer driver delivers the ultimate performance by combining long-excursion W7 driver design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", with limitless dynamics and exceptional balance and world-class sound quality.
This 12W7AE automotive reference sub is best used with an amplifier in the 400-Watt - 1000-Watt range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
The JL Audio 12W7AE-3 (Anniversary Edition) subwoofer celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:
Satin-Black Powdercoated Baskets
Bright Anodized Surround Clamp Ring
Anniversary Edition Cone Badge
Anniversary Edition Terminal Label
General Specifications
Continuous Power Handling (RMS)
1000 W
Recommended Amplifier Power (RMS)
400 - 1000 W
Nominal Impedance (Znom)
3 Ω
JL Audio 12W7AE Manual
Single 400-Watt 2-Ohm Thin 12-Inch Subwoofer-Enclosure for Select 2015-UP Ford Mustang-Coupe Vehicles
The latest all-American pony car gets a big dose of horsepower and major technology enhancements, all packaged in a new sleek and sexy body. Sadly though, the stock audio systems just can't deliver enough bass to keep up with the Mustang's high-performance muscle.
JL's Stealthbox® features an all-fiberglass, sealed enclosure design that fits in the same location as the optional factory subwoofer (and requires no holes to be drilled for installation). Equipped with their revolutionary 12TW3 thin-line subwoofer, this Stealthbox delivers deep, powerful bass that's worthy of your Mustang's heritage.
The Hard Data: Contains one 12TW3-D4 in a sealed enclosure. 400 watt power handling. Wired for 2 ohm mono. Installs in the passenger side rear corner of the trunk. Factory subwoofer (if equipped) must be removed for installation of Stealthbox®. Installation in Mustang Shelby GT350 models requires relocation of additional OEM equipment. Will not fit convertible models!
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-F-MUSCPE/12TW3 Installation Manual
High Output Series 12-Inch 600-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output. In the HO112-W6v3, the high power handling of the 12W6v3 subwoofer driver, combined with its small enclosure requirements, results in a very compact subwoofer system that is capable of impressive output with moderate amplification.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates just above the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W6v3 driver. This enclosure design has been carefully engineered to the optimum ported alignment for the 12W6v3, and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. While no grille is provided, the recessed mounting baffle provides some protection for the woofer. A steel mesh woofer grille insert can be purchased separately (Model: SGR-12W6v2/v3), if additional woofer protection is desired.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the side surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 200 - 600WNominal Impedance: 2Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2 Ω
Enclosure Type
Chamber-coupled, slot-ported, rear-firing design
Finish
Dark gray carpet with black insert
Grille Included
No
Physical Specifications
External Width (W)
14.5 in / 368 mm
External Height (H)
16 in / 406 mm
External Depth (D1)
24 in / 610 mm
Net Weight
60.7 lb / 27.52 kg
JL Audio HO112-W6v3 Brochure
Single 12-Inch 2-Ohm 500-Watt Subwoofer-Enclosure for Select 2009-UP Dodge-Challenger
This reborn American legend just might be the most faithful interpretation of the classic “muscle car” formula to date. It has it all... raw power, aggressive looks, a comfortable interior... but, it certainly could use a serious audio system upgrade to erase the wimpy performance of the factory system.
JL's Stealthbox® for the Challenger is the perfect product to begin your audio transformation. It installs neatly into the driver-side corner of the trunk with minimal impact on usable cargo area. Spectacular sound quality and impressive output are delivered by a high-performance JL Audio 12-inch subwoofer in a sealed enclosure precisely matched to the Challenger's acoustics by our engineering team.
Great audio in your Challenger begins here.
The Hard Data: Contains one 12W3v3-2 subwoofer in a sealed enclosure. 500 watt power handling. Wired for 2 ohm mono. Installs against driver-side wheel well. Stealthbox® includes a steel-mesh grille to protect the driver. Access to the spare tire, jack and tools remains unaffected. Installation requires removal of factory-installed ‘subwoofer' if vehicle is equipped with ‘Kicker® SRT® Audio Package'.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-D-CHLGR/12W3v3 Installation Manual
Dual 12-Inch 2-Ohm 1200-Watt Thin Subwoofer-Enclosure for Select 2008-UP Chevrolet-Silverado and GMC-Sierra Crew-Cab Trucks
Dual L7T Truck-Specific Enclosures provide impactful bass and install under the back seat to retain cab space and legroom.
Requires amp and handles 1,200 watts RMS
Single 2-Ohm terminal
Dual KICKER Solo-Baric L7T Square Subwoofers
Thick black carpeting
MDF construction and heavy internal bracing
Made from thick MDF and formed specifically to fit every contour of your Silverado or Sierra, this custom enclosure features a pair of down-firing L7T 12-inch subwoofers with a monstrous 1,200-watts of recommended power. See details below.
It’s simple – more cone area means more air moves – for more bass and up to 20% more cone area than a conventional round sub. KICKER acoustic engineers put the largest voice coil and magnet we’ve ever integrated into a thin sub, then added a next-level top-plate design, unique heat management system and our signature cone stitching all help to give you deep bass and outstanding reliability in a single, mind-blowing design that gives you max output!
Fits*:Chevy Silverado/GMC Sierra Crew Cab (2008-newer)*Items such as inverters, storage compartments, spare tire tools or floor mats may require removal. GM Trucks 2019-newer Enclosures do fit but not as perfectly.
Specifications
TYPE:
Truck-specific
Design:
Dual Down-Fire
WOOFER SIZE (in, cm):
12, 30
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS):
1200
FREQUENCY RESPONSE (Hz):
25-100
BOX DIMENSIONS:
Width: 52” [132.1cm]
Height: 7-7/16” [18.9cm]
Depth: 15-1/2” [39.4cm]
Kicker 51KGMDL7T122 Installation Manual
StowAway-Series 12-Inch 300-Watt Enclosed Subwoofer System, 2-Ohm or 4-Ohm Downfiring Sealed Enclosure
JL-Audio StowAway subwoofer systems are engineered to deliver amazing subwoofer performance in challenging environments and applications.
Featuring a down-firing hard-shell design, StowAway subwoofers are well suited for mounting areas shared with cargo or exposed to the elements. Constructed from marine-grade materials, this low-profile enclosure design harnesses the incredible small box requirements of the TW1 subwoofer to generate smooth and powerful bass from a remarkably compact enclosure. Slotted mounting feet located at each corner of the enclosure’s base assist with “off-the-floor” installations or in tight spaces where access is limited.
The StowAway subwoofer system is prewired with selectable harness exits located underneath at opposite ends.
Finish: black texture with debossed logo on top; a protective mesh grille is included to protect the subwoofer
Recommended amplifier power: 75–300 watts
Nominal impedance: 2 ohms
Note: Mounting hardware is not included with StowAway systems. The installation method and mounting hardware used will vary based on the requirements of your specific application. The final mounting method must affix the enclosure securely to prevent movement and vibration.
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed
Finish
Black Texture
Grille Included
Yes
Physical Specifications
Height (H)
8.23 in / 209 mm
Width (W)
21.78 in / 553 mm
Depth (D)
15.16 in / 385 mm
JL Audio PES112-TW1 Manual
W6-Series 12-Inch 600-Watt Subwoofer Driver, 4-Ohm DVC
The 12" W6v3 subwoofer driver is an audiophile subwoofer that offers powerful advantages in motor linearity and suspension behavior. The 12W6v3 sub offers a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.
The JL 12W6v3-4 automotive sub is best used with an amplifier in the 200-Watt - 600-Watt RMS range and is optimized to operate in a sealed enclosure with only 1.0 cu. ft. (28.3 l) of air space, or a 1.3 cu. ft (36.8 l) ported enclosure.
Greater excursion capability and higher power handling distinguish the 12" JL W6v3 subwoofer from the 12W3v3 12-inch subwoofer driver, allowing for higher output. Dual 4Ω voice coils allow the W6v3 to be wired in a 2Ω or 8Ω configuration.
General Specifications
Continuous Power Handling
600W RMS
Recommended Amplifier Power
200W - 600W RMS
Nominal Impedance
Dual 4Ω
JL Audio 12W6v3 Manual
TW1-Series 400-Watt Amplified 12-Inch Ported Subwoofer System
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 12TW1 subwoofer driver. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer Built in USA with global components
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
TW1-Series 400-Watt Amplified 12-Inch Subwoofer System
In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Harnessing the performance and insanely small box requirements of the TW1 subwoofer driver, this subwoofer system is designed to deliver amazing sub-bass from an enclosure that is only 6.625 in. (168 mm) deep. Its low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW1 driver and has been fine-tuned through extensive real-world listening.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer built in USA with global components
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
R-Series Loaded 600-Watt Thin 12-Inch 2-Ohm Subwoofer Enclosure
Now you don’t have to choose between bass and space! Alpine’s R-Series Shallow preloaded subwoofer enclosure measures at a minimal 5.25” deep to deliver a loud and fun sound in most vehicle applications. Rubber “feet” are adjustable in height to accommodate uneven vehicle floors.
Don’t let the size fool you – the enclosures feature the same motor movement (20MM of 1-way excursion) as the full-size R2-Series subwoofers for extreme output in a shallow woofer design. At the heart of the R-Series shallow subwoofers is an oversized 4-inch voice coil that houses the lightweight and powerful neodymium magnet for 600W RMS of power handling.
Integrated cooling fins located in the core of the subwoofer help dissipate the heat generated by the rapid subwoofer movement for enhanced cooling reliability and hours of uninterrupted playtime. The unique CoolMount dual-panel mount subwoofer motor enhances cooling.
Alpine’s Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in lower distortion and precise bass control. The preloaded enclosures use the subwoofer frame as bracing fora more ridged design and better bass response.
A lightweight yet rigid aluminum dust cap allows the R-Series shallow subwoofer to transition sound quickly with minimal distortion and project the bass off the surface of the speaker for hard-hitting yet smooth bass performance. The included adjustable mounting brackets allow for a downfire mount configuration.
With dual voice coils wired in parallel for a 2Ω load, the Alpine R-Series 12" shallow subwoofer enclosure is optimized to perform with Alpine's S-A60M or R-A75M mono amplifiers.
Features
Optimal sealed cabinet quality
Aluminum Dust Cap
Neodymium Magnet
Alpine Gen2 DD Linear Magnetic Circuit
CARB compliant ¾” MDF construction
Premium Alpine embroidered black carpet
Alpine-branded terminal cup
Pre-installed steel mesh grille
Includes a 12” R-Shallow Subwoofer (RS-W12D4)
Rubber, modular stackable foot design
Specifications
Dimensions: 26.5” W x 5.25” H x 17” D
600W RMS Power Handling
Frequency response: 26Hz – 200Hz
Dual 4Ω voice coils wired in parallel for a 2Ω load (compatible with S-A60M or R-A75M)
Nominal Impedance: 2Ω
Voice Coil: 4”(101.6mm)
12-Inch 1500-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This 12" L7 dual sub box enclosure features a custom-designed vent/terminal cup with an extra thick front baffle and fortified back bracing for one of the sturdiest enclosures in the industry. Two Solo-Baric L7S 12-Inch subwoofers pound out 1500W bass with a single 2Ω speaker terminal.
Specifications
Type
dual
Woofer [in, cm]
Solo-Baric L7 12"
Impedance [Ohms]
2
Recommended Amplifier Power (watts RMS)
1500
Peak Power (watts, per ANSI/CTA-2031-A)
3000
SENSITIVITY [dB 1w/1m]
89.9
Box Top Depth (in, cm):
16 1/4, 41.3
Box Bottom Depth (in, cm):
19 1/2, 19.4
Box Height (in, cm):
16, 40.6
Box Width (in, cm):
33 3/4, 85.7
Kicker CompC Subwoofer Enclosure Manual
PowerWedge-Series 12-Inch 400-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure
In this sealed Truck PowerWedge™ subwoofer system, JL harnesses the performance of the 12TW3 to deliver amazing sub-bass from an enclosure that is only 7 in. (178 mm) deep at its base and 4.5 in. (114 mm) at the top.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW3 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 - 400WNominal Impedance: 2 Ω
General Specifications
System Nominal Impedance
2 Ω
Grille Included
Black Steel Mesh
Finish
Black carpet
Enclosure Type
Sealed, truck enclosure
Continuous Power Handling (RMS)
400 W
Physical Specifications
External Width (W)
21.75 in / 537 mm
External Height (H)
14.625 in / 371 mm
External Depth (D1)
7 in / 178 mm
External Top Surface Depth (D2)
4.5 in / 114 mm
Net Weight
29 lb / 13.2 kg
JL Audio CS112TG-TW3 Brochure
PowerWedge-Series 12-Inch 400-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure
In this low-profile PowerWedge™ subwoofer system, JL harnesses the performance of the 12TW3 to deliver amazing sub-bass from an enclosure that is only 4.5 in. (114 mm) deep.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW3-D4 and has been fine-tuned through extensive real-world listening.
The PowerWedge™ subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 - 400WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
400 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
23.75 in / 603 mm
External Height (H)
15.625 in / 397 mm
External Depth (D1)
5.0625 in / 129 mm
Net Weight
30.5 lb / 13.8 kg
JL Audio CS112LG-TW3 Brochure
High Output Series 12-Inch 500-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates on one side of the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W3v3 driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 12W3v3, and has been fine-tuned through extensive real-world listening. This efficient system will produce superb output with as little as 150W of amplifier power, but performs best with 300 - 500W of power.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Three solid aluminum bars provide stylish and rugged woofer protection.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 150 - 500WNominal Impedance: 2Ω
General Specifications
Continuous Power Handling (RMS)
500 W
System Nominal Impedance
2 Ω
Enclosure Type
Chamber-coupled, slot-ported, rear-firing design
Finish
Dark gray carpet with black insert
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
32.25 in / 819 mm
External Height (H)
15.25 in / 387 mm
External Depth (D1)
13.5 in / 343 mm
External Top Surface Depth (D2)
7.5 in / 190.5 mm
Net Weight
46.9 lb / 21.27 kg
JL Audio HO112RG-W3v3 Brochure
Dual 12-Inch 1200-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This L7 series dual 12" loaded sub box by Kicker comes with two Solo-Baric L7S sub loaded into a custom engineered to spec subwoofer enclosure made of thick MDF construction with a custom port design. Heavy internal bracing with thick black carpeting complement the Kicker embroidered logo on this box.
This 12-inch L7 dual subwoofer enclosure is best suited with 1200W RMS of amplified power.
Specifications
Type
dual
Woofers/size [in, cm]
2 Solo-Baric L7R 12"
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
1200
SENSITIVITY [dB 1w/1m]
95
Box Top Depth (in, cm):
15 1/4, 38.7
Box Bottom Depth (in, cm):
20 3/8, 51.8
Box Height (in, cm):
15 7/8, 40.2
Box Width (in, cm):
33 3/4, 85.7
TW3-Series 12-Inch 400-Watt Thin Subwoofer Driver, 4-Ohm or 8-Ohm DVC
The 12" TW3 thin subwoofer driver by JL Audio offers a shallow mounting depth with an excursion capability that is remarkably capable of greater excursion than JL's W3v3 full size subwoofers.
JL Audio’s TW3 sub utilizes a patented thin-line woofer technology that compresses the architecture of the 12TW3 woofer using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and spider, while allowing the placement of the large motor structure to be moved further forward on the chassis than with conventional designs.
JL Audio 12TW3-D4 and 12TW4-D8 are optimized for small enclosures and offers JL's tab-ear mounting design to maximize cone area within their mounting footprints.
Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.
Very shallow mounting depth (3.25 / 3.50 Inches)
No pole vent: permits mounting close to rear wall of enclosure.
Very small sealed enclosure volume requirements
Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
DMA-optimized motor designs
“concentric tube” architecture
Patented “floating cone attach method” technology
Cast alloy frame
Injection molded, mica-filled polypropylene cone
Rubber surround
Aluminum-alloy dust cap and rear cap with JL Audio logo
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
Continuous Power Handling
400W RMS
Recommended Amplifier Power
200W - 400W RMS
Nominal Impedance
Dual 4Ω/8Ω
JL Audio 12TW3 Manual
12-Inch 750-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This L7 series 12" loaded sub box by Kicker comes with one Solo-Baric L7S sub loaded into a custom engineered to spec subwoofer enclosure made of thick MDF construction with a custom port design. Heavy internal bracing with thick black carpeting complement the Kicker embroidered logo on this box.
This 12-inch L7 subwoofer enclosure is best suited with 750W RMS of amplified power.
Specifications
Type
single
Woofer [in, cm]
Solo-Baric L7 12"
Impedance [Ohms]
2
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
SENSITIVITY [dB 1w/1m]
86.9
Box Top Depth (in, cm):
14 3/4, 37.4
Box Bottom Depth (in, cm):
17 7/8, 45.5
Box Height (in, cm):
16, 40.6
Box Width (in, cm):
18-3/4, 47.6
Kicker L7 Solo-Baric Subwoofer Enclosure Manual
TW1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" TW1 thin subwoofer driver by JL Audio has a shallow mounting depth while maintaining excellent excursion capability in a thin mounty chassis design to fit into an enclosure no bigger than (0.65 cu.ft. / 18.4 liters). This 12TW1 subwoofer is capable of operating in extremely tight spaces including under-seat installations in trucks and other automotive applications requiring a compact, low profile subwoofer design.
JL Audio's patented thin-line woofer technology utilizes a "concentric tube" structure built into the injection-molded cone body supporting the voice coil and spider. This patented design places the large motor structure further forward in the speaker than conventional thin subwoofer designs.
The JL Audio 12TW1 sub also features a chassis design that minimizes the top clearance required for the linear excursion limits of the subwoofer driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. The 12TW1 requires only 0.87 inches (22 mm) of frontal clearance with or without the subwoofer grille installed.
The JL Audio 12" 12TW1-2 and 12TW1-4 subwoofer drivers are optimized for an enclosure much smaller than any other JL Audio twelve-inch subwoofer driver, it never sounds like a big woofer struggling in a tiny box...instead, it delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system.
Very shallow mounting depth (4.62 in / 117 mm)
No pole vent: permits mounting close to rear wall of enclosure
Extremely small sealed enclosure volume requirements
Long linear excursion capability (0.40 in / 10 mm, one-way)
DMA-optimized motor design
Patented "concentric tube" architecture
Patented "floating cone attach method" technology
Cast alloy frame with flat edges for tight driver grouping
Injection molded, mica-filled polypropylene cone
Rubber surround
Steel mesh grille included with each driver
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
Continuous Power Handling ()
300W RMS
Recommended Amplifier Power (RMS)
75W - 300W RMS
Nominal Impedance (Znom)
2Ω
JL Audio 12TW1 Manual
W3-Series 12-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Single Voice Coil
This 12-inch W3v3 subwoofer driver by JL Audio delivers world-class sound quality in a 500W RMS power package.
The JL Audio 12W3v3-2 and 12W3v3-4 automotive subs are best used with an amplifier in the 150-Watt - 500-Watt RMS range and are optimized to operate in a compact 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
General Specifications
Continuous Power Handling (RMS)
500 W
Recommended Amplifier Power (RMS)
150 - 500 W
Nominal Impedance (Znom)
2 Ω
JL Audio 12W3v3 Manual
BassWedge-Series Dual 12-Inch 600-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofers to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 150 - 600WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
31.375 in / 797 mm
External Height (H)
15.18 in / 386 mm
External Depth (D1)
20.3 in / 516 mm
External Top Surface Depth (D2)
15.75 in / 400 mm
Net Weight
60.3 lb / 27.35 kg
JL Audio CP212-W0v3 Brochure
R-Series 12-Inch 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Dual Voice Coil
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non- stop bass performance.
The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ- Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The R2-W12D2 and R2-W12D4 is compatible with the KTE-12G Grille System (sold separately).
The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi- Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
Features
Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
Polypropylene/Ceramic Composite Dust Cap
Kevlar Reinforced Pulp Cone High-Performance subwoofers
Twist-Lock Grille Mount System
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Large Double-Stacked Magnets
Specifications
750W RMS
2250W Peak Power Handling
Frequency Response: 24Hz-200Hz
Sensitivity (1W/1m): 84.5dB
Nominal Impedance: 4Ω
Voice Coil: 65mm
X-Max: 20mm
Magnet Weight: 144oz
Mounting Depth: 6-1/2” (152mm)
Cutout Size: 10-7/8” (231mm)
Push-Type Speaker Terminals (Up to 8AWG Wire Size)
CTA-2031 Compliant
Alpine R2-W12D Manual
12-Inch 600-Watt Loaded Square Subwoofer Enclosure, 2-Ohm Final Impedance
With this L7R series 12" square sub box you get up to 20% more air movement compared to a round driver. This 600W loaded enclosure has an angled back, heavy duty internal bracing, thick MDF construction and black carpeting with a Kicker embroidered logo.
This L7R subwoofer enclosure contains a single 12 Inch square driver with an RMS power rating of 600W @ 2Ω.
Specifications
Type
single
Woofer [in, cm]
Solo-Baric L7R 12"
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
600
SENSITIVITY [dB 1w/1m]
94
Box Top Depth (in, cm):
8 1/2, 21.7
Box Bottom Depth (in, cm):
14 7/8, 37.8
Box Height (in, cm):
15, 38.1
Box Width (in, cm):
28, 71.1
What's in the box?
one loaded enclosure with one 12-inch subwoofermounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)one owner's manualtwo stickers
12-Inch 600-Watt Dual Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
The CompC dual 12" sub box drivers from Kicker that are loaded into this spec-built enclosure have thick stamped steel baskets that hold injection-molded polypropylene cones with stabilizing ribs in the surround.
This CompC 12" dual loaded sub box is rated for 600W RMS of amplified power at 2Ω.
Specifications
Dual Subwoofers (in, cm)
(2) 12, 30
Impedance (Ohms)
2
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
99.9
Box Top Depth (in, cm)
14, 35.6
Box Bottom Depth (in, cm)
17 3/8, 44.1
Box Height (in, cm)
16, 40.6
Box Width (in, cm)
32 3/8, 82.2
Recommended Amplifiers!
CX600.1
Kicker CompC Subwoofer Enclosure Manual
12-Inch Thin Loaded Subwoofer Enclosure, 600-Watts RMS, 2-Ohm or 4-Ohm Impedance
Barely seven inches deep, the Kicker TL7T 10-Inch thin subwoofer enclosure is perfect for big bass under or behind your seats.
Genuine Kicker L7T subwoofer included
Angled design for excellent fit
Heavy internal bracing
Single 2-Ohm or 4-Ohm terminal
Easy to install and wire
Thick black carpeting
Rounded corners
Embroidered Kicker logo
Thick MDF construction
Specifications
Woofer [in, cm]
Solo-Baric L7T 12" 2 Ω or 4Ω
Impedance [Ohms]
2 or 4
Recommended Amplifier Power [watts RMS]
600
SENSITIVITY [dB 1w/1m]
86.54
Box Top Depth (in, cm):
4-3/8, 11.2
Box Bottom Depth (in, cm):
7-3/4, 19.6
Box Height (in, cm):
13-3/4, 35
Box Width (in, cm):
21-1/2, 54.6
What's in the box?
one loaded enclosure with one 12-inch subwoofermounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)one owner's manualtwo stickers
Kicker L7T Subwoofer Enclosure Manual
12-Inch Square 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The audiophile competition 12" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 12 inch 750W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 12 inch square sub nice and cool.
This 12" L7 square sub can handle up to 750W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
12, 30.5
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
Sensitivity (dB 1w/1m)
88.6
Frequency Response (Hz)
20-100
Mounting Depth (IN.,CM)
6 11/16, 16.9
Mounting Cutout, Square (IN.,CM)
11 1/16, 28.1
Min Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Max Rec Sealed Box Volume (CU. FT., Liters)
2.0, 56.64
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
3.25, 92.1
Kicker Solo-Baric L7 Subwoofer Manual
Dual 12-Inch Thin Subwoofer Enclosure, 500-Watt RMS, 2-Ohm
The Kicker CompRT series down-firing 12-inch subwoofer enclosure comes loaded with a passive reFLEX™ subwoofer and Kicker CompRT sub, then carpeted and loaded with a single 2Ω terminal.
Covered in stylish black carpeting and built with thick MDF, these tough enclosures take serious power without taking up needed space.
The TRTP 12-inch subwoofer enclosure works best with 500-watts of recommended power.
Specifications
TYPE:
thin-profile
WOOFER SIZE (in, cm):
12, 30
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY (dB 1w/1m):
98
BOX TOP DEPTH (in, cm):
14-5/8, 37
BOX BOTTOM DEPTH (in, cm):
14-5/8, 37
BOX HEIGHT (in, cm):
6-1/8, 15.6
BOX WIDTH (in, cm):
27-1/2, 70
Kicker TRTP Subwoofer Enclosure Manual
12-Inch 850-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompQ 12” audiophile subwoofer by Kicker is the pinnacle of their round speaker line, with nearly identical construction and performance as their L7 square subs.
The Kicker 42CWQ122 and 42CWQ124 subs were designed for high power handling and reference competition bass reproduction, this KICKER sub features Ribbed Santoprene® surrounds and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at any volume level.
The CompQ series 12-Inch subwoofer works best with a sealed or ported enclosure rated for 850W RMS.
Specifications
Rated Impedance [Ω]
2 or 4 DVC
Fs [Hz]
37
Sensitivity [1W, 1m]
86.2
Qts
0.546
Qms
8.878
Qes
0.582
Re [Ω]
5.94
Vas [ft³, L]
.91 ,26
Recommended Amplifier Power (watts RMS)
850
Outer Frame Dimension [in, cm]
12 1/2, 31.8
Mounting Depth [in, cm]
7 1/8, 18.1
Mounting Cutout [in, cm]
11 1/16, 28.1
Frequency Response [Hz]
20 – 100
Kicker CompQ Subwoofer Manual
12-Inch 500-Watt Loaded Thin Dual Subwoofer Enclosure, 2-Ohm Configuration
The CompRT 12" thin subwoofer by Kicker is a weather resistant thin sub with a 2Ω configuration. This thin 12 inch sub magnet structure delivers 500W RMS of power. The Kicker designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to keep this 12" CompRT thin subwoofer driver nice and cool.The Kicker 43TCWRT122 12" subwoofer enclosure works best with 500 watts of RMS power.
Specifications
TYPE:
single
NO. OF WOOFERS/SIZE (in, cm):
(1) 12, 30
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY (dB 1w/1m):
98
BOX TOP DEPTH (in, cm):
3-1/2, 8.9
BOX BOTTOM DEPTH (in, cm):
7, 17.7
BOX HEIGHT (in, cm):
13-1/2, 34.3
BOX WIDTH (in, cm):
27, 68.5vv
Kicker CompRT Subwoofer Enclosure Manual
12-Inch 500-Watt Loaded Dual Subwoofer Enclosure, 2-Ohm Final Impedance
The CompR 12-Inch Subwoofer Enclosure comes loaded, carpeted and ready to ride.Covered in stylish black carpeting and built with thick MDF, this loaded sub box is one of the sturdiest enclosures money can buy. The enclosure comes in a 2-Ohm impedance to make your sub amp deliver some serious juice!The CompR 12-Inch Subwoofer Enclosure works best with 500 watts of recommended power. See below for more details.
Specifications
TYPE:
single
NO. OF WOOFERS/SIZE (in, cm):
(1) 12, 30
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY (dB 1w/1m):
90.8
BOX TOP DEPTH (in, cm):
11-3/8, 28.9
BOX BOTTOM DEPTH (in, cm):
14-1/2, 36.8
BOX HEIGHT (in, cm):
16, 40.6
BOX WIDTH (in, cm):
23, 58.4
Kicker CompR Subwoofer Enclosure Manual
12-Inch Thin Subwoofer Driver, 600-Watt RMS, 2-Ohm or 4-Ohm Dual-Voice-Coil
The Kicker Solo-Baric® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Uses a sealed or ported enclosure
Square sub design moves 20% more air than round subwoofers
Easily mounts under or behind a deat
Dual voice coil design
Ribbed santoprene surround resists heat And degrading
Bumped top plate for more excursion & smoother performance
SoloKon™ cone with 360-degree back bracing
UniPlate™ solid pole pPiece & backplate for excellent heat dissipation
Durable steel basket
Specifications
Size (IN.,CM)
12, 30
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
86.54
Frequency Response (Hz)
25-100
Mounting Depth (IN.,CM)
4-1/8, 9.5
Mounting Cutout, Square (IN.,CM)
11-1/16, 28.1
Min Rec Sealed Box Volume (CU. FT., Liters)
.55, 15.6
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
2.25, 63.7
Kicker L7T Subwoofer Manual
Dual 12-Inch Sealed Carpeted Subwoofer-Box With AMP Space for Select 2014-2018 Chevrolet-Silverado and GMC -Sierra Crew-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 12” Dual sealed subwoofer enclosure with designated amp room designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2014-2018 Chevrolet / GMC Silverado / Sierra Crew Cab to ensure an OEM fit without impeding the operation of the back seat.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
0.85 Cubic Feet Net Volume internal air space per sub is ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 6” which is ideal for lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium OEM Grade Carpeting for factory look and durability.
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width:52.50"
Height:4.50"
Depth:14.75"
Max Mounting Depth:6.50"
Gross VolumePer Sub:2.50
Net Volume Per Sub:1.69
Installation Note: Installs under the rear seat with no further modifications required. Rear seat functionality is un-affected
12-Inch 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompVX 12" subwoofer driver by Kicker is designed with high-temp dual voice coils that deliver up to 750W of amplified RMS power. A solid pole-piece provides more mass to disperse heat. A thick polypropylene cone complements the SoloKon™ cone reinforcement system and the oversized suspension system.
The Kicker 44CVX122 and 44CVX124 12 inch subwoofers have a UniPlate™ extended pole piece & backplate for superior heat dissipation and satin nickel spring-loaded speaker terminals.
Specifications
Size (IN.,CM)
12, 30
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
Sensitivity (dB 1w/1m)
87.1
Frequency Response (Hz)
20-500
Mounting Depth (in, cm)
6 11/16, 16.9
Mounting Cutout (in, cm)
11 1/16, 28
Min Sealed Box Vol (cu. ft, L)
1.0, 28.3
Max Sealed Box Vol (cu. ft, L)
4.6, 130
Min Vented Box Vol (cu. ft, L)
1.75, 49.6
Max Vented Box Vol (cu. ft, L)
2.25, 63.7
Kicker CompVX Subwoofer Manual
Dual 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2007-2018 Toyota-Tundra Double-Cab Trucks
Accu-Tuned 12” Dual sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2007-2018 Double cab trucks to ensure an OEM fit without impeding the operation of the back seat.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
.83 Cubic Feet Net Volume internal air space (per sub) is ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 4.375” which is ideal for lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium OEM Grade Carpeting for factory look and durability.
Dimensions Sub Cut Out: 9.125”, Mounting Depth: 4.375”, Width: 50.25” Height: 7.875”, Depth: 22.375”
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width:50.25"
Height:5.13"
Depth:22.38"
Max Mounting Depth:4.50"
Gross VolumePer Sub:4.23
Net Volume Per Sub:3.07
Dual 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2007-2013 Chevrolet-Silverado or GMC-Sierra Regular-Cab Trucks
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 12” Dual sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2007 -2013 Chevrolet / GMC trucks to ensure an OEM fit without impeding the operation of the back seat and there is a designated area for mounting and amplifier to the enclosure.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
0.7 Cubic Feet Net Volume internal air space per subwoofer is ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 6.25” which is ideal for lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium OEM Grade Carpeting for factory look and durability.
Dimensions
Sub cut out: 11.125”, sub mounting depth: 6.25”
Installation Note: Installs behind the seats. Tools on the hump must be removed to install. What's nice is that you will not have to take out your jack or cut off the bolt that holds your tool kit in place. The main limitation is depth. This truck seems to have less space behind the seats than the previous model, so speaker depth is somewhat limited. Check out the speaker depth guide before buying your subs. You will likely have to sacrifice the last 2-3 clicks on your seat travel to give the box and subs enough space. In most cases, this will still leave you with plenty of legroom to drive comfortably while enjoying your new boom.
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width: 52.00"
Height: 14.89"
Depth: 6.85"
Max Mounting Depth: 6.25"
Gross VolumePer Sub: 0.70
Net Volume Per Sub: 0.70
W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality.
The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω
JL Audio 12W1v3 Manual
BassWedge-Series 12-Inch 300-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 4 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
4 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
16.31 in / 414 mm
External Height (H)
15.18 in / 386 mm
External Depth (D1)
20.3 in / 516 mm
External Top Surface Depth (D2)
15.75 in / 400 mm
Net Weight
33.1 lb / 15 kg
JL Audio CP112-W0v3 Brochure
Single 12-Inch Vented Tuff-Coat Lined Sub-Box for Select 2007-2020 Chevrolet-Silverado and GMC-Sierra Crew-Cab Trucks
Accu-Tuned 12” Single vented subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2007-2020 Chevrolet / GMC trucks to ensure an OEM fit without impeding the operation of the back seat.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
1.7 Cubic Feet Gross and 0.83 Net Volume internal net air space are ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 9” which is ideal for full size and lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium Rugged Spray Liner for durability and enhanced airtight seal.
Dimensions Sub Cut Out: 9.125”, Mounting Depth: 6.5”, Width: 28.87”, Height: 6.75”, Depth: 17.75”
Specifications
Configuration: Single Vented
Finish: Tuff Coat Finish
Width: 28.88"
Height: 4.50"
Depth: 17.75"
Max Mounting Depth: 6.50"
Gross VolumePer Sub: 1.50
Net Volume Per Sub: .95
