C3-Series 6-Inch 75-Watt Convertible Component Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600 expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.
The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
75 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
89.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
50 Hz - 25 KHz ± 3 dB
JL Audio C3-600 Manual
MicroSub-Series 6-Inch 150-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure
This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 6W3v3 subwoofer driver into an efficient slot-ported design.
Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 50 - 150WNominal Impedance: 4 Ω
General Specifications
Continuous Power Handling (RMS)
150 W
System Nominal Impedance
4 Ω
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
14.125 in / 359 mm
External Height (H)
9.625 in / 245 mm
External Depth (D1)
5.125 in / 130 mm
Net Weight
12 lb / 5.44 kg
JL Audio CP106LG-W3v3 Brochure
C2-Series 6-Inch 60-Watt Component Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.
The C2-600 system features 6-inch (150 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-600 Manual

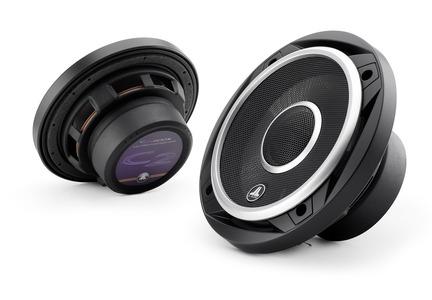

C2-Series 6-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-600x system features 6-inch (150 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-600x Manual
C3-Series 5x7-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.
The C3-570cw is a 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Woofer grilles are not available for this product.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
75 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 25 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter* (A)
5.52 x 7.68 in / 140 x 195 mm
Grille Tray Outer Diameter (B)
N/A
Motor Outer Diameter (C)
4.08 in / 104 mm
Frontal Coaxial Tweeter Protrusion** (D)
0.78 in / 20 mm
Frontal Grille Protrusion (E)
N/A
Mounting Hole Diameter (F)
N/A
Mounting Depth (G)
2.52 in / 64 mm
JL Audio C3-570cw Manual
C3-Series 6-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600cw expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.
The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
75 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
89.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
50 Hz - 25 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter (A)
6.21 in. / 157.7 mm
Grille Tray Outer Diameter (B)
6.46 in. / 164.1 mm
Motor Outer Diameter (C)
4.08 in. / 103.6 mm
Frontal Coaxial Tweeter Protrusion* (D)
0.81 in. / 20.6 mm
Frontal Grille Protrusion** (E)
1.03 in. / 26.2 mm
Mounting Hole Diameter (F)
5.00 in. / 127 mm
Mounting Depth (G)
2.49 in. / 63 mm
JL Audio C3-600cw Manual
C2-Series 6-Inch 60-Watt Component Woofer, with Grille
The C2-600cw is a 6-inch (150 mm) component woofer capable of accurate reproduction between 59 Hz and 7 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A grille is included, consisting of a black grille tray and a black steel mesh grille.
Sonic character: Clean and Powerful
Sold individually.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 7 KHz ± 3 dB
JL Audio C2-600 Manual
Aftermarket Dash-Speaker Replacement Enclosure Pods for Select 2018-Up Jeep Wrangler and 2020-Up Gladiator JL & JT Vehicles
Each pair of pods has an ABS housing that utilizes the factory mounting locations for a secure fit that will heighten the listening experience. The pods use the factory grommet and wiring and a Metra speaker adapter harness is included.
Driver and passenger specific dash replacement sealed speaker pods to install 6in to 6.75in speaker
Mounting positions for Chrysler three hole mount used by specific speaker manufacturers such as Alpine
Sealed enclosure (1) with a hole for the factory wiring grommet
4-inch speaker depth
Includes 12" speaker harness
Significant disassembly of the Dash is required to access these speaker pod locations. Add 2-hours to installation time.
Applications
JEEP
Gladiator
2020-2023
Wrangler
AKA "JL" for 2018
2018-2023
Metra JP-1014 Installation Manual
Six-Inch to Six-3/4" Door-Speaker Replacement Adapter-Plates for Select 2015-UP Chevy and GMC Vehicles
Vehicle specific spacer designed for installation of 6 to 6.75 inch aftermarket speakers
Will work: front door speaker locations (Sierra/Silverado) rear deck (Malibu)
One pair of adapters included in each package
Front Speaker Applications
BUICK
Enclave
Bose
2018-2023
Enclave
2018-2023
Envision
2016-2020
CADILLAC
Escalade
Incl. ESV
2015-2020
XT5 Crossover
9 Speakers
2017-2024
XT5 Crossover
7 Speakers
2017-2024
XTS
9 Speakers
2013-2019
XTS
7 Speakers
2013-2019
CHEVROLET
Blazer
2019-2020
Silverado 1500
Crew Cab
2019-2024
Silverado 2500 HD, 3500 HD
Crew Cab
2020-2024
GMC
Acadia
2017-2023
Canyon
Extended Cab
2015-2024
Canyon
4 door
2015-2024
Sierra / Sierra Denali 1500
Crew/Extended Cab
2019-2024
Sierra / Sierra Denali 1500
Standard Cab
2019-2024
Sierra / Sierra Denali 2500 HD, 3500 HD, Chassis Cab
Crew Cab
2015-2024
Sierra / Sierra Denali 2500 HD, 3500 HD, Chassis Cab
Standard Cab
2015-2024
Sierra / Sierra Denali 2500 HD, 3500 HD, Chassis Cab
Extended Cab
2015-2024
Sierra / Sierra Denali 1500 Limited
Crew Cab
2019-2019
Sierra / Sierra Denali 1500 Limited
Extended Cab
2019-2019
Sierra / Sierra Denali 1500 Limited
Standard Cab
2019-2019
Sierra / Sierra Denali 1500
Crew Cab
2014-2018
Sierra / Sierra Denali 1500
Standard Cab
2014-2018
Sierra / Sierra Denali 1500
Extended Cab
2014-2018
Terrain
2018-2024
Yukon/Yukon XL/Yukon Denali
2021-2024
Yukon/Yukon XL/Yukon Denali
2015-2020
Rear Speaker Applications
CHEVEROLET
Malibu
2016-2020
Replacement Six-Inch to 6-1/2-Inch Front-Door Speaker Trim-Ring Adapter for Select 1995-2004 Toyota Tacoma Vehicles
Provides spacing for aftermarket speaker installation.
Works with all varieties of speakers including component drivers
Accommodates 6" to 6.5" speaker – pair
Front Speaker Applications
TOYOTA
Tacoma
Double Cab / Extra Cab
2002-2004
Tacoma
Regular Cab
2002-2004
Tacoma
1995-2001
6.5" Replacement Speaker Adapter Plate for 2015-UP Ford F-Series Vehicles
Accommodates 6 to 6.75 inch speaker
Will work front door speaker locations
Packaged as a pair
Front Speaker Applications
FORD
Expedition
2018-2024
Expedition Max
2018-2024
Explorer
Bang Olufsen
2020-2024
Explorer
2020-2024
F-150
Bang Olufsen
2021-2024
F-150
2015-2024
F-250 / F-350 / F-450 / F-550
Bang Olufsen
2023-2024
F-250 / F-350 / F-450 / F-550
2017-2024
LINCOLN
Continental
2017-2020
Navigator
2018-2023
Navigator L
2018-2023
Six-Inch to 6-3/4-Inch Door Speaker Trim Ring Adapter for Select 2002-UP Lexus, Subaru and Toyota Vehicles
Accommodates 6 to 6.75 inch speaker – pair
Front Speaker Applications
LEXUS
CT 200h
2011-2013
GX Series
2010-2014
GX Series
2003-2009
LS 460
2010-2012
LS 460
2007-2009
LS 600h L
2013-2014
LS 600h L
2010-2012
LS 600h L
2008-2009
LS Series
2013-2014
SUBARU
Crosstrek
2018-2020
Impreza
2017-2020
Legacy
2015-2020
Outback
2018-2018
TOYOTA
(Camry) Solara
2004-2008
4Runner
2015-2020
4Runner
2010-2014
4Runner
2003-2009
Avalon
2013-2014
Avalon
2011-2012
Avalon
2005-2010
Camry
w/o JBL
2002-2011
FJ Cruiser
2007-2014
Highlander
2008-2012
Land Cruiser
2008-2014
Prius
2012-2015
Prius
2010-2011
Sequoia
2008-2014
Tacoma
2005-2015
Tundra
2014-2018
Tundra
crew cab
2007-2013
Venza
2009-2015
Replacement Six-Inch to 6-3/4-Inch Door Speaker Trim Ring Adapter for Select 2001-2007 Toyota Vehicles
Mounting adapter
For 6-6.75 inch speakers
Front door location
Sold as a pair
Applications
TOYOTA
Sequoia
2003-2007
Sequoia
2001-2002
Tundra
w/o JBL
crew cab
2004-2006
Universal 1/2-Inch Thick Replacement Speaker Trim Ring for 6-inch to 6.75-Inch Drivers
1/2 inch spacer designed for installation of 6 to 6-3/4 inch aftermarket speakers & works with all varieties of speakers including component drivers
One pair of adapters included in each package
