Control your music while keeping your eyes on the road with the iLX-W650. Use two-finger swipe motions anywhere on the 7-inch touchscreen to control volume up or down, skip forward or back, and pause by swiping up, down, left, or right.
The iLX-W650 “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).
The iLX-W650 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an AndroidTM phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands free.
Use your smartphone in your car while keeping your eyes on the road with Apple CarPlay, Android Auto, Waze, and built-in Bluetooth calling and audio streaming. The screen is designed to maximize the app icons on your smartphone, so you can find what you need fast. You can also use voice commands with the external microphone to activate your apps, make calls, send texts, and get directions – all handsfree.
The iLX-W650 is SiriusXM-Ready (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required) and works with Pandora Music so there’s nothing stopping you from listening to your favorite music. You can also access your music, videos, and photos via USB input.
See your drive on a 7-inch, anti-glare screen with the dual camera inputs. Add a front or rear-view camera to your vehicle and control the angles from your screen. The iLX-W650 comes with a built-in rearview camera distance guide display that makes blind spots a distant memory.
Get the most from your music by using the 9-band parametric equalizer and 6-channel time correction tool to control the powerful, built-in amplifier. Control the bass in your music on the fly with the built-in subwoofer level control. If you’re looking for more power, add additional amplifiers using the three sets of true 4V preamp outputs with subwoofer level control on the third set.
Features
7-inch anti-glare WVGA display with a capacitive touchscreen
Two-finger swipe user interface (volume up, volume down, skip forward, skip back, and pause)
50mm shallow mount chassis design
Works with Apple CarPlay®
The Google Assistant is available on Android Auto™
Bluetooth® built-in for hands-free calling and audio streaming
SiriusXM-Ready® (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required)
Works with Pandora® Music for iPhone and Android phones
Rear camera input (camera sold separately)
FLAC/MP3/WMA/WAV/AAC/ music playback via USB
AVI/MP4/MPG/MOV/WMV USB video playback
JPG/PNG/BMP USB photo viewer
MediaXpander®
Compatible with most factory steering wheel audio controls (adapter required)
2 camera input (Rear, Front, Side, Other) configurations
Rearview camera distance guide display
External microphone included
1.0m right angle USB cable included
Specifications
Built-in amplifier (16 watts RMS/45 peak x 4 channels)
3 PreOuts (True 4V)
Subwoofer level control on the third set
24 Bit DAC
3-Band Graphic EQ
9-band Parametric EQ
High pass crossover / low pass crossover
6-channel time correction
CTA-2006 compliant
Alpine iLX-W650 Manual Part 1Alpine iLX-W650 Manual Part 2
The iLX-507 features Apple CarPlay, Android Auto, and built-in bluetooth hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM for even more choices in entertainment (tuner and subscription sold separately).
Experience incredible music detail with Hi-Res audio playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music and more. The Alpine iLX-507 plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HD-tracks for Hi-Res playback on the iLX-507.
The iLX-507 Works with Apple CarPlay and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.
The iLX-507 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages – hands-free.
Enhanced on-board tuning features now include a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.
Experience music as the artist originally intended with the industry’s first full TIDAL integration. The iLX-507 allows you to access select TIDAL features directly on the head unit and receive a high-res streaming experience with the TIDAL catalog of over 90 million songs. Lossless audio and high-fidelity music options are also available for TIDAL HiFi and HiFi Plus members, for superior sound quality that elevates the music experience. A TIDAL subscription is required and sold separately. To access TIDAL on the Alpine head unit, the head unit must be tethered to a mobile or smartphone hotspot. Data rates may apply.
The iLX-507 is compatible with the iDatalink Maestro Module (sold separately) to retain and display vehicle information. Information such as steering wheel controls, tire pressure, engine codes, and HVAC control may be accessible from the iLX-507 (information will vary by vehicle).
The iLX-507 includes two camera inputs to add a front, side, or rearview camera (sold separately). The rearview camera includes a distance guide display that overlays guidelines onto the screen for ease when moving in reverse.
Take driving safety even further by connecting your iLX-507 with the DVR-C320R premium 1080P front and rear dash camera with built-in drive assist (sold separately). View real-time and recorded drives in high definition right on the screen, plus receive drive assist features that help get you to your destination safely.
The new RUX-H02 Alpine Halo subwoofer controller (sold separately) can be mounted to the dash for quick- access controls to the subwoofer and main volume through a wireless bluetooth connection.
Features
7-inch 720p HD Display
Standard Double-Din Fitment
Hi-Res Audio Playback (96kHz / 24bit)
Wireless Hi-Res Audio (requires LDAC compatible device)
Hi-Res Music Streaming with TIDAL (A TIDAL subscription is required and sold separately; Alpine Head Unit must be tethered to a mobile or smartphone hotspot; Data rates may apply)
Apple Carplay® (Wired & Wireless)
Android Auto™ (Wired & Wireless)
The Google Assistant is Available on Android Auto™
Bluetooth® Hands-Free
SiriusXM-Ready® (compatible with SXV300 (G2) add-on tuner, sold separately; SiriusXM subscription required)
Built-in HD Radio®
iDatalink® Maestro Compatible
Alpine DVR-C320E Dash Cam Compatible(sold separately)
Navigation Compatible with KTX-NS01 (sold separately)
Media Xpander®
Specifications
Screen Size: 7”
Screen Resolution: WXGA 1280 x 720px (720p HD)
AUX Input: 1
HDMI Input: 1
HDMI Output: 1
Camera Inputs: 2 Direct (1 Rear input & 1 input that can be set as Front, Side, or Other)
Dash Cam Input: 1 (Alpine DVR-C320R)
USB Inputs: 2 (1 data & 1 charge only port)
4V Pre-Outs: 3
Built-in Amplifier: 18W RMS x 4
EQ: 13-Band Parametric (per channel)
Time Correction: 6-Channel
DAC: 24 Bit
Crossover: High Pass / Low Pass
Audio Playback: AAC, APE, FLAC, MP3, WMA, WAV
Video Playback: AVC, FLV, H.263, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV
Alpine iLX-507 Tech SheetAlpine iLX-507 Manual Part 1Alpine iLX-507 Manual Part 2

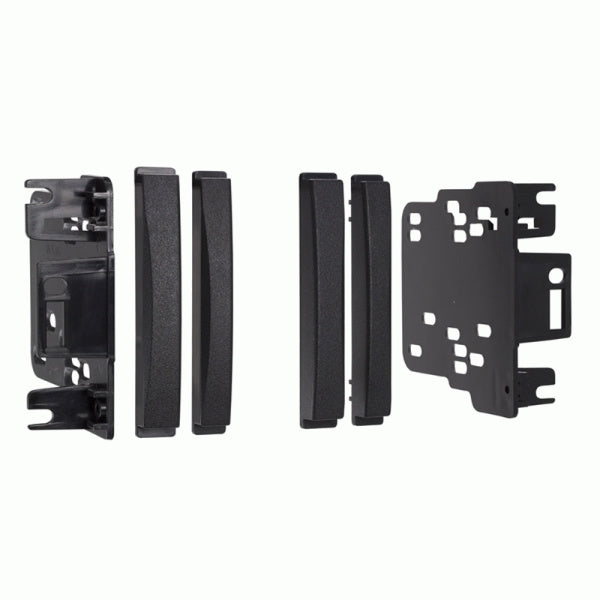

DDIN-Size Head-Unit Replacement Dash-Kit for Select 2007-2020 Chrysler, Dodge, Jeep, Mitsubishi, RAM and Volkswagen Vehicles
This stereo installation kit is engineered to help you install an aftermarket 4” tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is contoured and textured to match the original look and feel of the vehicle’s dashboard. Two sizes of trim panels are included to accommodate long or short nose Double-DIN radios. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.
Stereo installation kit designed to fit any standard 4" tall aftermarket radio with an ISO-mount provision
Contoured and textured to match factory dash
Two different size trim panels are included to accommodate "long nose" or "short nose" Double-DIN radios
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with detailed installation instructions
Applications
CHRYSLER
200
2011-2014
300
2008-2010
300C
2008-2010
Aspen
2008-2009
Sebring
2007-2010
Town & Country
2008-2017
DODGE
Avenger
2008-2014
Caliber
2009-2012
Caravan
2008-2020
Challenger
2008-2014
Charger
2008-2010
Dakota
2008-2011
Durango
2008-2009
Grand Caravan
2008-2020
Journey
2009-2010
Magnum
2008-2009
Nitro
2007-2011
Ram Pickup 1500
2009-2011
Ram Pickup 2500, 3500
2010-2011
Ram Pickup Chassis Cab 4500, 5500
2011-2012
JEEP
Commander
2008-2010
Compass
2009-2017.5
Grand Cherokee
2008-2010
Liberty
2008-2012
Patriot
2009-2017
Wrangler
2007-2018
Wrangler Unlimited
2007-2018
MITSUBISHI
Raider
2008-2009
RAM
1500, 2500, 3500
2012
Chassis Cab 2500, 3500, 4500, 5500
2012
C/V Tradesman
2012-2015
VOLKSWAGEN
Routan
2009-2013
Metra 95-6511 Installation Manual

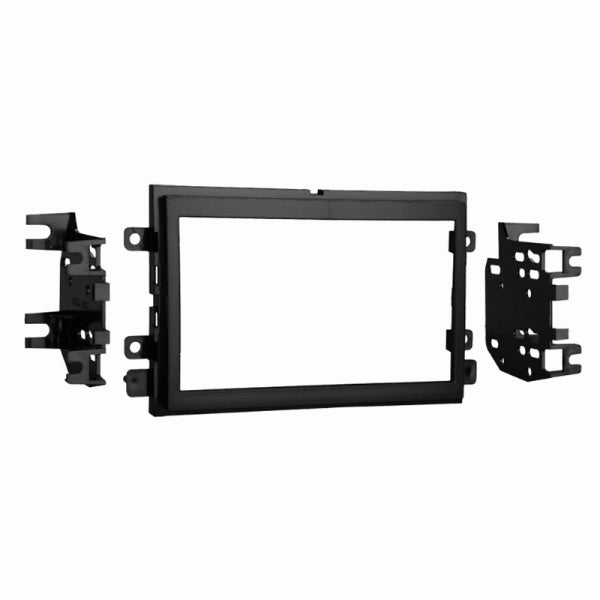

DDIN-Size Head-Unit Replacement Dash Kit for Select 2004-2019 Ford, Lincoln, Mercury and VPG Vehicles
This stereo installation kit is engineered to help you install an aftermarket 4” tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is designed to match the original look and feel of the vehicle’s dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.
Stereo installation kit designed to fit any standard 4” tall aftermarket radio
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with detailed installation instructions
Applications
FORD
E-Series
2014-2019
Econoline
2009-2013
Edge
2007-2010
Expedition
2007-2015
Expedition (SSV)
2015
Explorer
2006-2010
Explorer Sport Trac
2006-2010
F-150
2004-2008
F-250/350/450/550
2005-2016
F-650, F-750
2011-2019
Five Hundred
2005-2007
Focus
2005-2007
Freestar
2004-2007
Freestyle
2005-2007
Fusion
2006-2009
Mustang
2005-2009
Taurus
2008-2009
Taurus X
2008-2009
Transit Connect
2012-2013
LINCOLN
Mark LT
2005-2008
MKX
2007-2010
Navigator
2007-2014
MERCURY
Milan
2006-2008
Montego
2005-2007
Monterey
2004-2007
Mountaineer
2006-2010
Sable
2008-2009
VPG
MV-1
2017
MV-1
2011-2014
Metra 95-5812 Installation Manual

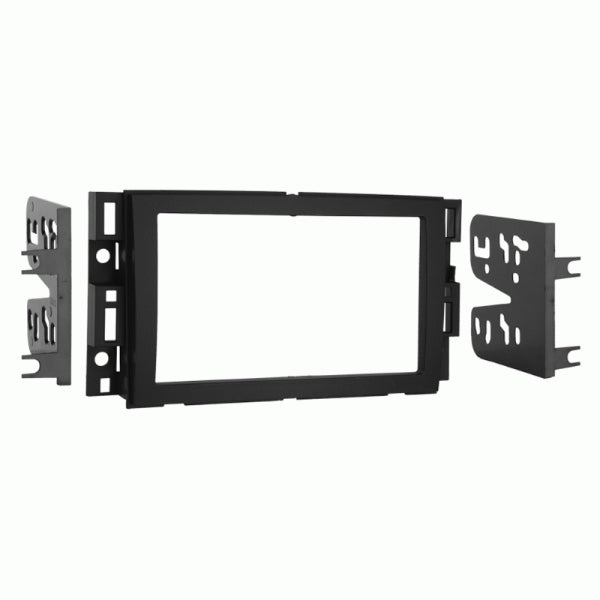

DDIN Size Head-Unit Replacement Dash Kit for Select 2006-2021 GM Vehicles
This stereo installation kit is engineered to help you install an aftermarket 4” tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is painted scratch-resistant matte black to match the original look and feel of the vehicle’s dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.
Stereo installation kit designed to fit any standard 4” tall aftermarket radio
Painted scratch-resistant matte black
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with detailed installation instructions
Applications
BUICK
Enclave
2008-2012
Lucerne
2006-2011
CHEVY
Avalanche
2007-2013
Captiva Sport
2012-2015
Equinox
2007-2009
Express
2008-2021
Impala
2006-2013
Impala Limited
2014-2016
Monte Carlo
2006-2007
Silverado 2500 HD, 3500 HD, Chassis Cab
2014
Silverado
2007-2013
Suburban
2007-2014
Tahoe
2007-2014
Traverse
2009-2012
GMC
Acadia
2007-2012
Savana
2008-2020
Sierra 2500 HD, 3500 HD, Chassis Cab
2014
Sierra
2007-2013
Yukon, Yukon XL
2007-2014
Yukon Denali, Yukon XL Denali
2007-2014
HUMMER
H2
2008-2009
PONTIAC
Torrent
2007-2009
SATURN
Outlook
2007-2010
VUE
2008-2010
SUZUKI
XL-7
2007-2009
Metra 95-3305 Installation Manual
Double-DIN Size Stereo-Replacement Dash-Kit for Select 2000-2020 Scion, Subaru and Toyota Vehicles
This stereo installation kit is engineered to help you install an aftermarket 4” tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is designed to match the original look and feel of the vehicle’s dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.
Stereo installation kit designed to fit any standard 4” tall aftermarket radio
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with detailed installation instructions
A tech support number is available for installation help 7 days a week
Applications
SCION
FRS
2013-2016
iM
2016
iQ
2012-2015
tC
2005-2015
xA
2004-2006
xB
2004-2015
xD
2008-2014
SUBARU
BRZ
2013-2015
Forester
2014-2015
Forester
w/ SD card based nav
2009-2013
Impreza
2012-2014
Impreza WRX
2013-2014
WRX
2015
XV Crosstrek
2013-2014
TOYOTA
4Runner
2003-2009
86
2017-2020
Camry
2002-2006
Celica
2000-2005
Corolla iM
2017-2018
Echo
2000-2005
FJ Cruiser
2007-2014
Highlander
2013
Highlander
2001-2007
Matrix
2005-2010
MR2 Spyder
2000-2003
RAV4
2001-2005
Sequoia
2003-2007
Sienna
w/ base model nav
2011-2014
Tundra
Double Cab
2006
Tundra
Access Cab
2005-2006
Tundra
Double Cab
2004-2005
Tundra
Standard Cab
2004-2005
Tundra
2003
Yaris
hatchback
2012-2017
Yaris
sedan
2012
Yaris
w/o integrated climate & radio
2007-2011
Metra 95-8202 Installation Manual
DIN or DDIN-Size Head-Unit Replacement Dash Kit for Select 2008-UP Toyota-Sequoia and Tundra Vehicles
This stereo installation kit has been engineered to help you install either a 2" tall (Single-DIN) or a 4" tall (Double-DIN) aftermarket radio into the original vehicle dashboard. This dash kit makes radio replacement easier and comes with a pocket that is installed below the 2" radio to fill the extra space in the radio opening, which can be used for storage. The pocket is not needed when installing a 4" tall radio. The dash kit is painted high gloss black to match the original look and feel of the vehicle's dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn't offer but requires this dash kit to make it fit.
Stereo installation kit designed to fit any standard 2" or 4" tall aftermarket radio utilizing our patented quick-release, snap-in ISO mount system with custom trim ring
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with detailed installation instructions
Applications
TOYOTA
Sequoia
2008-2022
Tundra
2007-2013
Metra 99-8220 Installation Manual
DDIN-Size 6.8-Inch Touchscreen Digital Mechless Media Receiver with Bluetooth
The DMH-1770NEX is a 6.8" capacitive touchscreen digital media receiver compatible with Android Auto, Apple CarPlay, hands-free bluetooth and SiriusXM Ready.
This receiver features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices.
This receiver also features Apple CarPlay, the smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 device or newer with the latest version of iOS.
Back up camera input enables you to add a rear-view camera, with the system automatically switching to a full-screen image of the rear view when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear.
Connect your compatible iOS or Android smartphone with NEX for a truly connected experience, bringing many of your favorite apps right into the dashboard and letting you communicate using advanced high-quality bluetooth connectivity. All NEX models feature built-in bluetooth that enables both hands-free calling and audio streaming. Including the latest hands-free profile with Wideband Speech capability, NEX provides more natural sound quality and details during calls. When streaming music, NEX even lets you browse and select the media stored on your smartphone using the AVRCP profile.
Your car and music are as unique as you are. With a Pioneer NEX in-dash receiver, sound quality features like a 13-band graphic equalizer with touch panel swipe settings and built-in high/low pass crossover with adjustable points and slopes provide you with the controls to tailor the listening experience to your vehicle and listening preferences.
Your favorite stations wherever you go, wherever you are, this receiver is SiriusXM- ready so you can get over 140 channels, including commercial-free music, plus the best sports and live events, comedy, news, exclusive talk, and entertainment. SiriusXM programming is received through the SiriusXM connect vehicle tuner (SiriusXM SXV300 tuner sold separately, SiriusXM subscription required).
This NEX Receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other bluetooth devices.
Specifications
Continuous Power Output 22 W x 4-Channel
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output 50 W x 4-ch 4 ohm
RCA Preamp Outputs 6-ch
RCA Preout Voltage 2V
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm
Back Light LED
Brightness Control Yes
Color Customization 5 key colors
Device (Non-DIN/Modular Unit) 2-DIN
Dimmer Automatic with vehicle illumination, Manual
Display Off Mode Yes
Home Screen Customization Yes
Monitor Mechanism Fixed
Resolution WVGA (800 x 480)
Screen Size/Aspect Ratio 6.8"/16:9
Touch Screen Capacitive
Advanced Audio Distribution Profile (A2DP) Yes
AVRCP 1.6
Built-in Bluetooth Yes
Hands-Free Yes
Microphone Included
Phone Registation 3-phone
Secure Simple Pairing (SSP) Yes
Serial Port Profile (SPP) Yes
Best Station Memory Yes
Local Seek tuning Yes
Presets 18FM 12AM
RDS Yes
SiriusXM-Ready™ (Tuner Sold Separately) Yes
Android Auto™ Wired USB Connection
Apple® CarPlay Wired USB Connection
Mirroring USB-Android Phone Only
Mobile Operating System Android / Apple iOS
Pandora® With Apple CarPlay or Android Auto
Siri® Eyes Free (VR) (Internet Required)iPhone Only
Spotify With Apple CarPlay or Android Auto
Voice Control Yes
Audio Playback via USB MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / WAV Audio Playback (Hi-Res) / FLAC Audio Playback (Hi-Res)
Audio Video Playback via USB .avi / .mpg/mpeg / .mp4 / .3gp / .mkv / .mov / .divx / .wmv/.asf / .m4v / .ts / .m2ts / .mts
Image Display via USBBMP / JPEG / PNG
Bass Boost Yes
Balance Yes
Built-in Amplifier MOSFET 50 W x 4
Crossover Standard Mode HPF/LPF
Customizable Graphic Equalizer 13 Band
DA Converter 24 Bit
Digital Signal Processor Built In
Easy EQ (EEQ) Preset Equalizer Yes
FadeYes
Loudness High/Mid/Low/Off
Speaker Output 4-ch
Subwoofer Control Yes
Parking Assist Lines Yes
RCA Video Output Yes
USB Single Rear Type-A (5V, 1.5 A)
USB Direct Control for iPhone® 5s and newer
Input 1 AUX (Minijack)
Input 2 Backup Camera Dedicated
Detachable Face Security Fixed
Multi-Language Display English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser USB
Remote Control Optional
Steering Wheel Control Ready (Adapter Sold Separately) Yes
Pioneer DMH-1770NEX ManualPioneer DMH-1770NEX Installation Manual
Double-DIN-Size Stereo Replacement Dash Kit for Select 2014-2021 Ram Promaster Vans with Factory 5" Screen
This stereo installation kit is engineered to help you install an aftermarket 4" tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is custom textured to match the original look and feel of the vehicle's dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn't offer but requires this dash kit to make it fit.
Stereo installation kit designed to fit any standard 4" tall aftermarket radio
Custom textured to match factory finish
Metra 86-5618 (radio delete or factory Single-DIN) or 86-3528 (factory Double-DIN) radio removal tool is required to pull the factory radio from the dash
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with detailed installation instructions
Applications
RAM
ProMaster
w/ 5-inch display (Uconnect 5.0)
2014-2021
Metra 95-6523 Installation Manual
Customize the screen exactly the way you want it by using drag-and-drop motions with your finger to add, remove, or move over 29 available widgets. You can prioritize your three home screens so you can quickly find the apps you want like Apple CarPlay®, Android Auto™, Camera, Bluetooth® functions, and more. Add a customizable wallpaper from your photos through a thumb drive.
Measuring at only 2.4” deep, the iLX-407 can fit into vehicles that don’t have a lot of space behind the dashboard. The shallow chassis is optimized to mount either the KTA-450 4-channel or KTA-200M Mono Power Pack Amplifiers (sold separately). Alpine’s award-winning PowerStack™ design adds more power to your sound system while occupying the same depth as a traditional 2-DIN radio.
The iLX-407 “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).
The iLX-407 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an Android™ phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands-free.
While the iLX-407 is mech-less (no CD/DVD player), you still have plenty of entertainment options that will make every drive exciting. A rear USB port allows you to listen to your music or video file via USB or connect your smartphone to access your music by searching song title, artist info, or album. The iLX-407 has built-in HD-Radio and can also connect to Pandora internet radio through your iPhone or Android smartphone. SiriusXM radio is also available with an optional tuner and paid subscription. And HDMI input is available should you choose to connect a CD or DVD player for all-digital audio and video connection through a single cable.
Upgrading dash technology can often result in a loss of factory functionality, such as climate controls and vehicle function settings. The iLX-407 is compatible with the iDatalink Maestro Module (sold separately) some select OEM features are retained and vehicle information is displayed on the screen.
See your drive on a 7-inch, anti-glare screen with dual camera inputs that allow you to add a front or rear-view camera to your vehicle. The iLX-407 comes with a built-in rearview camera distance guide display that makes blindspots a distant memory.
Get the most from your music by using the 5-band graphic equalizer and 6-channel time correction tool to customize the sound the way you want it. If you’re looking for more power, add additional amplifiers using the three sets of true 4V preamp outputs with subwoofer level control on the third set.
Features
7-inch Anti-glare 2-DIN Touchscreen Display
Shallow Mount Design (2-6/16" Depth)
PowerStack™ Capable with the KTA-450 and KTA-200M (sold separately)
Customizable User Interface (29 available widgets/apps)
Customizable Wallpaper
Works with Apple CarPlay®
The Google Assistant is available on Android Auto™
Bluetooth® built-in for hands-free calling and audio streaming
SiriusXM-Ready® (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required)
Built-in HD Radio®
HDMI Input
iDatalink® Maestro Connectivity
2 RCA Camera Inputs
Rearview Camera Distance Guide Display
MediaXpander®
Specifications
Width: 7" (178mm)
Height: 4" (100mm)
Depth: 2-6/16" (60mm)
Screen Size: 7"
Screen Resolution: WVGA 800 x 480px
PowerStack™ Capable: Yes
HDMI Input: 1
Camera Input: 2 RCA
USB Input: 1
4V Pre-Outs: 3
Built-in Amplifier: 16W RMS/50W peak x 4
EQ: 5-Band Graphic
DAC: 24 Bit
Subwoofer level control
High pass crossover/ low pass crossover
6-channel time correction
Audio Playback: AAC, FLAC, MP3, WMA, WAV
Photo Playback: JPG, PNG, BMP
Video Playback: AVI, MP4, MPG, MOV, WMV
CTA-2006 compliant
Alpine iLX-407 Manual Part 1Alpine iLX-407 Manual Part 2
DIN or DDIN-Size Head-Unit Replacement Dash-Kit for Select 2007-2018 Mercedes-Metris and Sprinter Vans
This stereo installation kit has been engineered to help you install either a 2” tall (Single-DIN) or a 4” tall (Double-DIN) aftermarket radio into the original vehicle dashboard. This dash kit makes radio replacement simple and comes with a pocket that is installed below the 2” radio to fill the extra space in the radio opening, which can be used for storage. The pocket is not needed when installing a 4” tall radio. The dash kit is designed to match the original look and feel of the vehicle’s dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.
Stereo installation kit designed to fit any standard 2” or 4” tall aftermarket radio utilizing our patented quick-release, snap-in ISOmount system with custom trim ring
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes mounting brackets with detailed installation instructions
A tech support number is available for installation help 7 days a week
Applications
DODGE
Sprinter
2007-2009
FREIGHTLINER
Sprinter
2007-2018
MERCEDES
Metris
2016-2020
Sprinter
2010-2018
Metra 99-6512 Installation Manual
DDIN-Size Head-Unit Replacement Dash-Kit for Select 1995-2011 Ford, Lincoln, Mazda and Mercury Vehicles
Stereo installation kit designed to fit any standard 4” tall aftermarket radio
Sub-dash modifications are necessary to gain suitable depth and height
Once the kit is snapped in, it cannot be removed without dash panel removal
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with installation instructions
Applications
FORD
Crown Victoria
1995-2011
Econoline
1997-2008
Escape
2001-2007
Escape Hybrid
2005-2007
Excursion
2000-2005
Explorer
1995-2001
Explorer Sport Trac
2001-2005
F-250/350/450/550
1999-2004
F-650, F-750
2000-2010
Ranger
1995-2011
Windstar
1999-2003
LINCOLN
Continental
1995-1997
Mark VIII
1995-1998
Town Car
1995-2002
MAZDA
B-Series Pickup
1995-2009
MERCURY
Cougar
2000-2002
Grand Marquis
1995-2010
Marauder
2003-2004
Mariner Hybrid
2006-2007
Mariner
2005-2007
Mountaineer
1997-2001
Metra 95-5817 Installation Manual
