Status-Series 5-Channel Class-D Full-Range Hi-Resolution Automotive-Grade Amplifier, 75-Watts x 4-Channel @ 4-Ohm + 500-Watts Mono @ 2-Ohm Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res Alpine-F#1Status system technologies, the Alpine Status-System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback. Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-V90 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications. The HDA-V90 features a high-efficiency digital circuit design that ensures ultra- low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 87dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source. Featuring technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the speakers and subwoofers for ultimate reliability. The HDA-V90 features Alpine’s quick- connect power and speaker connectors for quick and safe installation. The one- sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier. The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System. Specifications Dimensions: 11.4375” x 7.5” x 2.125” Power Rating: (14.4V, ≤1.0% THD+N) 75W x 4 + 300W x 1 @ 4Ω 100W x 4 + 500W x 1 @ 2Ω Bridged: 200W x 2 @ 4Ω (ch1/2, ch3/4 only) THD+N: 0.02% (10W into 4ohm) S/N Ratio: 87dB (1W into 4ohm) Frequency response: 8-60kHz (-3dB) Damping factor: 500 (ch1/2/3/4), 1000 (subwoofer) Selectable input level – HI/LO Selectable 2/4/6ch input Variable High pass / Low pass crossover Variable Subsonic filter (subwoofer) Bass EQ (0 to +12dB, Variable) Auto-turn on with remote sensing

Read more less

Alpine S-Series 40-Watt x 4-Channel Power Amplifier with 300-Watt Sub Channel @ 2Ω The S-Series amplifiers are designed to fit anywhere. The S-A55V 5-Channel model measures at 11.25” W x 8” H x 2.25” D and can be mounted under seats or behind panels. It proves to be the all-in-one solution for a multi-amp system, so you can enjoy big power output in a limited installation space. The S-Series amplifiers contain technology that was previously only available in our premium line up of amplifiers, the R- and X-Series models. The S-Series models are based on Alpine’s intelligent amplifier platform that ensures superior sound reproduction and precision imaging. With an improved heat sink, and protection circuit design that eliminates thermal shut-down, your music will keep playing no matter where your drive takes you. Specifications Alpine's Class D amplifier circuit 40W RMS x 4 +200W RMS x 1(4Ω, 14.4V, ≤ 1% THD+N) 60W RMS x 4 +300W RMS x 1(2Ω, 14.4V, ≤ 1% THD+N) Bridged: 120W RMS x 2 (4Ω, 14.4V, ≤  1% THD+N) S/N >83dB (ref. 1W into 4Ω) THD+N ≤ 0.03% (ref. 1W into 4Ω) Frequency response =10Hz to 30kHz (+/-3dB) Damping Factor: CH 1/2/3/4 >100, CH 5 >750 Alpine S-A55V Manual

Read more less

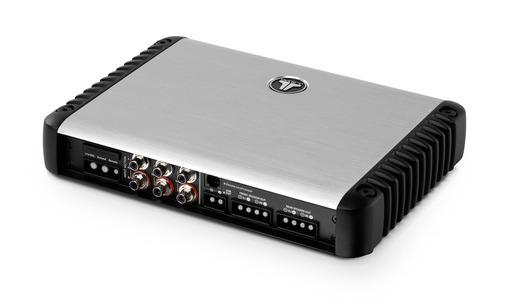

HD-Series 5-Channel Class-D System Amplifier, 100-Watts x 4ch + 500-Watts x 1ch @ 1.5-4-Ohms Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal. While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power! Using JL's Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100W x 4 to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls. General Specifications Frequency Response (Main Channels) 12 Hz - 28 kHz (+0, -1dB) Frequency Response (Subwoofer Channel) 12 Hz - 10 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Main Channels) >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Main Channels) >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >400 / 50 Hz Damping Factor @ 2 Ω >200 / 50 Hz THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω THD+N @ Rated Power (Subwoofer Channel) <0.05% @ 4 Ω Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge Accepts up to 4 AWG wire Fuse Rating 60 A (AFS, AGU or MaxiFuse™) Main Channels @ 4 Ω 100 W RMS x 4 Main Channels @ 3 Ω 75 W RMS x 4 Main Channels @ 2 Ω 75 W RMS x 4 Main Channels @ 1.5 Ω 75 W RMS x 4 Main Channels - Bridged @ 8 Ω 200 W RMS x 2 Main Channels - Bridged @ 4 Ω 150 W RMS x 2 Subwoofer Channel @ 4 Ω 500 W RMS x 1 Subwoofer Channel @ 3 Ω 500 W RMS x 1 Subwoofer Channel @ 2 Ω 500 W RMS x 1 Subwoofer Channel @ 1.5 Ω 500 W RMS x 1 JL Audio HD900/5 Brochure

Read more less

RD-Series 5-Channel Automotive Amplifier, 70-Watts x 4ch + 500-Watt Mono @ 2-Ohm Crafted as an all-in-one, total system solution, the RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with JL's exclusive NexD™ switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier. Conveniently located on top of the RD900/5, you’ll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility. LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can conveniently control the subwoofer’s output remotely from the driver’s seat. Specifications Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB) Frequency Response (Subwoofer Channel) 10 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch. THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 80 A (AFS, AGU or MaxiFuse™) Main Channels @ 4 Ω 70 W RMS x 4 Main Channels @ 2 Ω 100 W RMS x 4 Main Channels - Bridged @ 4Ω 200 W RMS x 2 Subwoofer Channel @ 4 Ω 225 W RMS x 1 Subwoofer Channel @ 3 Ω 325 W RMS x 1 Subwoofer Channel @ 2 Ω 500 W RMS x 1 Subwoofer Channel @ 1.5 Ω N/A JL Audio RD900/5 Manual

Read more less

5-Channel Class-D System Amplifier with Integrated DSP, 100-Watt x 4 @ 2-Ohm + 600-Watt x 1 @ 2-Ohm Employing JL's second generation NexD2™ amplifier technology, the VX1000/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel. The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces. Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed. Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Connector, 6 ft A/B USB Cable. TüN™ Software Applications Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices. Unprecedented, Onboard DSP Tuning Power Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM® Hi-Res audio processing at 24 bit/96 kHz High-performance AKM® A/D and D/A converters 10 Bands of fully parametric EQ, per output channel, including pre-outs Shelving EQ option for Band 1 and Band 10 High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes: Linkwitz-Riley: 12, 24, 48 dB/octaveButterworth: 6, 12, 18, 24, 36, 48 dB/octave Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm) All-Pass Filter (Phase EQ), with variable "Q" and corner frequency Polarity Reversal (0 or 180 deg.) Output Level Trim in 0.1 dB steps NexD2™ Switching Amplifier Technology JL's latest generation of high-speed switching technology delivers superb low frequency power and efficiency. Specially optimized for subwoofer applications Ultra-Versatile Analog and Digital Inputs High-performance, differential-balanced analog inputs for outstanding noise rejection Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input. Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz) Automatic turn-on options via Signal-Sensing or DC-Offset sensing Functional Compact Chassis Design Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces. Configurable LED logo ring displays status and can display audio preset color code or user-defined color Logo badge can be oriented in 90 degree increments Corner caps engineered to conceal mounting holes and hardware JLid™ System Command and Control with Networking Capabilities JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including: DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat. VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device. VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers. Specifications Frequency Response (Main Channels) 12 Hz - 24 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Frequency Response (Subwoofer Channel) 12 Hz - 1 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels) 100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Digital Inputs - Main Channels) 81 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel) 73 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 2 Ω >50 / 50 Hz Damping Factor @ 4 Ω >150 / 50 Hz THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch. THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 80 A (AFS, AGU or MaxiFuse™) Main Channels @ 4 Ω 75 W RMS x 4 Main Channels @ 2 Ω 100 W RMS x 4 Main Channels - Bridged @ 4Ω 200 W RMS x 2 Subwoofer Channel @ 4 Ω 400 W RMS x 1 Subwoofer Channel @ 3 Ω 500 W RMS x 1 Subwoofer Channel @ 2 Ω 600 W RMS x 1 Subwoofer Channel @ 1.5 Ω N/A JL Audio VX1000/5i Manual

Read more less

5-Channel Class-D System Amplifier with Integrated DSP, 75-Watt x 4 @ 4-Ohm + 300-Watt x 1 @ 2-Ohm Designed to simplify great audio, every VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor. Employing JL's second generation NexD2™ amplifier technology, the VX700/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel. The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces. Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed. Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Harness, 6 ft A/B USB Cable TüN™ Software Applications Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices.= Unprecedented, Onboard DSP Tuning Power Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM® Hi-Res audio processing at 24 bit/96 kHz High-performance AKM® A/D and D/A converters 10 Bands of fully parametric EQ, per output channel, including pre-outs Shelving EQ option for Band 1 and Band 10 High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes: Linkwitz-Riley: 12, 24, 48 dB/octaveButterworth: 6, 12, 18, 24, 36, 48 dB/octave Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm) All-Pass Filter (Phase EQ), with variable "Q" and corner frequency Polarity Reversal (0 or 180 deg.) Output Level Trim in 0.1 dB steps NexD2™ Switching Amplifier Technology JL's latest generation of high-speed switching technology delivers superb low frequency power and efficiency. Specially optimized for subwoofer applications Ultra-Versatile Analog and Digital Inputs High-performance, differential-balanced analog inputs for outstanding noise rejection Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input. Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz) Automatic turn-on options via Signal-Sensing or DC-Offset sensing Functional Compact Chassis Design Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces. Configurable LED logo ring displays status and can display audio preset color code or user-defined color Logo badge can be oriented in 90 degree increments Corner caps engineered to conceal mounting holes and hardware JLid™ System Command and Control with Networking Capabilities JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including: DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat. VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device. VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers. Specifications Frequency Response (Main Channels) 12 Hz - 24 kHz (+0, -1dB) Frequency Response (Subwoofer Channel) 12 Hz - 1 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels) 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel) 102 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Digital Inputs - Main Channels) 82 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >50 / 50 Hz THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch. THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 60 A (AFS, AGU or MaxiFuse™) Main Channels @ 4 Ω 75 W RMS x 4 Main Channels @ 2 Ω 100 W RMS x 4 Main Channels - Bridged @ 4Ω 200 W RMS x 2 Subwoofer Channel @ 4 Ω 180 W RMS x 1 Subwoofer Channel @ 3 Ω 240 W RMS x 1 Subwoofer Channel @ 2 Ω 300 W RMS x 1 Subwoofer Channel @ 1.5 Ω N/A JL Audio VX700/5i Manual

Read more less

XDM-Series Five-Channel Class-D Marine-Grade Amplifier, 75-Watts x Four-Channels @ 4-Ohm and 600-Watt Mono @ 2-Ohm The XDM1000/5 delivers up to 1000W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent powerhouse, you can drive two pairs of quality component speaker systems with plenty of clean power (75W x 4 @ 4Ω), while also generating a stout 600W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is JL-Audio's high-speed NexD switching amplifier design. Suitable for car or boat installations, the XDM1000/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. The XDM1000/5 includes a 12dB / octave high-pass filter for one main channel pair, a 12dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500Hz or 500-5000Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access. Specifications Main Channels @ 4 Ω 75 W RMS x 4 @ 14.4V Main Channels @ 2 Ω 100 W RMS x 4 @ 14.4V Main Channels - Bridged @ 4Ω 200 W RMS x 2 @ 14.4V Subwoofer Channel @ 4 Ω 400 W RMS x 1 @ 14.4V Subwoofer Channel @ 3 Ω 500 W RMS x 1 @ 14.4V Subwoofer Channel @ 2 Ω 600 W RMS x 1 @ 14.4V Subwoofer Channel @ 1.5 Ω N/A Main Channels @ 4 Ω 60 W RMS x 4 @ 12.5V Main Channels @ 2 Ω 90 W RMS x 4 @ 12.5V Main Channels - Bridged @ 4Ω 180 W RMS x 2 @ 12.5V Subwoofer Channel @ 4 Ω 360 W RMS x 1 @ 12.5V Subwoofer Channel @ 3 Ω 480 W RMS x 1 @ 12.5V Subwoofer Channel @ 2 Ω 600 W RMS x 1 @ 12.5V Subwoofer Channel @ 1.5 Ω N/A Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB) Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch. THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 80 A (AFS, AGU or MaxiFuse™) Filter Mode(s): Channels 1 & 2 (front) High-Pass only Filter Slope(s): Channels 1 & 2 (front) 12 dB/octave Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 5 kHz Filter Mode(s): Channels 3 & 4 (rear) High-Pass or Bandpass Filter Slope(s): Channels 3 & 4 (rear) 12 dB/octave Filter Frequency Range: Channels 3 & 4 50 Hz - 500 Hz Filter Mode(s): Subwoofer Channel Low-Pass only Filter Slope(s): Subwoofer Channel 12/24 dB/octave Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Infrasonic Filter: Subwoofer Channel none Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant) Remote Level Modes Sub Ch. or All Channels Channel Input Mode Switch Yes (2/4/6 ch.) Pass-Through Preamp Output None Source Channel Selection for PreOuts N/A Height (H) 2.05 in / 52 mm Width (W) 14.73 in / 374 mm Depth (D) 7.09 in / 180 mm JL Audio XDM1000/5v2 Manual

Read more less

Five-Channel Amplifier, 65-Watts x 4ch +, 300-Watts x 1ch at 2-Ohm or 150W @ 4-Ohm This CX-Series 1-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash. Efficient Class-D amplifier Three-second turn-on/off delay to eliminate unwanted interference Variable 12dB crossovers provides control to dial in perfect sound KickEQ™ 6dB variable bass boost for those additional low frequencies 24dB subsonic filter for protection from potentially damaging frequencies FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio Accepts up to 40-volt input signal Small footprint for easier installation Vertical mounting hardware included for another unique look This Kicker 46CXA6605t amplifier delivers as much as 300W into one bass channel. Specifications MODEL CXA660.5 Power (watts/ch) 4 Ohm Stereo 65x4 Power (watts/ch) 2 Ohm Stereo 90x4 Power (watts/ch) 4 Ohm Mono 180x2 Power (watts/ch) 4 Ohm Mono Sub Ch 150x1 Power (watts/ch) 2 Ohm Mono Sub Ch 300x1 CXRC Remote Bass Capable (sold sep.) yes Dimensions (in, cm) (all models 2-3/8, 5.9H x 6-3/4, 17 W x ...L)14-1/8, 35.7 Frequency Response (Hz): 10Hz-20kHz Frequency Response (Hz – Sub Ch.): 25Hz-200Hz Input Sensitivity: 250mV-10V (Low Level)1V-40V (High Level) Signal-to-Noise Ratio: 90dB Active Crossover: Amp 1-2: High Pass 10-200Hz @ 12dB/OctaveSub Channel: Low Pass 50-200Hz @ 12dB/Octave Subsonic Filter: 25Hz @24dB/Octave KickEQ™ Boost Variable 0-6dB @40Hz Kicker 46CXA6605t Manual
