1200W x 1 @ 4Ω

Amplifiers with a Power Output Rating of 2400-Watts x 1-Channel, 4-Ohm Final Impedance

Amplifiers with a Power Output Rating of 2400-Watts x 1-Channel, 4-Ohm Final Impedance

RMS power: This rating of any amplifier is the continuous power rating that an amp is designed to output at a maximum continued volume rating. The RMS power specification is one of two numbers to go by when pairing your speakers with an amplifier, not the only 2 but a good starting point. As an example, a speaker driver with a 2400-Watt, or 2400W for short, RMS rating should be paired with a two-thousand-four-hundred-watt RMS amplifier. We usually recommend an amp to be over powered by 10% RMS so that the power-plant does not have to work at 100% capacity to get 100-percent efficiency from your speakers. This will keep your amplifier from overheating during long periods of continuous operation.

Ohms: Is the resistance rating of an amp and is the second most important when pairing drivers with amplifiers. A power-plant that is 2400W @ 4-ohm might put out 2400-Watts @ 4Ω also. When purchasing an amplifier, the correct pairing of a speaker’s RMS wattage and Ohm ratings with an amp’s output power rating is absolutely essential.

1 product

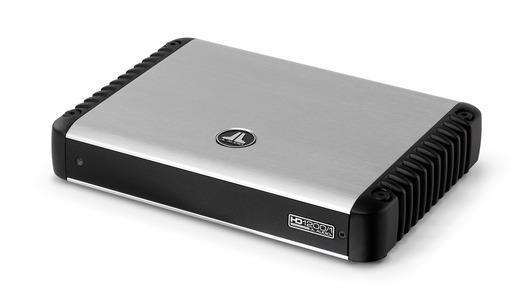

  • JL Audio HD1200/1 : Mono Amplifier - 1200W RMS @ 1.5-4Ω, front side. JL Audio HD1200/1 : Mono Amplifier - 1200W RMS @ 1.5-4Ω, top side.

    JL Audio HD1200/1 : Mono Amplifier, 1200W RMS @ 1.5-4Ω

    Pre-Order Today!

    HD-Series Monoblock Class-D Wide-Range Amplifier, 1200-Watts x 1ch @ 1.5-4-Ohms JL's most powerful HD amplifier employs their advanced Single-Cycle Control switching design and R.I.P.S. technology to deliver 1200W of clean power into any impedance between 1.5 and 4Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, JL invites you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. While targeted primarily to subwoofer applications, the HD1200/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls. General Specifications Frequency Response 6 Hz - 8 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Main Channels) >79 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >500 / 50 Hz Damping Factor @ 2 Ω >250 / 50 Hz THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 2 AWG wire Fuse Rating 100 A (AFS, AGU or MaxiFuse™) @ 4 Ω 1200 W RMS x 1 @ 3 Ω 1200 W RMS x 1 @ 2 Ω 1200 W RMS x 1 @ 1.5 Ω 1200 W RMS x 1 JL Audio HD1200/1 Manual
