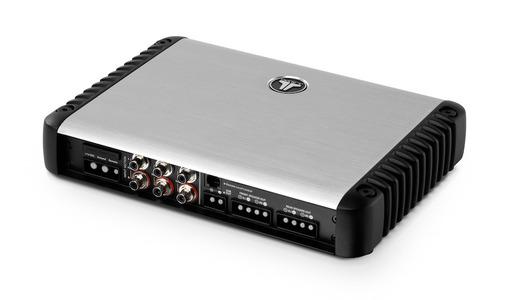

150W x 4 @ 4Ω

HD-Series 4-Channel Class-D Full-Range Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms This compact multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality. When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, JL invites you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. It can also be deployed on its own as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls. General Specifications Frequency Response 6 Hz - 30 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >300 / 50 Hz Damping Factor @ 2 Ω >150 / 50 Hz THD+N @ Rated Power <0.03% @ 4 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) @ 4 Ω 150 W RMS x 4 @ 3 Ω 150 W RMS x 4 @ 2 Ω 150 W RMS x 4 @ 1.5 Ω 150 W RMS x 4 Bridged @ 8 Ω 300 W RMS x 2 Bridged @ 4 Ω 300 W RMS x 2 JL Audio HD600/4 Manual

Read more less

MHD-Series 4-Channel Class-D Marine Grade Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms This compact, multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x 4ch or 300W x 2ch. Tight power supply regulation keeps distortion down and maximizes sound quality. When using the MHD750/1 to drive a subwoofer system, the MHD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system. This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment. Specifications @ 4 Ω 150 W RMS x 4 @ 3 Ω 150 W RMS x 4 @ 2 Ω 150 W RMS x 4 @ 1.5 Ω 150 W RMS x 4 Bridged @ 8 Ω 300 W RMS x 2 Bridged @ 4 Ω 300 W RMS x 2 Frequency Response 6 Hz - 30 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >300 / 50 Hz Damping Factor @ 2 Ω >150 / 50 Hz THD+N @ Rated Power <0.03% @ 4 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass or High-Pass Filter Slope(s) 12/24 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Remote Level Control Optional (HD-RLC) Remote Level Modes 2 or All Channels Channel Input Mode Switch Yes (2/4 ch.) Pass-Through Preamp Output Buffered Source Channel Selection for PreOuts Yes JL Audio MHD600/4 Manual

Read more less

MHD-Series 4-Channel Class-D 24-Volt Marine Grade Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms This compact, multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x 4ch or 300W x 2ch's. Tight power supply regulation keeps distortion down and maximizes sound quality. The MHD600/4-24V is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2ch to the satellites and 300W x 1 to a subwoofer system. This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment. This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty. Specifications @ 4 Ω 150 W RMS x 4 @ 3 Ω 150 W RMS x 4 @ 2 Ω 150 W RMS x 4 @ 1.5 Ω 150 W RMS x 4 Bridged @ 8 Ω 300 W RMS x 2 Bridged @ 4 Ω 300 W RMS x 2 Frequency Response 6 Hz - 30 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >300 / 50 Hz Damping Factor @ 2 Ω >150 / 50 Hz THD+N @ Rated Power <0.03% @ 4 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 25 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass or High-Pass Filter Slope(s) 12/24 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Remote Level Control Optional (HD-RLC) Remote Level Modes 2 or All Channels Channel Input Mode Switch Yes (2/4 ch.) Pass-Through Preamp Output Buffered Source Channel Selection for PreOuts Yes JL Audio MHD600/4-24V Manual

Read more less
