70W x 4 @ 2Ω

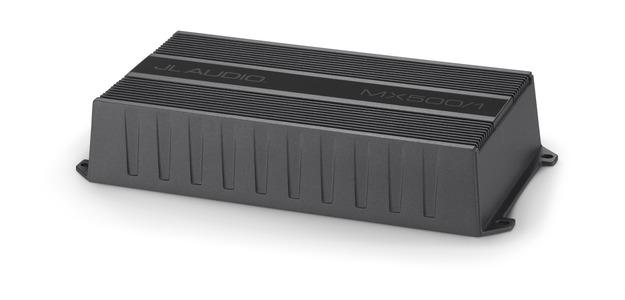

Amplifiers with a Power Output Rating of 70-Watts x 4-Channels, 2-Ohm Final Impedance

Amplifiers with a Power Output Rating of 70-Watts x 4-Channels, 2-Ohm Final Impedance

RMS power: This rating of any amplifier is the continuous power rating that an amp is designed to output at a maximum continued volume rating. The RMS power specification is one of two numbers to go by when pairing your speakers with an amplifier, not the only 2 but a good starting point. As an example, a speaker driver with a 70-Watt, or 70W for short, RMS rating should be paired with a seventy-watt RMS amplifier. We usually recommend an amp to be over powered by 10% RMS so that the power-plant does not have to work at 100% capacity to get 100-percent efficiency from your speakers. This will keep your amplifier from overheating during long periods of continuous operation.

Ohms: Is the resistance rating of an amp and is the second most important when pairing drivers with amplifiers. A power-plant that is 70W @ 2-ohm might only put out 35-watts @ 4Ω. When purchasing an amplifier, the correct pairing of a speaker’s RMS wattage and Ohm ratings with an amp’s output power rating is absolutely essential.

1 product

  • Last One! JL Audio MX280/4 : 50W x 4ch Marine Amplifier @ 4Ω JL Audio MX280/4 : 50W x 4ch Marine Amplifier, side view.

    JL Audio MX280/4 : 50W x 4ch Marine Amplifier @ 4Ω

    1 Available for pickup

    MX-Series 4-Channel Class-D Marine-Grade Amplifier, 70-Watts x 4ch @ 2-Ohm or 50-Watts x 4ch @ 4-Ohm Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs JL's high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles. Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms. Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability. Specifications Frequency Response 20 Hz - 20 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >89.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >60 / 50 Hz Damping Factor @ 2 Ω >30 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) Min.Copper Power / Ground Wire Gauge 8 AWG wire Fuse Rating 35 A (AFS, AGU or MaxiFuse™) @ 4 Ω 50 W RMS x 4 @ 2 Ω 70 W RMS x 4 Bridged @ 4Ω 140 W RMS x 2 JL Audio MX280/4 Manual

    1 Available for pickup
