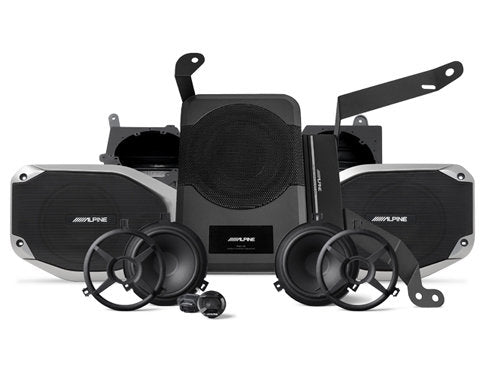

300-Watt Door-Speaker and Add-On Subwoofer Kit for Select 2018-UP Jeep Wrangler-JL and Gladiator-JT Vehicles
The PSS-24WRA is a 300-Watt Complete Sound System Upgrade Package for the four-door, non-amplified 2018–Up Jeep Wrangler-JL and non-amplified 2020–Up Jeep Gladiator-JT.
Go beyond your wildest expectations for sound with this complete sound upgrade package. The PSS-24WRA has 5-channels of powered sound that replaces your factory system. The package includes two sets of 6.5” weather-resistant mid-bas drivers and 1” weather-resist tweeters that replace the front and rear soundbar factory speakers, an 8” powered, compact subwoofer and a 4-channel power pack amplifier.
Specifications
Complete, five-channel powered sound system upgrade package
Compatible with four-door, non-amplified 2018 - Up Jeep® Wrangler and non-amplified 2020 – Up Jeep® Gladiator
Also compatible with two-door, non-scissor front seats in 2019 - Up Jeep® Wrangler
Includes Alpine’s SPV-65X-WRA, SPV-65-JLT, PWE-S8, and KTP-445U
180W, 4-channel Power Pack amplifier
120W, 8” powered subwoofer
(2x) 6.5” weather-resistant mid-bass drivers
(2x) 1” weather-resistant teteron dome tweeters with vehicle-specific connectors and crossovers
Vehicle specific front speaker pods with vehicle-specific connectors
Tweeter adapter plates allow for use of the original factory tweeter locations
SPV-65-JLT weather-resistant rear soundbar speaker system
Rugged, premium grills designed to emulate the factory look and appeal
Vehicle-specific connectors for plug-and-play speaker installation
Utilizes factory bolt locations
Durable stamped, steel frame speaker basket design
Includes template for mounting
Vehicle specific T-harness for installation with OEM radio into compatible 2018 – Up Jeep® Wrangler and 2020 – Up Jeep® Gladiator vehicles
Vehicle specific mounting brackets allow for the powered sub and amp to be secured under the passenger seat without drilling
What's in the Box:
KTP-445U Universal 4-Channel Power Amplifier
PWE-S8 8" Compact Powered Subwoofer
SPV-65X-WRA Front Component Speakers
SPV-65-JLT Rear Sound Bar Speakers
ALP-POD-JLT Front Speaker Pod
PSU-BKT-JL-R PWE Right Bracket JL
PSU-BKT-JL-L PWE Left Bracket JL
ALP-HRN-PSU300 PSU Power Harness
ALP-THRN-CH2 Chrysler T-Harness
CT6 6" Cable Ties
PHPSM412 Pan Head Phillips Screw M4x12
SLWM4 M4 Split Lock Washers
PHSCR832 8-32 Pan Head Phillips screws
PSS-WRA-IM Installation Manual
Specifications
Front (SPV-65X-WRA)
Power handling: 75 watts RMS (225 watts peak)
Frequency response: 65kHz – 22kHz
Nominal impedance: 4 ohms
Weather-resistant: IP55
Rear (SPV-65-JLT)
Power handling: 90 watts RMS (270 watts peak)
Frequency response: 50kHz – 22kHz
Nominal impedance: 4 ohms
Weather-resistant: IP55
Powered Subwoofer (PWE-S8)
120 watts RMS (240 watts peak)
Frequency response: 32 - 150Hz
Variable low-pass crossover (80-200 Hz)
Variable phase control (0-180 degrees)
preamp- and speaker-level inputs
Four Channel Power Pack Amplifier (KTP-445U)
45 watts RMS x 4 at 4 or 2 ohms
90 watts RMS x 2 bridged at 4 ohms
Selectable high-pass filters (60, 80, or 120 Hz at 12 dB/octave)
Switchable RCA or speaker-level inputs|
Dimensions:
27” L x 18.5” W x 19.5” H
40lbs
Direct fit for non-amplified 2018–Up 4-door Jeep Wrangler JL Unlimited
Direct fit for non-amplified 2019–Up 2-door Jeep Wrangler
Direct fit for non-amplified 2020–Up Jeep Gladiator JT
Alpine PSS-24WRA Installation Manual
