300W RMS

Alpine S-Series 300-Watt 8-Inch Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil Don’t think you have room for a subwoofer? Think again. The new S-W8D2 and S-W8D4 8” S-Series subwoofers have a shallow mounting depth of just 3-3/4” and can be used in a sealed box enclosure as small as .15 cubic foot. It is perfect for under seats, behind rear bench seats in trucks, or even in some door applications. Specifications 8" DVC High Performance Subwoofer Power Handling: 300W RMS/900W Peak Push-type Insert Terminals with DVC jumper system Concealed Mount Gasket/Grille* System(*Grille sold separately) Frequency Response: 34Hz-200Hz Mounting Depth 3-3/4” Alpine S-W8D2, S-W8D4 Manual

Read more less

10-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC The JL Audio 10" TW1 automotive thin subwoofer driver chassis offers a shallow mounting depth and excellent linear excursion capability while requiring a small enclosure (0.35 cu.ft. / 10 liters). The cast alloy frame design on the JL 10TW1 is capable of operating in very tight spaces like under-seat installations in trucks. The 10TW1 design uses a "concentric tube" structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of a large motor structure further forward in the speaker than with conventional designs. The 10TW1 thin subwoofer also features a clever frame design that minimizes the frontal clearance required for the excursion of the driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. Thanks to this feature, the 10TW1 requires only 0.87 inches (22 mm) of frontal clearance, even with its grille installed. This allows for more efficient use of space and increased enclosure volume within a given overall depth. Although the JL Audio 10TW1-2  and 10TW1-4 thin subwoofer drivers are optimized for an enclosure much smaller than most other 10 inch subwoofer drivers, they never sound like a big woofer struggling in a tiny box...instead, the 10TW1's delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system. Very shallow mounting depth (4.36 in / 111 mm) No pole vent: permits mounting close to rear wall of enclosure Extremely small sealed enclosure volume requirements Long linear excursion capability (0.40 in / 10 mm, one-way) DMA-optimized motor design Patented "concentric tube" architecture Patented "floating cone attach method" technology Cast alloy frame with flat edges for tight driver grouping Injection molded, mica-filled polypropylene cone Rubber surround Steel mesh grille included with each driver Precision-built in USA at JL Audio’s Miramar, Florida factory with global components General Specifications Continuous Power Handling 300W RMS Recommended Amplifier Power 75W - 300W RMS Nominal Impedance 2Ω/4Ω JL Audio 10TW1 Manual

Read more less

W0-Series 10-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC The JL Audio 10" W0v3 subwoofer driver is a rugged performer with excellent excursion capability and linearity while sporting a 2 inch diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability. This 10 inch subwoofer is best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure. General Specifications Continuous Power Handling (RMS) 300W RMS Recommended Amplifier Power (RMS) 75W - 300W RMS Nominal Impedance (Znom) 4Ω JL Audio 10W0v3 Manual

Read more less

W1-Series 10-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC The JL Audio 10" W1v3 subwoofer driver is a very suitable option when space is limited with smaller amplifiers. It features a low mounting depth of 4.6 inches and a compact motor structure that allows it to comfortably fit in tight mounting locations. There is no pole vent on the rear of the subwoofer which allows the motor structure to be placed directly against an enclosure boundary.  Excellent excursion capability and linearity allow the 10W1v3 to reproduce sub-bass with shocking extension and quality. The JL Audio 10W1v3 is best used with an amplifier in the 75W - 300W RMS range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure. General Specifications Continuous Power Handling 300W RMS Recommended Amplifier Power 75W - 300W RMS Nominal Impedance 2Ω/4Ω JL Audio 10W1v3 Manual

Read more less

TW1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC The 12" TW1 thin subwoofer driver by JL Audio has a shallow mounting depth while maintaining excellent excursion capability in a thin mounty chassis design to fit into an enclosure no bigger than (0.65 cu.ft. / 18.4 liters). This 12TW1 subwoofer is capable of operating in extremely tight spaces including under-seat installations in trucks and other automotive applications requiring a compact, low profile subwoofer design. JL Audio's patented thin-line woofer technology utilizes a "concentric tube" structure built into the injection-molded cone body supporting the voice coil and spider. This patented design places the large motor structure further forward in the speaker than conventional thin subwoofer designs. The JL Audio 12TW1 sub also features a chassis design that minimizes the top clearance required for the linear excursion limits of the subwoofer driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. The 12TW1 requires only 0.87 inches (22 mm) of frontal clearance with or without the subwoofer grille installed. The JL Audio 12" 12TW1-2 and 12TW1-4 subwoofer drivers are optimized for an enclosure much smaller than any other JL Audio twelve-inch subwoofer driver, it never sounds like a big woofer struggling in a tiny box...instead, it delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system. Very shallow mounting depth (4.62 in / 117 mm) No pole vent: permits mounting close to rear wall of enclosure Extremely small sealed enclosure volume requirements Long linear excursion capability (0.40 in / 10 mm, one-way) DMA-optimized motor design Patented "concentric tube" architecture Patented "floating cone attach method" technology Cast alloy frame with flat edges for tight driver grouping Injection molded, mica-filled polypropylene cone Rubber surround Steel mesh grille included with each driver Precision-built in USA at JL Audio’s Miramar, Florida factory with global components General Specifications Continuous Power Handling () 300W RMS Recommended Amplifier Power (RMS) 75W - 300W RMS Nominal Impedance (Znom) 2Ω JL Audio 12TW1 Manual

Read more less

W0-Series 12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC The 12" W0v3 subwoofer driver by JL Audio delivers excellent efficiency, excursion capability and linearity. This 12" subwoofer comes with a price point under $150.00 while supporting a beefy 2 in. diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability. The JL Audio 12W0v3-4 sub is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. General Specifications Continuous Power Handling 300W RMS Recommended Amplifier Power 75W - 300W RMS Nominal Impedance 4Ω JL Audio 12W0v3 Manual

Read more less

W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality. The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.  General Specifications Continuous Power Handling 300W RMS Recommended Amplifier Power 75W - 300W RMS Nominal Impedance 2Ω JL Audio 12W1v3 Manual

Read more less

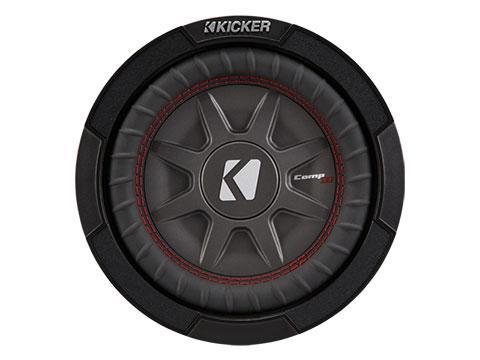

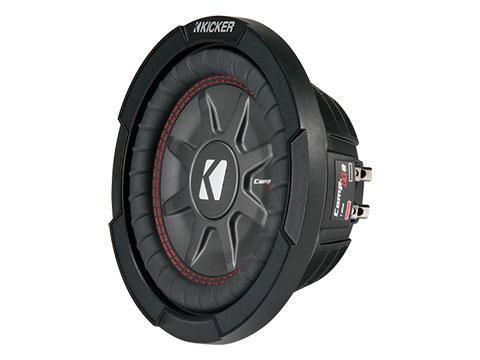

8-Inch 300-Watt Thin Subwoofer Driver, 2-Ohm DVC The CompRT 8" thin subwoofer by Kicker is a weather resistant thin sub with a 2Ω dual voice coil design. This thin 8 inch sub magnet structure delivers 300W RMS of power with a chassis mounting depth of just under 2 3/4". The Kicker designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to keep this 8" CompRT thin subwoofer driver nice and cool.The CompRT 8-Inch subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power. Specifications SIZE [in, cm]: 8, 20 IMPEDANCE [Ohms]: 2 DVC Recommended Amplifier Power (watts RMS) 300 Peak Power (watts, per ANSI/CTA-2031-A) 600 SENSITIVITY [dB 1w/1m]: 81.8 MOUNTING DEPTH [in, cm]: 2 11/16, 6.7 MOUNTING DIAMETER [in, cm]: 7, 17.7 MIN SEALED BOX VOL [cu. ft, L]: 0.2, 5.66 MAX SEALED BOX VOL [cu. ft, L]: 1.0, 28.32 MIN VENTED BOX VOL [cu. ft, L]: 0.8, 22.7 MAX VENTED BOX VOL [cu. ft, L]: 1.2, 34 Kicker CompR Subwoofer Manual

Read more less

10-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC This CompC 10" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround. The 44CWCS104 and 44CWCD104 10-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power. Specifications Size (IN.,CM) 10, 25 Impedance (OHMS) 4 SVC or 4 DVC Recommended Amplifier Power (watts RMS) 300 Peak Power (watts, per ANSI/CTA-2031-A) 500 Sensitivity (dB 1w/1m) 86.2 Frequency Response (Hz) 30-500 Mounting Depth (in, cm) 4 13/16, 12.2 Mounting Cutout (in, cm) 9 1/8, 23.1 Min Sealed Box Vol (cu. ft, L) 1.0, 28.3 Max Sealed Box Vol (cu. ft, L) 2.4, 68 Min Vented Box Vol (cu. ft, L) 1.25, 35.4 Max Vented Box Vol (cu. ft, L) 1.75, 49.6 Kicker CompC Subwoofer Manual

Read more less

12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC This CompC 12" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround. The 44CWCS124 and 44CWCD124 12-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power. Specifications Size (IN.,CM) 12, 30 Impedance (OHMS) 4 SVC or 4 DVC Recommended Amplifier Power (watts RMS) 300 Peak Power (watts, per ANSI/CTA-2031-A) 600 Sensitivity (dB 1w/1m) 88.3 Frequency Response (Hz) 27-500 Mounting Depth (in, cm) 5-3/8, 13.6 Mounting Cutout (in, cm) 11, 27.9 Min Sealed Box Vol (cu. ft, L) 1.25, 35.4 Max Sealed Box Vol (cu. ft, L) 3.5, 99.1 Min Vented Box Vol (cu. ft, L) 1.75, 49.6 Max Vented Box Vol (cu. ft, L) 2.25, 63.7 Kicker CompC Subwoofer Manual

Read more less

8-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC The 48CWR8 8" subwoofer is available in a 2Ω or 4Ω dual voice coil design, making it easy to get the most out of your amp. An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion. KICKER developed Forced Air Cooling to helps their subs run 25% cooler.The Kicker 48CWR82 and 48CWR84 8" subs work best with a sealed or ported enclosure and 300 watts of recommended power. Specifications SIZE [in, cm]: 8, 20 IMPEDANCE [Ohms]: 2 or 4 DVC Recommended Amplifier Power (watts RMS) 300 Peak Power (watts, per ANSI/CTA-2031-A) 600 SENSITIVITY [dB 1w/1m]: 82.1 MOUNTING DEPTH [in, cm]: 4-1/8, 10.5 MOUNTING DIAMETER [in, cm]: 7, 17.7 MIN SEALED BOX VOL [cu. ft, L]: 0.4, 11.3 MAX SEALED BOX VOL [cu. ft, L]: 1.0, 28.52 MIN VENTED BOX VOL [cu. ft, L]: 0.8, 22.7 MAX VENTED BOX VOL [cu. ft, L]: 1.2, 34 Kicker CompR Subwoofer Manual

Read more less

8-Inch 300-Watt Thin Subwoofer Driver, 2-Ohm or 4-Ohm DVC The CompRT 8-inch subwoofer is an all-weather thin bass driver with a pair of 2-Ohm or 4-Ohm voice coils. With a mounting depth under three inches and plenty of power handling, this go-anywhere sub is as flexible as it is powerful. A UV-resistant cone and surround help make the CompRT sound great wherever the road (or trail) takes you. An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. To make Kicker subs even more reliable, their engineers developed Forced-Air Cooling™ to help these thin subs run 20 percent cooler than before. Kicker signature red double stitching makes an outstanding bond between the improved Santoprene surround and polypropylene woofer cone. Revolutionary SoloKon™ technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion. The CompRT 8-Inch 48CWRT82 and 48CWRT84 subwoofers work best with a sealed or ported enclosure and 300 watts of recommended power. Specifications SIZE [in, cm]: 8, 20 IMPEDANCE [Ohms]: 2 or 4 DVC Recommended Amplifier Power (watts RMS) 300 Peak Power (watts, per ANSI/CTA-2031-A) 600 SENSITIVITY [dB 1w/1m]: 81.8 MOUNTING DEPTH [in, cm]: 2 11/16, 6.7 MOUNTING DIAMETER [in, cm]: 7, 17.7 MIN SEALED BOX VOL [cu. ft, L]: 0.2, 5.66 MAX SEALED BOX VOL [cu. ft, L]: 1.0, 28.32 MIN VENTED BOX VOL [cu. ft, L]: 0.8, 22.7 MAX VENTED BOX VOL [cu. ft, L]: 1.2, 34 Kicker CompRT Subwoofer Manual

Read more less
