R-Series 10-Inch 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Dual Voice Coil
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non- stop bass performance.
The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ- Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The R2-W10D2 and R2-W10D4 is compatible with the KTE-10G Grille System (sold separately).
The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi- Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
Features
Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
Polypropylene/Ceramic Composite Dust Cap
Kevlar Reinforced Pulp Cone High-Performance subwoofers
Twist-Lock Grille Mount System
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Large Double-Stacked Magnets
Specifications
750W RMS
2250W Peak Power Handling
Frequency Response: 26Hz-200Hz
Sensitivity (1W/1m): 82.4dB
Nominal Impedance: 4Ω
Voice Coil: 65mm
X-Max: 20mm
Magnet Weight: 123oz
Mounting Depth: 6” (152mm)
Cutout Size: 9-1/16” (231mm)
Push-Type Speaker Terminals (Up to 8AWG Wire Size)
CTA-2031 Compliant
Alpine R2-W10D Manual
R-Series 12-Inch 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Dual Voice Coil
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non- stop bass performance.
The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ- Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The R2-W12D2 and R2-W12D4 is compatible with the KTE-12G Grille System (sold separately).
The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi- Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
Features
Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
Polypropylene/Ceramic Composite Dust Cap
Kevlar Reinforced Pulp Cone High-Performance subwoofers
Twist-Lock Grille Mount System
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Large Double-Stacked Magnets
Specifications
750W RMS
2250W Peak Power Handling
Frequency Response: 24Hz-200Hz
Sensitivity (1W/1m): 84.5dB
Nominal Impedance: 4Ω
Voice Coil: 65mm
X-Max: 20mm
Magnet Weight: 144oz
Mounting Depth: 6-1/2” (152mm)
Cutout Size: 10-7/8” (231mm)
Push-Type Speaker Terminals (Up to 8AWG Wire Size)
CTA-2031 Compliant
Alpine R2-W12D Manual

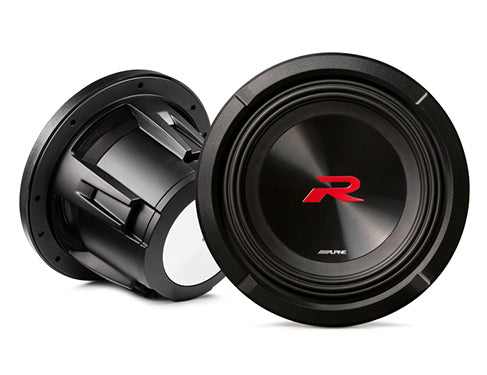

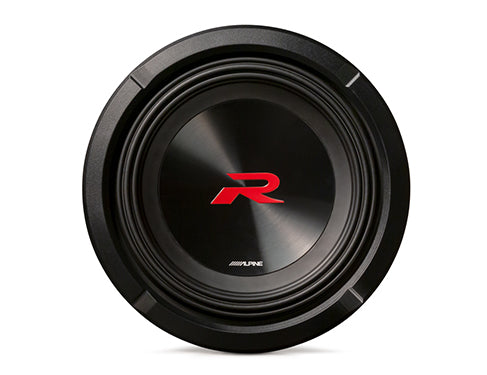

R-Series 8-Inch 350-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Dual Voice Coil
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non- stop bass performance.
The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ- Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The R2-W8D2 and R2-W8D4 is compatible with the KTE-8G Grille System (sold separately).
The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi- Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
Features
Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
Polypropylene/Ceramic Composite Dust Cap
Kevlar Reinforced Pulp Cone High-Performance subwoofers
Twist-Lock Grille Mount System
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Large Double-Stacked Magnets
Specifications
350W RMS
1000W Peak Power Handling
Frequency Response: 30Hz-200Hz
Sensitivity (1W/1m): 83.5dB
Nominal Impedance: 4Ω
Voice Coil: 35mm
X-Max: 12mm
Magnet Weight: 56oz
Mounting Depth: 4-3/8” (118mm)
Cutout Size: 6-15/16” (176mm)
Push-Type Speaker Terminals (Up to 8AWG Wire Size)
CTA-2031 Compliant
Alpine R2-W8D Manual
Alpine S-Series 600-Watt 10-Inch Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil
Along with the new 8” woofer, the 10” and 12” S-Series subwoofers have been re-designed from the ground up. The mounting depth of the 10” and 12” subwoofers are almost 1” more shallow than previous models at just over 4.5” for the 10” models and just over 5” for the 12” models, allowing them to fit into a wide variety of installation applications.
Specifications
10" DVC High Performance Subwoofer
Power Handling: 600W RMS/1800W Peak
Push-type Insert Terminals with DVC jumper system
Concealed Mount Gasket/Grille* System (*Grille sold separately)
Frequency Response: 28Hz-200Hz
Mounting Depth 4-11/16”
Alpine S-W10D2, S-W10D4 Manual
Alpine S-Series 600-Watt 12-Inch Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil
Along with the new 8” woofer, the 10” and 12” S-Series subwoofers have been re-designed from the ground up. The mounting depth of the 10” and 12” subwoofers are almost 1” more shallow than previous models at just over 4.5” for the 10” models and just over 5” for the 12” models, allowing them to fit into a wide variety of installation applications.
Specifications
Power Handling: 600W RMS/1800W Peak @ 2Ω
Push-type Insert
Terminals with DVC jumper system
Concealed Mount Gasket/Grille* System (*Grille sold separately)
Frequency Response: 26Hz-200Hz
Mounting Depth 5-1/16”
Alpine S-W12D2, S-W12D4 Manual
Alpine S-Series 300-Watt 8-Inch Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil
Don’t think you have room for a subwoofer? Think again. The new S-W8D2 and S-W8D4 8” S-Series subwoofers have a shallow mounting depth of just 3-3/4” and can be used in a sealed box enclosure as small as .15 cubic foot. It is perfect for under seats, behind rear bench seats in trucks, or even in some door applications.
Specifications
8" DVC High Performance Subwoofer
Power Handling: 300W RMS/900W Peak
Push-type Insert Terminals with DVC jumper system
Concealed Mount Gasket/Grille* System(*Grille sold separately)
Frequency Response: 34Hz-200Hz
Mounting Depth 3-3/4”
Alpine S-W8D2, S-W8D4 Manual

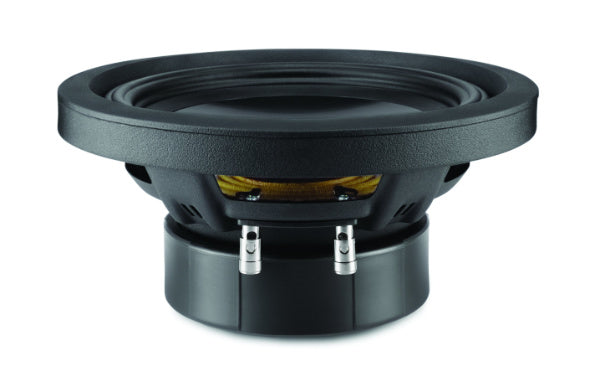

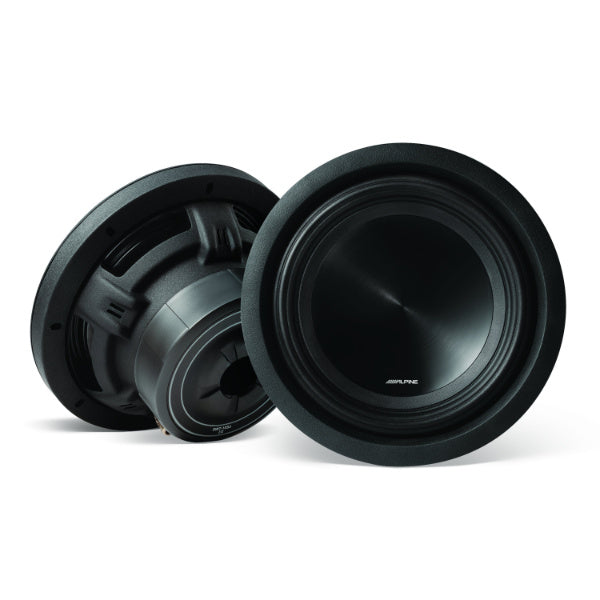

Alpine 350-Watt Thin 10-Inch Subwoofer Driver, 2Ω or 4Ω Impedance
The SWT 10” Truck Subwoofer has been engineered to offer more installation flexibility without sacrificing big output to build the ideal sound system for your truck. At 4-1/8” deep, these subs provide deep bass performance where it normally couldn’t fit in a truck. And the vented pole optimized for 4-1/8” deep box is the ideal enclosure size meaning great bass performance can fit just about anywhere in your truck.
The FEA-Optimized Motor Structure together with Alpine's revolutionary High-Amplitude Multi Roll (HAMR) Suspension Design gives the new SWT Truck Subwoofers the highest X-max and SPL output in its category.
The new SWT Truck Subwoofers deliver the best-in-class bass output, ultra-low distortion, and unparalleled sound quality. With a real world, measured 11mm of X-max, the SWT subwoofers perform like traditional models, yet fit in smaller spaces.
4 UNIQUE ALPINE TECHNOLOGIES
Radial Vented VC Heat Sink & Airflow Management SystemActively manages voice coil temperatures by forcing air directly across the heat sink system.
FEA Optimized Dual-Sided Machined CRC Motor StructureCreates a symmetrical magnetic field with evenly distributed flux density to greatly reduce distortion, while further improving power handling and output.
FEA Optimized Injection Molded TPE Spider with Pass-Through Gap DesignProvides the mechanical clearance needed for over 50mm of peak-to-peak excursion, unleashing massive output potential from a small package
FEA Optimized HAMR SurroundThe High-Amplitude Multi Roll Surround Design allows for extreme excursions without sacrificing valuable cone area. FEA Optimized for linearity and made with injection-molded Santoprene ®, the HAMR surround is a key part of the suspension system that provides accurate, distortion-free control at extreme excursions.
Specifications
350W RMS, 1000W Peak Power Handling
Frequency Response: 30Hz-200Hz
Mounting Depth 4-3/16"
2Ω or 4Ω Voice Coil
10-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The JL Audio 10" TW1 automotive thin subwoofer driver chassis offers a shallow mounting depth and excellent linear excursion capability while requiring a small enclosure (0.35 cu.ft. / 10 liters). The cast alloy frame design on the JL 10TW1 is capable of operating in very tight spaces like under-seat installations in trucks.
The 10TW1 design uses a "concentric tube" structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of a large motor structure further forward in the speaker than with conventional designs.
The 10TW1 thin subwoofer also features a clever frame design that minimizes the frontal clearance required for the excursion of the driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. Thanks to this feature, the 10TW1 requires only 0.87 inches (22 mm) of frontal clearance, even with its grille installed. This allows for more efficient use of space and increased enclosure volume within a given overall depth.
Although the JL Audio 10TW1-2 and 10TW1-4 thin subwoofer drivers are optimized for an enclosure much smaller than most other 10 inch subwoofer drivers, they never sound like a big woofer struggling in a tiny box...instead, the 10TW1's delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system.
Very shallow mounting depth (4.36 in / 111 mm)
No pole vent: permits mounting close to rear wall of enclosure
Extremely small sealed enclosure volume requirements
Long linear excursion capability (0.40 in / 10 mm, one-way)
DMA-optimized motor design
Patented "concentric tube" architecture
Patented "floating cone attach method" technology
Cast alloy frame with flat edges for tight driver grouping
Injection molded, mica-filled polypropylene cone
Rubber surround
Steel mesh grille included with each driver
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω/4Ω
JL Audio 10TW1 Manual
TW3-Series 10-Inch 400-Watt Automotive Subwoofer Driver, 4Ω or 8Ω DVC
The 10" TW3 thin subwoofer driver by JL Audio delivers a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than JL's W3v3 subwoofers!
JL Audio’s patented thin-line woofer technology compresses the architecture of the 10TW3 using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional 10-Inch thin subwoofer designs.
The 10TW3-D4 and 10TW3-D8 subwoofers are optimized for small enclosures and offer JL's tab-ear mounting design to maximize cone area within their mounting footprints.
Very shallow mounting depth (3.25 / 3.50 Inches)
No pole vent: permits mounting close to rear wall of enclosure.
Very small sealed enclosure volume requirements
Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
DMA-optimized motor designs
“concentric tube” architecture
Patented “floating cone attach method” technology
Cast alloy frame
Injection molded, mica-filled polypropylene cone
Rubber surround
Aluminum-alloy dust cap and rear cap with JL Audio logo
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
Continuous Power Handling
400W RMS
Recommended Amplifier Power
200W - 400W RMS
Nominal Impedance
Dual 4Ω/8Ω
JL Audio 10TW3 Manual
W0-Series 10-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC
The JL Audio 10" W0v3 subwoofer driver is a rugged performer with excellent excursion capability and linearity while sporting a 2 inch diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability.
This 10 inch subwoofer is best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure.
General Specifications
Continuous Power Handling (RMS)
300W RMS
Recommended Amplifier Power (RMS)
75W - 300W RMS
Nominal Impedance (Znom)
4Ω
JL Audio 10W0v3 Manual
W1-Series 10-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The JL Audio 10" W1v3 subwoofer driver is a very suitable option when space is limited with smaller amplifiers. It features a low mounting depth of 4.6 inches and a compact motor structure that allows it to comfortably fit in tight mounting locations. There is no pole vent on the rear of the subwoofer which allows the motor structure to be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow the 10W1v3 to reproduce sub-bass with shocking extension and quality.
The JL Audio 10W1v3 is best used with an amplifier in the 75W - 300W RMS range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω/4Ω
JL Audio 10W1v3 Manual
W3-Series 10-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The JL Audio 10W3v3 subwoofer driver has excellent power handling, reasonable enclosure requirements, and a long excursion for its chassis to deliver excellent bass reproduction in 500W RMS power applications. JL Audio technologies and proprietary assembly designs in the 10W3v3-2 and 10W3v3-4 subwoofers enhance linearity and reliable performance results.
The JL Audio 10W3v3 is best used with an amplifier in the 150W - 500W RMS range and is optimized to operate in a compact 0.625 cu. ft. (17.7 l) sealed enclosure, or a 1.25 cu. ft. (35.4 l) ported enclosure.
General Specifications
Continuous Power Handling
500W RMS
Recommended Amplifier Power
150- 500W RMS
Nominal Impedance
2Ω
JL Audio 10W3v3 Manual
W6-Series 10-Inch 600-Watt Subwoofer Driver, 4-Ohm DVC
The 10W6v3 subwoofer driver offers several technologies similar to JL Audio's W7AE top line of subwoofers to provide powerful advantages in motor linearity and suspension behavior. This 10" automotive sub has a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.
This 10" W6v3 driver is best used with an amplifier in the 200W - 600W RMS range and is optimized to operate in a sealed enclosure with only 0.55 cu. ft. (15.6 l) of air space, or a 0.75 cu. ft. (21.2 l) ported enclosure.
The JL Audio 10W6V3-D4 subwoofer driver comes with Dual 4Ω voice coils that allow the 10W6v3 to be installed in a 2Ω or 8Ω configuration.
General Specifications
Continuous Power Handling
600W RMS
Recommended Amplifier Power
200 - 600W RMS
Nominal Impedance
Dual 4Ω
JL Audio 10W6v3 Manual
W7-Series 10-Inch 750-Watt Subwoofer Driver, 3-Ohm SVC
The audiophile 10W7AE subwoofer driver delivers amazing excursion capability while maintaining undeniable tracking accuracy under power in the low end sound spectrum.
This 10" W7AE sub is best used with an amplifier in the 300W - 750W RMS range and is optimized to operate in a 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.5 cu. ft. (42.5 l) ported enclosure.
The JL Audio 10W7AE-3 Anniversary Edition subwoofer driver is the 10th Anniversary of the launch of the JL W7 subwoofers. They are identical to the original W7's drivers but they are distinguished by the following cosmetic differences:
Satin-Black Powdercoated Baskets
Bright Anodized Surround Clamp Ring
Anniversary Edition Cone Badge
Anniversary Edition Terminal Label
General Specifications
Continuous Power Handling
750W RMS
Recommended Amplifier Power
300W - 750W RMS
Nominal Impedance
3Ω
JL Audio 10W7AE Manual
TW1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" TW1 thin subwoofer driver by JL Audio has a shallow mounting depth while maintaining excellent excursion capability in a thin mounty chassis design to fit into an enclosure no bigger than (0.65 cu.ft. / 18.4 liters). This 12TW1 subwoofer is capable of operating in extremely tight spaces including under-seat installations in trucks and other automotive applications requiring a compact, low profile subwoofer design.
JL Audio's patented thin-line woofer technology utilizes a "concentric tube" structure built into the injection-molded cone body supporting the voice coil and spider. This patented design places the large motor structure further forward in the speaker than conventional thin subwoofer designs.
The JL Audio 12TW1 sub also features a chassis design that minimizes the top clearance required for the linear excursion limits of the subwoofer driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. The 12TW1 requires only 0.87 inches (22 mm) of frontal clearance with or without the subwoofer grille installed.
The JL Audio 12" 12TW1-2 and 12TW1-4 subwoofer drivers are optimized for an enclosure much smaller than any other JL Audio twelve-inch subwoofer driver, it never sounds like a big woofer struggling in a tiny box...instead, it delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system.
Very shallow mounting depth (4.62 in / 117 mm)
No pole vent: permits mounting close to rear wall of enclosure
Extremely small sealed enclosure volume requirements
Long linear excursion capability (0.40 in / 10 mm, one-way)
DMA-optimized motor design
Patented "concentric tube" architecture
Patented "floating cone attach method" technology
Cast alloy frame with flat edges for tight driver grouping
Injection molded, mica-filled polypropylene cone
Rubber surround
Steel mesh grille included with each driver
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
Continuous Power Handling ()
300W RMS
Recommended Amplifier Power (RMS)
75W - 300W RMS
Nominal Impedance (Znom)
2Ω
JL Audio 12TW1 Manual
TW3-Series 12-Inch 400-Watt Thin Subwoofer Driver, 4-Ohm or 8-Ohm DVC
The 12" TW3 thin subwoofer driver by JL Audio offers a shallow mounting depth with an excursion capability that is remarkably capable of greater excursion than JL's W3v3 full size subwoofers.
JL Audio’s TW3 sub utilizes a patented thin-line woofer technology that compresses the architecture of the 12TW3 woofer using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and spider, while allowing the placement of the large motor structure to be moved further forward on the chassis than with conventional designs.
JL Audio 12TW3-D4 and 12TW4-D8 are optimized for small enclosures and offers JL's tab-ear mounting design to maximize cone area within their mounting footprints.
Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.
Very shallow mounting depth (3.25 / 3.50 Inches)
No pole vent: permits mounting close to rear wall of enclosure.
Very small sealed enclosure volume requirements
Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
DMA-optimized motor designs
“concentric tube” architecture
Patented “floating cone attach method” technology
Cast alloy frame
Injection molded, mica-filled polypropylene cone
Rubber surround
Aluminum-alloy dust cap and rear cap with JL Audio logo
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
Continuous Power Handling
400W RMS
Recommended Amplifier Power
200W - 400W RMS
Nominal Impedance
Dual 4Ω/8Ω
JL Audio 12TW3 Manual
W0-Series 12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC
The 12" W0v3 subwoofer driver by JL Audio delivers excellent efficiency, excursion capability and linearity. This 12" subwoofer comes with a price point under $150.00 while supporting a beefy 2 in. diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability.
The JL Audio 12W0v3-4 sub is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
4Ω
JL Audio 12W0v3 Manual
W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality.
The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω
JL Audio 12W1v3 Manual
W3-Series 12-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Single Voice Coil
This 12-inch W3v3 subwoofer driver by JL Audio delivers world-class sound quality in a 500W RMS power package.
The JL Audio 12W3v3-2 and 12W3v3-4 automotive subs are best used with an amplifier in the 150-Watt - 500-Watt RMS range and are optimized to operate in a compact 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
General Specifications
Continuous Power Handling (RMS)
500 W
Recommended Amplifier Power (RMS)
150 - 500 W
Nominal Impedance (Znom)
2 Ω
JL Audio 12W3v3 Manual
W6-Series 12-Inch 600-Watt Subwoofer Driver, 4-Ohm DVC
The 12" W6v3 subwoofer driver is an audiophile subwoofer that offers powerful advantages in motor linearity and suspension behavior. The 12W6v3 sub offers a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.
The JL 12W6v3-4 automotive sub is best used with an amplifier in the 200-Watt - 600-Watt RMS range and is optimized to operate in a sealed enclosure with only 1.0 cu. ft. (28.3 l) of air space, or a 1.3 cu. ft (36.8 l) ported enclosure.
Greater excursion capability and higher power handling distinguish the 12" JL W6v3 subwoofer from the 12W3v3 12-inch subwoofer driver, allowing for higher output. Dual 4Ω voice coils allow the W6v3 to be wired in a 2Ω or 8Ω configuration.
General Specifications
Continuous Power Handling
600W RMS
Recommended Amplifier Power
200W - 600W RMS
Nominal Impedance
Dual 4Ω
JL Audio 12W6v3 Manual
W7-Series 12-Inch 1000-Watt Subwoofer Driver, 3-Ohm SVC
The JL Audio 12" W7AE audiophile reference subwoofer driver delivers the ultimate performance by combining long-excursion W7 driver design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", with limitless dynamics and exceptional balance and world-class sound quality.
This 12W7AE automotive reference sub is best used with an amplifier in the 400-Watt - 1000-Watt range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
The JL Audio 12W7AE-3 (Anniversary Edition) subwoofer celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:
Satin-Black Powdercoated Baskets
Bright Anodized Surround Clamp Ring
Anniversary Edition Cone Badge
Anniversary Edition Terminal Label
General Specifications
Continuous Power Handling (RMS)
1000 W
Recommended Amplifier Power (RMS)
400 - 1000 W
Nominal Impedance (Znom)
3 Ω
JL Audio 12W7AE Manual
TW5-Series 13.5-Inch 600-Watt Thin Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The JL Audio 13.5" TW5v2 thin subwoofer driver uses a chassis with a “concentric tube” structure that supports the 7-inch diameter voice coil and the suspension attachments. This permits placement of the large motor structure much further forward in the subwoofer chassis than with conventional thin sub designs, while allowing excellent linear excursion capability and mechanical stability.
The 13TW5v2 improves upon the original 13-Inch TW5 driver with 13% greater linear excursion capability. The cast alloy chassis has also been modified for greater strength and the redesigned motor now features an annular vent. The v2 is available in single 2-ohm and single 4-ohm voice coil configurations.
In keeping with its “tight-spaces” mission, the 13TW5v2 is optimized for enclosures that are far smaller than most 12-inch woofers require and only a bit larger than the air space needs of a typical, small-box 12-inch woofer. The mounting system is designed to fit in about the same footprint as a typical 12-inch woofer.
The JL Audio 13TW5v2-2 and the 13TW5v2-4 thin subwoofers are best used with amplifier power in the 250-Watt - 600-Watt range and is optimized to operate in a 0.80 cu. ft. (22.7 l) sealed enclosure.
Never has such high-quality subwoofers-bass been possible in the most challenging thin installation applications.
General Specifications
Continuous Power Handling
600W RMS
Recommended Amplifier Power
250W - 600W RMS
Nominal Impedance
2Ω
JL Audio 13TW5v2 Manual
W3-Series 13-Inch 600-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Single Voice Coil
If you have the space, it makes a tremendous sense to maximize your subwoofer system's piston area to enhance efficiency (and output). It gets even better when the larger driver delivers additional power handling and excursion. For the preceding reasons, the 13W3v3 can be the best choice for those seeking high output with great sound quality at medium power levels.
As with the smaller W3v3's, several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 13W3v3 to enhance linearity and reliability.
The 13W3v3 2Ω or 4Ω model is best used with an amplifier powered in the 150W - 600W range and is optimized to operate in a moderate size 1.5 cu. ft. (42.5 l) sealed enclosure, or a 2.25 cu. ft. (63.7 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
General Specifications
Continuous Power Handling (RMS)
600W
Recommended Amplifier Power (RMS)
150 - 600W
Nominal Impedance (Znom)
4Ω
Nominal Diameter
13.5 in / 345 mm
Overall Diameter (A)
14.0 in / 356 mm
Mounting Hole Diameter (B)
12.5625 in / 319 mm
Bolt Hole Circle Diameter (C)
13.2 in / 335 mm
Motor Outer Diameter (D)
5.79 in / 147 mm
Mounting Depth (E)
7.63 in / 194 mm
Driver Displacement
0.096 cu ft / 2.72 liters
Net Weight
17.75 lb / 8.05 kg
Free Air Resonance (Fs)
23.66 Hz
Electrical “Q” (Qes)
0.465
Mechanical “Q” (Qms)
6.774
Total Speaker “Q” (Qts)
0.435
Equivalent Compliance (Vas)
4.793 cu ft / 135.74 L
One-Way Linear Excursion (Xmax)*
0.610 in / 15.5 mm
Reference Efficiency (no)
0.37%
Efficiency (1 W / 1 m)**
87.90 dB SPL
Effective Piston Area (Sd)
103.850 sq in / 0.0670 sq m
DC Resistance (Re)
3.569 Ω
JL Audio 13W3v3 Manual
W7-Series 13.5-Inch 1500-Watt RMS Subwoofer Driver, 1.5-Ohm DVC
The JL Audio 13.5" W7AE audiophile reference grade automotive subwoofer driver offers a staggering linear excursion envelope that exceeds 1.25 inches (32 mm) one-way, with a suspension excursion of over 4-inches, peak-to-peak. The performance from this 13.5-Inch driver is reserved for the most demanding applications. The JL 13W7AE sub is not ideal for light capacity vehicles with small enclosure spaces. In larger capacity vehicles, enclosure limits simply vanish and amazing sub-bass from this 13.5" W7AE driver happens... on all fronts, at any level.
JL's most potent subwoofer driver is best used with an amplifier in the 500W - 1500W RMS range and is optimized to operate in a 1.875 cu. ft. (53.1 l) sealed enclosure, or a 2.375 cu. ft. (67.3 l) ported enclosure.
The JL Audio 13W7AE-D1.5 (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:
Satin-Black Powdercoated Baskets
Bright Anodized Surround Clamp Ring
Anniversary Edition Cone Badge
Anniversary Edition Terminal Label
General Specifications
Continuous Power Handling
1500W RMS
Recommended Amplifier Power
500W - 1500W RMS
Nominal Impedance
Dual 1.5Ω
JL Audio 13W7AE Manual
W6-Series 6.5-Inch 150-Watt Subwoofer Driver, 4-Ohm
If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.
The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
General Specifications
Continuous Power Handling (RMS)
150 W
Recommended Amplifier Power (RMS)
50 - 150 W
Nominal Impedance (Znom)
4 Ω
JL Audio 6W3v3 Manual
W1-Series 8-Inch 150-Watt Subwoofer Driver, 4-Ohm SVC
The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 8W1v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure.
General Specifications
Continuous Power Handling (RMS)
150 W
Recommended Amplifier Power (RMS)
50 - 150 W
Nominal Impedance (Znom)
4 Ω
JL Audio 8W1v3 Manual
W3-Series 8-Inch 250-Watt Subwoofer Driver, 4-Ohm SVC
If you need an 8-inch subwoofer that can create outstanding bass in extremely small enclosures, the 8W3v3 will do the job and surprise you with its power and accuracy. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.375 in. (10 mm) of controlled, one-way, linear excursion.
The 8W3v3-4 is best used with amplifier power in the 75W - 250W range and is optimized to operate in a tiny 0.30 cu. ft. (8.5 l) sealed enclosure, or a 0.35 cu. ft. ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
General Specifications
Continuous Power Handling (RMS)
250 W
Recommended Amplifier Power (RMS)
75- 250 W
Nominal Impedance (Znom)
4 Ω
JL Audio 8W3v3 Manual
W7-Series 8-Inch 500-Watt Subwoofer Driver, 3-Ohm SVC
This subwoofer driver has been called the "best damn 8-inch subwoofer ever made" for its remarkable performance capabilities and design attributes. An impressive linear excursion envelope that exceeds 0.75 in. (19 mm) one-way allows it to deliver impact well beyond the range of other 8-inch subwoofer drivers.
The 8W7AE is best used with amplifier power in the 200W - 500W range and is optimized to operate in a 0.875 cu. ft. (24.8 l) sealed enclosure, or a 1.0 cu. ft. ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:
Satin-Black Powdercoated Baskets
Bright Anodized Surround Clamp Ring
Anniversary Edition Cone Badge
Anniversary Edition Terminal Label
General Specifications
Continuous Power Handling (RMS)
500 W
Recommended Amplifier Power (RMS)
200 - 500 W
Nominal Impedance (Znom)
3 Ω
JL Audio 8W7AE Manual
10-Inch 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The 10" CompQ audiophile competition subwoofer driver by Kicker is the pinnacle of Kicker's round speaker line, with nearly identical construction and performance as the L7 Series square subs.
The Kicker 42CWQ102 and 42CWQ104 have a 750W RMS power handling and extremely accurate bass reproduction featuring a ribbed Santoprene® surround and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at 750-Watts of Continuous Power.
The CompQ 10-Inch sub works best with a sealed or ported enclosure with 750 watts of recommended power. See below for more details.
Specifications
Rated Impedance [Ω]
2 or 4 DVC
Fs [Hz
38
Sensitivity [1W, 1m]
85.7
Qts
0.437
Qms
8.916
Qes
0.46
Re [Ω]
6.52
Vas [ft³, L]
.59, 16.75
Recommended Amplifier Power (watts RMS)
700
Outer Frame Dimension [in, cm]
10 11/16, 27.2
Mounting Depth [in, cm]
6 3/8, 16.2
Mounting Cutout [in, cm]
9 3/16, 23.4
Frequency Response [Hz]
24 – 100
Kicker CompQ Subwoofer Manual
12-Inch 850-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompQ 12” audiophile subwoofer by Kicker is the pinnacle of their round speaker line, with nearly identical construction and performance as their L7 square subs.
The Kicker 42CWQ122 and 42CWQ124 subs were designed for high power handling and reference competition bass reproduction, this KICKER sub features Ribbed Santoprene® surrounds and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at any volume level.
The CompQ series 12-Inch subwoofer works best with a sealed or ported enclosure rated for 850W RMS.
Specifications
Rated Impedance [Ω]
2 or 4 DVC
Fs [Hz]
37
Sensitivity [1W, 1m]
86.2
Qts
0.546
Qms
8.878
Qes
0.582
Re [Ω]
5.94
Vas [ft³, L]
.91 ,26
Recommended Amplifier Power (watts RMS)
850
Outer Frame Dimension [in, cm]
12 1/2, 31.8
Mounting Depth [in, cm]
7 1/8, 18.1
Mounting Cutout [in, cm]
11 1/16, 28.1
Frequency Response [Hz]
20 – 100
Kicker CompQ Subwoofer Manual
15-Inch 1100-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompQ 15” audiophile subwoofer from Kicker is their flagship round subwoofer line, with nearly identical construction and performance as the L7 square subs.
The Kicker 42CWQ152 and 42CWQ154 were designed for high power handling and audiophile competition bass reproduction, this 15-Inch CompQ sub features Ribbed Santoprene® surrounds and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at any volume level.
This 15” subwoofer driver works best with a sealed or ported enclosure with 1,100-Watts of RMS power. See below for more details.
Specifications
Rated Impedance [Ω]
2 or 4 DVC
Fs [Hz]
30.6
Sensitivity [1W, 1m]
88.6
Qts
0.472
Qms
9.672
Qes
0.496
Re [Ω]
6.03
Vas [ft³, L]
2.5, 70.747
Recommended Amplifier Power (watts RMS)
1100
Outer Frame Dimension [in, cm]
15 3/8, 39.1
Mounting Depth [in, cm]
8 15/16, 22.6
Mounting Cutout [in, cm]
13 7/8, 35.2
Frequency Response [Hz]
18 – 100
Kicker CompQ Subwoofer Manual
10-Inch 350-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
This 43CVR 10" subwoofer by Kicker uses an advanced heat dispersion system with perimeter venting to allow air to circulate while the Kicker proprietary UniPlate™ system redirects even more heat away from the motor.
The chassis of this 10-Inch sub holds a pair of high-temp voice coils that move an injection molded woofer. The CompVR 10" subwoofer is available in a 2Ω or 4Ω dual voice coil design.
The 43CVR102 and 43CVR104 10-Inch subwoofers works best with a sealed or ported enclosure and 350 watts of recommended power. See below for more details.
Specifications
SIZE [in, cm]:
10, 25
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
350
Peak Power (watts, per ANSI/CTA-2031-A)
700
SENSITIVITY [dB 1w/1m]:
83.6
MOUNTING DEPTH [in, cm]:
5 1/2, 14
MOUNTING DIAMETER [in, cm]:
9 3/16, 23.3
MIN SEALED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX SEALED BOX VOL [cu. ft, L]:
3, 85
MIN VENTED BOX VOL [cu. ft, L]:
1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
Kicker CompVR Subwoofer Manual
12-Inch 400-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
This 43CVR 12" subwoofer by Kicker uses an advanced heat dispersion system with perimeter venting to allow air to circulate while the Kicker proprietary UniPlate™ system redirects even more heat away from the motor.
The chassis of this 12-Inch sub holds a pair of high-temp voice coils that move an injection molded woofer. The CompVR 12" subwoofer is available in a 2Ω or 4Ω dual voice coil design.
The 43CVR122 and 43CVR124 12-Inch subwoofers works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
400
Peak Power (watts, per ANSI/CTA-2031-A)
800
SENSITIVITY [dB 1w/1m]:
86.9
MOUNTING DEPTH [in, cm]:
6-1/4, 15.9
MOUNTING DIAMETER [in, cm]:
11, 27.8
MIN SEALED BOX VOL [cu. ft, L]:
1, 28.3
MAX SEALED BOX VOL [cu. ft, L]:
4.6, 130
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker CompVR Subwoofer Manual
15-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
This 43CVR 15" subwoofer by Kicker uses an advanced heat dispersion system with perimeter venting to allow air to circulate while the Kicker proprietary UniPlate™ system redirects even more heat away from the motor.
The chassis of this 15-Inch sub holds a pair of high-temp voice coils that move an injection molded woofer. The CompVR 15" subwoofer is available in a 2Ω or 4Ω dual voice coil design.
The Kicker 43CVR152 and 43CVR154 15" subs works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.
Specifications
SIZE [in, cm]:
15, 38
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY [dB 1w/1m]:
89.2
MOUNTING DEPTH [in, cm]:
8 3/16, 20.7
MOUNTING DIAMETER [in, cm]:
13 11/16, 34.7
MIN SEALED BOX VOL [cu. ft, L]:
1.8, 51
MAX SEALED BOX VOL [cu. ft, L]:
5.2, 147
MIN VENTED BOX VOL [cu. ft, L]:
3, 85
MAX VENTED BOX VOL [cu. ft, L]:
5, 142
Kicker CompVR Subwoofer Manual
10-Inch 350-Watt Thin Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The CompVT 10" subwoofer by Kicker is a thin slimline driver that pounds in a limited space. A special four-layer voice coil provides the ability to work with serious amounts of power without the bulk of a standard subwoofer.
The Kicker 43CVT102 and 43CVT104 subs work best with a sealed or ported enclosure and 350 watts of recommended power.
Specifications
SIZE [in, cm]:
10, 25
IMPEDANCE [Ohms]:
2 or 4 SVC
Recommended Amplifier Power (watts RMS)
350
Peak Power (watts, per ANSI/CTA-2031-A)
700
SENSITIVITY [dB 1w/1m]:
87.2
MOUNTING DEPTH [in, cm]:
4 1/4, 10.8
MOUNTING DIAMETER [in, cm]:
9 3/16, 23.3
MIN SEALED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX SEALED BOX VOL [cu. ft, L]:
3, 85
MIN VENTED BOX VOL [cu. ft, L]:
1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
Kicker CompVT Subwoofer Manual
12-Inch 400-Watt Thin Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The CompVT 12" subwoofer by Kicker is a thin slimline driver that pounds in a limited space. A special four-layer voice coil provides the ability to work with serious amounts of power without the bulk of a standard subwoofer.
The Kicker 43CVT122 and 43CVT124 subs work best with a sealed or ported enclosure and 400 watts of recommended power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
2 or 4 SVC
Recommended Amplifier Power (watts RMS)
400
Peak Power (watts, per ANSI/CTA-2031-A)
800
SENSITIVITY [dB 1w/1m]:
87.1
MOUNTING DEPTH [in, cm]:
4 3/8, 11.1
MOUNTING DIAMETER [in, cm]:
11, 28.1
MIN SEALED BOX VOL [cu. ft, L]:
1, 28.3
MAX SEALED BOX VOL [cu. ft, L]:
4.6, 130
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker CompVT Subwoofer Manual
10-Inch 400-Watt Subwoofer Driver, 4-Ohm DVC
The 43CWR10 10" subwoofer by Kicker has an advanced suspension system that includes a ribbed polypropylene surround and a large-diameter spider for linear movement, and a distortion-free sound. Bigger magnets, a thicker cone and an improved suspension system help make this 10-Inch 400W CompR sub to be a workhorse of a driver.The Kicker 43CWR104 12" sub work best with a sealed or ported enclosure and 400 watts of recommended power.
Specifications
SIZE [in, cm]:
10, 25
IMPEDANCE [Ohms]:
4 DVC
Recommended Amplifier Power (watts RMS)
400
Peak Power (watts, per ANSI/CTA-2031-A)
800
SENSITIVITY [dB 1w/1m]:
84.6
MOUNTING DEPTH [in, cm]:
5-1/4, 13.3
MOUNTING DIAMETER [in, cm]:
9-1/8, 23.1
MIN SEALED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX SEALED BOX VOL [cu. ft, L]:
1.25, 35.4
MIN VENTED BOX VOL [cu. ft, L]:
1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
Kicker CompR Subwoofer Manual
12-Inch 500-Watt Subwoofer Driver, 4-Ohm DVC
The 43CWR12 12" subwoofer by Kicker has an advanced suspension system that includes a ribbed polypropylene surround and a large-diameter spider for linear movement, and a distortion-free sound. Bigger magnets, a thicker cone and an improved suspension system help make this 12-Inch 500W CompR sub to be a workhorse of a driver.The Kicker 43CWR124 12" sub work best with a sealed or ported enclosure and 500 watts of recommended power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY [dB 1w/1m]:
86.9
MOUNTING DEPTH [in, cm]:
5 3/4, 14.6
MOUNTING DIAMETER [in, cm]:
11, 27.9
MIN SEALED BOX VOL [cu. ft, L]:
1.0, 28.3
MAX SEALED BOX VOL [cu. ft, L]:
2.0, 56.64
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker CompR Subwoofer Manual
8-Inch 300-Watt Thin Subwoofer Driver, 2-Ohm DVC
The CompRT 8" thin subwoofer by Kicker is a weather resistant thin sub with a 2Ω dual voice coil design. This thin 8 inch sub magnet structure delivers 300W RMS of power with a chassis mounting depth of just under 2 3/4". The Kicker designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to keep this 8" CompRT thin subwoofer driver nice and cool.The CompRT 8-Inch subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power.
Specifications
SIZE [in, cm]:
8, 20
IMPEDANCE [Ohms]:
2 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
SENSITIVITY [dB 1w/1m]:
81.8
MOUNTING DEPTH [in, cm]:
2 11/16, 6.7
MOUNTING DIAMETER [in, cm]:
7, 17.7
MIN SEALED BOX VOL [cu. ft, L]:
0.2, 5.66
MAX SEALED BOX VOL [cu. ft, L]:
1.0, 28.32
MIN VENTED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX VENTED BOX VOL [cu. ft, L]:
1.2, 34
Kicker CompR Subwoofer Manual
12-Inch 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompVX 12" subwoofer driver by Kicker is designed with high-temp dual voice coils that deliver up to 750W of amplified RMS power. A solid pole-piece provides more mass to disperse heat. A thick polypropylene cone complements the SoloKon™ cone reinforcement system and the oversized suspension system.
The Kicker 44CVX122 and 44CVX124 12 inch subwoofers have a UniPlate™ extended pole piece & backplate for superior heat dissipation and satin nickel spring-loaded speaker terminals.
Specifications
Size (IN.,CM)
12, 30
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
Sensitivity (dB 1w/1m)
87.1
Frequency Response (Hz)
20-500
Mounting Depth (in, cm)
6 11/16, 16.9
Mounting Cutout (in, cm)
11 1/16, 28
Min Sealed Box Vol (cu. ft, L)
1.0, 28.3
Max Sealed Box Vol (cu. ft, L)
4.6, 130
Min Vented Box Vol (cu. ft, L)
1.75, 49.6
Max Vented Box Vol (cu. ft, L)
2.25, 63.7
Kicker CompVX Subwoofer Manual
15-Inch 1000-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompVX 15" subwoofer driver by Kicker is designed with high-temp dual voice coils that deliver up to 1000W of amplified RMS power. A solid pole-piece provides more mass to disperse heat. A thick polypropylene cone complements the SoloKon™ cone reinforcement system and the oversized suspension system.
The Kicker 44CVX152 and 44CVX154 15 inch subwoofers have a UniPlate™ extended pole piece & backplate for superior heat dissipation and satin nickel spring-loaded speaker terminals.
Specifications
Size (IN.,CM)
15, 38
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
1000
Peak Power (watts, per ANSI/CTA-2031-A)
2000
Sensitivity (dB 1w/1m)
91.6
Frequency Response (Hz)
18-500
Mounting Depth (in, cm)
8 1/2, 21.5
Mounting Cutout (in, cm)
13 13/16, 35
Min Sealed Box Vol (cu. ft, L)
1.8, 51.0
Max Sealed Box Vol (cu. ft, L)
5.2, 147.0
Min Vented Box Vol (cu. ft, L)
3.0, 85.0
Max Vented Box Vol (cu. ft, L)
5.0, 142.0
Kicker CompVX Subwoofer Manual
8-Inch 200-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 8" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS84 and 44CWCD84 8-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 200W RMS of amplified power.
Specifications
Size (IN.,CM)
8, 20
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
200
Peak Power (watts, per ANSI/CTA-2031-A)
400
Sensitivity (dB 1w/1m)
85.6
Mounting Depth (in, cm)
3 7/8, 9.8
Mounting Diameter (in, cm)
7, 17.7
Min Sealed Box Vol (cu. ft, L)
0.5, 14.2
Max Sealed Box Vol (cu. ft, L)
1.2, 34
Min Vented Box Vol (cu. ft, L)
0.66, 18.7
Max Vented Box Vol (cu. ft, L)
1.2, 34
Kicker CompC Subwoofer Manual
10-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 10" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS104 and 44CWCD104 10-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power.
Specifications
Size (IN.,CM)
10, 25
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
500
Sensitivity (dB 1w/1m)
86.2
Frequency Response (Hz)
30-500
Mounting Depth (in, cm)
4 13/16, 12.2
Mounting Cutout (in, cm)
9 1/8, 23.1
Min Sealed Box Vol (cu. ft, L)
1.0, 28.3
Max Sealed Box Vol (cu. ft, L)
2.4, 68
Min Vented Box Vol (cu. ft, L)
1.25, 35.4
Max Vented Box Vol (cu. ft, L)
1.75, 49.6
Kicker CompC Subwoofer Manual
12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 12" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS124 and 44CWCD124 12-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power.
Specifications
Size (IN.,CM)
12, 30
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
Sensitivity (dB 1w/1m)
88.3
Frequency Response (Hz)
27-500
Mounting Depth (in, cm)
5-3/8, 13.6
Mounting Cutout (in, cm)
11, 27.9
Min Sealed Box Vol (cu. ft, L)
1.25, 35.4
Max Sealed Box Vol (cu. ft, L)
3.5, 99.1
Min Vented Box Vol (cu. ft, L)
1.75, 49.6
Max Vented Box Vol (cu. ft, L)
2.25, 63.7
Kicker CompC Subwoofer Manual
15-Inch 600-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 15" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS154 and 44CWCD154 15-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 600W RMS of amplified power.
Specifications
Size (IN.,CM)
15, 38
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
90.3
Frequency Response (Hz)
25-500
Mounting Depth (in, cm)
7, 17.7
Mounting Cutout (in, cm)
13 3/4, 35
Min Sealed Box Vol (cu. ft, L)
2.25, 63.7
Max Sealed Box Vol (cu. ft, L)
5.0, 141.6
Min Vented Box Vol (cu. ft, L)
3.0, 85
Max Vented Box Vol (cu. ft, L)
4.0, 113.3
Kicker CompC Subwoofer Manual
10-Inch Square 600-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The audiophile competition 10" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 10 inch 600W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 10 inch square sub nice and cool.
This 10" L7 square sub can handle up to 600W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
10, 25.4
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
86.8
Frequency Response (Hz)
24-100
Mounting Depth (IN.,CM)
6-1/4, 15.9
Mounting Cutout, Square (IN.,CM)
9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters)
1, 28.32
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)**
2.25, 63.8
Kicker Solo-Baric L7 Subwoofer Manual
12-Inch Square 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The audiophile competition 12" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 12 inch 750W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 12 inch square sub nice and cool.
This 12" L7 square sub can handle up to 750W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
12, 30.5
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
Sensitivity (dB 1w/1m)
88.6
Frequency Response (Hz)
20-100
Mounting Depth (IN.,CM)
6 11/16, 16.9
Mounting Cutout, Square (IN.,CM)
11 1/16, 28.1
Min Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Max Rec Sealed Box Volume (CU. FT., Liters)
2.0, 56.64
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
3.25, 92.1
Kicker Solo-Baric L7 Subwoofer Manual
15-Inch Square 1000-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The audiophile competition 15" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 15 inch 1000W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 15 inch square sub nice and cool.
This 15" L7 square sub can handle up to 1000W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
15, 38.1
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
1000
Peak Power (watts, per ANSI/CTA-2031-A)
2000
Sensitivity (dB 1w/1m)
89.4
Frequency Response (Hz)
18-100
Mounting Depth (IN.,CM)
8 11/16, 22.1
Mounting Cutout, Square (IN.,CM)
13 3/4, 34.9
Min Rec Sealed Box Volume (CU. FT., Liters)
2.0, 56.64
Max Rec Sealed Box Volume (CU. FT., Liters)
6.0, 169.9
Min Rec Vented Box Volume (CU. Ft., Liters)**
3.0, 85.0
Max Rec Vented Box Volume (CU. Ft., Liters)**
6.0, 169.9
Kicker Solo-Baric L7 Subwoofer Manual
