C1-Series 6.5-Inch 50-Watt Component Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650 is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spiders to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C1-650 Manual
C1-Series 6.5-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included with the C1-650x allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the speaker will fit into many "6-inch" speaker locations as well.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650x is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 24 KHz ± 3 dB
JL Audio C1-650x Manual
6-1/2-Inch Coaxial Speaker Drivers, 100-Watt RMS
The Kicker KS series six-and-a-half-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 100 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
6-1/2, 160
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-100
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
43-21k
Mounting Hole Diameter [in, mm]
4-13/16, 123
Top Mount Depth [in, mm]
1-13/16, 46
Bottom Mount Depth [in,mm]
2-3/16, 54
Tweeter Protrusion [in,mm]
5/16, 8
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual

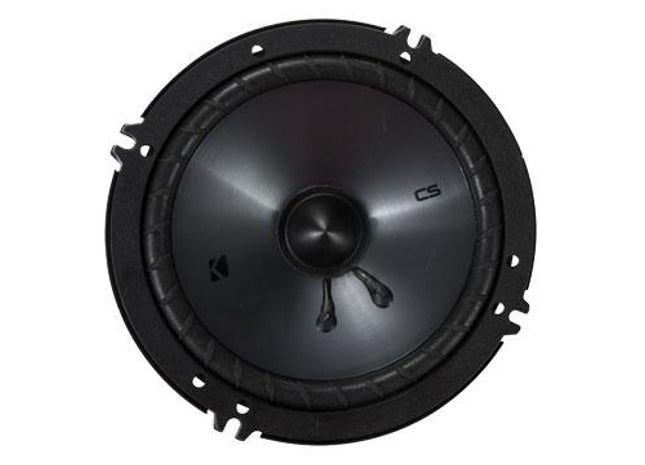

100-Watt 6.5-Inch Coaxial Speakers, 4-Ohm
These CS series 6.5" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 and a 1/2" speakers work best with 100 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 1/2 [160]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
4 13/16 [123]
Top Mount Depth | in [mm]
3/8 [9]
Bottom Mount Depth | in [mm]
1 11/16 [43]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
Alpine 6-1/2-Inch Coaxial 2-Way Speakers, 80-Watt RMS
Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S65 6.5” Coaxial Speakers offer a new standard in entry-level sound performance.
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S65 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi- Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
The S-Series S2-S65 is compatible with the KTE-S65G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
Specifications
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 1” Tweeters (Coaxial)
Compatible with KTE-S65G Speaker Grille (sold separately)
Woofer Size: 6.5”
Tweeter Size: 1” (Coaxial)
Power Handling: 80W RMS / 240W Peak
Frequency Response: 70Hz - 40kHz (Hi-Res)
Sensitivity: 88dB
C3-Series 6.5-Inch 75-Watt Convertible Component Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
75 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 25 KHz ± 3 dB
JL Audio C3-650 Manual
Alpine 6-1/2-Inch Coaxial 2-Way Speakers, 80-Watt RMS
The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models have a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor. The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance. The ability to manipulate the CFRP material during the molding process is currently exclusive to Alpine and the S-Series speakers. Alpine has three patent-pending procedures in support of this innovative manufacturing process.
Alpine’s patented H.A.M.R. (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows for an even unfolding of the surround which creates incredible linearity and colorization rejection.
Specifications
80W RMS/240W Peak
Nominal Impedance 4Ω
Frequency Response: 70-22kHz
1” Silk Dome Tweeter CFRP (Carbon Fiber Reinforced Plastic) Cone
H.A.M.R. Surround
CustomStamped Steel Frame
35mm voice coil
Optional grille sold separately (KTE-S65G)

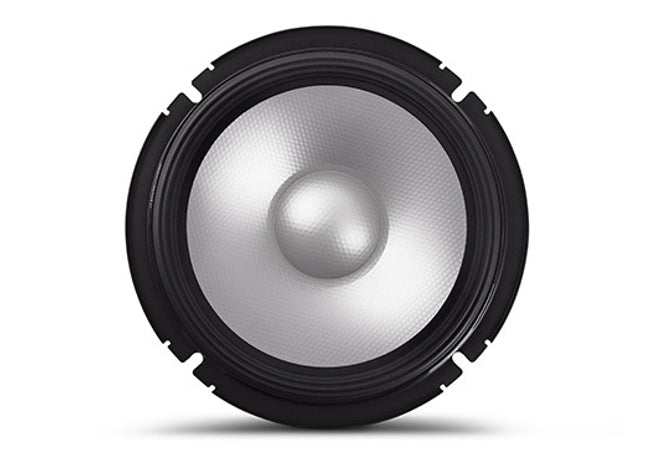

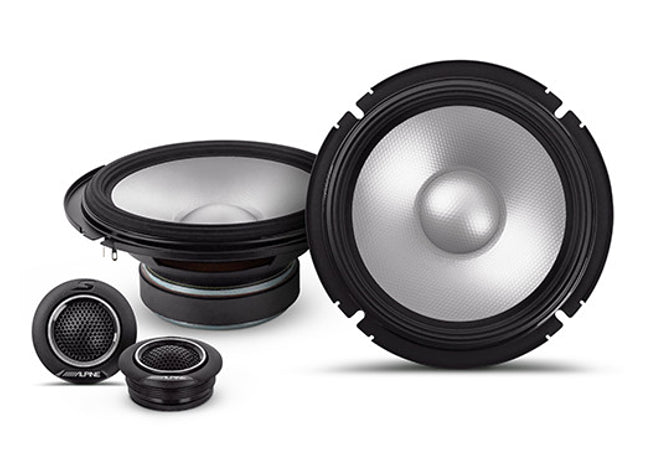

Alpine 6-1/2-Inch Component 2-Way Speakers, 80-Watt RMS
Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S65C 6.5” Component Speakers offer a new standard in entry-level sound performance.
Using “trickle-down” technology, inspired design, and performance cues from the Ultra- High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry- level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S65 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi- Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
Engineered for versatility, these speakers offer seamless OEM fitment and simplified installation. With in-line crossovers, you can achieve optimal sound separation and precise tuning. The adjustable tweeters feature a flush mount housing that is removable allowing for installations in small OEM tweeter locations.
The S-Series S2-S65 is compatible with the KTE-S65G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
Specifications
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Included 1” Adjustable Tweeters with Threaded Removable Housing (Component)
OEM Fitment with In-Line Crossovers
Compatible with KTE-S65G Speaker Grille (sold separately)
Woofer Size: 6.5”
Tweeter Size: 1” (Component)
Power Handling: 80W RMS / 240W Peak
Frequency Response: 70Hz - 40kHz (Hi-Res)
Sensitivity: 88dB

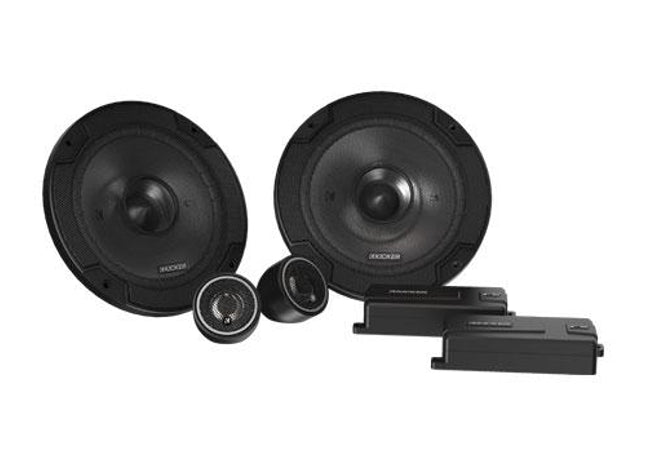

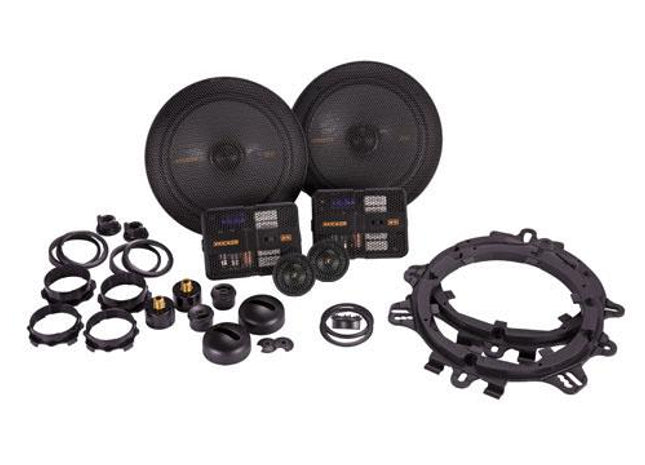

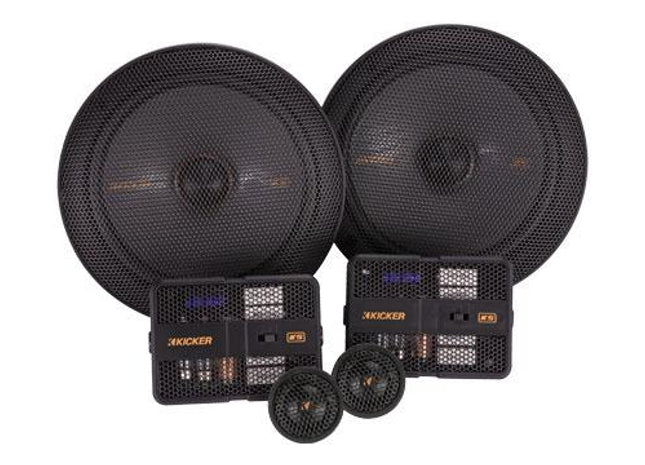

6.5-Inch 125-Watt Component or Coaxial Mountable Speaker System
Kicker KS-Series door-speakers let you play at concert-like volume while pleasing even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs.
These 6.5" Kicker speakers component system with separate tweeters, or convert them to a coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 125 watts of recommended power. See below for more details.
High power handling
Silk-dome tweeters for a smooth sound
Polypropylene woofer and tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Four tweeter mounting options
Articulating tweeter pod included
Smaller crossover makes mounting even easier
Grilles included
Specifications
Woofer [in, mm]
6-½, 160
Tweeter [in,mm]
1, 25
Dome Material
Silk
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-125
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
35-21k
Woofer Mounting Hole Diameter [in, mm]
4-13⁄16 , 123
Woofer Bottom Mount Depth [in, mm]
1-13⁄16 , 46
Flush Mount Tweeter Hole Diameter [in,mm]
1-¾, 45
Flush Mount Tweeter Depth [in,mm]
11⁄16 , 17
High Pass [dB], at Frequency [Hz]
12, 4,000
Low Pass [dB], at Frequency [Hz]
none
High Frequency Output Attenuation [dB]
0, 4.5, 9
Kicker KS Series Component Speaker Manual
Replacement Six-Inch to 6-3/4-Inch Door Speaker Trim Ring Adapter for Select 2001-2007 Toyota Vehicles
Mounting adapter
For 6-6.75 inch speakers
Front door location
Sold as a pair
Applications
TOYOTA
Sequoia
2003-2007
Sequoia
2001-2002
Tundra
w/o JBL
crew cab
2004-2006

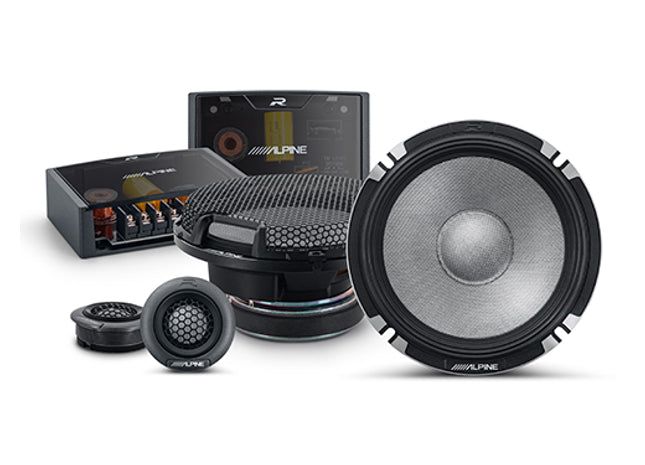

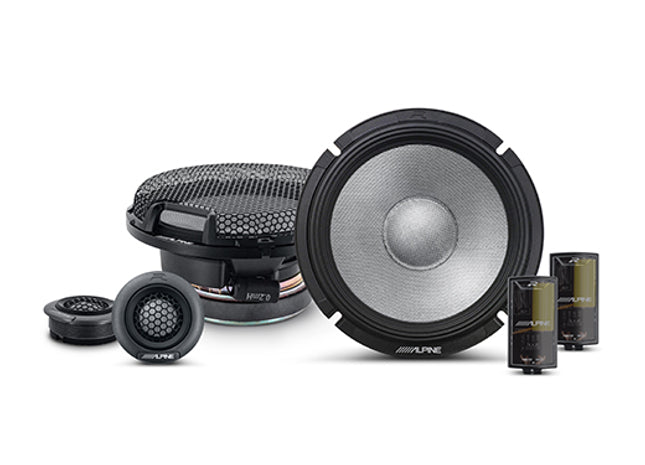

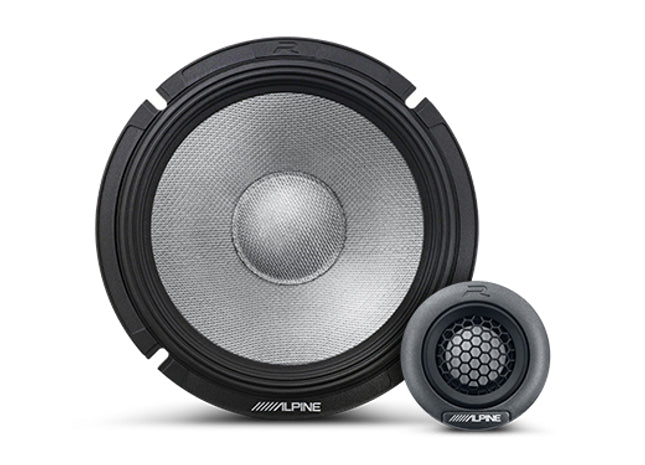

Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The Next-Generation R-Series speakers now come in upgraded 'Pro' models in addition to the standard model lineup. The pro models utilize a highly rigid, die-cast aluminum basket that eliminates flexing and resonance during playback to ensure the highest quality sound performance.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65C is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Die-Cast Aluminum Basket
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Full Passive Performance Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65C is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade In-Line Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
6.5" Replacement Speaker Adapter Plate for 2015-UP Ford F-Series Vehicles
Accommodates 6 to 6.75 inch speaker
Will work front door speaker locations
Packaged as a pair
Front Speaker Applications
FORD
Expedition
2018-2024
Expedition Max
2018-2024
Explorer
Bang Olufsen
2020-2024
Explorer
2020-2024
F-150
Bang Olufsen
2021-2024
F-150
2015-2024
F-250 / F-350 / F-450 / F-550
Bang Olufsen
2023-2024
F-250 / F-350 / F-450 / F-550
2017-2024
LINCOLN
Continental
2017-2020
Navigator
2018-2023
Navigator L
2018-2023
C2-Series 6.5-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-650x system features 6.5-inch (165 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-650x Manual

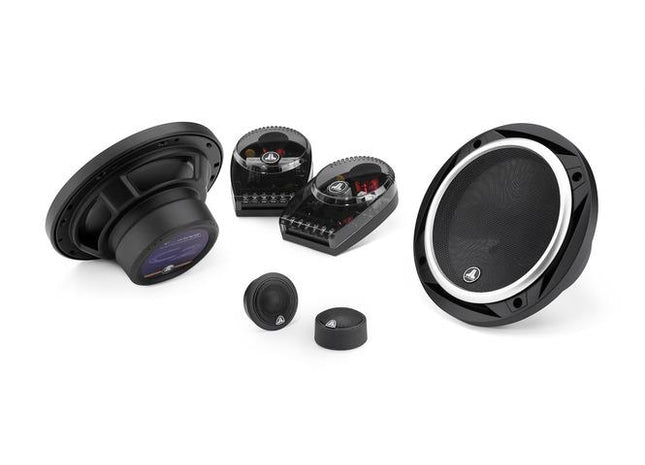

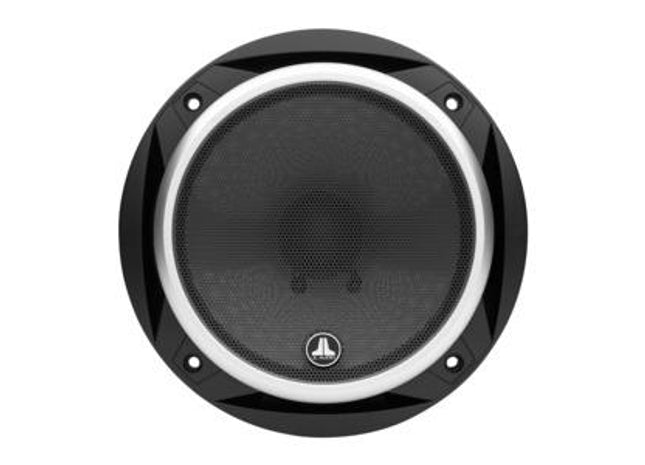

C2-Series 6.5-Inch Component Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.
The C2-650 system features 6.5-inch (165 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-650 Manual
Aftermarket Sound-Bar-Speaker Replacement Adapter-Plates for Select 2018-Up Jeep Wrangler and 2020-Up Gladiator JL & JT Vehicles
Don't limit your speaker upgrade to the size of the 4" factory speakers. Go bigger with the JP-1015, designed to fit a larger 6.5" aftermarket speaker and optional tweeter into the factory soundbar location.
Designed to adapt the factory 4” to 6.5” with a tweeter option
Speaker depth 3 5/8"
Mounting plate/cutting template included
Hardware included
Harness included
The sound bar must be removed for installation - add 1hr to install time. Dome light clips are stronger than the plastic they are attached to. Dome light clip mounts may break off during removal, JTAS does not carry liability associated with the dome light and customer accepts liability for dome light replacement should breakage occur.
Kit Includes:
(2) grille replacements
(2) cutting template/grille support
(8) speaker mounting screws
(12) grille replacement screws
(2) cutting template/grille support screws
(2) 7” speaker harnesses
(2) sound deadening padding
Metra JP-1015 Installation Manual
Aftermarket Dash-Speaker Replacement Enclosure Pods for Select 2018-Up Jeep Wrangler and 2020-Up Gladiator JL & JT Vehicles
Each pair of pods has an ABS housing that utilizes the factory mounting locations for a secure fit that will heighten the listening experience. The pods use the factory grommet and wiring and a Metra speaker adapter harness is included.
Driver and passenger specific dash replacement sealed speaker pods to install 6in to 6.75in speaker
Mounting positions for Chrysler three hole mount used by specific speaker manufacturers such as Alpine
Sealed enclosure (1) with a hole for the factory wiring grommet
4-inch speaker depth
Includes 12" speaker harness
Significant disassembly of the Dash is required to access these speaker pod locations. Add 2-hours to installation time.
Applications
JEEP
Gladiator
2020-2023
Wrangler
AKA "JL" for 2018
2018-2023
Metra JP-1014 Installation Manual
300-Watt Door-Speaker and Add-On Subwoofer Kit for Select 2018-2023 Jeep Wrangler, Gladiator Vehicles
Complete Sound System Upgrade Package for the four-door, non-amplified 2018-23 Jeep® Wrangler and non-amplified 2020-23 Jeep® Gladiator. Also compatible with two-door, non-scissor front seats in 2019-23 Jeep® Wrangler
Go beyond your wildest expectations for sound with this complete sound upgrade package. The PSS-24WRA has 5-channels of powered sound that replaces your factory system. The package includes two sets of 6.5” weather-resistant mid-bas drivers and 1” weather-resist tweeters that replace the front and rear soundbar factory speakers, an 8” powered, compact subwoofer and a 4-channel power pack amplifier.
Specifications
Complete, five-channel powered sound system upgrade package
Compatible with four-door, non-amplified 2018-23 Jeep® Wrangler and non-amplified 2020-23 Jeep® Gladiator (not compatible with OEM Alpine amplified system)
Compatible with two-door, non-scissor front seats in 2019-23 Jeep® Wrangler
Includes Alpine’s SPV-65X-WRA, SPV-65-JLT, PWE-S8, and KTP-445U
180W, 4-channel Power Pack amplifier
120W, 8” powered subwoofer
(2x) 6.5” weather-resistant mid-bass drivers
(2x) 1” weather-resistant teteron dome tweeters with vehicle-specific connectors and crossovers
Vehicle-specific front speaker pods with vehicle-specific connectors
Tweeter adapter plates allow for the use of the original factory tweeter locations
SPV-65-JLT weather-resistant rear soundbar speaker system
Rugged, premium grills designed to emulate the factory look and appeal
Vehicle-specific connectors for plug-and-play speaker installation
Utilizes factory bolt locations
Durable stamped, steel frame speaker basket design
Includes template for mounting
Vehicle-specific T-harness for installation with OEM radio into compatible 2018-23 Jeep® Wrangler and 2020-23 Jeep® Gladiator vehicles
Vehicle-specific mounting brackets allow for the powered sub and amp to be secured under the passenger seat without drilling
What's in the Box:
KTP-445U Universal 4-Channel Power Amplifier
PWE-S8 8" Compact Powered Subwoofer
SPV-65X-WRA Front Component Speakers
SPV-65-JLT Rear Sound Bar Speakers
ALP-POD-JLT Front Speaker Pod
PSU-BKT-JL-R PWE Right Bracket JL
PSU-BKT-JL-L PWE Left Bracket JL
ALP-HRN-PSU300 PSU Power Harness
ALP-THRN-CH2 Chrysler T-Harness
CT6 6" Cable Ties
PHPSM412 Pan Head Phillips Screw M4x12
SLWM4 M4 Split Lock Washers
PHSCR832 8-32 Pan Head Phillips screws
PSS-WRA-IM Installation Manual
Specifications
Front (SPV-65X-WRA)
Power handling: 75 watts RMS (225 watts peak)
Frequency response: 65kHz – 22kHz
Nominal impedance: 4 ohms
Weather-resistant: IP55
Rear (SPV-65-JLT)
Power handling: 90 watts RMS (270 watts peak)
Frequency response: 50kHz – 22kHz
Nominal impedance: 4 ohms
Weather-resistant: IP55
Powered Subwoofer (PWE-S8)
120 watts RMS (240 watts peak)
Frequency response: 32 - 150Hz
Variable low-pass crossover (80-200 Hz)
Variable phase control (0-180 degrees)
preamp- and speaker-level inputs
Four Channel Power Pack Amplifier (KTP-445U)
45 watts RMS x 4 at 4 or 2 ohms
90 watts RMS x 2 bridged at 4 ohms
Selectable high-pass filters (60, 80, or 120 Hz at 12 dB/octave)
Switchable RCA or speaker-level inputs|
Dimensions:
27” L x 18.5” W x 19.5” H
40lbs
Direct fit for non-amplified 2018–Up 4-door Jeep Wrangler JL Unlimited
Direct fit for non-amplified 2019–Up 2-door Jeep Wrangler
Direct fit for non-amplified 2020–Up Jeep Gladiator JT
Alpine PSS-24WRA Installation Manual
Six-Inch to 6-3/4-Inch Door Speaker Trim Ring Adapter for Select 2002-UP Lexus, Subaru and Toyota Vehicles
Accommodates 6 to 6.75 inch speaker – pair
Front Speaker Applications
LEXUS
CT 200h
2011-2013
GX Series
2010-2014
GX Series
2003-2009
LS 460
2010-2012
LS 460
2007-2009
LS 600h L
2013-2014
LS 600h L
2010-2012
LS 600h L
2008-2009
LS Series
2013-2014
SUBARU
Crosstrek
2018-2020
Impreza
2017-2020
Legacy
2015-2020
Outback
2018-2018
TOYOTA
(Camry) Solara
2004-2008
4Runner
2015-2020
4Runner
2010-2014
4Runner
2003-2009
Avalon
2013-2014
Avalon
2011-2012
Avalon
2005-2010
Camry
w/o JBL
2002-2011
FJ Cruiser
2007-2014
Highlander
2008-2012
Land Cruiser
2008-2014
Prius
2012-2015
Prius
2010-2011
Sequoia
2008-2014
Tacoma
2005-2015
Tundra
2014-2018
Tundra
crew cab
2007-2013
Venza
2009-2015
Universal 1/2-Inch Thick Replacement Speaker Trim Ring for 6-inch to 6.75-Inch Drivers
1/2 inch spacer designed for installation of 6 to 6-3/4 inch aftermarket speakers & works with all varieties of speakers including component drivers
One pair of adapters included in each package
Six-Inch to Six-3/4" Door-Speaker Replacement Adapter-Plates for Select 2015-UP Chevy and GMC Vehicles
Vehicle specific spacer designed for installation of 6 to 6.75 inch aftermarket speakers
Will work: front door speaker locations (Sierra/Silverado) rear deck (Malibu)
One pair of adapters included in each package
Front Speaker Applications
BUICK
Enclave
Bose
2018-2023
Enclave
2018-2023
Envision
2016-2020
CADILLAC
Escalade
Incl. ESV
2015-2020
XT5 Crossover
9 Speakers
2017-2024
XT5 Crossover
7 Speakers
2017-2024
XTS
9 Speakers
2013-2019
XTS
7 Speakers
2013-2019
CHEVROLET
Blazer
2019-2020
Silverado 1500
Crew Cab
2019-2024
Silverado 2500 HD, 3500 HD
Crew Cab
2020-2024
GMC
Acadia
2017-2023
Canyon
Extended Cab
2015-2024
Canyon
4 door
2015-2024
Sierra / Sierra Denali 1500
Crew/Extended Cab
2019-2024
Sierra / Sierra Denali 1500
Standard Cab
2019-2024
Sierra / Sierra Denali 2500 HD, 3500 HD, Chassis Cab
Crew Cab
2015-2024
Sierra / Sierra Denali 2500 HD, 3500 HD, Chassis Cab
Standard Cab
2015-2024
Sierra / Sierra Denali 2500 HD, 3500 HD, Chassis Cab
Extended Cab
2015-2024
Sierra / Sierra Denali 1500 Limited
Crew Cab
2019-2019
Sierra / Sierra Denali 1500 Limited
Extended Cab
2019-2019
Sierra / Sierra Denali 1500 Limited
Standard Cab
2019-2019
Sierra / Sierra Denali 1500
Crew Cab
2014-2018
Sierra / Sierra Denali 1500
Standard Cab
2014-2018
Sierra / Sierra Denali 1500
Extended Cab
2014-2018
Terrain
2018-2024
Yukon/Yukon XL/Yukon Denali
2021-2024
Yukon/Yukon XL/Yukon Denali
2015-2020
Rear Speaker Applications
CHEVEROLET
Malibu
2016-2020
C6-Series 6.5-Inch 75-Watt Component Audiophile Speaker System
Born from shared technologies used in JL's flagship C7 speakers, the C6-650 component system combines the smoothness and transparency of a premium silk dome tweeter with a top-flight component woofer to create a loudspeaker system with exceptional refinement and dynamic capability.
Benefiting from vast woofer design experience and advanced modeling systems of JL Audio, the 6.5" (165 mm) C6 component woofers feature purpose-engineered, cast alloy frames outfitted with our Elevated Frame Cooling technology. A DMA-optimized, forged and machined motor system generates outstanding midbass impact with ultra-low distortion.
The 1" (25 mm) C6 component tweeters feature edge-driven pure silk dome diaphragms for smooth high-frequency performance with remarkable off-axis response and damping. Neodymium motors and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.
Premium passive crossover networks are included with each C6-650 component system. Featuring four levels of tweeter adjustment, these outboard filter networks are equipped with premium polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective, polycarbonate cover. Each C6 passive crossover also includes an advanced electronic tweeter protection circuit designed to minimize the possibility of tweeter failure.
C6 Woofer Features:
Forged and machined motor plates with DMA-optimized geometries to create linear motor force under power, leading to outstanding mid-bass impact, linearity and low distortion
Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability
Center cap designed to optimize the high-frequency response of the woofer for seamless transition to a tweeter’s response
Oversized voice coil for extended power handling capability, minimizing thermal compression and distortion at higher listening levels
Cast alloy frame with JL's Elevated Frame Cooling feature
Includes fine mesh grilles
C6 Tweeter Features:
Edge-driven pure silk dome design delivers smooth high-frequency performance, with excellent off-axis response and damping
Neodymium motor delivers high magnetic flux from a compact motor design
Ferrofluid cooling and damping improves reliability and response smoothness
Includes surface- and flush-mount fixtures
Woofer grilles are included, each consisting of a black grille tray and a fine steel mesh grille with an electroformed JL Audio badge logo.
Speakers are sold as a pair.
General Specifications
Continuous Power Handling (RMS)
100 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
87.37 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
53 Hz – 21 KHz ± 3 dB
JL Audio C6-650 Manual
Hybrid Integra Series 6-1/2" 100-Watt RMS 2-Way Coaxial Door Speakers
Embracing Morel’s legendary craftsmanship, engineering, and innovation, the latest Hybrid systems define an ever-evolving concept of high-fidelity speaker design. Now in their fifth generation, the new Hybrid and Hybrid Integra systems give a further refined listening experience, captivating you with the raw emotions of listening to live music. Their subtle balance of resolution, power, and efficiency has been further optimized to exceed expectations regardless of what genre of music you enjoy.
The Integra, Morel’s point source system, is an innovative landmark in speaker design. It utilizes point-source topology to eliminate acoustic problems inherent in conventional coaxial systems. By creating a single sound source on the same axis, the tweeter and woofer seamlessly integrate, generating Omni-directional time alignment, heightened imaging, and sound dispersion.
Now the Hybrid is available in 2-way and Integra point source (coaxial) solutions, as well as a new 3-way system to fit nearly any system requirement.
CONTROLLED ACOUSTIC RESISTANCEThe C.A.R. Filter™ improves the acoustic loading by controlling airflow within the driver, mimicking the effects of a cabinet while improving power handling by 30%. This provides greater control over the cone movement for improved bass dynamics.
EVC MOTORMorel speakers with EVC™ technology utilize voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil. The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.
HEXATECH™ ALUMINIUM VOICE COILMade from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary fast transient response Morel drive units are known for.
HYBRID MAGNET MOTORThe Hybrid motor drive system uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size. With Hybrid, more amplified power is converted into sonic energy for flawless performance, even in a small driver.
INTEGRADerived from the word “integrate”, Integra is a speaker consisting of both a woofer and tweeter that share a common chassis. Unlike a coaxial, its recessed tweeter is concentrically aligned with the woofer cone. This minimizes phase error and allows the sound field to be constant in all directions, creating a near-perfect time alignment.
PAPER CONEIn use since the first loudspeakers, the paper continues to be an exceptional material of choice. Morel’s latest paper composite cones are ultra-lightweight, making them an exceptional pairing for drivers using smaller motors and voice coils.
Sold by the Pair
Specifications
MODEL
SIZE & CONFIGURATION
POWER HANDLING (WRMS) / PEAK POWER (W)
SENSITIITY (2.83V/1M)(DB)
FREQUENCY RESPONSE (HZ)
CROSSOVER
HYBRID INTEGRA 42
4" 2-way
80 /250
92
80-25000
MXR250.4i
HYBRID INTEGRA 52
5¼" 2-way
120 / 500
90
45-25000
MXR250.4i
HYBRID INTEGRA 62
6½" 2-way
140 / 600
91
35-25000
MXR250.4i
Morel Hybrid Integra Series Door Speaker Manual
Hybrid Series 6-1/2" 140-Watt RMS 2-Way Component Door Speakers
Embracing Morel’s legendary craftsmanship, engineering, and innovation, the latest Hybrid systems define an ever-evolving concept of high-fidelity speaker design. Now in their fifth generation, the new Hybrid and Hybrid Integra systems give a further refined listening experience, captivating you with the raw emotions of listening to live music. Their subtle balance of resolution, power, and efficiency has been further optimized to exceed expectations regardless of what genre of music you enjoy. Now the Hybrid is available in 2-way and Integra point source (coaxial) solutions, as well as a new 3-way system to fit nearly any system requirement.
CONTROLLED ACOUSTIC RESISTANCEThe C.A.R. Filter™ improves the acoustic loading by controlling airflow within the driver, mimicking the effects of a cabinet while improving power handling by 30%. This provides greater control over the cone movement for improved bass dynamics.
EVC MOTORMorel speakers with EVC™ technology utilize voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil. The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.
HANDCRAFTED ACUFLEX SOFT DOMEA specially engineered damping compound hand-applied to the soft domes, adding rigidity and damping, which greatly improves the clarity and bandwidth of the tweeter/mid-range. The Acuflex™ diaphragm exhibits controlled cancelling break up (accurate–flexing), meaning each break-up mode is counteracted by another in the opposite direction, enabling smooth frequency response.
HEXATECH™ ALUMINIUM VOICE COILMade from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary fast transient response Morel drive units are known for.
HYBRID MAGNET MOTORThe Hybrid motor drive system uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size. With Hybrid, more amplified power is converted into sonic energy for flawless performance, even in a small driver.
PAPER CONEIn use since the first loudspeakers, the paper continues to be an exceptional material of choice. Morel’s latest paper composite cones are ultra-lightweight, making them an exceptional pairing for drivers using smaller motors and voice coils.
Sold by the Pair
Specifications
MODEL
SIZE & CONFIGURATION
POWER HANDLING (WRMS) / PEAK POWER (W)
SENSITIITY (2.83V/1M)(DB)
FREQUENCY RESPONSE (HZ)
CROSSOVER
HYBRID 42
4" 2-way
100 / 300
89
50-25000
MXR240.4
HYBIRD 52
5¼" 2-way
120 / 500
90
45-25000
MXR240.4
HYBRID 62
6½" 2-way
140 / 600
91
35-25000
MXR240.4
Morel Hybrid Series Door Speaker Manual
EVL Series 6-1/2-Inch 200-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Dual Voice Coil
The Skar Audio EVL-65 D2 subwoofer was designed to be the most responsive, powerful, and efficient 6.5 inch subwoofer on the market. Don't be fooled by the size, the EVL-65 is one monster of a subwoofer, featuring a 4-layer 2" pure copper voice coil, and a powerful 39 Oz single slug ferrite motor. The small size of this driver allows it to be very versatile, as it can be used in a variety of applications where adding a woofer might not otherwise be possible.
Conservatively rated at 200 watts RMS Power, and 400 watts max power, the EVL-65 features an aluminum diecast chassis which utilizes an advanced air flow cooling system to help dissipate heat. The suspension design of this subwoofer is highlighted by its unique yellow spider - which connects to the coil former with premium stitched lead wires. All of these incredible features make the EVL-65 the obvious choice when looking for a versatile 6.5-inch car subwoofer.
Specifications
Size
6.5"
Type
Car Subwoofer
Cone Type
Competition Grade Pressed Paper Cone
RMS Power
200 Watts
Peak Power
400 Watts
Surround Type
High Roll Rubber Surround
Voice Coil Size
2.00"
Magnet Slug Count
Single
Voice Coil Layers
4
Voice Coil Material
Black Coated Copper (Pure Copper)
Voice Coil Impedance
Dual 2 Ω
T/S Parameters
Bl
13.0 n/a
Fs
61.0 Hz
Re
Dual 2 Ω
Sd
113.0 cm2
Cms
0.126 mm/N
Mms
52.8 gr
Qes
0.43
Qms
4.48
Qts
0.39
Vas
2.3 L
Nref
0.12%
Xmax
6.25 mm (one-way)
Sensitvity
83.1 dB
C3-Series 6.5-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-650cw is a 6.5-inch (165 mm) component woofer with an oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 6 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter (A)
6.50 in / 165 mm
Grille Tray Outer Diameter (B)
6.74 in / 171 mm
Motor Outer Diameter (C)
4.08 in / 104 mm
Frontal Coaxial Tweeter Protrusion* (D)
0.75 in / 19 mm
Frontal Grille Protrusion** (E)
1.03 in / 26 mm
Mounting Hole Diameter (F)
5.56 in / 141 mm
Mounting Depth (G)
2.55 in / 65 mm
JL Audio C3-650cw Manual
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The Next-Generation R-Series speakers now come in upgraded 'Pro' models in addition to the standard model lineup. The pro models utilize a highly rigid, die-cast aluminum basket that eliminates flexing and resonance during playback to ensure the highest quality sound performance.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S652 is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with an outboard crossover network the professional installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Die-Cast Aluminum Basket
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Full Passive Performance Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65 is a standard coaxial speaker set that includes a 6.5” Mid-Range and 1” Coaxial Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-653S features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-653S has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653S is a custom-fit model that includes a 6.5- inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
3.5" Midrange Driver (8.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-653S Manual
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-653 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-653 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653 is a custom-fit model that includes a 6.5- inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
3.5" Midrange Driver (8.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-653 Manual
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-65CS features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-65CS has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65CS is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-65CS Manual
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-65C features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-65C has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65C is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.
The Alpine Status System is soldseparately and can be used to build acustom sound system. Three sets of true4V preamp outputs are included to add needed. For best results, install the additional amplifiers if more power iscomplete Alpine Status system togetheras a full system to achieve the highestin-class audio performance only second to the Ultra Hi-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-65C Manual
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest- quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-65 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-65 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65 is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
1” Coaxial Tweeter (2.5cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-65 Manual
6.5-Inch 90-Watt RMS Convertible Component Automotive Door Speakers
The 6.5" QS series audiophile component door speakers by Kicker offer stunning midrange drivers, audiophile precise tweeters and a superior crossover network. The QS 6-1/2 Inch convertible speakers are a matched component system, built for pure sonic reproduction.
The Kicker 41QSS654 crossovers allow you to use a single amplifier channel, or use bi-amplification for even more flexibility and control. These 6.5" QS series convertible speakers can be installed as a pair of components or a coaxial configuration. These Kicker speakers work best with 90 watts of recommended power. See below for more details.
Specifications
Woofer (in., mm)
6 1/2, 160
Tweeter (in., mm)
1 3/16, 30
Tweeter dome material
Tetoron®
Rated Impedance [Ω]
4
Recommended Amplifier Power (watts RMS)
90
Peak Power (watts, per ANSI/CTA-2031-A)
180
Sensitivity [1W, 1m]
86dB
Frequency Response [Hz]
50 - 22k
Woofer Mounting Hole Diameter [in, mm]
5 1/16, 129
Woofer Bottom Mount Depth [in, mm]
2 1/2, 63.5
Flush Mount Tweeter Hole Diameter [in,mm]
1 13/16, 46
Flush Mount Tweeter Depth [in,mm]
1 1/8, 29
High Pass [dB], at Frequency [Hz]
24, 2800
Low Pass [dB], at Frequency [Hz]
12, 2800
High Frequency Output Attenuation [dB]
0, +3, +6
Kicker QSS Series Manual
100-Watt Component Speakers Six-1/2" Drivers
The CS Series 6-1/2-inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality.
The Kicker CS Series 6-1/2" speakers work best with up to 100-watts of recommended power.
Specifications
Woofer Size | in [mm]
6 1/2 [160]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power | [watts]
300
Continuous Power | [watts RMS]
100
Effective Frequency Range | Hz
35-21k
Woofer Mounting Hole Diameter | in [mm]
4 13/16 [123]
Woofer Bottom Mount Depth | in [mm]
1 11/16 [43]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
Yes
Kicker CS Component Speaker Manual
C7-Series 6.5-Inch 125-Watt Component Woofer with Grille
C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from their most advanced development tools and a complete commitment to precision manufacturing.
The C7-650cw component woofer is capable of operating in a 3-way system, with a midrange and tweeter, or with only a tweeter in a 2-way configuration. Engineered from the ground up, it has exceptional linear excursion capability and outstanding linearity, resulting in solid mid-bass and pure, precise, mid-range performance. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors.
Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, and a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.
C7-650cw Design Notes:Cone and Dust Cap: Vacuum-formed, mineral-filled polypropylene material offers excellent damping and low mass. The cone body features a gentle curvilinear profile to optimize response. A specially shaped dust cap attaches to the cone body and the voice coil former to improve high frequency behavior.
Suspension design: The moving assembly is suspended and damped via a large-diameter, linear profile spider formed from a Nomex®/polycotton blend, and a positive-roll, rubber surround. The two combine to provide optimum damping without prematurely restricting the C7-650cw's outstanding excursion capability.
Motor Design: The C7-650cw employs a high-density magnetic circuit with a high-grade Y35 Strontium-ferrite magnet, and a specially machined, T-Yoke motor topology. Motor magnetics have been precisely optimized utilizing advanced FEA tools to reduce distortion and provide linear motor force throughout the driver's performance range.
A 32 mm (1.27 inch) diameter, overhung voice coil is employed, wound with copper wire onto a fiberglass voice coil former. The oversized voice coil offers extended power handling capability, minimizing thermal compression and distortion at higher listening levels. Chassis Design: A purpose-engineered cast alloy basket is employed, featuring thin spokes to maximize rear open area, and our Patented Elevated Frame Cooling technology.
Design Bandwidth: With 48 dB/octave filters: 50 Hz - 5 kHz With 24 dB/octave filters: 60 Hz - 5 kHz With 12 dB/octave filters: 70 Hz - 5 kHz
Built in USA with Global Components Sold individually, with a cast-alloy grille tray, one fine mesh steel grille insert and one spiral steel grille insert.
The performance of every C7 driver is tested and verified, then assigned a unique serial number. Register your C7 loudspeaker online to receive a copy of its specific Acoustical Test Report.
General Specifications
Continuous Power Handling (RMS)
125 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
50 - 175 W / Ch.
Nominal Impedance
4 Ω
Frequency Response
50 Hz - 5 KHz ± 3 dB
JL Audio C7-650cw Manual
C2-Series 6.5-Inch 60-Watt Component Woofer with Grille
The C2-650cw is a 6.5-inch (165 mm) component woofer capable of accurate reproduction between 59 Hz and 6 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A grille is included, consisting of a black grille tray and a black steel mesh grille.
Sonic character: Clean and Powerful
Sold individually.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 6 KHz ± 3 dB
JL Audio C2-650 Manual
W6-Series 6.5-Inch 150-Watt Subwoofer Driver, 4-Ohm
If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.
The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
General Specifications
Continuous Power Handling (RMS)
150 W
Recommended Amplifier Power (RMS)
50 - 150 W
Nominal Impedance (Znom)
4 Ω
JL Audio 6W3v3 Manual
Alpine 75-Watt 2-Way Component Speaker-System for 2007-2018 Jeep Wrangler-JK
These 6.5-inch speakers in the SPV-65X-WRA are tuned specifically for the JK’s in-cabin environment and fit into the factory speaker locations for an easy update that will impress your ears.
The SPV-65X-WRA comes with adapters that allow the speakers to be installed as a component set by mounting the tweeters into the tombstones of older JKs or onto the dash for newer JKs. For older JKs that have a sound bar, the adapters convert the speakers into a coaxial design so they can be installed into the sound bar.
Driving with the top off is part of the fun of owning a Wrangler, but sometimes you get caught off-guard with the top down and inclement weather. The SPV-65X-WRA is weather resistant and rated IP55, so it’s protected from limited dust ingress and low-pressure water spray from any direction.
Specifications
6.5” Component or Coaxial 2-Way Speaker System w/ Convertible Design
Weather Resistant (IP55 rating)
Power Handling: 75W RMS/225W Peak
Nominal Impedance 4Ω
Frequency Response: 65-22kHz
1” Teteron Dome Tweeter
CustomSteel Frame w/ factory speaker mounting tabs
OEM speaker connectors
A premium sound system for your Jeep Wrangler JK Unlimited is. The PSS-22WRA is a 1200-watt, 9-speaker sound system for 2011-2018 Jeep Wrangler JK Unlimited, providing excellent sound performance with the top on or off.
Caught with the top off in inclement weather? Not to worry. The PSS-22WRA is IP55 rated, so it can withstand rain and dust. The subwoofer uses rust resistant hardware and can handle water from off-roading adventures or a quick rinse down.
The PSS-22WRA’s subwoofer and amplifier don’t take up any usable space since they mount under the passenger’s seat for an easy bolt-in installation with simple wire routing. All necessary installation accessories are included.
The included T-harness gets the necessary audio signal connections from behind the Wrangler’s radio, making installation a breeze. The PSS-22WRA is compatible with any Alpine Restyle Jeep Wrangler dash system, the Jeep factory base radio, or other aftermarket radio.
Specifications
Direct fit weather resistant (IP55) speaker package for non-amplified 2011– 2018 4-door Jeep® Wrangler JK Unlimited
600W RMS System
SPV-65X-WRA 6.5-inch Convertible Component/Coax water resistant speaker kit
SBV-10-WRA 10-inch under passenger seat water resistant enclosed subwoofer
KTA-30FW – 75W X 4ch Water Resistant Amplifier
KTA-30MW – 300W Water Resistant Mono Amplifier
Plug & play sound system
Compatible with an Alpine Restyle In-Dash system, aftermarket head unit, or with the factory Jeep radio
Includes remote bass knob, vehicle specific harnesses and mounting brackets
Alpine PSS-22WRA Manual
