High Output Series 12-Inch 500-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates on one side of the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W3v3 driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 12W3v3, and has been fine-tuned through extensive real-world listening. This efficient system will produce superb output with as little as 150W of amplifier power, but performs best with 300 - 500W of power.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Three solid aluminum bars provide stylish and rugged woofer protection.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 150 - 500WNominal Impedance: 2Ω
General Specifications
Continuous Power Handling (RMS)
500 W
System Nominal Impedance
2 Ω
Enclosure Type
Chamber-coupled, slot-ported, rear-firing design
Finish
Dark gray carpet with black insert
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
32.25 in / 819 mm
External Height (H)
15.25 in / 387 mm
External Depth (D1)
13.5 in / 343 mm
External Top Surface Depth (D2)
7.5 in / 190.5 mm
Net Weight
46.9 lb / 21.27 kg
JL Audio HO112RG-W3v3 Brochure

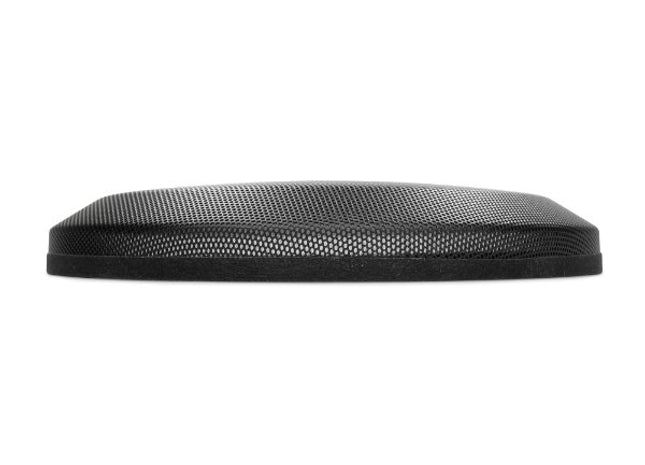

Ten-Inch Black-Mesh Grille for Select JL-Audio Subwoofer-Drivers
Provide attractive, sturdy protection to your Subwoofer with this fine steel mesh grille insert, powder-coated in a satin black finish. The insert is designed to fit snugly onto the woofer's grille receiver ring.
Fits: 10WX, 10WXv2, 10W0v2, 10W0v3, 10W1v2, 10W1v3, 10W3v3
BassWedge-Series 12-Inch 300-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 4 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
4 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
16.31 in / 414 mm
External Height (H)
15.18 in / 386 mm
External Depth (D1)
20.3 in / 516 mm
External Top Surface Depth (D2)
15.75 in / 400 mm
Net Weight
33.1 lb / 15 kg
JL Audio CP112-W0v3 Brochure
Single 12-Inch 400-Watt 2-Ohm Thin Subwoofer-Enclosure for Select 2022-UP Toyota Tundra-CrewMax Pickups
Toyota's largest truck definitely means business when it comes to hauling people (or cargo) in comfort. With four full-sized doors and a spacious cabin, this mighty Tundra delivers maximum interior space, but leaves little room for a traditional subwoofer enclosure.
JL Audio's Stealthbox® team met this challenge and designed a custom formed solution that fits behind your Tundra's rear seat backs that is completely hidden, out-of-sight. Housing one of JL's patented-technology TW3 thin-line subwoofer drivers in a sealed enclosure, this Stealthbox securely installs without any permanent modifications and delivers world-class bass performance with powerfully deep impact and extension.
The Hard Data: Contains one 12TW3-D4 subwoofer drivers in a sealed enclosure. 400 watt power handling. Wired for 2 ohm mono. Installs under driver rear seat and requires no permanent modifications to the vehicle. Factory subwoofer (if equipped) must be removed and jack tools may need to be relocated for installation of Stealthbox.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
Applictions
TOYOTA
Tundra
Crew Max
2022-2025
JL Audio SBX-T-TCMAX3G/12TW3 Installation Manual

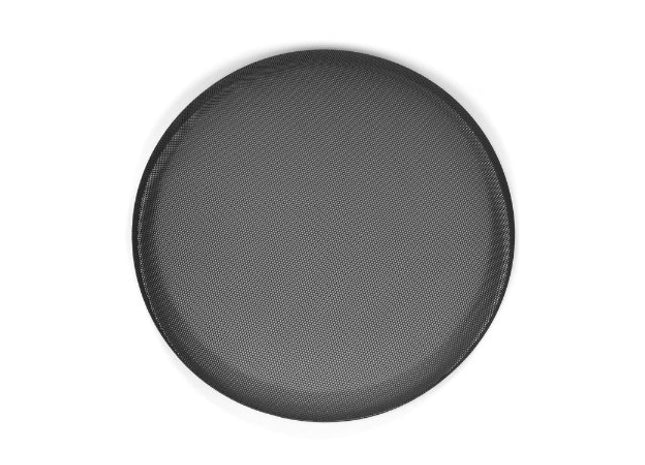

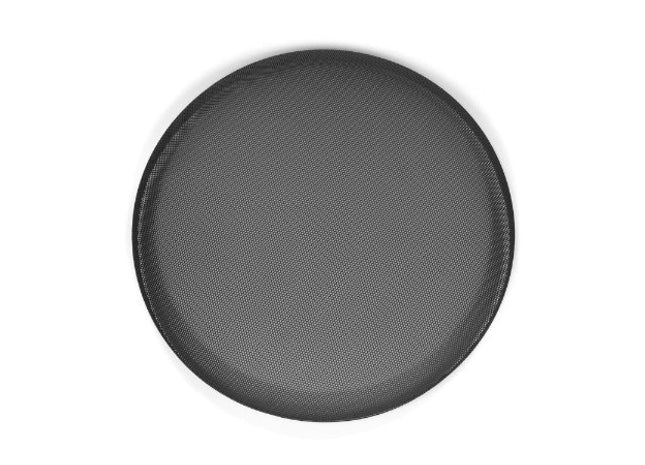

Twelve-Inch Black-Mesh Grille for Select JL-Audio Subwoofer-Drivers
Provide attractive, sturdy protection to your Subwoofer with this fine steel mesh grille insert, powder-coated in a satin black finish. The insert is designed to fit snugly onto the woofer's grille receiver ring.
Fits: 12WX, 12WXv2, 12W0v2, 12W0v3, 12W1v2, 12W1v3, 12W3v3
TW1-Series 400-Watt Amplified 12-Inch Ported Subwoofer System
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 12TW1 subwoofer driver. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer Built in USA with global components
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality.
The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω
JL Audio 12W1v3 Manual
W0-Series 12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC
The 12" W0v3 subwoofer driver by JL Audio delivers excellent efficiency, excursion capability and linearity. This 12" subwoofer comes with a price point under $150.00 while supporting a beefy 2 in. diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability.
The JL Audio 12W0v3-4 sub is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
4Ω
JL Audio 12W0v3 Manual
Single 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2002-2018 Ram Quad-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 11” single sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
Premium Carpet Finish
OEM-Fit is designed and engineered specifically for the 2002-2018 Dodge Ram Quad Cab *2019 Legacy trucks to ensure an OEM fit without impeding the operation of the back seat.
Soft Woven Polyfill Damping Material helps create a flatter frequency response, low bass extension, and simulates a larger net volume air space.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with the second application of glue around all internal joints after final assembly.
Dimensions Sub cut out: 9.125”, mounting depth:6”, height: 7.25”, width: 32.7”, depth: 13.25”
May work with Legacy 2019 Vehicle Models
Specifications
Configuration: Single Sealed
Finish: Charcoal Carpeted
Width:32.75"
Height:7.25"
Depth:13.25"
Max Mounting Depth:6.00"
Gross VolumePer Sub:0.63
Net Volume Per Sub:0.63
Single 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 1999-2007 Chevrolet-Silverado or GMC-Sierra Extended-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Custom down fire fit under rear driver side seat. No modification required. Doesn't affect rear seat latching.
Single 12" Carpeted Finish Subwoofer Enclosure
Designed specifically for 1999-2007 Chevy Silverado and GMC Sierra Extended Cab Trucks
Premium Carpeted Finish
3/4" Mounting Baffle
Hardwood MDF construction
Rounded edges
Glued and Braced construction
Subwoofer mounting depth: 7.25"
Box volume: 0.93 cubic feet (per chamber)
Specifications
Width
24
Height
9.125
Depth
14.75
Mounting Depth
7.25
Gross Cubic Feet Per Side
0.93
Net Cubic Feet Per Side
0.93
Excursion
1.625
12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 12" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS124 and 44CWCD124 12-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power.
Specifications
Size (IN.,CM)
12, 30
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
Sensitivity (dB 1w/1m)
88.3
Frequency Response (Hz)
27-500
Mounting Depth (in, cm)
5-3/8, 13.6
Mounting Cutout (in, cm)
11, 27.9
Min Sealed Box Vol (cu. ft, L)
1.25, 35.4
Max Sealed Box Vol (cu. ft, L)
3.5, 99.1
Min Vented Box Vol (cu. ft, L)
1.75, 49.6
Max Vented Box Vol (cu. ft, L)
2.25, 63.7
Kicker CompC Subwoofer Manual
BassWedge-Series Dual 12-Inch 600-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofers to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 150 - 600WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
31.375 in / 797 mm
External Height (H)
15.18 in / 386 mm
External Depth (D1)
20.3 in / 516 mm
External Top Surface Depth (D2)
15.75 in / 400 mm
Net Weight
60.3 lb / 27.35 kg
JL Audio CP212-W0v3 Brochure
12-Inch 750-Watt Alpine R-Series Halo Loaded Subwoofer Enclosure with ProLink Connectivity
Alpine’s unique ProLink technology was designed with the sound system builder in mind. ProLink allows more flexibility in both power and price to start with a single subwoofer enclosure and add an additional subwoofer using a Linking Kit (sold separately) to link two enclosures together to create a dual system when more bass is desired.
The enclosures share the premium, unmistakable design of the Alpine Halo Family. The enclosures pull design cues from the Alpine Halo Display with unique, curved edges outlined by a silver trim and a front baffle for a matching system aesthetic. Built with sturdy, 3/4” MDF construction and covered in a premium black carpet, these enclosures give the impression of a custom look, without the custom work.
Features
Groundbreaking Alpine Halo Design
ProLink™ ported enclosure design
Polypropylene/Ceramic Composite Dust Cap
Kevlar Reinforced Pulp Cone High-Performance subwoofers
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Large Double-Stacked Magnets
CARB compliant 3/4-inch MDF construction
Premium black carpet
Silver Alpine embossed side logo badge
Brushed aluminum finished metallic front baffle
Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
Specifications
Dimensions: 17” W x 14.625” H x 15” D
750W RMS
2250W Peak Power Handling
Frequency Response: 24Hz-200Hz
Sensitivity (1W/1m): 85dB
Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
Voice Coil: 65.5mm
X-Max: 20mm
Magnet Weight: 144oz
12 Gauge OFC Speaker Box Wire
CTA-2031 Compliant
12-Inch 600-Watt Alpine S-Series Loaded Subwoofer Enclosure with PrismaLink Lighting
Color and sound collide to bring you an intentionally crafted 12-inch wedge style subwoofer enclosure, designed for optimal bass performance and vehicle fitment, and an integrated RGB lighting system that’s multi-link capable for single, dual, and even quad-enclosure installations.
Manage the integrated RGBW trim bars effortlessly through the intuitive Lighting Link control screen on the PrismaLink compatible Alpine receivers. With a simple touch, users can easily change the ambiance, adjust colors, and change modes on the PrismaLink® enclosures. Whether it's setting the perfect vibe for a late-night drive or enhancing the atmosphere of a weekend getaway, the intuitive interface empowers users to tailor their lighting experience with precision and ease.
Features
Preloaded S2-W12D4 12” S-Series Subwoofer
Sealed Wedge Style Enclosure Design
RGBW Multi-color Trim Bar Lighting with IR Remote included
Lighting Modes:12 Static Colors, 4-Dynamic Modes
Multi-Link Capable (Link 2 or more enclosures together)
Lighting Link Control via iLX-W670 Head Unit
Carbon Fiber / Poly Propylene Subwoofer Cone
Lightweight Construction, High Output, Low Distortion
Enhanced “Punch” and Accurate Bass
High-Amplitude Multi-Roll (HAMR) Surround for High Excursion
Compatible with the KTX-EBKT Mounting Brackets
Compatible with the KTX-LK12 12” Linking Bracket for Multi-Link Application
Specifications
Enclosure Dimensions: 16.5” (W) x 15” (H) x 13.25” (D)
Power Handling: 600W RMS / 1800W Peak
Nominal Impedance: 2Ω
Frequency Response: 23Hz - 215Hz
Sensitivity: 86dB
X-Max (1-Way): 15mm
Voice Coil: 2.6”
Magnet Weight: 64oz
Dual 4Ω voice coils wired in parallel for a 2Ω load
12-Inch 600-Watt Alpine S-Series Halo Loaded Subwoofer Enclosure with ProLink Connectivity
Drawing inspiration from the Alpine Halo displays, these subwoofer enclosures feature distinctive curved edges accented by a sleek silver trim and a front baffle, creating a seamlessly matching system aesthetic. Built with sturdy, 3/4” MDF construction and covered in a premium black carpet, these enclosures not only provide durability but give the impression of a custom look, without the custom work.
Alpine’s innovative ProLink technology is tailor-made for bass enthusiasts. With ProLink, experience unparalleled flexibility as you effortlessly add an additional Alpine Halo subwoofer into your setup. Utilize a dedicated linking bracket (sold separately) for seamless integration, doubling the impact of your bass for a truly immersive sound sensation.
Features
Groundbreaking Alpine Halo Design
ProLink™ Ported Enclosure Design
Carbon Fiber / Poly Propylene Cone
Poly Propylene / Ceramic Dust Cap
High-Grade Strontium Ferrite Magnets
Twist-Lock Grille Mount System
High-Amplitude Multi-Roll (H.A.M.R.) Surround
CARB compliant 3/4-inch MDF construction
Premium Black Carpet
Silver Alpine Embossed Logo Badge
Brushed Aluminum Finished Metallic Front Baffle
Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
Specifications
Dimensions: 17” W x 14.625” H x 15” D
600W RMS / 1800W Peak
Frequency Response: 23Hz - 215Hz
Sensitivity (1W/1M): 86.2dB
Voice Coil: 2.6"
X-Max: 15mm
Magnet Weight: 64oz
Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with S2-A60M)
12 Gauge OFC Speaker Box Wire
Binding Post Terminal Cup
Dual 12-Inch 2-Ohm 1200-Watt Thin Subwoofer-Enclosure for Select 2008-UP Chevrolet-Silverado and GMC-Sierra Crew-Cab Trucks
Dual L7T Truck-Specific Enclosures provide impactful bass and install under the back seat to retain cab space and legroom.
Requires amp and handles 1,200 watts RMS
Single 2-Ohm terminal
Dual KICKER Solo-Baric L7T Square Subwoofers
Thick black carpeting
MDF construction and heavy internal bracing
Made from thick MDF and formed specifically to fit every contour of your Silverado or Sierra, this custom enclosure features a pair of down-firing L7T 12-inch subwoofers with a monstrous 1,200-watts of recommended power. See details below.
It’s simple – more cone area means more air moves – for more bass and up to 20% more cone area than a conventional round sub. KICKER acoustic engineers put the largest voice coil and magnet we’ve ever integrated into a thin sub, then added a next-level top-plate design, unique heat management system and our signature cone stitching all help to give you deep bass and outstanding reliability in a single, mind-blowing design that gives you max output!
Fits*:Chevy Silverado/GMC Sierra Crew Cab (2008-newer)*Items such as inverters, storage compartments, spare tire tools or floor mats may require removal. GM Trucks 2019-newer Enclosures do fit but not as perfectly.
Specifications
TYPE:
Truck-specific
Design:
Dual Down-Fire
WOOFER SIZE (in, cm):
12, 30
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS):
1200
FREQUENCY RESPONSE (Hz):
25-100
BOX DIMENSIONS:
Width: 52” [132.1cm]
Height: 7-7/16” [18.9cm]
Depth: 15-1/2” [39.4cm]
Kicker 51KGMDL7T122 Installation Manual
12-Inch Black-Mesh Grille for Select JL-Audio TW3 Subwoofer-Drivers
Provide attractive, sturdy protection to your Subwoofer with this fine steel mesh grille insert, powder-coated in a satin black finish. The insert is designed to fit snugly onto the woofer's grille receiver ring.
Fits: 12TW3 Only
StowAway-Series 12-Inch 300-Watt Enclosed Subwoofer System, 2-Ohm or 4-Ohm Downfiring Sealed Enclosure
JL-Audio StowAway subwoofer systems are engineered to deliver amazing subwoofer performance in challenging environments and applications.
Featuring a down-firing hard-shell design, StowAway subwoofers are well suited for mounting areas shared with cargo or exposed to the elements. Constructed from marine-grade materials, this low-profile enclosure design harnesses the incredible small box requirements of the TW1 subwoofer to generate smooth and powerful bass from a remarkably compact enclosure. Slotted mounting feet located at each corner of the enclosure’s base assist with “off-the-floor” installations or in tight spaces where access is limited.
The StowAway subwoofer system is prewired with selectable harness exits located underneath at opposite ends.
Finish: black texture with debossed logo on top; a protective mesh grille is included to protect the subwoofer
Recommended amplifier power: 75–300 watts
Nominal impedance: 2 ohms
Note: Mounting hardware is not included with StowAway systems. The installation method and mounting hardware used will vary based on the requirements of your specific application. The final mounting method must affix the enclosure securely to prevent movement and vibration.
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed
Finish
Black Texture
Grille Included
Yes
Physical Specifications
Height (H)
8.23 in / 209 mm
Width (W)
21.78 in / 553 mm
Depth (D)
15.16 in / 385 mm
JL Audio PES112-TW1 Manual
BassWedge-Series 12-Inch 300-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 4 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
4 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
16.31 in / 414 mm
External Height (H)
15.18 in / 386 mm
External Depth (D1)
20.3 in / 516 mm
External Top Surface Depth (D2)
15.75 in / 400 mm
Net Weight
33.1 lb / 15 kg
JL Audio CP112-W0v3 Brochure
W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality.
The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω
JL Audio 12W1v3 Manual
Alpine S2-Series 600-Watt 12-Inch Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil
With an impressive power handling of 600W RMS and a peak power handling of 1800W, the Next-Gen 12” S-Series Subwoofers deliver outstanding performance value. Boasting a wide frequency response range of 23Hz to 215Hz and a sensitivity of 86dB (1W/1m), these subs ensure powerful and accurate bass reproduction across a diverse range of music genres.
Featuring the lightweight yet sturdy combination of carbon fiber and polypropylene, the Next-Gen S-Series Subwoofer cone delivers deep, low-distortion bass that enhances the depth and richness of your music.
The Next-Generation S-Series Subwoofers contain Alpine's High Amplitude Multi-Roll (H.A.M.R.) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 15mm of one-way excursion that creates incredible accuracy from the subwoofer.
A Dual Voice Coil (DVC) with easy configuration jumpers make installing the S-Series subwoofers a breeze. A new twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone.
Maximize the potential of your S-Series subwoofers with Alpine's perfectly power-matched S-Series amps. Power a single S2-W12DVC subwoofer effortlessly with the 600W S2-A60M mono amplifier, or for an even bigger impact, pair two or more S2-W12DVC subs with the powerful 1200W S2- A120M amp to ensure optimal sound quality and performance.
Features
Dual Voice Coil Subwoofers with Configuration Jumpers
Carbon Fiber / Poly Propylene Cone
Poly Propylene / Ceramic Dust Cap
High-Grade Strontium Ferrite Magnets
Twist-Lock Grille Mount System
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Push-Type Speaker Terminals (Up to 8AWG Wire Size)
Specifications
Power Handling: 600W RMS / 1800W Peak
Nominal Impedance: 4Ω
Frequency Response: 23Hz - 215Hz
Sensitivity (1W/1M): 86.2dB
Voice Coil: 2.6"
X-Max (1-Way): 15mm
Magnet Weight: 64oz
R-Series Loaded 600-Watt Thin 12-Inch 2-Ohm Subwoofer Enclosure
Now you don’t have to choose between bass and space! Alpine’s R-Series Shallow preloaded subwoofer enclosure measures at a minimal 5.25” deep to deliver a loud and fun sound in most vehicle applications. Rubber “feet” are adjustable in height to accommodate uneven vehicle floors.
Don’t let the size fool you – the enclosures feature the same motor movement (20MM of 1-way excursion) as the full-size R2-Series subwoofers for extreme output in a shallow woofer design. At the heart of the R-Series shallow subwoofers is an oversized 4-inch voice coil that houses the lightweight and powerful neodymium magnet for 600W RMS of power handling.
Integrated cooling fins located in the core of the subwoofer help dissipate the heat generated by the rapid subwoofer movement for enhanced cooling reliability and hours of uninterrupted playtime. The unique CoolMount dual-panel mount subwoofer motor enhances cooling.
Alpine’s Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in lower distortion and precise bass control. The preloaded enclosures use the subwoofer frame as bracing fora more ridged design and better bass response.
A lightweight yet rigid aluminum dust cap allows the R-Series shallow subwoofer to transition sound quickly with minimal distortion and project the bass off the surface of the speaker for hard-hitting yet smooth bass performance. The included adjustable mounting brackets allow for a downfire mount configuration.
With dual voice coils wired in parallel for a 2Ω load, the Alpine R-Series 12" shallow subwoofer enclosure is optimized to perform with Alpine's S-A60M or R-A75M mono amplifiers.
Features
Optimal sealed cabinet quality
Aluminum Dust Cap
Neodymium Magnet
Alpine Gen2 DD Linear Magnetic Circuit
CARB compliant ¾” MDF construction
Premium Alpine embroidered black carpet
Alpine-branded terminal cup
Pre-installed steel mesh grille
Includes a 12” R-Shallow Subwoofer (RS-W12D4)
Rubber, modular stackable foot design
Specifications
Dimensions: 26.5” W x 5.25” H x 17” D
600W RMS Power Handling
Frequency response: 26Hz – 200Hz
Dual 4Ω voice coils wired in parallel for a 2Ω load (compatible with S-A60M or R-A75M)
Nominal Impedance: 2Ω
Voice Coil: 4”(101.6mm)
R-Series 12-Inch 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Dual Voice Coil
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non- stop bass performance.
The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ- Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The R2-W12D2 and R2-W12D4 is compatible with the KTE-12G Grille System (sold separately).
The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi- Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
Features
Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
Polypropylene/Ceramic Composite Dust Cap
Kevlar Reinforced Pulp Cone High-Performance subwoofers
Twist-Lock Grille Mount System
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Large Double-Stacked Magnets
Specifications
750W RMS
2250W Peak Power Handling
Frequency Response: 24Hz-200Hz
Sensitivity (1W/1m): 84.5dB
Nominal Impedance: 4Ω
Voice Coil: 65mm
X-Max: 20mm
Magnet Weight: 144oz
Mounting Depth: 6-1/2” (152mm)
Cutout Size: 10-7/8” (231mm)
Push-Type Speaker Terminals (Up to 8AWG Wire Size)
CTA-2031 Compliant
Alpine R2-W12D Manual
12-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The 48CWR12 12" subwoofer is available in a 2Ω or 4Ω dual voice coil design, making it easy to get the most out of your amp.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion. KICKER developed Forced Air Cooling to helps their subs run 25% cooler.The Kicker 48CWR122 and 48CWR124 12" subs work best with a sealed or ported enclosure and 500 watts of recommended power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY [dB 1w/1m]:
86.9
MOUNTING DEPTH [in, cm]:
5 3/4, 14.6
MOUNTING DIAMETER [in, cm]:
11, 27.9
MIN SEALED BOX VOL [cu. ft, L]:
1.0, 28.3
MAX SEALED BOX VOL [cu. ft, L]:
2.0, 56.64
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker CompR Subwoofer Manual
Dual 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2007-2018 Toyota-Tundra Double-Cab Trucks
Accu-Tuned 12” Dual sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2007-2018 Double cab trucks to ensure an OEM fit without impeding the operation of the back seat.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
.83 Cubic Feet Net Volume internal air space (per sub) is ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 4.375” which is ideal for lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium OEM Grade Carpeting for factory look and durability.
Dimensions Sub Cut Out: 9.125”, Mounting Depth: 4.375”, Width: 50.25” Height: 7.875”, Depth: 22.375”
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width:50.25"
Height:5.13"
Depth:22.38"
Max Mounting Depth:4.50"
Gross VolumePer Sub:4.23
Net Volume Per Sub:3.07
Single 12-Inch Vented Tuff-Coat Lined Sub-Box for Select 2007-2020 Chevrolet-Silverado and GMC-Sierra Crew-Cab Trucks
Accu-Tuned 12” Single vented subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2007-2020 Chevrolet / GMC trucks to ensure an OEM fit without impeding the operation of the back seat.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
1.7 Cubic Feet Gross and 0.83 Net Volume internal net air space are ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 9” which is ideal for full size and lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium Rugged Spray Liner for durability and enhanced airtight seal.
Dimensions Sub Cut Out: 9.125”, Mounting Depth: 6.5”, Width: 28.87”, Height: 6.75”, Depth: 17.75”
Specifications
Configuration: Single Vented
Finish: Tuff Coat Finish
Width: 28.88"
Height: 4.50"
Depth: 17.75"
Max Mounting Depth: 6.50"
Gross VolumePer Sub: 1.50
Net Volume Per Sub: .95
Dual 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2000-2003 Ford F-150 Super-Cab Trucks
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 12” Dual sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2000-2003 Super CAB trucks to ensure an OEM fit without impeding the operation of the back seat.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
0.7 Cubic Feet Net Volume internal air space (per sub) is ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 5.75” which is ideal for lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium OEM Grade Carpeting for factory look and durability.
Dimensions Sub Cut Out: 11.125”, Mounting Depth: 5.75”, Net Air Volume: 0.7 cu. ft., Width: 50.5” Height: 8”, Depth: 14.38”
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width:50.50"
Height:7.50"
Depth:14.38"
Max Mounting Depth:5.50"
Gross VolumePer Sub:0.75
Net Volume Per Sub:0.75
Dual 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2007-2013 Chevrolet-Silverado or GMC-Sierra Regular-Cab Trucks
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 12” Dual sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2007 -2013 Chevrolet / GMC trucks to ensure an OEM fit without impeding the operation of the back seat and there is a designated area for mounting and amplifier to the enclosure.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
0.7 Cubic Feet Net Volume internal air space per subwoofer is ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 6.25” which is ideal for lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium OEM Grade Carpeting for factory look and durability.
Dimensions
Sub cut out: 11.125”, sub mounting depth: 6.25”
Installation Note: Installs behind the seats. Tools on the hump must be removed to install. What's nice is that you will not have to take out your jack or cut off the bolt that holds your tool kit in place. The main limitation is depth. This truck seems to have less space behind the seats than the previous model, so speaker depth is somewhat limited. Check out the speaker depth guide before buying your subs. You will likely have to sacrifice the last 2-3 clicks on your seat travel to give the box and subs enough space. In most cases, this will still leave you with plenty of legroom to drive comfortably while enjoying your new boom.
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width: 52.00"
Height: 14.89"
Depth: 6.85"
Max Mounting Depth: 6.25"
Gross VolumePer Sub: 0.70
Net Volume Per Sub: 0.70
Dual 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 1999-2007 Chevrolet-Silverado or GMC-Sierra Extended-Cab Trucks
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Designed specifically for 99-07 Chevy Silverado and GMC Sierra Extended Cab Trucks
Premium Carpet Finish
Hardwood MDF construction
Rounded edges
Glued and Braced construction
Subwoofer mounting depth: 7.00"
Box volume: 0.93 cubic feet (per chamber)
Installation Note: Custom down fire fit under rear driver side seat. No modification required. Doesn't affect rear seat latching.
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width: 51.25"
Height: 6.75" REAR - 9.25" FRONT
Depth: 14.75"
Max Mounting Depth: 7.00"
Gross VolumePer Sub: 0.93
Net Volume Per Sub : 0.93
Dual 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 1988-1998 Chevrolet-Silverado and GMC-Sierra Extended-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Subwoofer mounting depth: 7.00"
Designed specifically for 1988-1998 Chevy Silverado and GMC Sierra Extended Cab Trucks
Premium carpeted finish
3/4" Mounting Baffle
Hardwood MDF construction
Rounded edges
Glued and Braced construction
Box volume: 0.93 cubic feet (per chamber)
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width: 51.75"
Height: 9.25" front height - 6.75" rear height
Depth: 14.75" front depth - 13.13" rear depth
Max Mounting Depth: 7.00"
Gross VolumePer Sub: 0.93 per sub
Net Volume Per Sub: 0.93 per sub
Dual 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2002-2018 Ram Quad-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 12” Dual sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2002-2018 Dodge Ram Quad Cab trucks to ensure an OEM fit without impeding the operation of the back seat.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
2.27 Cubic Feet Net Volume internal air space (.63 per sub) is ideal for tight accurate bass reproduction.
Soft Woven Polyfill Damping Material helps create a flatter frequency response, low bass extension, and simulates a larger net volume air space.
Subwoofer Mounting Depth is 6” which is ideal for lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium OEM Grade Carpeting for factory look and durability.
Dimensions Sub cut out: 11.125”, mounting depth: 6”, height: 7.25”, width: 57”, depth: 13.25”
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width:57.00"
Height:7.25"
Depth:13.25"
Max Mounting Depth:6.00"
Gross VolumePer Sub:0.63
Net Volume Per Sub:0.63
Installation Note: Custom up fire fit under the rear seat. Installs under the rear seat. Must remove metal fold out tray if equipped. No other modifications required. Fits full bench and split seat models. Does not affect rear seating.
Dual 12-Inch Sealed Carpeted Subwoofer-Box With AMP Space for Select 2014-2018 Chevrolet-Silverado and GMC -Sierra Crew-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 12” Dual sealed subwoofer enclosure with designated amp room designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2014-2018 Chevrolet / GMC Silverado / Sierra Crew Cab to ensure an OEM fit without impeding the operation of the back seat.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
0.85 Cubic Feet Net Volume internal air space per sub is ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 6” which is ideal for lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium OEM Grade Carpeting for factory look and durability.
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width:52.50"
Height:4.50"
Depth:14.75"
Max Mounting Depth:6.50"
Gross VolumePer Sub:2.50
Net Volume Per Sub:1.69
Installation Note: Installs under the rear seat with no further modifications required. Rear seat functionality is un-affected
Dual 12-Inch Sealed Carpeted Subwoofer-Enclosure With AMP Space for Select 2007-2013 Chevrolet-Silverado and GMC-Sierra Crew-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 12” Dual sealed subwoofer enclosure with designated amp room designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 2007 - 2013 Chevrolet / GMC Silverado / Sierra Crew Cab to ensure an OEM fit without impeding the operation of the back seat.
High-Grade MDF for Ultimate structural rigidity and no-flex construction.
0.83 Cubic Feet Net Volume internal air space per sub is ideal for tight accurate bass reproduction.
Subwoofer Mounting Depth is 6.5” which is ideal for lower profile subwoofers.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Premium OEM Grade Carpeting for factory look and durability.
Dimensions Sub cut out: 9.125”, Mounting Depth: 6.5”, Width: 52.5”, Height: 6.75”, Depth: 17.75”
Specifications
Configuration: Dual Sealed
Finish: Charcoal Carpeted
Width: 52.50"
Height: 6.75"
Depth: 14.75"
Max Mounting Depth: 6.50"
Gross VolumePer Sub: 1.30
Net Volume Per Sub: .65
Installation Note: This amp space box makes installing your amp and subs simple, fast, and easy. Almost downright enjoyable. Just mount your amp on the shelf, run your wires and call it a day. The amp space is 14" wide by 17" long. Longer amps can actually run off the box in the back if needed. You can also drill thru the shelf to help hide some of the wires as shown to the left. Not only does this box look and fit great, but it adds a whole new dimension of functionality and usability.
Single 12-Inch Vented Carpeted Subwoofer-Enclosure for Select 2007-2020 Chevrolet-Silverado or GMC-Sierra HD-Crew-Cab Trucks
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Installation Note: Does not fit Xcab, New body style Silverado or GM Sierra CrewCabs. Custom down fire fit under the rear seat, the enclosure will only fit heavy-duty crew cabs (1500, 2500, 3500)
Single 12" Vented Subwoofer Enclosure
Designed specifically for 2007-2020 Chevrolet-GMC Silverado / Sierra Crew Cab
Premium Carpet Finish
Underseat Upfire
No Modification is required
Easy drop-in installation
5.5" Mounting depth
Installation Note: Does not fit Xcab, New body style Silverado or GM Sierra CrewCabs. Custom down fire fit under the rear seat, the enclosure will only fit heavy-duty crew cabs (1500, 2500, 3500)
Specifications
Configuration: Single Vented
Finish: Charcoal Carpeted
Width: 28.88"
Height: 4.50"
Depth: 17.75"
Max Mounting Depth: 6.50"
Gross VolumePer Sub: 1.50
Net Volume Per Sub: .95
Dual 12-Inch Thin Subwoofer Enclosure, 500-Watt RMS, 2-Ohm
The Kicker CompRT series down-firing 12-inch subwoofer enclosure comes loaded with a passive reFLEX™ subwoofer and Kicker CompRT sub, then carpeted and loaded with a single 2Ω terminal.
Covered in stylish black carpeting and built with thick MDF, these tough enclosures take serious power without taking up needed space.
The TRTP 12-inch subwoofer enclosure works best with 500-watts of recommended power.
Specifications
TYPE:
thin-profile
WOOFER SIZE (in, cm):
12, 30
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY (dB 1w/1m):
98
BOX TOP DEPTH (in, cm):
14-5/8, 37
BOX BOTTOM DEPTH (in, cm):
14-5/8, 37
BOX HEIGHT (in, cm):
6-1/8, 15.6
BOX WIDTH (in, cm):
27-1/2, 70
Kicker TRTP Subwoofer Enclosure Manual
12-Inch 500-Watt Loaded Thin Dual Subwoofer Enclosure, 2-Ohm Configuration
The CompRT 12" thin subwoofer by Kicker is a weather resistant thin sub with a 2Ω configuration. This thin 12 inch sub magnet structure delivers 500W RMS of power. The Kicker designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to keep this 12" CompRT thin subwoofer driver nice and cool.The Kicker 43TCWRT122 12" subwoofer enclosure works best with 500 watts of RMS power.
Specifications
TYPE:
single
NO. OF WOOFERS/SIZE (in, cm):
(1) 12, 30
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY (dB 1w/1m):
98
BOX TOP DEPTH (in, cm):
3-1/2, 8.9
BOX BOTTOM DEPTH (in, cm):
7, 17.7
BOX HEIGHT (in, cm):
13-1/2, 34.3
BOX WIDTH (in, cm):
27, 68.5vv
Kicker CompRT Subwoofer Enclosure Manual
12-Inch 500-Watt Loaded Dual Subwoofer Enclosure, 2-Ohm Final Impedance
The CompR 12-Inch Subwoofer Enclosure comes loaded, carpeted and ready to ride.Covered in stylish black carpeting and built with thick MDF, this loaded sub box is one of the sturdiest enclosures money can buy. The enclosure comes in a 2-Ohm impedance to make your sub amp deliver some serious juice!The CompR 12-Inch Subwoofer Enclosure works best with 500 watts of recommended power. See below for more details.
Specifications
TYPE:
single
NO. OF WOOFERS/SIZE (in, cm):
(1) 12, 30
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY (dB 1w/1m):
90.8
BOX TOP DEPTH (in, cm):
11-3/8, 28.9
BOX BOTTOM DEPTH (in, cm):
14-1/2, 36.8
BOX HEIGHT (in, cm):
16, 40.6
BOX WIDTH (in, cm):
23, 58.4
Kicker CompR Subwoofer Enclosure Manual
12-Inch Thin Loaded Subwoofer Enclosure, 600-Watts RMS, 2-Ohm or 4-Ohm Impedance
Barely seven inches deep, the Kicker TL7T 10-Inch thin subwoofer enclosure is perfect for big bass under or behind your seats.
Genuine Kicker L7T subwoofer included
Angled design for excellent fit
Heavy internal bracing
Single 2-Ohm or 4-Ohm terminal
Easy to install and wire
Thick black carpeting
Rounded corners
Embroidered Kicker logo
Thick MDF construction
Specifications
Woofer [in, cm]
Solo-Baric L7T 12" 2 Ω or 4Ω
Impedance [Ohms]
2 or 4
Recommended Amplifier Power [watts RMS]
600
SENSITIVITY [dB 1w/1m]
86.54
Box Top Depth (in, cm):
4-3/8, 11.2
Box Bottom Depth (in, cm):
7-3/4, 19.6
Box Height (in, cm):
13-3/4, 35
Box Width (in, cm):
21-1/2, 54.6
What's in the box?
one loaded enclosure with one 12-inch subwoofermounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)one owner's manualtwo stickers
Kicker L7T Subwoofer Enclosure Manual
12-Inch 600-Watt Loaded Square Subwoofer Enclosure, 2-Ohm Final Impedance
With this L7R series 12" square sub box you get up to 20% more air movement compared to a round driver. This 600W loaded enclosure has an angled back, heavy duty internal bracing, thick MDF construction and black carpeting with a Kicker embroidered logo.
This L7R subwoofer enclosure contains a single 12 Inch square driver with an RMS power rating of 600W @ 2Ω.
Specifications
Type
single
Woofer [in, cm]
Solo-Baric L7R 12"
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
600
SENSITIVITY [dB 1w/1m]
94
Box Top Depth (in, cm):
8 1/2, 21.7
Box Bottom Depth (in, cm):
14 7/8, 37.8
Box Height (in, cm):
15, 38.1
Box Width (in, cm):
28, 71.1
What's in the box?
one loaded enclosure with one 12-inch subwoofermounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)one owner's manualtwo stickers
Dual 12-Inch 1200-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This L7 series dual 12" loaded sub box by Kicker comes with two Solo-Baric L7S sub loaded into a custom engineered to spec subwoofer enclosure made of thick MDF construction with a custom port design. Heavy internal bracing with thick black carpeting complement the Kicker embroidered logo on this box.
This 12-inch L7 dual subwoofer enclosure is best suited with 1200W RMS of amplified power.
Specifications
Type
dual
Woofers/size [in, cm]
2 Solo-Baric L7R 12"
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
1200
SENSITIVITY [dB 1w/1m]
95
Box Top Depth (in, cm):
15 1/4, 38.7
Box Bottom Depth (in, cm):
20 3/8, 51.8
Box Height (in, cm):
15 7/8, 40.2
Box Width (in, cm):
33 3/4, 85.7
12-Inch Quad-Loaded Subwoofer Enclosure, 2400-Watt, 2-Ohm Final Impedance
With 2,400-watts of RMS power handling, this computer-designed bass-head subwoofer system makes rattling your ride easier than ever! Four KICKER L7R 12-inch subs come pre-loaded in this enclosure. The port is flared perfectly and tuned to 31Hz for some serious bump - without the expense of a custom enclosure.
This Kicker quad-sub box is made to take the pressure! Heavy, birch-veneer plywood construction and thick internal bracing keeps the enclosure stable, even under extreme SPL levels. Covered in durable black carpet and custom embroidered with the Kicker logo, the 47QL7R12 is pre-wired to a pair of two-Ohm terminals and 2400W of RMS power.
Specifications
Type
QUAD
Woofers/size [in, cm]
4 Solo-Baric L7R 12, 30
Impedance [Ohms]
Dual 2-Ohm Terminals
Recommended Amplifier Power (watts RMS)
2400
SENSITIVITY [dB 1w/1m]
98
Box Depth (in, mm):
28, 711
Box Height (in, mm):
20-1/4, 514
Box Width (in, mm):
35-7/8, 912
What's in the box?
1 47QL7R122, 1 enclosure hardware pack, 1 instruction manual, 2 KICKER stickers,1 47QL7R122, 1 massive sub enclosure, 1 enclosure mounting bracket kit,Customer Info Card w/link to product page (via QR Code).
12-Inch 750-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This L7 series 12" loaded sub box by Kicker comes with one Solo-Baric L7S sub loaded into a custom engineered to spec subwoofer enclosure made of thick MDF construction with a custom port design. Heavy internal bracing with thick black carpeting complement the Kicker embroidered logo on this box.
This 12-inch L7 subwoofer enclosure is best suited with 750W RMS of amplified power.
Specifications
Type
single
Woofer [in, cm]
Solo-Baric L7 12"
Impedance [Ohms]
2
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
SENSITIVITY [dB 1w/1m]
86.9
Box Top Depth (in, cm):
14 3/4, 37.4
Box Bottom Depth (in, cm):
17 7/8, 45.5
Box Height (in, cm):
16, 40.6
Box Width (in, cm):
18-3/4, 47.6
Kicker L7 Solo-Baric Subwoofer Enclosure Manual
12-Inch 1500-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This 12" L7 dual sub box enclosure features a custom-designed vent/terminal cup with an extra thick front baffle and fortified back bracing for one of the sturdiest enclosures in the industry. Two Solo-Baric L7S 12-Inch subwoofers pound out 1500W bass with a single 2Ω speaker terminal.
Specifications
Type
dual
Woofer [in, cm]
Solo-Baric L7 12"
Impedance [Ohms]
2
Recommended Amplifier Power (watts RMS)
1500
Peak Power (watts, per ANSI/CTA-2031-A)
3000
SENSITIVITY [dB 1w/1m]
89.9
Box Top Depth (in, cm):
16 1/4, 41.3
Box Bottom Depth (in, cm):
19 1/2, 19.4
Box Height (in, cm):
16, 40.6
Box Width (in, cm):
33 3/4, 85.7
12-Inch 400-Watt Thin Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The CompVT 12" subwoofer by Kicker is a thin slimline driver that pounds in a limited space. A special four-layer voice coil provides the ability to work with serious amounts of power without the bulk of a standard subwoofer.
The Kicker 43CVT122 and 43CVT124 subs work best with a sealed or ported enclosure and 400 watts of recommended power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
2 or 4 SVC
Recommended Amplifier Power (watts RMS)
400
Peak Power (watts, per ANSI/CTA-2031-A)
800
SENSITIVITY [dB 1w/1m]:
87.1
MOUNTING DEPTH [in, cm]:
4 3/8, 11.1
MOUNTING DIAMETER [in, cm]:
11, 28.1
MIN SEALED BOX VOL [cu. ft, L]:
1, 28.3
MAX SEALED BOX VOL [cu. ft, L]:
4.6, 130
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker CompVT Subwoofer Manual
