300W RMS

TW1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC The 12" TW1 thin subwoofer driver by JL Audio has a shallow mounting depth while maintaining excellent excursion capability in a thin mounty chassis design to fit into an enclosure no bigger than (0.65 cu.ft. / 18.4 liters). This 12TW1 subwoofer is capable of operating in extremely tight spaces including under-seat installations in trucks and other automotive applications requiring a compact, low profile subwoofer design. JL Audio's patented thin-line woofer technology utilizes a "concentric tube" structure built into the injection-molded cone body supporting the voice coil and spider. This patented design places the large motor structure further forward in the speaker than conventional thin subwoofer designs. The JL Audio 12TW1 sub also features a chassis design that minimizes the top clearance required for the linear excursion limits of the subwoofer driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. The 12TW1 requires only 0.87 inches (22 mm) of frontal clearance with or without the subwoofer grille installed. The JL Audio 12" 12TW1-2 and 12TW1-4 subwoofer drivers are optimized for an enclosure much smaller than any other JL Audio twelve-inch subwoofer driver, it never sounds like a big woofer struggling in a tiny box...instead, it delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system. Very shallow mounting depth (4.62 in / 117 mm) No pole vent: permits mounting close to rear wall of enclosure Extremely small sealed enclosure volume requirements Long linear excursion capability (0.40 in / 10 mm, one-way) DMA-optimized motor design Patented "concentric tube" architecture Patented "floating cone attach method" technology Cast alloy frame with flat edges for tight driver grouping Injection molded, mica-filled polypropylene cone Rubber surround Steel mesh grille included with each driver Precision-built in USA at JL Audio’s Miramar, Florida factory with global components General Specifications Continuous Power Handling () 300W RMS Recommended Amplifier Power (RMS) 75W - 300W RMS Nominal Impedance (Znom) 2Ω JL Audio 12TW1 Manual

Read more less

W0-Series 12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC The 12" W0v3 subwoofer driver by JL Audio delivers excellent efficiency, excursion capability and linearity. This 12" subwoofer comes with a price point under $150.00 while supporting a beefy 2 in. diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability. The JL Audio 12W0v3-4 sub is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. General Specifications Continuous Power Handling 300W RMS Recommended Amplifier Power 75W - 300W RMS Nominal Impedance 4Ω JL Audio 12W0v3 Manual

Read more less

W0-Series 12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC The 12" W0v3 subwoofer driver by JL Audio delivers excellent efficiency, excursion capability and linearity. This 12" subwoofer comes with a price point under $150.00 while supporting a beefy 2 in. diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability. The JL Audio 12W0v3-4 sub is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. General Specifications Continuous Power Handling 300W RMS Recommended Amplifier Power 75W - 300W RMS Nominal Impedance 4Ω JL Audio 12W0v3 Manual

Read more less

W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality. The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.  General Specifications Continuous Power Handling 300W RMS Recommended Amplifier Power 75W - 300W RMS Nominal Impedance 2Ω JL Audio 12W1v3 Manual

Read more less

W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality. The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.  General Specifications Continuous Power Handling 300W RMS Recommended Amplifier Power 75W - 300W RMS Nominal Impedance 2Ω JL Audio 12W1v3 Manual

Read more less

BassWedge-Series 12-Inch 300-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value. The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises. The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle. This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal. Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth. Construction: MDF Recommended amplifier power: 75 - 300WNominal Impedance: 4 Ω General Specifications Continuous Power Handling (RMS) 300 W System Nominal Impedance 4 Ω Enclosure Type Slot-ported Finish Gray carpet Grille Included No Physical Specifications External Width (W) 16.31 in / 414 mm External Height (H) 15.18 in / 386 mm External Depth (D1) 20.3 in / 516 mm External Top Surface Depth (D2) 15.75 in / 400 mm Net Weight 33.1 lb / 15 kg JL Audio CP112-W0v3 Brochure

Read more less

BassWedge-Series 12-Inch 300-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value. The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises. The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle. This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal. Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth. Construction: MDF Recommended amplifier power: 75 - 300WNominal Impedance: 4 Ω General Specifications Continuous Power Handling (RMS) 300 W System Nominal Impedance 4 Ω Enclosure Type Slot-ported Finish Gray carpet Grille Included No Physical Specifications External Width (W) 16.31 in / 414 mm External Height (H) 15.18 in / 386 mm External Depth (D1) 20.3 in / 516 mm External Top Surface Depth (D2) 15.75 in / 400 mm Net Weight 33.1 lb / 15 kg JL Audio CP112-W0v3 Brochure

Read more less

PowerWedge-Series 12-Inch 400-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure In this low-profile PowerWedge™ subwoofer system, JL harnesses the performance of the 12TW3 to deliver amazing sub-bass from an enclosure that is only 4.5 in. (114 mm) deep. This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW3-D4 and has been fine-tuned through extensive real-world listening. The PowerWedge™ subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver. Construction: CNC-Cut High-Grade MDF Recommended amplifier power: 100 - 400WNominal Impedance: 2 Ω General Specifications Continuous Power Handling (RMS) 400 W System Nominal Impedance 2 Ω Enclosure Type Sealed Finish Black carpet Grille Included Black Steel Mesh Physical Specifications External Width (W) 23.75 in / 603 mm External Height (H) 15.625 in / 397 mm External Depth (D1) 5.0625 in / 129 mm Net Weight 30.5 lb / 13.8 kg JL Audio CS112LG-TW3 Brochure

Read more less

StowAway-Series 12-Inch 300-Watt Enclosed Subwoofer System, 2-Ohm or 4-Ohm Downfiring Sealed Enclosure JL-Audio StowAway subwoofer systems are engineered to deliver amazing subwoofer performance in challenging environments and applications.  Featuring a down-firing hard-shell design, StowAway subwoofers are well suited for mounting areas shared with cargo or exposed to the elements. Constructed from marine-grade materials, this low-profile enclosure design harnesses the incredible small box requirements of the TW1 subwoofer to generate smooth and powerful bass from a remarkably compact enclosure. Slotted mounting feet located at each corner of the enclosure’s base assist with “off-the-floor” installations or in tight spaces where access is limited.  The StowAway subwoofer system is prewired with selectable harness exits located underneath at opposite ends. Finish: black texture with debossed logo on top; a protective mesh grille is included to protect the subwoofer Recommended amplifier power: 75–300 watts Nominal impedance: 2 ohms Note: Mounting hardware is not included with StowAway systems. The installation method and mounting hardware used will vary based on the requirements of your specific application. The final mounting method must affix the enclosure securely to prevent movement and vibration. General Specifications Continuous Power Handling (RMS) 300 W System Nominal Impedance 2 Ω Enclosure Type Sealed Finish Black Texture Grille Included Yes Physical Specifications Height (H) 8.23 in / 209 mm Width (W) 21.78 in / 553 mm Depth (D) 15.16 in / 385 mm JL Audio PES112-TW1 Manual

Read more less

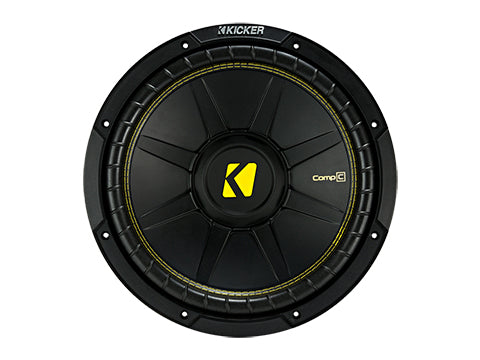

12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC This CompC 12" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround. The 44CWCS124 and 44CWCD124 12-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power. Specifications Size (IN.,CM) 12, 30 Impedance (OHMS) 4 SVC or 4 DVC Recommended Amplifier Power (watts RMS) 300 Peak Power (watts, per ANSI/CTA-2031-A) 600 Sensitivity (dB 1w/1m) 88.3 Frequency Response (Hz) 27-500 Mounting Depth (in, cm) 5-3/8, 13.6 Mounting Cutout (in, cm) 11, 27.9 Min Sealed Box Vol (cu. ft, L) 1.25, 35.4 Max Sealed Box Vol (cu. ft, L) 3.5, 99.1 Min Vented Box Vol (cu. ft, L) 1.75, 49.6 Max Vented Box Vol (cu. ft, L) 2.25, 63.7 Kicker CompC Subwoofer Manual

Read more less
