The KTA-F30W is perfect for when you want to boost your sound system but don’t have the space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power.
The KTA-30FW features Alpine’s exclusive Dynamic Peak Power (DPP) technology which uses a new dynamic power supply design that delivers bursts of power during rigorous musical passages. When the amplifier senses that more power is required, the power supply quickly increases the internal gain level, effectively doubling the power for a significant increase in dynamic range at high music volumes.
Specifications
Alpine's Class D amplifier circuit w/ Dynamic Peak Power (DPP)
75W RMS x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
150W DPP x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
>85dB S/N (ref. 1W into 4Ω)
>0.1% THD (ref. 1W into 4Ω)
20-20kHz Frequency response (+/-1dB)
Weather resistant (IP66 rating) OEM-grade connector wire harness
Speaker/RCA inputs (selectable, High range=0.5-10V, Low range=0.2-4V)
Sound control: Crossovers – Off/HP/LP, Fc=50-400Hz @ -12dB/Oct. (variable); Input gain settings (variable); 2ch/4ch input (selectable)
Alpine KTA-30FW Manual

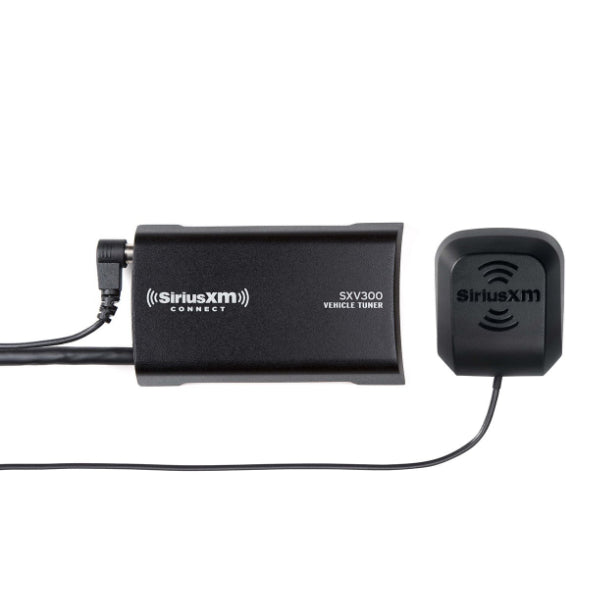

Aftermarket Stereo Replacement Add-On SiriusXM-Vehicle Tuner
Connect, control and enjoy SiriusXM though the vehicle's in-dash audio system; no special translators or cable adapters are needed.
Compact size hides discreetly behind the dash for a fully integrated look.
Single interface cable connection to SiriusXM-Ready car stereo simplifies installation.
Pause, Rewind and Replay up to 60 minutes of live Satellite Radio.*
Automatically start songs from the beginning on your favorite channels with TuneStart™.*
Use TuneMix™ to hear a mix of songs from your favorite channel.*
Use TuneScan™ to preview songs that you have not yet heard on your favorite channels.*
Keep up with the big plays for your favorite teams with SportsFlash™.*
Keep Moving with the most current updates using Traffic & Weather Now™.*
Get alerts when your favorite song, artist or team is playing.*
Discover new music and tag for purchase with iTunes® radio tagging.*
Compatible with all SiriusXM-Ready car stereo receivers from leading manufacturers. Look for the SiriusXM-Ready logo.

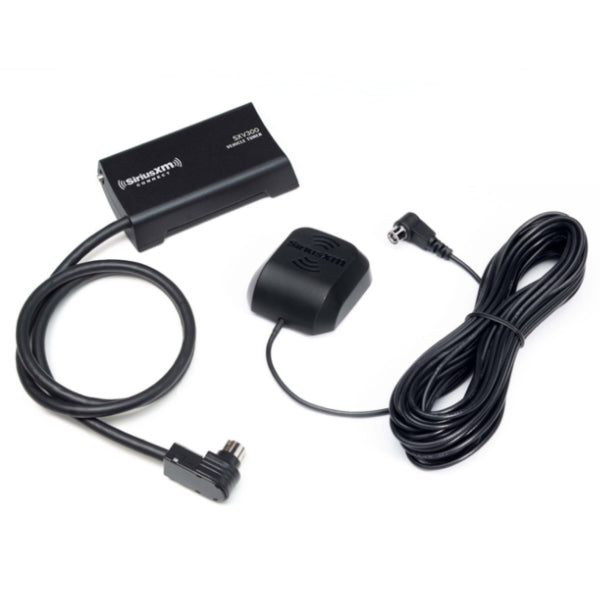

Includes: SXV300 Tuner and Magnetic Mount Antenna.
*Consult car stereo receiver manufacturer for detailed description of features and operations and capabilities.
Connect, control and enjoy all the wonders of satellite radio on the fly. The compact SXV300 tuner is truly plug-and-play with compatible car stereos and installs easily and discreetly behind the dash for a fully integrated look.
SiriusXM SXV300V1 Manual
Six-Channel Water Resistant Line-Converter with DSP and Optional Add-on Hi-Res Digital Output, Bluetooth Media Player Upgradable
Upgrade your sound system with this universal DSP “Lite” designed for outdoor vehicles. It features a water-resistant enclosure and zip tie mounts to keep it in place and protected from the elements. This solution is ideal for motorcycles, powersports vehicles, boats, and other outdoor vehicles that could expose the DSP to moisture and heavy vibration. This DSP can be used with OE or aftermarket radios and has an internal header port for adding a wireless streaming interface module (the AXDSPL-BT, which is sold separately) if the vehicle does not have a receiver/head unit.
2-Channel Digital Output Upgradeable with AXDSP-SP (sold separately)Convertible to a Media Receiver with AXDSPL-BT (sold separately)
15 Band graphic EQ
4 inputs and 6 individually assignable outputs
Independent equalization for front, rear, and sub
Independent crossover for front, rear, and sub
Selectable slope (12, 24, 36, or 48db per octave)
Front and rear channels can be delayed independently up to 10ms
Easy behind the radio installation in most applications
Water resistant enclosure with zip tie mounts included
Can be used with OE and aftermarket radios
Chime control for GM/Chrysler vehicles
Clipping detection and limiting circuits
Internal header port for adding a Bluetooth interface module
Bass knob included
Retains OE voice prompts (SYNC® and OnStar®)
Retains factory chimes including parking sensor and cross path
detection alerts
Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone), compatible with both Android™ and Apple® devices
Read, write, and store configurations for future recall
Password protect feature available in the mobile app
Micro-B USB updatable
Axxess AXDSPL-WR Manual
AM-Series Marine-Grade 4-Channel Amplifier, 100-Watt @ 2-Ohm or 65-Watt @ 4-Ohm
The FUSION AM Series marine amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver performance on the water like never before.
With 4 channels and a 500 Watt peak power output, the MS-AM504 will power either a pair of Fusion speakers plus a 10” subwoofer, or up to four pairs of speakers (with 2 speakers in parallel each channel at 2 Ohms), to spread the sound around your vessel.
Incorporating heat-tempered and conformal coated PCBs for maximum product life, and gold-plated connectors for improved signal flow, the MS-AM504 reproduces clean and powerful audio with enough power to rock the boat.
Features:
500W peak power output to power up to eight speakers
Class-AB amplifier – power efficient with less cross-over distortion
Conformal coated PCBs – water resistant protection from salt air and moisture
FUTRANZ heat sink technology – transfers heat more efficiently and provides more thermal stability with maximum component reliability
F.R.A.T (Fusion Regulated Amplifier Technology) – provides enormous power output at low voltage.
F.I.S.T (Fusion Intercooled Semi-Conductor Technology) – clamps down internal power switching to rapidly remove heat from all associated semi-conductors
1 year limited Consumer Warranty
The Fusion AM Series marine amplifiers are the perfect complement to any Fusion marine stereo system.
Product Specifications
Amplifier Class
Class-AB
Frequency Response
5Hz - 38kHz +/- 3dB
Peak Power
500 Watts
Rated Power (4 Ohms)
65 Watts RMS x 4 @ 14.4V - 4Ω 1% THD
Rated Power (2 Ohms)
100 Watts RMS x 4 @ 14.4V - 2Ω 1% THD
Rated Power (4 Ohms Bridged)
200 Watts RMS x 2 @ 14.4V - 4Ω Bridged 1% THD
Mounting Dimensions
Length
366mm [14-7/16"]
Depth
229mm [9"]
Height
53mm [2-1/16"]
Fusion AM504 Manual
Dual-Zone DIN-Size Marine-Grade Head-Unit
Introducing the MS-RA70NSX, Fusion’s sleekest value-packed marine stereo now with SiriusXM capability, designed to deliver a quality on-water entertainment experience by incorporating some of the latest marine technologies. The MS-RA70NSX is engineered to seamlessly replace any standard DIN sized non-marinized stereo without the need to reconfigure dash space. Clever styling gives the installer the option of either mounting the stereo with a conventional flush finish or integrating it flat into a glass helm, ensuring a high-end finish to the installation.
Features:
SiriusXM-Ready™ with advanced features (USA only) - SiriusXM satellite radio is available, along with a selection of advanced features:
Instant Replay, where you can replay songs from up to 1 hour past playing, making sure you never have to miss another beat of your favorite tunes.
TuneStart, where you will always hear the song playing on each of your favorite stations from the start, no matter how far along it is when you change the channel.
TuneMix, where you can create your own channel from a mix of your favorites to create your very own custom channel. TuneMix also gives you the ability to skip songs back to the last hour you have been listening across all channels in your mix.
SportsFlash, where you’ll receive key plays and updates from your favorite teams during live games, ensuring you never have to miss the best moments.
Artist, Song and Game Alerts, where you can choose to receive alerts whenever your favorite artists, songs or sports teams start playing.
Note: A SiriusXM Connect vehicle tuner and subscription are required to access SiriusXM satellite radio (available in USA only).
A2DP Bluetooth wireless technology with Fusion-Link app remote control available - Stream your favorite soundtrack from any compatible device with control* available from the stereo or your connected Apple or Android device via the Fusion-Link Bluetooth app. Simply download the free Apple® or Android™ Fusion-Link remote control app for Bluetooth from the Apple App Store® or Google Play™ store and enjoy localized zone control, source navigation, track selection and the freedom of wireless control.
Multiple sources available including USB MP3 playback and AM/FM radio - Listen to USB MP3 audio, connect your supported smartphone or even relax to your local AM/FM station; the MS-RA70NSX delivers marine grade entertainment to those who would normally have to resort to installing rust prone car audio stereos. Rest easy, let Fusion entertain you on the water.
IPX7 water resistant front face with optically bonded LCD - The MS-RA70NSX is designed and engineered specifically for the marine environment, with an IPX7 front panel (when mounted correctly) to withstand the environment like none other, perfectly paired with an optically bonded LCD for crystal clear display on the water.
Flat or flush mounting installation options - Two options are available for installation, giving you the option of a conventional flush mount or seamless integration into a glass helm with a flat finish for high-end aesthetics.
Multi-Zone control (2 zone system) - With two independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone. Note: Line Out/Sub Out requires additional amplification.
FUSION-Link NMEA 2000 ready for connection and control from any supported Multi-Function Display - The MS-RA70NSX is a Fusion-Link Wired NMEA 2000 certified product and is compatible with a range of the world’s leading Multi-Function Displays for on-screen audio control. When pairing the MS-RA70NSX with a supported chartplotter or fish finder, you bring your music to the big screen, allowing you to keep an eye on the charts or the fish while skipping tracks or adjusting the volume at the same time. In addition to MFD control, the MS-RA70NSX will connect to any Fusion NRX series remote control attached to the same powered NMEA 2000 network for localized control of the audio zones. (Note: the NRX remote must be incorporated onto a powered network. If you are planning on using the MS-RA70NSX and a NRX series remote on a standalone network, additional cabling is required to power the network).
*Play, pause and skip tracks.
The MS-RA70NSX is protected by a 12 month worldwide consumer warranty.
Specifications
Tuner
AM/FM with RDS (where available)
Tuner Region
USA, Australasia, Europe and Japan
Multi-Language User Interface
English, French, German, Spanish, Dutch and Italian
Audio Zones
2 on-board amplified zones
Nameable Zones
Up to 10 characters
Line Out
2 (1 x L + R per zone. Requires amplification)
Subwoofer Out
1 (Zone 1. Requires amplification)
Auxiliary Inputs
1 x stereo RCA input (AUX)
iPod/iPhone
Made for iPod and iPhone - supports IAP2 protocol only. Check device compatibility.
Android Open Accessory (AOA)
Android support is limited to devices which support AOA protocol. Check list of supported devices for details.
SiriusXM-Ready™
Yes - a SiriusXM Connect Vehicle Tuner and subscription are required. Available in USA only.
Display
128x64 monochrome optically bonded LCD
Garmin Watch Compatibility via ANT with Fusion-Link Lite
VivoActive/HR, Fenix 3/HR, Fenix 5/S/X, Quatix 3, D2 Bravo/Titanium, Fenix Chronos, Forerunner 935 - FUSION-Link App via Garmin Connect IQ
Fusion-Link Wireless
Available via Bluetooth with the Fusion-Link remote control app, available for download from the Apple App Store® or Google Play™. The Fusion-Link Lite app is available from the Garmin Connect IQ store to enable wireless control from a compatible Gamin watch.
Fusion-Link Wired
Compatible with a Fusion marine NMEA 2000 wired remote control and any Fusion-Link supported MFD.
NMEA 2000 Certified
LEN:1
Bluetooth Wireless Technology
A2DP Bluetooth Audio Streaming with AVRCP
USB
1 x USB connector at the rear of the unit. Supports 1 amp charging.
USB Audio Format
MP3
Water Resistance (IP Rating)
IPX7 water resistant front panel when installed correctly
Chassis
Electrically isolated glass-filled composite chassis with an aluminium side-fin heat sink with VCT
Amplifier
Class-AB 4 x 50W (@ 4 Ohms)
Dimensions: Length x Height x Depth (Front Panel incl. Volume Encoder)
188mm x 60mm x 23.5mm [7-7/16" x 2-3/8" x 15/16"]
Mounting Dimensions: Height x Depth
50mm x 100mm [2" x 3-15/16"]
Fusion RA70NSX Manual
Heise Add-On Universal 3-Inch Pair of Automotive Off-Road Fog-Lights with Switch and Wiring Harness, Blackout Series
Heise’s Blackout Series high output cube LED lights are small but powerful for better coverage at night. These next-generation lights have refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and for the driver’s lighting coverage needs. Each set is rated IP67 and includes a dual light wiring harness (HE-DLWH1) for installation. Flush mount options are also available and sold individually (without harness).
Specifications
2 Light Pack
Input Voltage: 12-24V Dc
Color Temperature: 5700K
Beam Pattern: 100o Flood
Housing Material: Die-Cast Aluminum
Color: Black
Lens Material: Polycarbonate
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operating Temperature: -40oF To +140oF
Protection: Reverse Polarity
Mounting: Side & Rear
Limited Lifetime Warranty
Size: 3”
4 LEDs
Wattage: 40W
Raw Lumens: 4,800lm
Lux at 10m: 28
Current Consumption @ 13.8V: 2.9A
IP Rating: IP67
WARNING: THIS LIGHTING PRODUCT IS SOLD FOR OFF-ROAD USE ONLY. This product should not be used on the road. Owners should keep the original factory bulbs so that they can replace them for use on public roads. Keep the box that the new bulbs came in to store the bulbs and be sure to handle them with care when removing and re-installing.
Aftermarket Add-on Two-Lamp Wiring-Harness and Switch-Kit
Universal Plug and Play Wiring Harness with On-Off Rocker Switch
12V DC Relay
30A Fuse
With 2-pin DT connectors for 2 Lamps
With Waterproof Fuse Holder
Set includes Wiring Harness and Switch
Use with two Heise Light Bars or Cubes 22 inches or smaller
Heise HE-DLWH1 Manual
Heise Add-On Universal Light Bar Switch and Wiring Harness
9 ft lead for light bar connector(s)
Universal wiring harness and switch kit (for 1 lamp, ATP connector)
Universal plug-n-play wiring harness with on/off rocker switch
12V DC relay
30A fuse
Use with 1 Heise light 160 watts or more
12-Inch x 12-Inch Stealth-Black Foil-Sheets with Self-Adhesive Butyl-Backing
The HushMat 10200 sound proofing adhesive squares can be applied anywhere in your vehicle to reduce acoustic vibration and the road noise that distorts the quality of your audio system. These 12" x 12" butyl backed self adhesive sheets can be easily cut to fit, are flexible and can be molded to fit the curvature of the application area. Great for eliminating vibrations in your car doors, headliner, floor boards and trunk area.
10 Sheets per box
Priced and sold by the sheet
1/3-Inch CMOS Backup Camera with Hood
This rugged camera features a 1/3 inch CMOS camera with a metal hood. Complete with 0 lux IR LED night vision and 18 IR LEDs drivers will have visibility in dark or foggy conditions. High quality metal housing and a water resistance IP69K rating ensures that it can withstand the elements during long days of driving. Designed for commercial use – this camera is functional with up to 100 feet of extension cable and includes a 4-Pin Din to RCA connector.
Specifications
High quality metal housing
120 degree viewing angle
1/3 inch CMOS camera
IP69K water resistant
0 lux IR LED night vision
Includes 4-pin Din to RCA connector
18 IR LEDs
2 15/16 inch W X 3 1/16 inch H X 2 3/4 inch D
Functional with up to 100 feet of extension cable
Length of Cable off of camera to 4-pin din is 15"
PAL format
iBeam TE-CCH Manual
Vinyl Electrical Tape 3/4 inch X 60 feet - 10 Pack
3M™ Temflex™ Tape 1776 is a 7 mil thick, economical, general purpose, vinyl, insulating tape that is made in the USA. It provides primary electrical insulation for all wires and cable splices up to 600V and excellent mechanical protection with the combination of a rubber resin adhesive and PVC backing. This flame retardant tape withstands a temperature range of 32 to 176 °F (0 to 80 °C) and is highly resistant to moisture, alkalis, acids, copper, corrosion and varying weather conditions. This tape is ideal for harnessing cables/wires and indoor/outdoor applications. CSA Certified, UL Listed and RoHS 2011/65/EU Compliant.
The combination of the rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
Made of black durable PVC
Withstands a temperature range of 32 to 176 °F (0 to 80 °C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
10 Pack - Sold individually by the Roll
3M™ Scotchlok™ 16/14 & 12/10 Gauge - Package of 100
3M™ Scotchlok™ Insulation Displacement Connector electrically connects a tap wire to a run (through) wire while insulating the connection. This connector is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. Polypropylene insulated and self stripping.
Brown polypropylene-insulated connector
Suitable for general purpose electrical connections on an auto, boat, van or trailer
Accommodates 12 to 10 AWG Run , 16 to 14 AWG Tap
Rated for 600V building wire and 1000V rated for signs, fixtures and luminaires
The connector withstands temperatures of 221 degrees F (105 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Package of 100
3M™ Scotchlok™ IDC Blue 16/14 Gauge - Package of 100
3M™ Scotchlok™ Insulation Displacement Connector is a double run or tap connector for tap or parallel splicing. Polypropylene insulated, self stripping and flame retardant.
Blue, polypropylene-insulated connector is suitable for tap or parallel splicing
Suitable for general purpose electrical connections on an auto, boat, van or trailer
Accommodates 16 to 14 AWG Run , 16 to 14 AWG Tap
Rated for 600V building wire and 1000V rated for signs, fixtures and luminaires
The connector withstands temperatures of 221 degrees F (105 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Package of 100
3M™ Blue T-Tap 16/14 Gauge - Package of 100
3M™ Scotchlok™ Insulation Displacement Connectors are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEMapplications.
for 16-14 AWG wire
Rated for 600V building wire and 1000V rated for signs, fixtures and luminaires
The connector withstands temperatures of 221 degrees F (105 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Package of 100
3M™ Red Scotchlok™ 22/18 Gauge - Package of 100
3M™ Scotchlok™ Insulation Displacement Connector is a double run or tap connector for tap or parallel splicing. Polypropylene insulated, self stripping and flame retardant.
Red, polypropylene-insulated connector is suitable for tap or parallel splicing
Suitable for general purpose electrical connections on an auto, boat, van or trailer
Accommodates 18 to 14 AWG Run , 22 to 18 AWG Tap
Rated for 600V building wire and 1000V rated for signs, fixtures and luminaires
The connector withstands temperatures of 221 degrees F (105 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Package of 100
3M™ Red T-Tap 22-18 Gauge Package of 100
3M™ Scotchlok™ Insulation Displacement Connectors are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEMapplications.
for 22-18 AWG wire
Rated for 600V building wire and 1000V rated for signs, fixtures and luminaires
The connector withstands temperatures of 221 degrees F (105 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Package of 100
3M™ Scotchlok™ 12/10 Gauge - Pkg of 100
3M™ Scotchlok™ Insulation Displacement Connector is a double run or tap connector for tap or parallel splicing. Polypropylene insulated, self stripping and flame retardant
Yellow, polypropylene-insulated connector
Suitable for general purpose electrical connections on an auto, boat, van or trailer
Accommodates 12 to 10 AWG stranded
Rated for 600V building wire and 1000V rated for signs, fixtures and luminaires
The connector withstands temperatures of 194 degrees F (90 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Package of 100
3M™ Yellow T-Tap 12/10 Gauge - Package of 100
3M™ Scotchlok™ Insulation Displacement Connectors are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEMapplications.
for 12-10 AWG wire
Rated for 600V building wire and 1000V rated for signs, fixtures and luminaires
The connector withstands temperatures of 221 degrees F (105 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Package of 100
Black Insulation Displacement Connector 26/22 Ga - 100Pk
Metra T-Tap quick splice connectors are used to tap into a wire, mid run without cutting or stripping the wire. They have a brass conductor inside a nylon, color coded, insulative clam shell for quick identification and installation.
Black connector is for use on 26-22 AWG wire
Package of 100
Blue Nylon Female Quick Disconnect 16-14 Gauge .250
Nylon Quick Disconnect terminals are designed to be connected and separated quickly and easily. They can be pulled apart if needed. They are a safe and convenient way to create secure electrical connections. Used by the automotive and marine industries, due to their ease of use, and resistance to abrasion and impacts. Nylon Quick Disconnect terminals can be installed quickly and last for years.
Accepts wire size 16 AWG – 14 AWG
Connects to male terminal – size .250
Fully insulated
Nylon insulation, color Blue
Package of 100 pcs
