Automotive Market

15-Inch 800-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC The 48CWR15 15" subwoofer is available in a 2Ω or 4Ω dual voice coil design, making it easy to get the most out of your amp. An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion. KICKER developed Forced Air Cooling to helps their subs run 25% cooler. The Kicker 48CWR152 and 48CWR154 15" subs work best with a sealed or ported enclosure and 800 watts of recommended power. Specifications SIZE [in, cm]: 15, 38 IMPEDANCE [Ohms]: 2 or 4 DVC Recommended Amplifier Power (watts RMS) 800 Peak Power (watts, per ANSI/CTA-2031-A) 1600 SENSITIVITY [dB 1w/1m]: 89.4 MOUNTING DEPTH [in, cm]: 7 15/16, 20 MOUNTING DIAMETER [in, cm]: 13 3/4, 35 MIN SEALED BOX VOL [cu. ft, L]: 1.8, 51 MAX SEALED BOX VOL [cu. ft, L]: 3.0, 85 MIN VENTED BOX VOL [cu. ft, L]: 3.0, 85 MAX VENTED BOX VOL [cu. ft, L]: 5.0, 142 Kicker CompR Subwoofer Manual

Read more less

15-Inch 600-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC This CompC 15" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround. The 44CWCS154 and 44CWCD154 15-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 600W RMS of amplified power. Specifications Size (IN.,CM) 15, 38 Impedance (OHMS) 4 SVC or 4 DVC Recommended Amplifier Power (watts RMS) 600 Peak Power (watts, per ANSI/CTA-2031-A) 1200 Sensitivity (dB 1w/1m) 90.3 Frequency Response (Hz) 25-500 Mounting Depth (in, cm) 7, 17.7 Mounting Cutout (in, cm) 13 3/4, 35 Min Sealed Box Vol (cu. ft, L) 2.25, 63.7 Max Sealed Box Vol (cu. ft, L) 5.0, 141.6 Min Vented Box Vol (cu. ft, L) 3.0, 85 Max Vented Box Vol (cu. ft, L) 4.0, 113.3 Kicker CompC Subwoofer Manual

Read more less

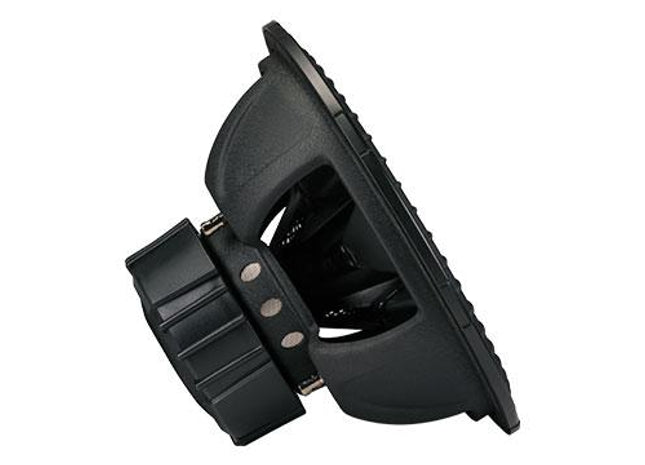

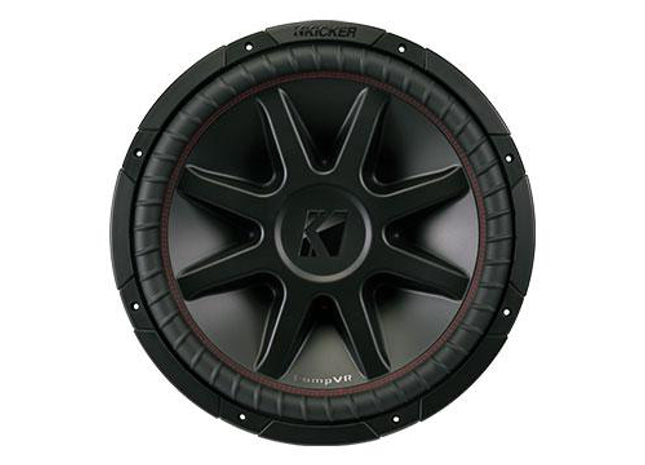

15-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC This 43CVR 15" subwoofer by Kicker uses an advanced heat dispersion system with perimeter venting to allow air to circulate while the Kicker proprietary UniPlate™ system redirects even more heat away from the motor.  The chassis of this 15-Inch sub holds a pair of high-temp voice coils that move an injection molded woofer. The CompVR 15" subwoofer is available in a 2Ω or 4Ω dual voice coil design. The Kicker 43CVR152 and 43CVR154 15" subs works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details. Specifications SIZE [in, cm]: 15, 38 IMPEDANCE [Ohms]: 2 or 4 DVC Recommended Amplifier Power (watts RMS) 500 Peak Power (watts, per ANSI/CTA-2031-A) 1000 SENSITIVITY [dB 1w/1m]: 89.2 MOUNTING DEPTH [in, cm]: 8 3/16, 20.7 MOUNTING DIAMETER [in, cm]: 13 11/16, 34.7 MIN SEALED BOX VOL [cu. ft, L]: 1.8, 51 MAX SEALED BOX VOL [cu. ft, L]: 5.2, 147 MIN VENTED BOX VOL [cu. ft, L]: 3, 85 MAX VENTED BOX VOL [cu. ft, L]: 5, 142 Kicker CompVR Subwoofer Manual

Read more less

15-Inch 1000-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC The CompVX 15" subwoofer driver by Kicker is designed with high-temp dual voice coils that deliver up to 1000W of amplified RMS power. A solid pole-piece provides more mass to disperse heat. A thick polypropylene cone complements the SoloKon™ cone reinforcement system and the oversized suspension system. The Kicker 44CVX152 and 44CVX154 15 inch subwoofers have a UniPlate™ extended pole piece & backplate for superior heat dissipation and satin nickel spring-loaded speaker terminals. Specifications Size (IN.,CM) 15, 38 Impedance (OHMS) 2 or 4 DVC Recommended Amplifier Power (watts RMS) 1000 Peak Power (watts, per ANSI/CTA-2031-A) 2000 Sensitivity (dB 1w/1m) 91.6 Frequency Response (Hz) 18-500 Mounting Depth (in, cm) 8 1/2, 21.5 Mounting Cutout (in, cm) 13 13/16, 35 Min Sealed Box Vol (cu. ft, L) 1.8, 51.0 Max Sealed Box Vol (cu. ft, L) 5.2, 147.0 Min Vented Box Vol (cu. ft, L) 3.0, 85.0 Max Vented Box Vol (cu. ft, L) 5.0, 142.0 Kicker CompVX Subwoofer Manual

Read more less

15-Inch 1100-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC The CompQ 15” audiophile subwoofer from Kicker is their flagship round subwoofer line, with nearly identical construction and performance as the L7 square subs. The Kicker 42CWQ152 and 42CWQ154 were designed for high power handling and audiophile competition bass reproduction, this 15-Inch CompQ sub features Ribbed Santoprene® surrounds and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at any volume level. This 15” subwoofer driver works best with a sealed or ported enclosure with 1,100-Watts of RMS power. See below for more details. Specifications Rated Impedance [Ω] 2 or 4 DVC Fs [Hz] 30.6 Sensitivity [1W, 1m] 88.6 Qts 0.472 Qms 9.672 Qes 0.496 Re [Ω] 6.03 Vas [ft³, L] 2.5, 70.747 Recommended Amplifier Power (watts RMS) 1100 Outer Frame Dimension [in, cm] 15 3/8, 39.1 Mounting Depth [in, cm] 8 15/16, 22.6 Mounting Cutout [in, cm] 13 7/8, 35.2 Frequency Response [Hz] 18 – 100 Kicker CompQ Subwoofer Manual

Read more less

15-Inch 900-Watt Square Subwoofer Driver, 2-Ohm or 4-Ohm DVC This L7 series 15" square woofer by Kicker hosts a heavy-duty motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. On board the chassis of this 900W driver you will find dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, ribbed santoprene surround with blue stitching and a UniPlate™ back plate and pole piece, plus perimeter venting for thermal heat management. The Kicker 45L7R152 and 45L7R154 square subwoofers are rated for 900W of RMS amplified power. Specifications SIZE [in, cm]: 15, 38 IMPEDANCE [Ohms]: 2 or 4 DVC Recommended Amplifier Power (watts RMS) 900 Peak Power (watts, per ANSI/CTA-2031-A) 1800 SENSITIVITY [dB 1w/1m]: 88.05 MOUNTING DEPTH [in, cm]: 8 3/8, 21.5 MOUNTING DIAMETER [in, cm]: 13 3/4, 34.9 MIN SEALED BOX VOL [cu. ft, L]: 1.5, 42.48 MAX SEALED BOX VOL [cu. ft, L]: 3, 85 MIN VENTED BOX VOL [cu. ft, L]: 3, 85 MAX VENTED BOX VOL [cu. ft, L]: 6, 170 Kicker L7R Subwoofer Manual

Read more less

15-Inch Square 1000-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC The audiophile competition 15" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 15 inch 1000W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 15 inch square sub nice and cool.  This 15" L7 square sub can handle up to 1000W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection. Specifications Size (IN.,CM) 15, 38.1 Impedance (OHMS) 2 or 4 DVC Recommended Amplifier Power (watts RMS) 1000 Peak Power (watts, per ANSI/CTA-2031-A) 2000 Sensitivity (dB 1w/1m) 89.4 Frequency Response (Hz) 18-100 Mounting Depth (IN.,CM) 8 11/16, 22.1 Mounting Cutout, Square (IN.,CM) 13 3/4, 34.9 Min Rec Sealed Box Volume (CU. FT., Liters) 2.0, 56.64 Max Rec Sealed Box Volume (CU. FT., Liters) 6.0, 169.9 Min Rec Vented Box Volume (CU. Ft., Liters)** 3.0, 85.0 Max Rec Vented Box Volume (CU. Ft., Liters)** 6.0, 169.9 Kicker Solo-Baric L7 Subwoofer Manual

Read more less
