Add-On Amplifier OEM Integration Interface for Select 2001-2017 Non-Amplified BMW, MINI and Volkswagen Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-BM1 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications
BMW
3 Series 2002-2006
5 Series 2001-2003
M3 2002-2006
X3 2004-2010
X5 2001-2006
Z4 2003-2008
MINI
Clubman 2008-2014
Convertible 2009-2015
Coupe 2012-2015
Hatchback 2007-2013
Roadster 2012-2015
Volkswagon
Beetle 2012-2015
CC 2009-2017
EOS 2007-2016
Golf 2002-2014
GTI 2006-2014
Jetta 2002-2015
Jetta Sportwagon 2010-2014
Passat 2002-2015
R32 2007-2008
Tiguan 2009-2015
Touareg 2004-2010
Axxess AXLOC-BM1 Manual
Add-On Amplifier OEM Integration Interface for Select 2011-2020 Non-Amplified Chrysler and Dodge Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-CH3 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/5/2023
Chrysler
300 2011-2014
300C 2011-2014
Dodge
Charger 2011-2014
Journey 2011-2020
Axxess AXLOC-CH3 Manual
Add-On Amplifier OEM Integration Interface for Select 2007-2021 Non-Amplified Chrysler, Dodge and Jeep Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-CH4 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/5/2023
Chrysler
200 2011-2014
300 2008-2010
Aspen 2008-2009
Sebring 2007-2010
Town & Country 2008-2017
Dodge
Avenger 2008-2014
Caliber 2009-2012
Caravan 2008-2020
Grand Caravan 2008-2020
Challenger 2008-2014
Charger 2008-2010
Dakota 2008-2011
Durango 2008-2013
Journey 2009-2010
Magnum 2008-2009
RAM 2009-2011
Jeep
Commander 2008-2010
Compass 2009-2017
Grand Cherokee 2008-2013
Liberty 2008-2012
Patriot 2009-2017
Wrangler(JK) 2007-2021
Axxess AXLOC-CH4 Manual
Add-On Amplifier OEM Integration Interface for Select 2007-2021 Non-Amplified Chrysler, Dodge, Fiat, Jeep and RAM Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
INTERFACE COMPONENTS
AXLOC-CH5 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/5/2023
Chrysler
200 2015-2017
Pacifica 2017-2020
Dodge
Dart 2011-2014
Durango 2011-2020
1500, 2500, 3500 2013-Up
Fiat
500 2016-2019
500L 2014-2020
500X 2016-2021
Jeep
Cherokee 2013-2021
Compass 2017-2021
Renegade 2015-2021
RAM
Chassis Cab 2500/3500/4500/5500 2013-2021
Promaster 1500/2500/3500 2014-2021
Promaster City 2015-2021
Axxess AXLOC-CH5 Manual
Add-On Amplifier OEM Integration Interface for Select 2003-2019 Non-Amplified Ford, Lincoln, Mazda and Mercury Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-FD1 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Ford
Crown Victoria 2003-2011
E-Series 2014-2019
Econoline 2009-2013
Edge 2007-2010
Escape 2008-2012
Expedition 2003-2015
Explorer 2006-2010
F-150 2004-2014
F250/350/450/550 2005-2016
F650/750 2011-2019
Five Hundred 2005-2007
Flex 2009-2012
Focus 2005-2011
Freestar 2004-2007
Freestyle 2005-2007
Fusion 2006-2012
Mustang 2004-2014
Taurus 2008-2012
Thunderbird 2004-2005
Transit Connect 2010-2013
Lincoln
LS 2003-2006
MKX 2007-2010
MKZ 2007-2009
Navigator 2003-2006
Town Car 2003-2011
Zephyr 2006
Mazda
Tribute 2008-2011
Mercury
Grand Marquis 2003-2011
Mariner 2005-2011
Milan 2006-2011
Montego 2005-2007
Monterey 2004-2007
Mountaineer 2006-2010
Sable 2008-2009
Axxess AXLOC-FD1 Manual
Add-On Amplifier OEM Integration Interface for Select 2011-2021 Non-Amplified Ford Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-FD2 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Ford
Edge 2011-2020
Escape 2013-2019
Explorer 2011-2019
F-150 2013-2020
F250/350/450/550 2017-2019
Fiesta 2011-2021
Focus 2012-2018
Fusion 2013-2019
Mustang 2015-2020
Ranger 2019-2020
Transit 150/250/350 2015-2019
Transit Connect 2014-2018
Axxess AXLOC-FD2 Manual

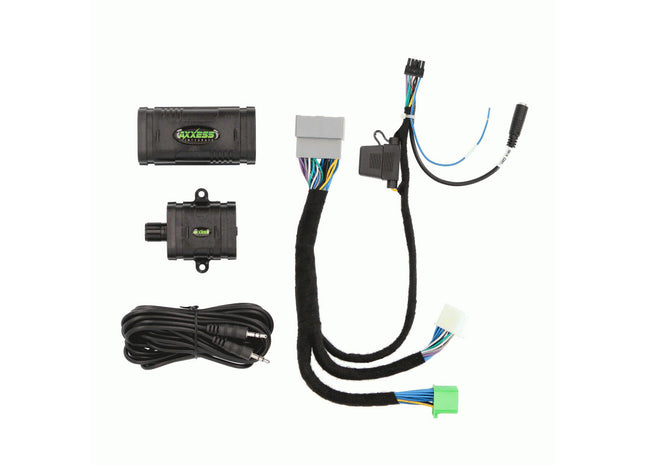

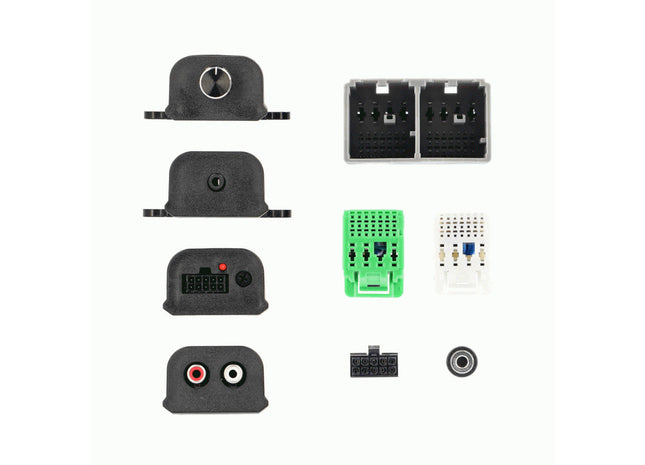

Add-On Amplifier OEM Integration Interface for Select 2019-2021 Non-Amplified Chevy and GMC Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.
Contents
AXLOC-GM31 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Chevy
Camaro (RPO IOR) 2019-2021
Cheyenne (RPO IOR) 2019-2021
Colorado (RPO IOR) 2019-2021
Cruze 2019
Equinox (RPO IOR) 2019-2021
Malibu (RPO IOR) 2019-2021
Silverado (RPO IOR) 2019-2021
Sonic 2019-2021
Spark (RPO IOR) 2019-2021
GMC
Canyon (RPO IOR) 2019-2021
Sierra (RPO IOR) 2019-2021
Terrain (RPO IOR) 2019-2021
Axxess AXLOC-GM31 Manual

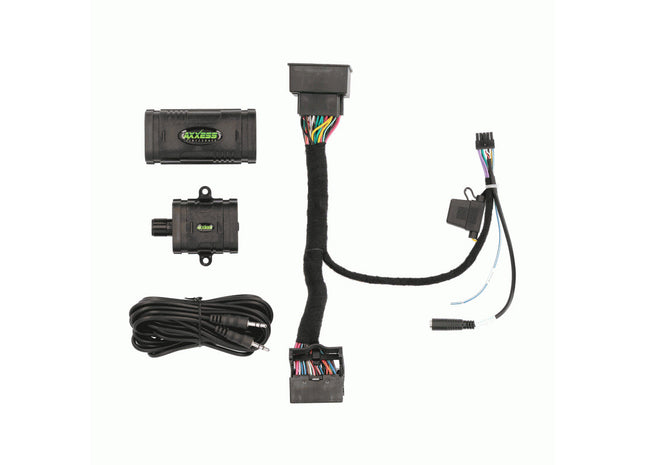

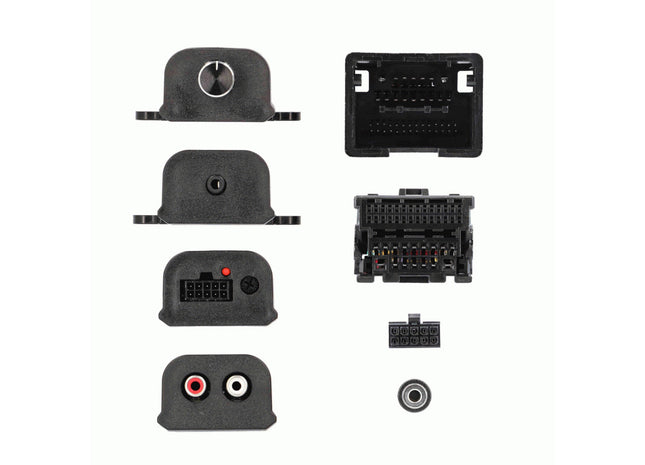

Add-On Amplifier OEM Integration Interface for Select 2010-2017 Non-Amplified Chevy and GMC Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-GM44 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Chevy
Avalanche 2012-2013
Camaro 2010-2015
Cruze 2011-2015
Equinox 2010-2017
Express 2013-2015
Malibu 2013-2015
Sonic 2012-2014
Spark 2013-2015
Suburban 2012-2014
Tahoe 2012-2014
Trax 2015-2016
GMC
Savana 2013-2015
Sierra 2012-2013
Terrain 2010-2017
Yukon/XL 2012-2014
Axxess AXLOC-GM44 Manual

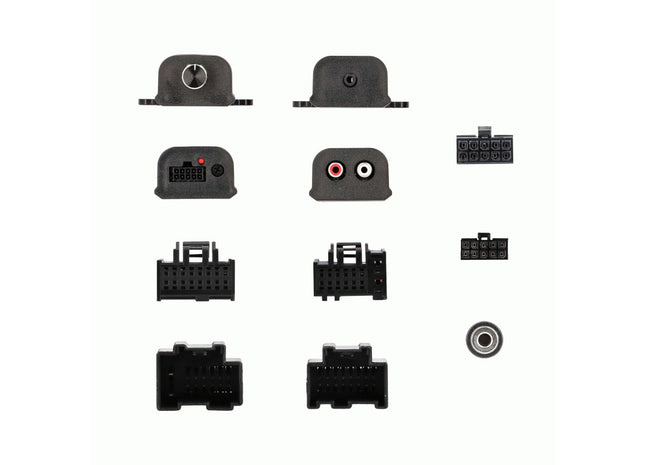

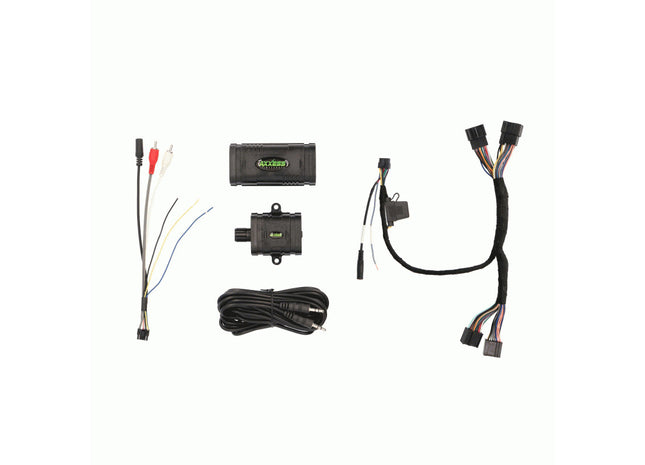

Add-On Amplifier OEM Integration Interface for Select 2006-2021 Non-Amplified Buick, Cadillac, Chevy, GMC, Hummer, Pontiac, Saturn and Suzuki Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-GMLN1 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Buick
Lucerne 2006-2011
Cadillac
DTS 2006-2011
Escalade 2007-2014
SRX 2007-2009
Chevrolet
Avalanche 2007-2013
Captiva Sport 2012-2015
Cheyenne (RPO IOB) 2016-2018
Cheyenne 2012-2014
Equinox 2007-2009
Express van (Full Size) 2008-2021
Impala Limited (Fleet) 2014
Impala 2006-2013
Monte Carlo 2006-2007
Silverado Pickup 2007-2013
Spark (RPO IOB) 2016-2018
Suburban 2007-2014
Tahoe 2007-2014
Traverse 2009-2017
GMC
Acadia 2007-2016
Savana Full Size Van 2008-2014
Sierra (New Body) 2007-2013
Sierra 2500/3500 2014
Yukon XL / Denali 2007-2014
Yukon 2007-2014
Hummer
H2 2008-2009
Pontiac
Torrent 2007-2009
Saturn
Outlook 2007-2009
VUE 2008-2009
Suzuki
XL-7 2007-2009
Axxess AXLOC-GMLN1 Manual

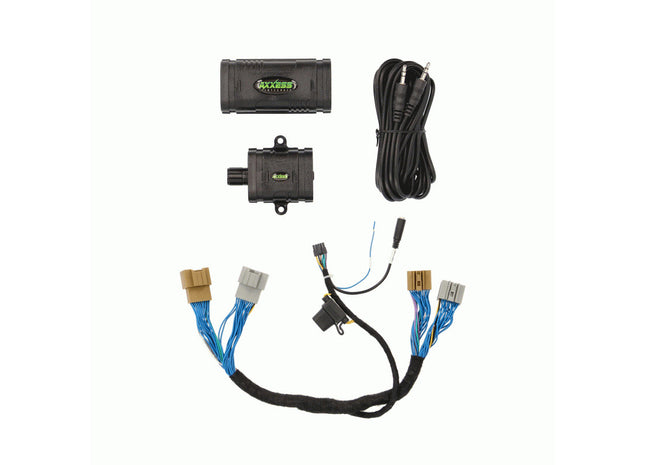

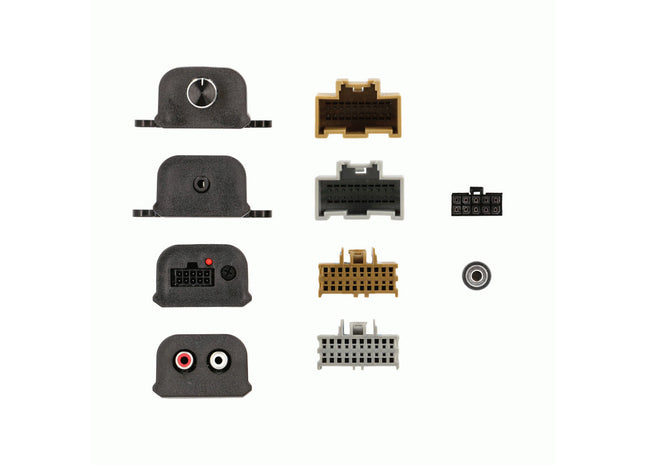

Add-On Amplifier OEM Integration Interface for Select 2016-2020 Non-Amplified Chevy and GMC Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-GM10 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Chevrolet
Camaro 2016-2018 ‡
Colorado 2016-2018 ‡
Cruze 2016-2018 †
Equinox 2018-2018 ‡
Malibu 2016-2018 †
Silverado LD 2019-2019 ‡
Silverado 2016-2018 ‡
Silverado 2500/3500 2016-2019 ‡
Trax 2017-2020 †
GMC
Acadia 2017-2019 ‡
Canyon 2017-2018 ‡
Sierra 2016-2018 ‡
Sierra Limited 2019-2019 ‡
Sierra 2500/2500 HD 2016-2019 ‡
† RPO IOA‡ RPO IOB
Axxess AXLOC-GMLN10 Manual
Add-On Amplifier OEM Integration Interface for Select 2008-2021 Non-Amplified Acura and Honda Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-HN2 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Acura
TL 2009-2014
TSX 2009-2014
ZDX 2010-2013
Honda
Accord 2008-2012
Civic 2009-2015
CR-V 2012-2016
Fit 2009-2017
HR-V 2016-2018
Insight 2010-2014
Odyssey 2011-2017
Pilot 2009-2017
Ridgeline 2009-2021
Axxess AXLOC-HN2 Manual
Add-On Amplifier OEM Integration Interface for Select 2016-2021 Non-Amplified Honda Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-HN3 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Honda
Civic 2016-2018
Civic Hatchback 2017-2018
CR-V 2017-2021
Fit 2018-2021
HR-V 2019-2021
Insight 2019-2021
Axxess AXLOC-HN3 Manual
Add-On Amplifier OEM Integration Interface for Select 2016-2021 Non-Amplified Hyundai and KIA Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-HYKIA3 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Hyundai
Accent 2018-2021
Elantra 2017-2021
Elantra GT 2018-2021
IONIQ 2018-2021
Kona 2018-2021
Santa Fe 2019-2021
Santa Fe XL 2019
Sonata 2018-2021
Tucson 2019-2021
Veloster 2019-2021
KIA
Cadenza 2017-2021
Forte 2017-2021
Forte 5 2017-2021
K5 2021-2021
Optima 2019- 2020
Sedona 2017-2021
Sorento 2017-2021
Stinger 2018-2021
Axxess AXLOC-HYKIA3 Manual
Add-On Amplifier OEM Integration Interface for Select 1995-2013 Non-Amplified Infinity and Nissan Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-NIS Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications
Infiniti
FX35 2003-2008
FX45 2003-2008
G20 1995-1996
Nissan
200SX 1995-1998
240SX 1995-1998
350Z 2003-2009
Altima 1995-2006
Armada 2004-2007
Frontier 1998-2012
Hardbody Pickup 1995-1997
Maxima 1995-2006
Murano 2003-2007
Pathfinder S 2008-2012
Pathfinder 1995-2007
Pathfinder Armada 2004-2005
Quest 2004-2009
Sentra 1995-2006
Titan 2004-2012
Xterra 2000-2013
Axxess AXLOC-NIS Manual
Add-On Amplifier OEM Integration Interface for Select 2007-2021 Non-Amplified Nissan, Subaru and Suzuki Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-NIS1 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Nissan
370Z 2009-2021
Altima 2007-2021
Cube 2009-2014
Frontier 2008-2021
Juke 2011-2017
Kicks 2018-2021
Leaf 2012-2021
Maxima 2007-2021
Murano 2009-2021
Murano (Cross-Cabriolet) 2011-2014
NV – 1500/2500/3500 2012-2021
NV200 2013-2021
Pathfinder 2013-2020
Quest 2011-2016
Rogue 2008-2017
Sentra 2007-2019
Titan, Titan XD 2017-2021
Titan 2008-2015
Versa 2007-2021
Versa Note 2014-2019
Xterra 2008-2015
Subaru
Forester 2009-2015
Impreza 2008-2014
Legacy 2010-2014
Outback 2010-2014
WRX 2015
XV Crosstrek 2013-2014
Suzuki
Equator 2009-2011
Axxess AXLOC-NIS1 Manual
Add-On Amplifier OEM Integration Interface for Select 1987-2020 Non-Amplified Toyota Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-TY1 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Toyota
4Runner 1987-2019
86 2017-2020
Avalon 1995-2018
C-HR 2018-2018
Solara 1999-2008
Camry 1987-2017
Celica 1989-2005
Corolla 1987-2019
Cressida 1987-1992
Echo 2000-2005
FJ Cruiser 2007-2014
Highlander 2001-2019
Land Cruiser 1988-1993
Matrix 2005-2013
MR2 1987-1995
MR2 Spyder 2000-2005
Paseo 1992-1997
Pickup 1987-1995
Previa 1991-1997
Prius 2001-2019
Prius C 2012-2019
Prius Prime 2017-2020
Prius V 2012-2017
RAV-4 1996-2018
Sequoia 2001-2019
Sienna 1996-2017
Solara 1999-2008
Supra 1986-1992
T-100 1993-1998
Tacoma 1995-2019
Tundra 2000-2019
Van 1987-1990
Venza 2009-2015
Yaris 2007-2018
Axxess AXLOC-TY1 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2018-2021 Non-Amplified Toyota Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-TY3 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Toyota
4Runner 2020-2021
Avalon 2019-2021
C-HR 2019-2021
Camry 2018-2021
Corolla 2019-2021
Highlander 2020-2021
Prius 2020-2021
RAV-4 2019-2021
Sequoia 2020-2021
Sienna 2018-2021
Tacoma 2020-2021
Tundra 2020-2021
Axxess AXLOC-TY3 Manual
Add-On Amplifier OEM Integration Interface for Select 2015-2021 Non-Amplified Volkswagen Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-VW2 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications - confirmed as of 2/6/2023
Volkswagen
Beetle 2016-2021
Golf 2015-2021
Jetta 2016-2021
Passat 2016-2021
Tiguan 2016-2021
Axxess AXLOC-VW2 Manual
Fully Active 2-Channel Speaker Level to Line Output Converter
Designed by JL Audio Sr. Engineer Bruce Macmillan, the LoC-22 is an active two-channel processor engineered for applications requiring the attenuation of factory audio signals for use with aftermarket amplifiers and signal processors.
The LoC-22 utilizes a fully regulated, switching MOSFET power supply and an all-analog circuit design to deliver flat frequency response, at any signal level (3 Hz – 32 kHz, +0, -1dB), without altering bass response at high levels, like many passive line output converters do.
Engineered to combat induced cable noise, the LoC-22 features a differential-balanced input architecture making it compatible with virtually any analog audio signal. Capable of accepting up to 40V RMS per channel (equivalent to 400W @ 4 ohms), the LoC-22 easily handles the most powerful factory amplifier outputs. An onboard dual-range input load switch allows compatibility with most factory amplifiers that employ impedance sensing to mute channels.
Ideal for full-range or low-frequency applications, the LoC-22 is equipped with a pair of analog RCA-type, line-level output jacks (up to 8V RMS) to feed audio signals to your aftermarket system. Analog outputs are compatible with most types of aftermarket signal processors or amplifiers. Setting output levels is super simple and easy, thanks to a specially calibrated, onboard clipping indicator that works with test tones or music. The LoC-22 offers two automatic turn-on methods (DC-Offset Sensing or Signal Sensing) and provides a positive 12V turn-on output to activate aftermarket amplifiers or other downstream electronics.
The LoC-22 includes the following features:
Fully active, all analog circuit design by Bruce Macmillan, handles powerful factory amplifier outputs, up to 40 volts per channel
Differential-balanced input architecture offers noise rejection and compatibility with most analog outputs from OEM source units and amplifiers
Dual range input load switch (20 kΩ/Normal, 60 Ω/Low Z, thermally protected) for maximum compatibility with OEM amplifiers
One stereo pair of crystal-clear, line-level RCA output jacks (up to 8V RMS)
Automatic turn-on via DC-Offset or Signal-Sensing
A dedicated 12V remote turn-on output (maximum 100 mA) to activate aftermarket signal processors or amplifiers
Onboard LED clipping indicator makes output level setting quick & easy
Ultra-compact chassis design fits into just about any installation location!
Specifications
Power Supply Type
Switching, MOSFET PWM, Regulated
Operating Voltage
9 - 16 V DC
Standby Current Draw
<1.6 mA
Operating Current Draw
0.13 A at 13.8V
Frequency Response
3 Hz - 32 kHz (+0 dB, -1dB)
S/N Ratio @ 2V RMS
Gain at Min: 118 dB Gain at Max: 103 dB (20 kHz Bandwidth)
Remote Output Capacity
100 mA (maximum)
Recommended Fuse Value
1 A
Recommended Fuse Type
Fast-Acting, ATO/ATC or similar
Input Channels
Two
Input Type
Differential-Balanced
Input Voltage
40V RMS per channel (maximum)
Input Impedance
Normal: 20kΩLow Z: 60Ω
Turn-On Threshold
Signal-Sensing: 5 mV On/3.5 mV Off at1 kHz (Left Input) DC-Offset: 4.5 V
Output Channels
Two
Analog Output
Unbalanced, stereo RCA jacks
Max. Unclipped Output
8V RMS
Output Impedance
450 Ω
Gain Range
-27.3 dB (full CCW) to +3.2 dB (full CW)
THD+N
0.01% at 2V RMS (1kHz)
JL Audio LoC-22 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
2-Channel Class-D Full-Range Amplifier with Integrated DSP, 300-Watt x 2 @ 2-Ohm / 180-Watt x 2 @ 4-Ohm
Designed to simplify great audio, every VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With JL's second-generation NexD2™ technology, the VX600/2i full-range amplifier outputs up to 180 watts per channel into 4 ohms, or a powerful 300 watts into 2 ohms. It can also be bridged into 4 ohms to generate a stunning 600 W x 1.
The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable
TüN™ Software Applications
Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices.
Unprecedented, Onboard DSP Tuning Power
Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM®
Hi-Res audio processing at 24 bit/96 kHz
High-performance AKM® A/D and D/A converters
10 Bands of fully parametric EQ, per output channel, including pre-outs
Shelving EQ option for Band 1 and Band 10
High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes: Linkwitz-Riley: 12, 24, 48 dB/octaveButterworth: 6, 12, 18, 24, 36, 48 dB/octave
Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm)
All-Pass Filter (Phase EQ), with variable "Q" and corner frequency
Polarity Reversal (0 or 180 deg.)
Output Level Trim in 0.1 dB steps
NexD2™ Switching Amplifier Technology
JL's latest generation of high-speed switching technology delivers superb low frequency power and efficiency.
Specially optimized for subwoofer applications
Ultra-Versatile Analog and Digital Inputs
High-performance, differential-balanced analog inputs for outstanding noise rejection
Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems
Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz)
Automatic turn-on options via Signal-Sensing or DC-Offset sensing
Functional Compact Chassis Design
Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding
All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces.
Configurable LED logo ring displays status and can display audio preset color code or user-defined color
Logo badge can be oriented in 90 degree increments
Corner caps engineered to conceal mounting holes and hardware
JLid™ System Command and Control with Networking Capabilities
JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including:
DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat.
VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device.
VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers.
Specifications
Frequency Response
12 Hz - 24 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power(Analog Inputs)
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W(Analog Inputs)
76 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power(Digital Inputs)
100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W(Digital Inputs)
78 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>100 / 50 Hz
Damping Factor @ 2 Ω
>50 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
@ 4 Ω
180 W RMS x 2
@ 2 Ω
300 W RMS x 2
Bridged @ 4Ω
600 W RMS x 1
JL Audio VX600/2i Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
XDM-Series 2-Channel Class-D Marine-Grade Amplifier, 100-Watts x 2-Channels @ 2-Ohm or 75-Watts x 2-Channels @ 4-Ohm
The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100-watts per channel into 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is JL's advanced high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM200/2 includes a 12dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
@ 4 Ω
75 W RMS x 2 @ 14.4V
@ 2 Ω
100 W RMS x 2 @ 14.4V
Bridged @ 4Ω
200 W RMS x 1 @ 14.4V
@ 4 Ω
60 W RMS x 2 @ 12.5V
@ 2 Ω
90 W RMS x 2 @ 12.5V
Bridged @ 4Ω
180 W RMS x 1 @ 12.5V
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
20 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Security Cover for Controls
Yes
Pass-Through Preamp Output
Buffered
Height (H)
2.05 in / 52 mm
Width (W)
6.85 in / 174 mm
Depth (D)
7.09 in / 180 mm
Net Weight
3.75 lb / 1.70 kg
JL Audio XDM200/2 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Bluetooth Equipped Motorcycle Amplifier with Media Controller, All-In-One Stereo Amplifier
The PXiBT1002 2ch stereo amplified controller with BT by Kicker is the only solution you need for sound in your side-by-side, ATV, motorcycle, tractor, or whatever your ride. No existing radio necessary.
A 24dB selectable crossover with 24dB subsonic filter, made to craft your sound to exacting standards. The Bluetooth receiver allows you to stream music right to the amplifier, while the illuminated display allows you to change track, volume and source. A wide range of input levels make this amp easy to hook up with a factory radio or aftermarket.This PXA amplifier delivers as much as 100 total watts into two channels. See below for more details.
Specifications
RMS Output @ 4-Ohms
25 watts x 2
RMS Output @ 2-Ohms
50 watts x 2
Length [in, cm]
7, 17.8
Height [in, cm]
1-5/8, 4
Width [in, cm]
3-7/16, 8.7
USB audio input / charging
5V/1A
Frequency Response [Hz]
20 - 20k
Signal-to-Noise Ratio [dB]
90
Aux Input Sensitivity
500mV
Selectable 12dB high-pass crossover
OFF, 60Hz, 80Hz, 120Hz
RCA pre-out voltage
4.5V RMS
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
2-Channel Marine Amplifier, 75-Watts x 2 @ 2-Ohm, 150-Watts Mono @ 4-Ohm
This KM series 2ch marine amp by Kicker uses class A/B power circuitry and KickEQ™ variable bass boost providing you with as much as a 12dB of extra bump. A powerful 12dB crossover is also included, letting you quickly tune your system to perfection. This weatherproof 2 Channel amplifier has ABYC/NMMA-compliant power connections and a conformal-coated circuit board to keep it protected from water.
This KM series amplifier delivers as much as 75 watts into two channels, or 150 watts bridged into one channel.
Specifications
POWER [watts/ch], 2 OHM STEREO
75 x 2
POWER [watts/ch], 4 OHM BRIDGED MONO:
150 x 1
POWER [watts/ch], CLASS D 2 OHM MONO:
n/a
KM REMOTE CAPABLE (sold separately):
No
DIMS [in] 2-5/16H x 7-1/8W x ...L
8 1/16
DIMS [cm] 5.9H x 18.0W x ...L
20.5
FREQUENCY RESPONSE [Hz]:
10-20k, +0/-1dB
INPUT SENSITIVITY:
High Level 250mV-10V, Low Level 125mV-5V
SIGNAL-TO-NOISE RATIO:
>95dB, a-weighted, re: rated power
ACTIVE CROSSOVER:
12dB/octave, variable 50-200Hz, selectable high pass, low pass or all pass
SUBSONIC FILTER
n/a
KickEQ™ BOOST
Variable to +12dB, centered @ 40Hz
What's in the Box:
1 - power amplifier1 - user manual, mounting hardware
Kicker KMA Amplifier Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
2-Channel Marine Amplifier, 600-Watt x 2ch @ 2-Ohm, or 300-Watt x 2 @ 4-Ohm
This KXM 2ch marine amplifier uses Class D power technology, KickEQ+™ for 18dB of amplified variable bass boost, and a powerful 24dB crossover and subsonic filter to give you onboard acoustic control to quickly tune your setup. A wireless remote controlled bass knob is also included for tuning your subs on the fly.
This Kicker KXM 2 channel weatherproof amplifier can be used to power 600W into a 2Ω load or 300W into a 4Ω load.
Specifications
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N : 300 x 2@ 14.4V, 2Ω stereo, ≤ 1% THD+N : 600 x 2
Length [in, cm]
11 3∕16 , 28.4
Height [in, cm]
2 ⅛, 5.5
Width [in, cm]
8 5⁄16 , 21
Frequency Response ± 1dB
10Hz–20kHz
Signal-to-Noise Ratio
95dB
Input Sensitivity
250mV–10V
Selectable Electronic Crossover
OffVariable HP, 10-500HzVariable LP, 40-500Hz; 400Hz–5,000Hz with 10X Switch (BP capable)Slope: 24dB/octave
KickEQ™ Bass Boost
0-18dB @ 40Hz
CEA Power
300 x 2 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
CEA Signal-to-Noise Ratio
-75dB CEA-2006B (ref: 1W, A-weighted)
Kicker KXMA Amplifier Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
2-Channel Marine Amplifier, 200-Watt x 2ch @ 2-Ohm, or 100-Watt x 2 @ 4-Ohm
This KXM 2ch marine amplifier uses Class D power technology, KickEQ+™ for 18dB of amplified variable bass boost, and a powerful 24dB crossover and subsonic filter to give you onboard acoustic control to quickly tune your setup. A wireless remote controlled bass knob is also included for tuning your subs on the fly.
This Kicker KXM 2 channel weatherproof amplifier can be used to power 200W into a 2Ω load or 100W into a 4Ω load.
Specifications
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N : 100 x 2@ 14.4V, 2Ω stereo, ≤ 1% THD+N : 200 x 2@ 14.4V, 4Ω bridged mono, ≤ 1% THD+N: 400 x 1
Length [in, cm]
9 9∕16 , 24.4
Height [in, cm]
2 ⅛, 5.5
Width [in, cm]
8 5⁄16 , 21
Frequency Response ± 1dB
10Hz–20kHz
Signal-to-Noise Ratio [dB]
95
Input Sensitivity
250mV-10V
Selectable Electronic Crossover
OffVariable HP, 10-500HzVariable LP, 40-500Hz; 400Hz–5,000Hz with 10X Switch (BP capable)Slope: 24dB/octave
KickEQ+™ Bass Boost
0-18dB @ 40Hz
CEA Power
100 x 2 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
CEA Signal-to-Noise Ratio
-75dB CEA-2006B (ref: 1W, A-weighted)
Kicker KXMA Amplifier Manual
Add-On Fiber Optic Output for Select Pac-Audio AmpPro Interfaces
The APA-TOS1 is a fiber-optic audio output add-on accessory for use with an AmpPRO interface. The APA-TOS1 easily installs in your AmpPRO interface and instantly provides a digital Toslink output.
APA-TOS1 is compatible with any brand and length of Toslink cable for connection into a Toslink equipped DSP, or amplifier.
Benefits
APA-TOS1 provides a pure digital output for aftermarket amplifier and/or DSP installationDigital audio signals are less susceptible to noise/hiss or interference
Features
Quick and easy installation into any AmpPRO interfaceProvides digital fiber-optic variable audio signal outputCompatible with Toslink equipped DSPs or amplifiers
NOTE: Toslink cable is not included
Pac Audio AP4-TOS1 Manual
