Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Status-Series 4-Channel Class-D Full-Range Hi-Resolution Automotive-Grade Amplifier, 100-Watts x 4-Channel @ 4-Ohm
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.
Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-F60 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.
The HDA-F60 features a high-efficiency digital circuit design that ensures ultra- low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 83dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.
Featuring technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the speakers for ultimate reliability.
The HDA-F60 features Alpine’s quick- connect power and speaker connectors for quick and safe installation. The one- sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit)
4-Channel Amplifier
High-Efficiency Digital Circuit Design
Alpine’s Dual Negative Feedback Control Circuit
High Bandwidth Amplifier
Alpine’s Premium Class D Circuit Design
Copper-plated chassis
Black circuit board
One-sided terminal layout
Top panel sound controls
Quick connect power and speaker terminals
Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)
Specifications
Dimensions: 11.4375” x 7.5” x 2.125”
Power Rating: (14.4V, ≤1.0% THD+N)
100W x 4 @ 4Ω
150W x 4 @ 2Ω
Bridged: 300W x 2 @ 4Ω
THD+N: 0.02% (10W into 4ohm)
S/N Ratio: 87dB (1W into 4ohm)
Frequency response: 10-60kHz (-3dB)
Damping factor: 500
Selectable input level – HI/LO
Selectable 2/4ch input
Variable High pass / Low pass crossover
Auto-turn on with remote sensing
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine 75-Watt x 4-Channel Weather Resistant Power Pack Amplifier
The KTA-F30W is perfect for when you want to boost your sound system but don’t have the space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power.
The KTA-30FW features Alpine’s exclusive Dynamic Peak Power (DPP) technology which uses a new dynamic power supply design that delivers bursts of power during rigorous musical passages. When the amplifier senses that more power is required, the power supply quickly increases the internal gain level, effectively doubling the power for a significant increase in dynamic range at high music volumes.
Specifications
Alpine's Class D amplifier circuit w/ Dynamic Peak Power (DPP)
75W RMS x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
150W DPP x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
>85dB S/N (ref. 1W into 4Ω)
>0.1% THD (ref. 1W into 4Ω)
20-20kHz Frequency response (+/-1dB)
Weather resistant (IP66 rating) OEM-grade connector wire harness
Speaker/RCA inputs (selectable, High range=0.5-10V, Low range=0.2-4V)
Sound control: Crossovers – Off/HP/LP, Fc=50-400Hz @ -12dB/Oct. (variable); Input gain settings (variable); 2ch/4ch input (selectable)
Alpine KTA-30FW Manual
Alpine 45-Watts x 4-Channel Power Pack Amplifier
45W RMS x 4 (4Ω/2Ω, 14.4V, ≤ 1% THD+N)
82dB S/N (ref: 1W into 4Ω)
Compact size (fits easily inside dashboard of most vehicles)
Works with select 2005+Alpine head units
The KTP-445A Power Pack amplifies power output on select 2005 and newer Alpine head units, resulting in up to a 150 percent power increase over the original power from the head unit's built-in amplifier.
COMPACTCompact size lets the KTP-445A fit where most amplifiers won’t. The KTP-445A comes equipped with direct plug-in connectors for select 2005 and newer Alpine head units and it fits behind the dash of most vehicles. It's small and compact at only 7-7/16” x 1-1/2” x 2-1/2”. Its size and flexible wires make the Power Pack an easy choice to save space.
BEST SIGNAL-TO-NOISE CONTENDER IN ITS CLASSIn order to ensure that Alpine sound quality is heard, we’ve created a platform that offers an unbelievably low noise floor, taking extra care to ensure a clean signal path, with no extraneous interference. The end result: The Power Pack boasts 1 Watt Signal-to-Noise Ratio of 82dB or better.
No Manual Avialable
Alpine 45-Watts x 4-Channel Power Pack Amplifier
45W RMS x 4 (4Ω/2Ω, 14.4V, ≤ 1% THD+N)
82dB S/N (ref: 1W into 4Ω)
Compact size (fits easily inside dashboard of most vehicles)
Works with any aftermarket and most OEM head units
Bridgeable
Gain, high-pass crossovers and input select
Add higher output and more dynamic response with this easy-to-install Universal Power Pack upgrade.
COMPACT
Compact size lets the KTP-445U fit where most amplifiers won’t. The KTP-445U comes equipped with the RCA and Auto-Sensing-Speaker level connectors and it fits behind the head unit in the dash of most vehicles. It's small and compact at only 7-7/16” x 1-1/2” x 2-1/2”. The size and flexible wires make the Power Pack an easy choice to save space.
INDEPENDENT FILTERS FOR REAR & FRONT INPUTS
High-Pass selectable switches for Front & Rear allow frequency filtering for a wide variety of speakers. Choose from full range to selectable range: 60Hz, 80Hz or 120Hz to fine-tune your crossover points.
CONFIGURABLE INPUTS
Need configurable options for Speaker-Level or RCA inputs to the Power Pack? On the bottom panel of the Power Pack there are selectable input options to accommodate Speaker-Level (0.5V-10V) or RCA (0.2V – 4V) inputs. Selectable 2 Channel and 4 Channel options give you the control to determine source inputs, and can eliminate the need for Y-adapters.
ACCESSIBLE FRONT & REAR GAINS
The Power Pack provides simple variable gain controls on the end panel for flexibility and a wide variety of system applications.
BEST SIGNAL-TO-NOISE CONTENDER IN ITS CLASS
In order to ensure that Alpine sound quality is heard at your ears, we’ve created a platform that offers an unbelievably low noise floor, taking extra care to ensure a clean signal path, with no extraneous interference. The end result: The Power Pack boasts 1 Watt Signal-to-Noise Ratio of 82dB or better.
TOTAL HARMONIC DISTORTION (THD+N) VS. FREQUENCY
Uniquely, the Power Pack distortion actually decreases at higher frequencies, resulting in a clean and clear signal where your ear is most sensitive to distortion. - < 0.03% THD+N @ 1W, 1% THD+N @ rated power.
Alpine KTP-445U Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine 265W Powered Speaker System with Built-in Subwoofer
The PWD-X5’s subwoofer increases the sound system’s overall bass output and when the product is installed under the front seat, it brings the sound stage forward in the vehicle for the best bass and imaging experience. With 165-watts available to the subwoofer and 25-watts x 4 to the speakers, this all-in-one solution lets you create a truly enjoyable and customizable sound experience in just about any in-vehicle cabin space.
The PWD-X5 can also be used in non-traditional ways thanks to the Bluetooth® streaming capabilities. In situations where the car radio cannot be replaced, such as in a classic car, music can be streamed to the PWD-X5’s Bluetooth® connection then played through the car’s speakers while utilizing the PWD-X5’s bass and amplified power. If a head unit does not exist, such as on a motorcycle or a side-by-side, the music streamed from a smartphone to the PWD-X5’s Bluetooth® connection is used as the vehicle’s music source.
Specifications
25W x 4 +165W RMS
50W x 4 +240W Peak
4 RCA/Speaker Level Inputs
10-Band Parametric EQ
Digital Time Correction
Bluetooth Signal Inputs
Remote Commander Included
OS/Android and Desktop PC Tuning Software
13-13/16” x 9-11/16” x 3-3/16”
CES 2019 Innovations Award Winner
Alpine PWD-X5 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine R-Series 400-Watt 4-Channel Amplifier
The R-Series amplifiers utilize Alpine’s advanced amplifier platform that takes the classic Class-D amplifier circuit and adds dual post-filter feedback loops for unmatched accuracy and control. This technology., originally launched in the premium X-Series amplifiers,, produces efficient power with enhanced dynamic range, qualifying the R-Series amplifiers to be Hi-Resolution Audio compliant.
This new technology minimizes audible imperfections like excessive phase shift and internal noise which can deteriorate sound quality. With an incredibly low phase shift of 46°, the R-A60F 4-channel amplifier delivers accurate imaging compared to well over 100° of phase shift by a competitive amplifier model. This superior phase curve ensures a proper sound stage among the singers and instruments.
Specifications
Alpine's Class D amplifier circuit
100W RMS x 4 (4Ω, 14.4V, ≤ 1% THD+N)
150W RMS x 4 (2Ω, 14.4V, ≤ 1% THD+N)
Bridged: 300W x 2 (4Ω, 14.4V, ≤ 1% THD+N)
S/N >85dB (ref. 1W into 4Ω) • THD+N≤ 0.03% (ref. 1W into 4Ω)
Frequency response =10Hz to 45kHz (+/- 3dB)
Damping Factor >500
Alpine R-A60F Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine S-Series 55-Watt x 4-Channel Power Amplifier
The S-Series amplifiers are designed to fit anywhere. Measuring at 8”, these amplifiers can be mounted under seats or behind panels. Though they sport a compact footprint on the outside, they produce impressive power on the inside The S-A32F 4-Channel Amplifier boasts the perfect amount of power to drive the newly redesigned S-Series speakers to their optimal performance for clean and accurate sound.
The S-Series amplifiers contain technology that was previously only available in our premium line up of amplifiers, the R- and X-Series models. The S-Series models are based on Alpine’s intelligent amplifier platform that ensures superior sound reproduction and precision imaging. With an improved heat sink, and protection circuit design that eliminates thermal shut-down, your music will keep playing no matter where your drive takes you.
Specifications
Alpine's Class D amplifier circuit
55W RMS x 4 (4Ω, 14.4V, ≤ 1% THD+N)
80W RMS x 4 (2Ω, 14.4V, ≤ 1% THD+N)
Bridged: 160W RMS x 2 (4Ω, 14.4V, ≤ 1% THD+N)
S/N >83dB (ref. 1W into 4Ω)
THD+N ≤ 0.03% (ref. 1W into 4Ω)
Frequency response =10Hz to 30kHz (+/-3dB)
Damping Factor >100
Alpine S-A32F Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
AM-Series Marine-Grade 4-Channel Amplifier, 100-Watt @ 2-Ohm or 65-Watt @ 4-Ohm
The FUSION AM Series marine amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver performance on the water like never before.
With 4 channels and a 500 Watt peak power output, the MS-AM504 will power either a pair of Fusion speakers plus a 10” subwoofer, or up to four pairs of speakers (with 2 speakers in parallel each channel at 2 Ohms), to spread the sound around your vessel.
Incorporating heat-tempered and conformal coated PCBs for maximum product life, and gold-plated connectors for improved signal flow, the MS-AM504 reproduces clean and powerful audio with enough power to rock the boat.
Features:
500W peak power output to power up to eight speakers
Class-AB amplifier – power efficient with less cross-over distortion
Conformal coated PCBs – water resistant protection from salt air and moisture
FUTRANZ heat sink technology – transfers heat more efficiently and provides more thermal stability with maximum component reliability
F.R.A.T (Fusion Regulated Amplifier Technology) – provides enormous power output at low voltage.
F.I.S.T (Fusion Intercooled Semi-Conductor Technology) – clamps down internal power switching to rapidly remove heat from all associated semi-conductors
1 year limited Consumer Warranty
The Fusion AM Series marine amplifiers are the perfect complement to any Fusion marine stereo system.
Product Specifications
Amplifier Class
Class-AB
Frequency Response
5Hz - 38kHz +/- 3dB
Peak Power
500 Watts
Rated Power (4 Ohms)
65 Watts RMS x 4 @ 14.4V - 4Ω 1% THD
Rated Power (2 Ohms)
100 Watts RMS x 4 @ 14.4V - 2Ω 1% THD
Rated Power (4 Ohms Bridged)
200 Watts RMS x 2 @ 14.4V - 4Ω Bridged 1% THD
Mounting Dimensions
Length
366mm [14-7/16"]
Depth
229mm [9"]
Height
53mm [2-1/16"]
Fusion AM504 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

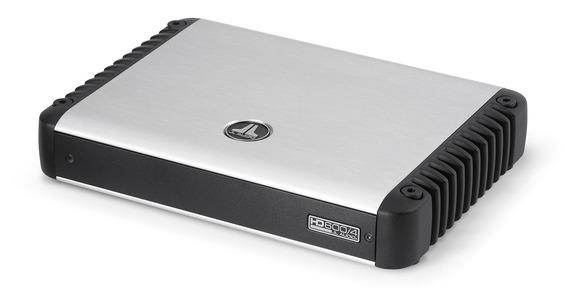

HD-Series 4-Channel Class-D Full-Range Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms
This compact multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.
When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, JL invites you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.
It can also be deployed on its own as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.
This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
General Specifications
Frequency Response
6 Hz - 30 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>300 / 50 Hz
Damping Factor @ 2 Ω
>150 / 50 Hz
THD+N @ Rated Power
<0.03% @ 4 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
@ 4 Ω
150 W RMS x 4
@ 3 Ω
150 W RMS x 4
@ 2 Ω
150 W RMS x 4
@ 1.5 Ω
150 W RMS x 4
Bridged @ 8 Ω
300 W RMS x 2
Bridged @ 4 Ω
300 W RMS x 2
JL Audio HD600/4 Manual
JD-Series 75-Watt x 4-Channel Class-D Full-Range Amplifier
Utilizing JL Audio's exclusive NexD™ high-speed switching technologies, the JD400/4 amplifier is engineered to deliver loads of clean power, with excellent efficiency and low distortion. This little guy churns out 100 watts of audio from each of its four channels into 2 ohms (14.4V, 1% THD) and is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a whopping 200W x 2 into 4 ohms.
The JD400/4’s controls can be found on the input panel of the amplifier, with all speaker and power connections located along the opposite end of the extruded aluminum chassis. Signal processing features include high or low-pass 12 dB / octave filters (defeatable) for each channel pair, with continuously variable frequency selection from 50-500 Hz, and dual-range, differential-balanced inputs capable of accepting line-level or speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard equipment.
Onboard LED-clipping indicators are also included surrounding each input sensitivity control. This convenient feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. You will also find a set of buffered, pass-through preamp outputs on-board, so you can pass signals to another amplifier.
General Specifications
@ 4 Ω
75 W RMS x 4
@ 2 Ω
100 W RMS x 4
Bridged @ 4Ω
200 W RMS x 2
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
40 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
No
Filter Defeat Function
Yes
Remote Level Control
No
Remote Level Modes
N/A
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
No (always 2 Ch)
JL Audio JD400/4 Manual
M-Series 4-Channel Class-D Full-Range Marine-Grade Amplifier, 75-Watts x 4-Channel @ 4-Ohm
This tiny amplifier packs a serious full-range punch, delivering a staggering 100W to each of its four channels into 2Ω (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is JL's NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
Use the M400/4 in combination with JL's M600/1 monoblock to build a 1000W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat. Or, use the M400/4 by itself to power two satellites, plus a subwoofer. With M-Series amplifier, the possibilities are endless.
The M400/4 includes a 12dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's Ch. 1 & 2 level or overall level can be directly controlled from a remote location.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Specifications
@ 4 Ω
75 W RMS x 4
@ 2 Ω
100 W RMS x 4
Bridged @ 4Ω
200 W RMS x 2
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
100 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
40 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional (HD-RLC)
Remote Level Modes
2 or All channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes
JL Audio M400/4 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
MHD-Series 4-Channel Class-D Marine Grade Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms
This compact, multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x 4ch or 300W x 2ch. Tight power supply regulation keeps distortion down and maximizes sound quality.
When using the MHD750/1 to drive a subwoofer system, the MHD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Specifications
@ 4 Ω
150 W RMS x 4
@ 3 Ω
150 W RMS x 4
@ 2 Ω
150 W RMS x 4
@ 1.5 Ω
150 W RMS x 4
Bridged @ 8 Ω
300 W RMS x 2
Bridged @ 4 Ω
300 W RMS x 2
Frequency Response
6 Hz - 30 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>300 / 50 Hz
Damping Factor @ 2 Ω
>150 / 50 Hz
THD+N @ Rated Power
<0.03% @ 4 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12/24 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional (HD-RLC)
Remote Level Modes
2 or All Channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes
JL Audio MHD600/4 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
MHD-Series 4-Channel Class-D 24-Volt Marine Grade Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms
This compact, multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x 4ch or 300W x 2ch's. Tight power supply regulation keeps distortion down and maximizes sound quality.
The MHD600/4-24V is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2ch to the satellites and 300W x 1 to a subwoofer system.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.
Specifications
@ 4 Ω
150 W RMS x 4
@ 3 Ω
150 W RMS x 4
@ 2 Ω
150 W RMS x 4
@ 1.5 Ω
150 W RMS x 4
Bridged @ 8 Ω
300 W RMS x 2
Bridged @ 4 Ω
300 W RMS x 2
Frequency Response
6 Hz - 30 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>300 / 50 Hz
Damping Factor @ 2 Ω
>150 / 50 Hz
THD+N @ Rated Power
<0.03% @ 4 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
25 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12/24 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional (HD-RLC)
Remote Level Modes
2 or All Channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes
JL Audio MHD600/4-24V Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
MHD-Series 5-Channel Class-D Marine Grade Amplifier, 100-Watts x 4ch + 500-Watt Mono @ 1.5-4Ω
Thanks to its ability to act as a "one-box solution", the MHD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance marine audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using JL Audio's Single Cycle Control switching design and R.I.P.S technology, the MHD900/5 delivers 100W x 4ch, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Specifications
Main Channels @ 4 Ω
100 W RMS x 4
Main Channels @ 3 Ω
75 W RMS x 4
Main Channels @ 2 Ω
75 W RMS x 4
Main Channels @ 1.5 Ω
75 W RMS x 4
Main Channels - Bridged @ 8 Ω
200 W RMS x 2
Main Channels - Bridged @ 4 Ω
150 W RMS x 2
Subwoofer Channel @ 4 Ω
500 W RMS x 1
Subwoofer Channel @ 3 Ω
500 W RMS x 1
Subwoofer Channel @ 2 Ω
500 W RMS x 1
Subwoofer Channel @ 1.5 Ω
500 W RMS x 1
Frequency Response (Main Channels)
12 Hz - 28 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel)
12 Hz - 10 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels)
>108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels)
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>400 / 50 Hz
Damping Factor @ 2 Ω
>200 / 50 Hz
THD+N @ Rated Power (Main Channels)
<0.03% @ 4 Ω
THD+N @ Rated Power (Subwoofer Channel)
<0.05% @ 4 Ω
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge
Accepts up to 4 AWG wire
Fuse Rating
60 A (AFS, AGU or MaxiFuse™)
Filter Mode(s): Channels 1 & 2 (front)
High-Pass only
Filter Slope(s): Channels 1 & 2 (front)
12/24 dB/octave
Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 500 Hz
Filter Mode(s): Channels 3 & 4 (rear)
High-Pass only
Filter Slope(s): Channels 3 & 4 (rear)
12/24 dB/octave
Filter Frequency Range: Channels 3 & 4
50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel
Low-Pass only
Filter Slope(s): Subwoofer Channel
12/24 dB/octave
Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Infrasonic Filter: Subwoofer Channel
30 Hz, Defeatable
Remote Level Control
Optional (HD-RLC)
Remote Level Modes
Sub Ch. only
Channel Input Mode Switch
Yes (2/4/6 ch.)
Pass-Through Preamp Output
None
Source Channel Selection for PreOuts
N/A
JL Audio MHD900/5 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
MHD-Series 5-Channel Class-D 24-Volt Marine Grade Amplifier, 100-Watts x 4ch + 500-Watt Mono @ 1.5-4Ω
Thanks to its ability to act as a "one-box solution", the MHD900/5-24V is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance marine audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using JL Audio's Single Cycle Control switching design and R.I.P.S technology, the MHD900/5-24V delivers 100W x 4ch to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24V may result in damage to the product and will void the warranty.
Specifications
Main Channels @ 4 Ω
100 W RMS x 4
Main Channels @ 3 Ω
75 W RMS x 4
Main Channels @ 2 Ω
75 W RMS x 4
Main Channels @ 1.5 Ω
75 W RMS x 4
Main Channels - Bridged @ 8 Ω
200 W RMS x 2
Main Channels - Bridged @ 4 Ω
150 W RMS x 2
Subwoofer Channel @ 4 Ω
500 W RMS x 1
Subwoofer Channel @ 3 Ω
500 W RMS x 1
Subwoofer Channel @ 2 Ω
500 W RMS x 1
Subwoofer Channel @ 1.5 Ω
500 W RMS x 1
Frequency Response (Main Channels)
12 Hz - 28 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel)
12 Hz - 10 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels)
>108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels)
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>400 / 50 Hz
Damping Factor @ 2 Ω
>200 / 50 Hz
THD+N @ Rated Power (Main Channels)
<0.03% @ 4 Ω
THD+N @ Rated Power (Subwoofer Channel)
<0.05% @ 4 Ω
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge
Accepts up to 4 AWG wire
Fuse Rating
30 A (AFS, AGU or MaxiFuse™)
Filter Mode(s): Channels 1 & 2 (front)
High-Pass only
Filter Slope(s): Channels 1 & 2 (front)
12/24 dB/octave
Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 500 Hz
Filter Mode(s): Channels 3 & 4 (rear)
High-Pass only
Filter Slope(s): Channels 3 & 4 (rear)
12/24 dB/octave
Filter Frequency Range: Channels 3 & 4
50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel
Low-Pass only
Filter Slope(s): Subwoofer Channel
12/24 dB/octave
Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Infrasonic Filter: Subwoofer Channel
30 Hz, Defeatable
Remote Level Control
Optional (HD-RLC)
Remote Level Modes
Sub Ch. only
Channel Input Mode Switch
Yes (2/4/6 ch.)
Pass-Through Preamp Output
None
Source Channel Selection for PreOuts
N/A
JL Audio MHD900/5-24V Manual
MX-Series 4-Channel Class-D Marine-Grade Amplifier, 70-Watts x 4ch @ 2-Ohm or 50-Watts x 4ch @ 4-Ohm
Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs JL's high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Specifications
Frequency Response
20 Hz - 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>89.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>60 / 50 Hz
Damping Factor @ 2 Ω
>30 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
Min.Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
35 A (AFS, AGU or MaxiFuse™)
@ 4 Ω
50 W RMS x 4
@ 2 Ω
70 W RMS x 4
Bridged @ 4Ω
140 W RMS x 2
JL Audio MX280/4 Manual
MX-Series 4-Channel Marine-Grade Amplifier, 125-Watts x 4ch @ 2-Ohm or 70-Watts x 4ch @ 4-Ohm
Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs JL's high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Specifications
Frequency Response
20 Hz - 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>70.5 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>92 / 50 Hz
Damping Factor @ 2 Ω
>43 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
@ 4 Ω
70 W RMS x 4
@ 2 Ω
125 W RMS x 4
Bridged @ 4Ω
250 W RMS x 2
JL Audio MX500/4 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
RD-Series 75-Watts x 4-Channel Automotive Amplifier @ 4-Ohms
Utilizing JL Audio's exclusive NexD™ high-speed switching technologies, the ultra-compact RD400/4 amplifier is engineered to deliver loads of audio output power, with incredible efficiency and low distortion. Don’t let its modern styling and small size fool you though, this little powerhouse churns out 100 watts of crystal-clear audio from each of its four channels into 2 ohms (14.4V, 1% THD) and is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a whopping 200W x 2 into 4 ohms.
For your convenience, the RD400/4’s controls can be found on top of the amplifier, beneath a protective cover, with all connections located along one side of its chassis. Studio-grade signal processing features include high or low-pass 12 dB / octave filters (defeatable) for each channel pair, with continuously variable frequency selection from 50-500 Hz, and dual-range, differential-balanced inputs capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard equipment, along with all-new input type switches for bridging of stereo output channels without needing to use Y-adaptors.
Onboard LED-clipping indicators are also included with your RD400/4. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. You’ll also find a set of preamp outputs on-hand, so you can pass signals to another amplifier, almost effortlessly. The RD400/4 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition.
Specifications
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
40 A (AFS, AGU or MaxiFuse™)
@ 4 Ω
75 W RMS x 4
@ 2 Ω
100 W RMS x 4
Bridged @ 4Ω
200 W RMS x 2
JL Audio RD400/4 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
4-Channel Class-D Full-Range Amplifier with Integrated DSP, 100-Watt x 4 @2-Ohm / 75-Watt x 4 @ 4-Ohm
Designed to simplify great audio, every VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With JL's second-generation NexD2™ technology, the VX400/4i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up to 200 W x 2.
The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable
TüN™ Software Applications
Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices.
Unprecedented, Onboard DSP Tuning Power
Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM®
Hi-Res audio processing at 24 bit/96 kHz
High-performance AKM® A/D and D/A converters
10 Bands of fully parametric EQ, per output channel, including pre-outs
Shelving EQ option for Band 1 and Band 10
High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes: Linkwitz-Riley: 12, 24, 48 dB/octaveButterworth: 6, 12, 18, 24, 36, 48 dB/octave
Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm)
All-Pass Filter (Phase EQ), with variable "Q" and corner frequency
Polarity Reversal (0 or 180 deg.)
Output Level Trim in 0.1 dB steps
NexD2™ Switching Amplifier Technology
JL's latest generation of high-speed switching technology delivers superb low frequency power and efficiency.
Specially optimized for subwoofer applications
Ultra-Versatile Analog and Digital Inputs
High-performance, differential-balanced analog inputs for outstanding noise rejection
Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems
Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz)
Automatic turn-on options via Signal-Sensing or DC-Offset sensing
Functional Compact Chassis Design
Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding
All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces.
Configurable LED logo ring displays status and can display audio preset color code or user-defined color
Logo badge can be oriented in 90 degree increments
Corner caps engineered to conceal mounting holes and hardware
JLid™ System Command and Control with Networking Capabilities
JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including:
DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat.
VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device.
VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers.
Specifications
Frequency Response
12 Hz - 24 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power(Analog Inputs)
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W(Analog Inputs)
80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power(Digital Inputs)
101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W(Digital Inputs)
81 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>100 / 50 Hz
Damping Factor @ 2 Ω
>50 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
40 A (AFS, AGU or MaxiFuse™)
@ 4 Ω
75 W RMS x 4
@ 2 Ω
100 W RMS x 4
Bridged @ 4Ω
200 W RMS x 2
JL Audio VX400/4i Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
XDM-Series Four-Channel Class-D Marine-Grade Amplifier, 100-Watts x Four-Channels @ 2-Ohm or 75-Watts x 4-Channels @ Four-Ohm
The ultra-compact XDM400/4 packs a serious full-range punch, generating a whopping 100-watts to each of its four channels into 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD high-speed switching design, which permits full bandwidth Class-D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM400/4 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Combine the XDM400/4 with our XDM600/1 monoblock to build a stunning 1000W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat or deck. Or, use the XDM400/4 by itself to power two satellites, plus a subwoofer.
The XDM400/4 includes a 12dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the rear channels directly from the driver's seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
@ 4 Ω
75 W RMS x 4 @ 14.4V
@ 2 Ω
100 W RMS x 4 @ 14.4V
Bridged @ 4Ω
200 W RMS x 2 @ 14.4V
@ 4 Ω
60 W RMS x 4 @ 12.5V
@ 2 Ω
90 W RMS x 4 @ 12.5V
Bridged @ 4Ω
180 W RMS x 2 @ 12.5V
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
40 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
2 or All channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
2 or All channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes
JL Audio XDM400/4v2 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
XDM-Series Six-Channel Class-D Marine-Grade Amplifier, 100-Watts x Six-Channels @ 2-Ohm or 75-Watts x 6-Channels @ Four-Ohm
The incredibly flexible XDM600/6 packs a serious full-range wallop and delivers a stunning 100-watts to each of its six channels into 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is Jl's advanced NexD high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM600/6 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
With the XDM600/6, you have plenty of great use options. Configure it as a six-channel satellite amplifier with 75W x 6 @ 4Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200W x 2 @ 4Ω for your front satellites and 75W x 2 @ 4Ω for your rear satellites. You can also drive two subwoofers with 200W each, plus a pair of satellites with 75W x 2.
The XDM600/6 includes a 12dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all six amplifier channels directly from the driver's seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
@ 4 Ω
75 W RMS x 6 @ 14.4V
@ 2 Ω
100 W RMS x 6 @ 14.4V
Bridged @ 4Ω
200 W RMS x 3 @ 14.4V
@ 4 Ω
60 W RMS x 6 @ 12.5V
@ 2 Ω
90 W RMS x 6 @ 12.5V
Bridged @ 4Ω
180 W RMS x 3 @ 12.5V
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
2 or 4 or All Channels
Channel Input Mode Switch
Yes (2/4/6 ch.)
Pass-Through Preamp Output
None
Source Channel Selection for PreOuts
N/A
Height (H)
2.05 in / 52 mm
Width (W)
10.23 in / 260 mm
Depth (D)
7.09 in / 180 mm
Net Weight
5.8 lb / 2.63 kg
JL Audio XDM600/6v2 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Four-Channel Amplifier, 90-Watts x 4ch at 2-Ohm, 65-Watts x 4ch at 4-Ohm
This CX-Series 4-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
This Kicker 46CXA3604t amplifier delivers as much as 90W into 4 audio channels.
Specifications
MODEL
CXA360.4
Power (watts/ch) 4 Ohm Stereo
65x4
Power (watts/ch) 2 Ohm Stereo
90x4
Power (watts/ch) 4 Ohm Mono
180x2
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm)
(all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)12-1/2, 31.7
Frequency Response (Hz):
10Hz-20kHz
Input Sensitivity:
250mV-10V (Low Level)1V-40V (High Level)
Signal-to-Noise Ratio:
95dB
Active Crossover:
HI, LO or OFF; Variable 50–200Hz @ 12dB/Octave
Subsonic Filter:
n/a
KickEQ™ Boost
Variable 0-6dB @40Hz
Kicker 46CXA3604t Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
4-Channel Amplifier with Automatic DSP and Built-In EQ/Processor, 50-Watts RMS @ 4-Ohms x 4ch
Kicker KEY series amplifiers use a powerful internal computer to deliver dramatic improvements in realism and soundstage. A massive 40-band equalizer improves tonality, and a 24dB crossover re-defines the capabilities of each speaker.
The KEY200.4 delivers 200 watts RMS of power to your speakers. Measuring less than eight inches long and only two inches high, the KEY200.4 fits nearly anywhere. Mount it behind your radio, under the seat, or in your trunk with ease.
If the temperature reaches the threshold, the Kicker KEY200.4's dynamic power-management algorithms kick into gear! Instead of hearing the amplifier's volume “pumping” or blowing a fuse – KEY technology engages a nearly inaudible limiter/compressor, applied only to the peaks of the music for as little as milliseconds at a time. The amplifier quickly cools, which deactivates the compressor. Music returns to its full dynamic range without a moment’s interruption!
Specifications
Power (watts/ch), 4 Ohm stereo
50 x 4
Microphone/Kicker EQ button
included
Standard dimensions(H x W x L)
1-11/16 x 2-3/4 x 7-3/8
Metric dimensions(H x W x L)
4.3 x 7 x18.7
Frequency Response (Hz):
20-20k, +0/-1dB
Input Sensitivity:
high level 250mV-10V
Signal-to-Noise Ratio:
>90dB, a-weighted, re: rated power
Active Crossover:
24dB/octave, selective high pass or all pass @60,80, or 120Hz
What's in the Box:
1 - 4 channel power amplifier1 - microphone1 - microphone cable with switch1 - fuse holder1 - manual and installation hardware
Kicker 47KEY2004 Manual
