Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest- quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-65 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-65 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65 is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
1” Coaxial Tweeter (2.5cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-65 Manual
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-653 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-653 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653 is a custom-fit model that includes a 6.5- inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
3.5" Midrange Driver (8.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-653 Manual
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-653S features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-653S has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653S is a custom-fit model that includes a 6.5- inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
3.5" Midrange Driver (8.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-653S Manual
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-65C features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-65C has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65C is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.
The Alpine Status System is soldseparately and can be used to build acustom sound system. Three sets of true4V preamp outputs are included to add needed. For best results, install the additional amplifiers if more power iscomplete Alpine Status system togetheras a full system to achieve the highestin-class audio performance only second to the Ultra Hi-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-65C Manual
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-65CS features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-65CS has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65CS is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-65CS Manual
C1-Series 6x9-Inch 60-Watt Component Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included allowing the C1-690 woofers to be installed in bottom-mount applications. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690 is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, 1-inch aluminum dome tweeter, the C1-690 stands further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
39 Hz - 22 KHz ± 3 dB
JL Audio C1-690 Manual
C1-Series 6x9-Inch 60-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included allowing the C1-690x to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690x is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
91.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
39 Hz - 22 KHz ± 3 dB
JL Audio C1-690x Manual

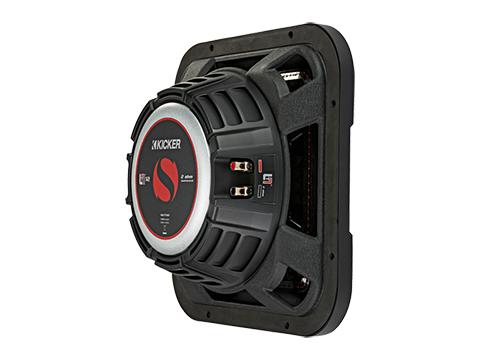

8-Inch Thin Subwoofer Driver, 350-Watt RMS, 2-Ohm or 4-Ohm Dual-Voice-Coil
The Kicker Solo-Baric® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Uses a sealed or ported enclosure
Square sub design moves 20% more air than round subwoofers
Easily mounts under or behind a deat
Dual voice coil design
Ribbed santoprene surround resists heat And degrading
Bumped top plate for more excursion & smoother performance
SoloKon™ cone with 360-degree back bracing
UniPlate™ solid pole pPiece & backplate for excellent heat dissipation
Durable steel basket
Specifications
Size (IN.,CM)
8, 20
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
350
Peak Power (watts, per ANSI/CTA-2031-A)
700
Sensitivity (dB 1w/1m)
84.835
Frequency Response (Hz)
30-100
Mounting Depth (IN.,CM)
2-3/4, 7
Mounting Cutout, Square (IN.,CM)
7-3/8, 18.8
Min Rec Sealed Box Volume (CU. FT., Liters)
0.2, 5.66
Max Rec Sealed Box Volume (CU. FT., Liters)
.75, 21.2
Min Rec Vented Box Volume (CU. Ft., Liters)**
.8, 22.7
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.2, 34
Kicker L7T Subwoofer Manual
6x9-Inch 125-Watt Component or Coaxial Mountable Speaker System
Kicker KS-Series door-speakers let you play at concert-like volume while pleasing even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs.
These 6x9" Kicker speakers component system with separate tweeters, or convert them to a coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 125 watts of recommended power. See below for more details.
High power handling
Silk-dome tweeters for a smooth sound
Polypropylene woofer and tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Four tweeter mounting options
Articulating tweeter pod included
Smaller crossover makes mounting even easier
Grilles included
Specifications
Woofer [in, mm]
6x9, 160x230
Tweeter [in,mm]
1, 25
Dome Material
Silk
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-150
Sensitivity [1W, 1m]
92
Frequency Response [Hz]
35-21k
Woofer Mounting Hole Diameter [in, mm]
5-5⁄8x8-7⁄16, 143x215
Woofer Bottom Mount Depth [in, mm]
2-15⁄16, 75
Flush Mount Tweeter Hole Diameter [in,mm]
1-¾, 45
Flush Mount Tweeter Depth [in,mm]
11⁄16 , 17
High Pass [dB], at Frequency [Hz]
12, 4,000
Low Pass [dB], at Frequency [Hz]
none
High Frequency Output Attenuation [dB]
0, 4.5, 9
Kicker KS Series Component Speaker Manual
6.75-Inch 150-Watt Thin Subwoofer Driver, 1-Ohm or 2-Ohm DVC
The CompRT 6.75" thin subwoofer by Kicker is a weather resistant thin sub with a 1Ω or 2Ω dual voice coil design. This thin 6.75 inch sub magnet structure delivers 150W RMS of power with a chassis mounting depth of 2 3/4". The Kicker designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to keep this 6.75" CompRT thin subwoofer driver nice and cool.The CompRT 6.75-Inch subwoofer works best with a sealed or ported enclosure and 150 watts of recommended power.
Specifications
SIZE [in, cm]:
6 13/16, 17.3
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
150
Peak Power (watts, per ANSI/CTA-2031-A)
300
SENSITIVITY [dB 1w/1m]:
82.6
MOUNTING DEPTH [in, cm]:
2 3/4, 7
MOUNTING DIAMETER [in, cm]:
5 5/8, 14.3
MIN SEALED BOX VOL [cu. ft, L]:
0.18, 5.1
MAX SEALED BOX VOL [cu. ft, L]:
0.75, 21.24
Kicker CompRT Subwoofer Manual
