12" Drivers Under 10"

12-Inch Subwoofer Drivers that are Suitable for Enclosures with a Mounting Depth under 10-Inches

12-Inch Subwoofer Drivers that are Suitable for Enclosures with a Mounting Depth under 10-Inches

These 12" drivers are best recommended for subwoofer enclosures with a sub mounting clearance of 10". If your 12-inch sub box has a depth of less than ten-inches then not all of these drivers will fit in your box.

9 products

  • Sale -$50.00Last One! 500W 12" Subwoofer Driver, 2Ω or 4Ω DVC : Kicker 43CWR12 500W 12" Subwoofer Driver, 2Ω or 4Ω DVC : Kicker 43CWR12, rear view.

    Kicker 43CWR12 : 500W 12" Subwoofer Driver, 4Ω DVC

    1 Available for pickup

    12-Inch 500-Watt Subwoofer Driver, 4-Ohm DVC The 43CWR12 12" subwoofer by Kicker has an advanced suspension system that includes a ribbed polypropylene surround and a large-diameter spider for linear movement, and a distortion-free sound. Bigger magnets, a thicker cone and an improved suspension system help make this 12-Inch 500W CompR sub to be a workhorse of a driver.The Kicker 43CWR124 12" sub work best with a sealed or ported enclosure and 500 watts of recommended power. Specifications SIZE [in, cm]: 12, 30 IMPEDANCE [Ohms]: 4 DVC Recommended Amplifier Power (watts RMS) 500 Peak Power (watts, per ANSI/CTA-2031-A) 1000 SENSITIVITY [dB 1w/1m]: 86.9 MOUNTING DEPTH [in, cm]: 5 3/4, 14.6 MOUNTING DIAMETER [in, cm]: 11, 27.9 MIN SEALED BOX VOL [cu. ft, L]: 1.0, 28.3 MAX SEALED BOX VOL [cu. ft, L]: 2.0, 56.64 MIN VENTED BOX VOL [cu. ft, L]: 1.75, 49.6 MAX VENTED BOX VOL [cu. ft, L]: 2.25, 63.7 Kicker CompR Subwoofer Manual

    1 Available for pickup

    $149.99$99.99

  • Kicker 48CWR12 : 500W 12" Subwoofer Driver, 2Ω or 4Ω DVC Kicker 48CWR12 : 500W 12" Subwoofer Driver, 2Ω or 4Ω DVC, right side.

    Kicker 48CWR12 : 500W 12" Subwoofer Driver, 2Ω or 4Ω DVC

    Pre-Order Today!

    12-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC The 48CWR12 12" subwoofer is available in a 2Ω or 4Ω dual voice coil design, making it easy to get the most out of your amp. An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion. KICKER developed Forced Air Cooling to helps their subs run 25% cooler.The Kicker 48CWR122 and 48CWR124 12" subs work best with a sealed or ported enclosure and 500 watts of recommended power. Specifications SIZE [in, cm]: 12, 30 IMPEDANCE [Ohms]: 2 or 4 DVC Recommended Amplifier Power (watts RMS) 500 Peak Power (watts, per ANSI/CTA-2031-A) 1000 SENSITIVITY [dB 1w/1m]: 86.9 MOUNTING DEPTH [in, cm]: 5 3/4, 14.6 MOUNTING DIAMETER [in, cm]: 11, 27.9 MIN SEALED BOX VOL [cu. ft, L]: 1.0, 28.3 MAX SEALED BOX VOL [cu. ft, L]: 2.0, 56.64 MIN VENTED BOX VOL [cu. ft, L]: 1.75, 49.6 MAX VENTED BOX VOL [cu. ft, L]: 2.25, 63.7 Kicker CompR Subwoofer Manual

    Pre-Order Today!

    $169.99

  • 750W 12" Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil : Kicker 44CVX12 750W 12" Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil : Kicker 44CVX12, front side view.

    Kicker 44CVX12 : 750W 12" Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil

    Pre-Order Today!

    12-Inch 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC The CompVX 12" subwoofer driver by Kicker is designed with high-temp dual voice coils that deliver up to 750W of amplified RMS power. A solid pole-piece provides more mass to disperse heat. A thick polypropylene cone complements the SoloKon™ cone reinforcement system and the oversized suspension system. The Kicker 44CVX122 and 44CVX124 12 inch subwoofers have a UniPlate™ extended pole piece & backplate for superior heat dissipation and satin nickel spring-loaded speaker terminals. Specifications Size (IN.,CM) 12, 30 Impedance (OHMS) 2 or 4 DVC Recommended Amplifier Power (watts RMS) 750 Peak Power (watts, per ANSI/CTA-2031-A) 1500 Sensitivity (dB 1w/1m) 87.1 Frequency Response (Hz) 20-500 Mounting Depth (in, cm) 6 11/16, 16.9 Mounting Cutout (in, cm) 11 1/16, 28 Min Sealed Box Vol (cu. ft, L) 1.0, 28.3 Max Sealed Box Vol (cu. ft, L) 4.6, 130 Min Vented Box Vol (cu. ft, L) 1.75, 49.6 Max Vented Box Vol (cu. ft, L) 2.25, 63.7 Kicker CompVX Subwoofer Manual

    Pre-Order Today!

    $279.99

  • Kicker 42CWQ12 : 12-Inch 850-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC 850W 12" Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil : Kicker 42CWQ12, side view.

    Kicker 42CWQ12 : 850W 12" Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil

    Pre-Order Today!

    12-Inch 850-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC The CompQ 12” audiophile subwoofer by Kicker is the pinnacle of their round speaker line, with nearly identical construction and performance as their L7 square subs. The Kicker 42CWQ122 and 42CWQ124 subs were designed for high power handling and reference competition bass reproduction, this KICKER sub features Ribbed Santoprene® surrounds and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at any volume level. The CompQ series 12-Inch subwoofer works best with a sealed or ported enclosure rated for 850W RMS. Specifications Rated Impedance [Ω] 2 or 4 DVC Fs [Hz] 37 Sensitivity [1W, 1m] 86.2 Qts 0.546 Qms 8.878 Qes 0.582 Re [Ω] 5.94 Vas [ft³, L] .91 ,26 Recommended Amplifier Power (watts RMS) 850 Outer Frame Dimension [in, cm] 12 1/2, 31.8 Mounting Depth [in, cm] 7 1/8, 18.1 Mounting Cutout [in, cm] 11 1/16, 28.1 Frequency Response [Hz] 20 – 100 Kicker CompQ Subwoofer Manual

    Pre-Order Today!

    $329.99

  • 750W 12" Square Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil : Kicker 44L7S12 750W 12" Square Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil : Kicker 44L7S12, side view.

    Kicker 44L7S12 : 750W 12" Square Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil

    Pre-Order Today!

    12-Inch Square 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC The audiophile competition 12" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 12 inch 750W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 12 inch square sub nice and cool.  This 12" L7 square sub can handle up to 750W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection. Specifications Size (IN.,CM) 12, 30.5 Impedance (OHMS) 2 or 4 DVC Recommended Amplifier Power (watts RMS) 750 Peak Power (watts, per ANSI/CTA-2031-A) 1500 Sensitivity (dB 1w/1m) 88.6 Frequency Response (Hz) 20-100 Mounting Depth (IN.,CM) 6 11/16, 16.9 Mounting Cutout, Square (IN.,CM) 11 1/16, 28.1 Min Rec Sealed Box Volume (CU. FT., Liters) 1.25, 35.4 Max Rec Sealed Box Volume (CU. FT., Liters) 2.0, 56.64 Min Rec Vented Box Volume (CU. Ft., Liters)** 1.75, 49.6 Max Rec Vented Box Volume (CU. Ft., Liters)** 3.25, 92.1 Kicker Solo-Baric L7 Subwoofer Manual

    Pre-Order Today!

    $349.99

  • JL Audio 12W3v3 : 12-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Single Voice Coil JL Audio 12W3v3 : 12-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Single Voice Coil, rear side view.

    JL Audio 12W3v3 : 500W 12" Subwoofer Driver, 2Ω or 4Ω Single Voice Coil

    2 Available for pickup

    W3-Series 12-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Single Voice Coil This 12-inch W3v3 subwoofer driver by JL Audio delivers world-class sound quality in a 500W RMS power package.  The JL Audio 12W3v3-2 and 12W3v3-4 automotive subs are best used with an amplifier in the 150-Watt - 500-Watt RMS range and are optimized to operate in a compact 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. General Specifications Continuous Power Handling (RMS) 500 W Recommended Amplifier Power (RMS) 150 - 500 W Nominal Impedance (Znom) 2 Ω JL Audio 12W3v3 Manual

    2 Available for pickup

    $379.99

  • JL Audio 12W6v3 : 12-Inch 600-Watt Subwoofer Driver, 4-Ohm DVC 600W 12" Subwoofer Driver, 4Ω Dual Voice Coil : JL Audio 12W6v3, top side view.

    JL Audio 12W6v3 : 600W 12" Subwoofer Driver, 4Ω Dual Voice Coil

    Pre-Order Today!

    W6-Series 12-Inch 600-Watt Subwoofer Driver, 4-Ohm DVC The 12" W6v3 subwoofer driver is an audiophile subwoofer that offers powerful advantages in motor linearity and suspension behavior. The 12W6v3 sub offers a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance. The JL 12W6v3-4 automotive sub is best used with an amplifier in the 200-Watt - 600-Watt RMS range and is optimized to operate in a sealed enclosure with only 1.0 cu. ft. (28.3 l) of air space, or a 1.3 cu. ft (36.8 l) ported enclosure. Greater excursion capability and higher power handling distinguish the 12" JL W6v3 subwoofer from the 12W3v3 12-inch subwoofer driver, allowing for higher output. Dual 4Ω voice coils allow the W6v3 to be wired in a 2Ω or 8Ω configuration. General Specifications Continuous Power Handling 600W RMS Recommended Amplifier Power 200W - 600W RMS Nominal Impedance Dual 4Ω JL Audio 12W6v3 Manual

    Pre-Order Today!

    $899.99

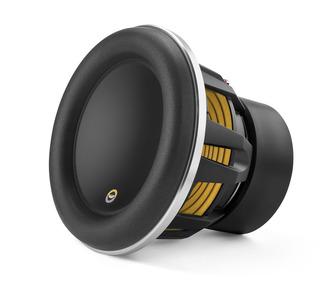

  • JL Audio 12W7AE : 12" 1000W 12" Subwoofer Driver, 3Ω, front side view. JL Audio 12W7AE : 12" 1000W 12" Subwoofer Driver, 3Ω

    JL Audio 12W7AE : 12" 1000W 12" Subwoofer Driver, 3Ω

    Pre-Order Today!

    W7-Series 12-Inch 1000-Watt Subwoofer Driver, 3-Ohm SVC The JL Audio 12" W7AE audiophile reference subwoofer driver delivers the ultimate performance by combining long-excursion W7 driver design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", with limitless dynamics and exceptional balance and world-class sound quality. This 12W7AE automotive reference sub is best used with an amplifier in the 400-Watt - 1000-Watt range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. The JL Audio 12W7AE-3 (Anniversary Edition) subwoofer celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences: Satin-Black Powdercoated Baskets Bright Anodized Surround Clamp Ring Anniversary Edition Cone Badge Anniversary Edition Terminal Label General Specifications Continuous Power Handling (RMS) 1000 W Recommended Amplifier Power (RMS) 400 - 1000 W Nominal Impedance (Znom) 3 Ω JL Audio 12W7AE Manual

    Pre-Order Today!

    $1,399.99

  • 600W 12" Square Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil : Kicker 45L7R12 600W 12" Square Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil : Kicker 45L7R12 side view.

    Kicker 45L7R12 : 600W 12" Square Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil

    Pre-Order Today!

    12-Inch 600-Watt Square Subwoofer Driver, 2-Ohm or 4-Ohm DVC This L7 series 12" square woofer by Kicker hosts a heavy-duty motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. On board the chassis of this 600W driver you will find dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, ribbed santoprene surround with blue stitching and a UniPlate™ back plate and pole piece, plus perimeter venting for thermal heat management. The Kicker 45L7R122 and 45L7R124 square subwoofers are rated for 600W of RMS amplified power. Specifications SIZE [in, cm]: 12, 30 IMPEDANCE [Ohms]: 2 or 4 DVC Recommended Amplifier Power (watts RMS) 600 Peak Power (watts, per ANSI/CTA-2031-A) 1200 SENSITIVITY [dB 1w/1m]: 86.7 MOUNTING DEPTH [in, cm]: 6 7/8, 17.4 MOUNTING DIAMETER [in, cm]: 11 1/16, 28.1 MIN SEALED BOX VOL [cu. ft, L]: .88, 24.92 MAX SEALED BOX VOL [cu. ft, L]: 2, 56.64 MIN VENTED BOX VOL [cu. ft, L]: 1.75, 49.6 MAX VENTED BOX VOL [cu. ft, L]: 3.25, 92 Kicker L7R Subwoofer Manual

    Pre-Order Today!

    $2,249.99
