10" Drivers Under 4.75"

10-Inch Subwoofer Drivers that are Suitable for Enclosures with a Mounting Depth under 4 3/4-Inches

10-Inch Subwoofer Drivers that are Suitable for Enclosures with a Mounting Depth under 4 3/4-Inches

These 10" drivers are best recommended for subwoofer enclosures with a sub mounting clearance of 4.75". If your 10-inch sub box has a depth of less than 4.75-inches then not all of these drivers will fit in your box.

7 products

  • Last One! 300W 10" Subwoofer Driver, 4Ω Single or Dual Voice Coil : Kicker 44CWC 300W 10" Subwoofer Driver, 4Ω Single or Dual Voice Coil : Kicker 44CWC, side view.

    Kicker 44CWC : 300W 10" Subwoofer Driver, 4Ω Single or Dual Voice Coil

    1 Available for pickup

    10-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC This CompC 10" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround. The 44CWCS104 and 44CWCD104 10-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power. Specifications Size (IN.,CM) 10, 25 Impedance (OHMS) 4 SVC or 4 DVC Recommended Amplifier Power (watts RMS) 300 Peak Power (watts, per ANSI/CTA-2031-A) 500 Sensitivity (dB 1w/1m) 86.2 Frequency Response (Hz) 30-500 Mounting Depth (in, cm) 4 13/16, 12.2 Mounting Cutout (in, cm) 9 1/8, 23.1 Min Sealed Box Vol (cu. ft, L) 1.0, 28.3 Max Sealed Box Vol (cu. ft, L) 2.4, 68 Min Vented Box Vol (cu. ft, L) 1.25, 35.4 Max Vented Box Vol (cu. ft, L) 1.75, 49.6 Kicker CompC Subwoofer Manual

    1 Available for pickup

    $99.99

  • Alpine S-W10D : 10" 600W Subwoofer Driver, 2Ω or 4Ω DVC

    Alpine S-W10D : 10" 600W Subwoofer Driver, 2Ω or 4Ω DVC

    Pre-Order Today!

    Alpine S-Series 600-Watt 10-Inch Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil Along with the new 8” woofer, the 10” and 12” S-Series subwoofers have been re-designed from the ground up. The mounting depth of the 10” and 12” subwoofers are almost 1” more shallow than previous models at just over 4.5” for the 10” models and just over 5” for the 12” models, allowing them to fit into a wide variety of installation applications. Specifications 10" DVC High Performance Subwoofer Power Handling: 600W RMS/1800W Peak Push-type Insert Terminals with DVC jumper system Concealed Mount Gasket/Grille* System (*Grille sold separately) Frequency Response: 28Hz-200Hz Mounting Depth 4-11/16” Alpine S-W10D2, S-W10D4 Manual

    Pre-Order Today!

    $179.99

  • Kicker 48CWRT10 : 400W 10" Thin Subwoofer Driver, 2Ω or 2Ω Dual Voice Coil Kicker 48CWRT10 : 400W 10" Thin Subwoofer Driver, 2Ω or 2Ω Dual Voice Coil, right side.

    Kicker 48CWRT10 : 400W 10" Thin Subwoofer Driver, 2Ω or 2Ω Dual Voice Coil

    Pre-Order Today!

    10-Inch 400-Watt Thin Subwoofer Driver, 2-Ohm or 4-Ohm DVC The CompRT 10-inch subwoofer is an all-weather thin bassb driver with a pair of 2-Ohm or 4-Ohm voice coils. With a mounting depth under four inches and plenty of power handling, this go-anywhere sub is as flexible as it is powerful. A UV-resistant cone and surround help make the CompRT sound great wherever the road (or trail) takes you. An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. To make Kicker subs even more reliable, their engineers developed Forced-Air Cooling™ to help these thin subs run 20 percent cooler than before. Kicker signature red double stitching makes an outstanding bond between the improved Santoprene surround and polypropylene woofer cone. Revolutionary SoloKon™ technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.The CompRT 10-Inch 48CWRT102 and 48CWRT104 subwoofers work best with a sealed or ported enclosure and 400 watts of recommended power. Specifications SIZE [in, cm]: 10, 25 IMPEDANCE [Ohms]: 2 or 4 DVC Recommended Amplifier Power (watts RMS) 400 Peak Power (watts, per ANSI/CTA-2031-A) 800 SENSITIVITY [dB 1w/1m]: 84.8 MOUNTING DEPTH [in, cm]: 3 7/16, 8.8 MOUNTING DIAMETER [in, cm]: 9 1/8, 23.1 MIN SEALED BOX VOL [cu. ft, L]: 0.4, 11.3 MAX SEALED BOX VOL [cu. ft, L]: 1.25, 35 .4 MIN VENTED BOX VOL [cu. ft, L]: 1.25, 35.4 MAX VENTED BOX VOL [cu. ft, L]: 1.75, 49.6

    Pre-Order Today!

    $199.99

  • 300W 10" Subwoofer Driver, 2Ω or 4Ω Single Voice Coil : JL Audio 10W1v3 300W 10" Subwoofer Driver, 2Ω or 4Ω Single Voice Coil : JL Audio 10W1v3, side view.

    JL Audio 10W1v3 : 300W 10" Subwoofer Driver, 2Ω or 4Ω

    3 Available for pickup

    W1-Series 10-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC The JL Audio 10" W1v3 subwoofer driver is a very suitable option when space is limited with smaller amplifiers. It features a low mounting depth of 4.6 inches and a compact motor structure that allows it to comfortably fit in tight mounting locations. There is no pole vent on the rear of the subwoofer which allows the motor structure to be placed directly against an enclosure boundary.  Excellent excursion capability and linearity allow the 10W1v3 to reproduce sub-bass with shocking extension and quality. The JL Audio 10W1v3 is best used with an amplifier in the 75W - 300W RMS range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure. General Specifications Continuous Power Handling 300W RMS Recommended Amplifier Power 75W - 300W RMS Nominal Impedance 2Ω/4Ω JL Audio 10W1v3 Manual

    3 Available for pickup

    $249.99

  • 10" Thin 500W RMS Subwoofer Driver, 2Ω or 4Ω DVC : Kicker 46L7T10, top view. 10" Thin 500W RMS Subwoofer Driver, 2Ω or 4Ω DVC : Kicker 46L7T10, top side view.

    Kicker 46L7T10 : 500W 10" Thin Subwoofer Driver, 2Ω or 4Ω DVC

    Pre-Order Today!

    10-Inch Thin Subwoofer Driver, 500-Watt RMS, 2-Ohm or 4-Ohm Dual-Voice-Coil The Kicker Solo-Baric® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size. Uses a sealed or ported enclosure Square sub design moves 20% more air than round subwoofers Easily mounts under or behind a deat Dual voice coil design Ribbed santoprene surround resists heat And degrading Bumped top plate for more excursion & smoother performance SoloKon™ cone with 360-degree back bracing UniPlate™ solid pole pPiece & backplate for excellent heat dissipation Durable steel basket Specifications Size (IN.,CM) 10, 25 Impedance (OHMS) 2 or 4 DVC Recommended Amplifier Power (watts RMS) 500 Peak Power (watts, per ANSI/CTA-2031-A) 1000 Sensitivity (dB 1w/1m) 85.98 Frequency Response (Hz) 25-100 Mounting Depth (IN.,CM) 3-3/4, 9.5 Mounting Cutout, Square (IN.,CM) 9-5/16, 23.7 Min Rec Sealed Box Volume (CU. FT., Liters) .4, 11.3 Max Rec Sealed Box Volume (CU. FT., Liters) 1.25, 28.3 Min Rec Vented Box Volume (CU. Ft., Liters)** 1.25, 35.4 Max Rec Vented Box Volume (CU. Ft., Liters)** 1.75, 49.6 Kicker L7T Subwoofer Manual

    Pre-Order Today!

    $249.99

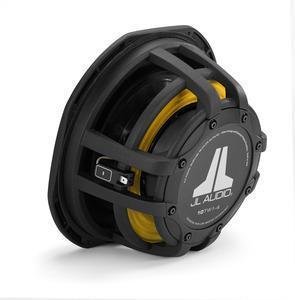

  • 300W 10" Thin Subwoofer Driver, 2Ω or 4Ω Single Voice Coil : JL Audio 10TW1 300W 10" Thin Subwoofer Driver, 2Ω or 4Ω Single Voice Coil : JL Audio 10TW1, side view.

    JL Audio 10TW1 : 300W 10" Thin Subwoofer Driver, 2Ω or 4Ω Single Voice Coil

    Pre-Order Today!

    10-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC The JL Audio 10" TW1 automotive thin subwoofer driver chassis offers a shallow mounting depth and excellent linear excursion capability while requiring a small enclosure (0.35 cu.ft. / 10 liters). The cast alloy frame design on the JL 10TW1 is capable of operating in very tight spaces like under-seat installations in trucks. The 10TW1 design uses a "concentric tube" structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of a large motor structure further forward in the speaker than with conventional designs. The 10TW1 thin subwoofer also features a clever frame design that minimizes the frontal clearance required for the excursion of the driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. Thanks to this feature, the 10TW1 requires only 0.87 inches (22 mm) of frontal clearance, even with its grille installed. This allows for more efficient use of space and increased enclosure volume within a given overall depth. Although the JL Audio 10TW1-2  and 10TW1-4 thin subwoofer drivers are optimized for an enclosure much smaller than most other 10 inch subwoofer drivers, they never sound like a big woofer struggling in a tiny box...instead, the 10TW1's delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system. Very shallow mounting depth (4.36 in / 111 mm) No pole vent: permits mounting close to rear wall of enclosure Extremely small sealed enclosure volume requirements Long linear excursion capability (0.40 in / 10 mm, one-way) DMA-optimized motor design Patented "concentric tube" architecture Patented "floating cone attach method" technology Cast alloy frame with flat edges for tight driver grouping Injection molded, mica-filled polypropylene cone Rubber surround Steel mesh grille included with each driver Precision-built in USA at JL Audio’s Miramar, Florida factory with global components General Specifications Continuous Power Handling 300W RMS Recommended Amplifier Power 75W - 300W RMS Nominal Impedance 2Ω/4Ω JL Audio 10TW1 Manual

    Pre-Order Today!

    $349.99

  • JL Audio 10TW3 : 400W 10" Thin Subwoofer Driver, 4Ω or 8Ω Dual Voice Coil JL Audio 10TW3 : 400W 10" Thin Subwoofer Driver, 4Ω or 8Ω Dual Voice Coil, top side.

    JL Audio 10TW3 : 400W 10" Thin Subwoofer Driver, 4Ω or 8Ω Dual Voice Coil

    Pre-Order Today!

    TW3-Series 10-Inch 400-Watt Automotive Subwoofer Driver, 4Ω or 8Ω DVC  The 10" TW3 thin subwoofer driver by JL Audio delivers a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than JL's W3v3 subwoofers! JL Audio’s patented thin-line woofer technology compresses the architecture of the 10TW3 using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional 10-Inch thin subwoofer designs. The 10TW3-D4 and 10TW3-D8 subwoofers are optimized for small enclosures and offer JL's tab-ear mounting design to maximize cone area within their mounting footprints. Very shallow mounting depth (3.25 / 3.50 Inches) No pole vent: permits mounting close to rear wall of enclosure. Very small sealed enclosure volume requirements Very long linear excursion capability (0.60 In / 15.2 mm, one-way) DMA-optimized motor designs “concentric tube” architecture Patented “floating cone attach method” technology Cast alloy frame Injection molded, mica-filled polypropylene cone Rubber surround Aluminum-alloy dust cap and rear cap with JL Audio logo Precision-built in USA at JL Audio’s Miramar, Florida factory with global components General Specifications Continuous Power Handling 400W RMS Recommended Amplifier Power 200W - 400W RMS Nominal Impedance Dual 4Ω/8Ω JL Audio 10TW3 Manual

    Pre-Order Today!

    $449.99
