10-Inch 400-Watt Subwoofer Driver, 4-Ohm DVC
The 43CWR10 10" subwoofer by Kicker has an advanced suspension system that includes a ribbed polypropylene surround and a large-diameter spider for linear movement, and a distortion-free sound. Bigger magnets, a thicker cone and an improved suspension system help make this 10-Inch 400W CompR sub to be a workhorse of a driver.The Kicker 43CWR104 12" sub work best with a sealed or ported enclosure and 400 watts of recommended power.
Specifications
SIZE [in, cm]:
10, 25
IMPEDANCE [Ohms]:
4 DVC
Recommended Amplifier Power (watts RMS)
400
Peak Power (watts, per ANSI/CTA-2031-A)
800
SENSITIVITY [dB 1w/1m]:
84.6
MOUNTING DEPTH [in, cm]:
5-1/4, 13.3
MOUNTING DIAMETER [in, cm]:
9-1/8, 23.1
MIN SEALED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX SEALED BOX VOL [cu. ft, L]:
1.25, 35.4
MIN VENTED BOX VOL [cu. ft, L]:
1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
Kicker CompR Subwoofer Manual
12-Inch 500-Watt Subwoofer Driver, 4-Ohm DVC
The 43CWR12 12" subwoofer by Kicker has an advanced suspension system that includes a ribbed polypropylene surround and a large-diameter spider for linear movement, and a distortion-free sound. Bigger magnets, a thicker cone and an improved suspension system help make this 12-Inch 500W CompR sub to be a workhorse of a driver.The Kicker 43CWR124 12" sub work best with a sealed or ported enclosure and 500 watts of recommended power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY [dB 1w/1m]:
86.9
MOUNTING DEPTH [in, cm]:
5 3/4, 14.6
MOUNTING DIAMETER [in, cm]:
11, 27.9
MIN SEALED BOX VOL [cu. ft, L]:
1.0, 28.3
MAX SEALED BOX VOL [cu. ft, L]:
2.0, 56.64
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker CompR Subwoofer Manual
8-Inch 300-Watt Thin Subwoofer Driver, 2-Ohm DVC
The CompRT 8" thin subwoofer by Kicker is a weather resistant thin sub with a 2Ω dual voice coil design. This thin 8 inch sub magnet structure delivers 300W RMS of power with a chassis mounting depth of just under 2 3/4". The Kicker designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to keep this 8" CompRT thin subwoofer driver nice and cool.The CompRT 8-Inch subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power.
Specifications
SIZE [in, cm]:
8, 20
IMPEDANCE [Ohms]:
2 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
SENSITIVITY [dB 1w/1m]:
81.8
MOUNTING DEPTH [in, cm]:
2 11/16, 6.7
MOUNTING DIAMETER [in, cm]:
7, 17.7
MIN SEALED BOX VOL [cu. ft, L]:
0.2, 5.66
MAX SEALED BOX VOL [cu. ft, L]:
1.0, 28.32
MIN VENTED BOX VOL [cu. ft, L]:
0.8, 22.7
MAX VENTED BOX VOL [cu. ft, L]:
1.2, 34
Kicker CompR Subwoofer Manual
12-Inch 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompVX 12" subwoofer driver by Kicker is designed with high-temp dual voice coils that deliver up to 750W of amplified RMS power. A solid pole-piece provides more mass to disperse heat. A thick polypropylene cone complements the SoloKon™ cone reinforcement system and the oversized suspension system.
The Kicker 44CVX122 and 44CVX124 12 inch subwoofers have a UniPlate™ extended pole piece & backplate for superior heat dissipation and satin nickel spring-loaded speaker terminals.
Specifications
Size (IN.,CM)
12, 30
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
Sensitivity (dB 1w/1m)
87.1
Frequency Response (Hz)
20-500
Mounting Depth (in, cm)
6 11/16, 16.9
Mounting Cutout (in, cm)
11 1/16, 28
Min Sealed Box Vol (cu. ft, L)
1.0, 28.3
Max Sealed Box Vol (cu. ft, L)
4.6, 130
Min Vented Box Vol (cu. ft, L)
1.75, 49.6
Max Vented Box Vol (cu. ft, L)
2.25, 63.7
Kicker CompVX Subwoofer Manual
15-Inch 1000-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The CompVX 15" subwoofer driver by Kicker is designed with high-temp dual voice coils that deliver up to 1000W of amplified RMS power. A solid pole-piece provides more mass to disperse heat. A thick polypropylene cone complements the SoloKon™ cone reinforcement system and the oversized suspension system.
The Kicker 44CVX152 and 44CVX154 15 inch subwoofers have a UniPlate™ extended pole piece & backplate for superior heat dissipation and satin nickel spring-loaded speaker terminals.
Specifications
Size (IN.,CM)
15, 38
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
1000
Peak Power (watts, per ANSI/CTA-2031-A)
2000
Sensitivity (dB 1w/1m)
91.6
Frequency Response (Hz)
18-500
Mounting Depth (in, cm)
8 1/2, 21.5
Mounting Cutout (in, cm)
13 13/16, 35
Min Sealed Box Vol (cu. ft, L)
1.8, 51.0
Max Sealed Box Vol (cu. ft, L)
5.2, 147.0
Min Vented Box Vol (cu. ft, L)
3.0, 85.0
Max Vented Box Vol (cu. ft, L)
5.0, 142.0
Kicker CompVX Subwoofer Manual
8-Inch 200-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 8" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS84 and 44CWCD84 8-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 200W RMS of amplified power.
Specifications
Size (IN.,CM)
8, 20
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
200
Peak Power (watts, per ANSI/CTA-2031-A)
400
Sensitivity (dB 1w/1m)
85.6
Mounting Depth (in, cm)
3 7/8, 9.8
Mounting Diameter (in, cm)
7, 17.7
Min Sealed Box Vol (cu. ft, L)
0.5, 14.2
Max Sealed Box Vol (cu. ft, L)
1.2, 34
Min Vented Box Vol (cu. ft, L)
0.66, 18.7
Max Vented Box Vol (cu. ft, L)
1.2, 34
Kicker CompC Subwoofer Manual
10-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 10" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS104 and 44CWCD104 10-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power.
Specifications
Size (IN.,CM)
10, 25
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
500
Sensitivity (dB 1w/1m)
86.2
Frequency Response (Hz)
30-500
Mounting Depth (in, cm)
4 13/16, 12.2
Mounting Cutout (in, cm)
9 1/8, 23.1
Min Sealed Box Vol (cu. ft, L)
1.0, 28.3
Max Sealed Box Vol (cu. ft, L)
2.4, 68
Min Vented Box Vol (cu. ft, L)
1.25, 35.4
Max Vented Box Vol (cu. ft, L)
1.75, 49.6
Kicker CompC Subwoofer Manual
12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 12" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS124 and 44CWCD124 12-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power.
Specifications
Size (IN.,CM)
12, 30
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
Sensitivity (dB 1w/1m)
88.3
Frequency Response (Hz)
27-500
Mounting Depth (in, cm)
5-3/8, 13.6
Mounting Cutout (in, cm)
11, 27.9
Min Sealed Box Vol (cu. ft, L)
1.25, 35.4
Max Sealed Box Vol (cu. ft, L)
3.5, 99.1
Min Vented Box Vol (cu. ft, L)
1.75, 49.6
Max Vented Box Vol (cu. ft, L)
2.25, 63.7
Kicker CompC Subwoofer Manual
15-Inch 600-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 15" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS154 and 44CWCD154 15-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 600W RMS of amplified power.
Specifications
Size (IN.,CM)
15, 38
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
90.3
Frequency Response (Hz)
25-500
Mounting Depth (in, cm)
7, 17.7
Mounting Cutout (in, cm)
13 3/4, 35
Min Sealed Box Vol (cu. ft, L)
2.25, 63.7
Max Sealed Box Vol (cu. ft, L)
5.0, 141.6
Min Vented Box Vol (cu. ft, L)
3.0, 85
Max Vented Box Vol (cu. ft, L)
4.0, 113.3
Kicker CompC Subwoofer Manual
12-Inch 1500-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This 12" L7 dual sub box enclosure features a custom-designed vent/terminal cup with an extra thick front baffle and fortified back bracing for one of the sturdiest enclosures in the industry. Two Solo-Baric L7S 12-Inch subwoofers pound out 1500W bass with a single 2Ω speaker terminal.
Specifications
Type
dual
Woofer [in, cm]
Solo-Baric L7 12"
Impedance [Ohms]
2
Recommended Amplifier Power (watts RMS)
1500
Peak Power (watts, per ANSI/CTA-2031-A)
3000
SENSITIVITY [dB 1w/1m]
89.9
Box Top Depth (in, cm):
16 1/4, 41.3
Box Bottom Depth (in, cm):
19 1/2, 19.4
Box Height (in, cm):
16, 40.6
Box Width (in, cm):
33 3/4, 85.7
10-Inch Square 600-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The audiophile competition 10" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 10 inch 600W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 10 inch square sub nice and cool.
This 10" L7 square sub can handle up to 600W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
10, 25.4
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
86.8
Frequency Response (Hz)
24-100
Mounting Depth (IN.,CM)
6-1/4, 15.9
Mounting Cutout, Square (IN.,CM)
9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters)
1, 28.32
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)**
2.25, 63.8
Kicker Solo-Baric L7 Subwoofer Manual
12-Inch Square 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The audiophile competition 12" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 12 inch 750W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 12 inch square sub nice and cool.
This 12" L7 square sub can handle up to 750W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
12, 30.5
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
Sensitivity (dB 1w/1m)
88.6
Frequency Response (Hz)
20-100
Mounting Depth (IN.,CM)
6 11/16, 16.9
Mounting Cutout, Square (IN.,CM)
11 1/16, 28.1
Min Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Max Rec Sealed Box Volume (CU. FT., Liters)
2.0, 56.64
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
3.25, 92.1
Kicker Solo-Baric L7 Subwoofer Manual
15-Inch Square 1000-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The audiophile competition 15" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 15 inch 1000W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 15 inch square sub nice and cool.
This 15" L7 square sub can handle up to 1000W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
15, 38.1
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
1000
Peak Power (watts, per ANSI/CTA-2031-A)
2000
Sensitivity (dB 1w/1m)
89.4
Frequency Response (Hz)
18-100
Mounting Depth (IN.,CM)
8 11/16, 22.1
Mounting Cutout, Square (IN.,CM)
13 3/4, 34.9
Min Rec Sealed Box Volume (CU. FT., Liters)
2.0, 56.64
Max Rec Sealed Box Volume (CU. FT., Liters)
6.0, 169.9
Min Rec Vented Box Volume (CU. Ft., Liters)**
3.0, 85.0
Max Rec Vented Box Volume (CU. Ft., Liters)**
6.0, 169.9
Kicker Solo-Baric L7 Subwoofer Manual
8-Inch Square 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC
The audiophile competition 8" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 8 inch 750W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 8 inch square sub nice and cool.
This 8" L7 square sub can handle up to 750W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
8, 20.32
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
450
Peak Power (watts, per ANSI/CTA-2031-A)
900
Sensitivity (dB 1w/1m)
83.6
Frequency Response (Hz)
28-100
Mounting Depth (IN.,CM)
4 3/4, 12.1
Mounting Cutout, Square (IN.,CM)
7 1/4, 18.4
Min Rec Sealed Box Volume (CU. FT., Liters)
.5, 14.16
Max Rec Sealed Box Volume (CU. FT., Liters)
.75, 21.24
Min Rec Vented Box Volume (CU. Ft., Liters)**
.66, 18.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.0, 28.3
Kicker Solo-Baric L7 Subwoofer Manual
6-3/4" 100-Watt Coaxial Speakers
This pair of QS series 6.75" coaxial audiophile speaker drivers by Kicker feature neodymium magnets on the woofer and tweeter, and are bi-amp capable.
Incased within the speaker chassis is you will find a 25mm Teteron® dome tweeter with Kicker's custom wave guide technology for near perfect phase alignment for smooth frequency response. The injection-molded Polypropylene cone of this coaxial door speaker is impregnated with carbon-fiber for tight, accurate midrange. An NBR rubber surround provides superior damping, and complemented by a signature blue double surround stitching.
The independent 18dB crossover has been optimized for size, and features built-in tweeter protection. Utilizing Metallized Polypropylene capacitors, high-powered resistors and audiophile-grade air-core inductors, the crossover delivers outstanding overall sound quality and easy mounting in a door or under a seat.
These Kicker QS 6-and-3/4 inch door speakers have an amplified RMS power range of 100W. This pair of drivers also has speaker adaptor rings, allowing them to be installed using select factory location mounting.
Specifications
Woofer (in., mm)
6 ¾, 165
Tweeter (in., mm)
1, 25
Tweeter dome material
Teteron®
Rated Impedance [Ω]
4
Recommended Amplifier Power (watts RMS)
100
Peak Power (watts, per ANSI/CTA-2031-A)
200
Sensitivity [1W, 1m]
86dB
Frequency Response [Hz]
40-20k
Woofer Mounting Hole Diameter [in, mm]
5 9/16, 141
Woofer Mounting Depth [in, mm]
2 9/16, 64.9
High Pass [dB], at Frequency [Hz]
18, 5.5k
Low Pass [dB], at Frequency [Hz]
18, 5.5k
Comments
Crossover is bi-amp capable.
Kicker QS Series Coaxial Speaker Manual
6x9-Inch 100-Watt Coaxial Speakers
This pair of QS series 6x9" coaxial audiophile speaker drivers by Kicker feature neodymium magnets on the woofer and tweeter, and are bi-amp capable.
Incased within the speaker chassis is you will find a 25mm Teteron® dome tweeter with Kicker's custom wave guide technology for near perfect phase alignment for smooth frequency response. The injection-molded Polypropylene cone of this coaxial door speaker is impregnated with carbon-fiber for tight, accurate midrange. An NBR rubber surround provides superior damping, and complemented by a signature blue double surround stitching.
The independent 18dB crossover has been optimized for size, and features built-in tweeter protection. Utilizing Metallized Polypropylene capacitors, high-powered resistors and audiophile-grade air-core inductors, the crossover delivers outstanding overall sound quality and easy mounting in a door or under a seat.
These Kicker QS 6x9 inch door speakers have an amplified RMS power range of 100W. This pair of drivers also has speaker adaptor rings, allowing them to be installed using select factory location mounting.
Specifications
Woofer (in., mm)
6x9, 160x230
Tweeter (in., mm)
1, 25
Tweeter dome material
Teteron®
Rated Impedance [Ω]
4
Recommended Amplifier Power (watts RMS)
100
Peak Power (watts, per ANSI/CTA-2031-A)
200
Sensitivity [1W, 1m]
88dB
Frequency Response [Hz]
30-20k
Woofer Mounting Hole Diameter [in, mm]
4-13/16x8-5/8, 121.9x219
Woofer Mounting Depth [in, mm]
3, 76.2
High Pass [dB], at Frequency [Hz]
18, 5.5k
Low Pass [dB], at Frequency [Hz]
18, 5.5k
Comments
Crossover is bi-amp capable.
Kicker QS Series Coaxial Speaker Manual
10-Inch 600-Watt Loaded Thin Subwoofer Enclosure, 2-Ohm Final Impedance
This L7 series thin 10" loaded sub box by Kicker comes with one Solo-Baric L7S sub loaded into a custom engineered to spec subwoofer enclosure made of thick MDF construction with a custom port design. Heavy internal bracing with thick black carpeting complement the Kicker embroidered logo on this box.
This 10-inch L7 thin subwoofer enclosure is best suited with 600W RMS of amplified power.
Specifications
Type
thin-profile
Woofer [in, cm]
Solo-Baric L7S 10" 2Ω
Impedance [Ohms]
2
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
SENSITIVITY [dB 1w/1m]
89.5
Box Top Depth (in, cm):
6 1/2, 16.4
Box Bottom Depth (in, cm):
10, 25.4
Box Height (in, cm):
15, 38.1
Box Width (in, cm):
21 1/2, 54.6
Kicker L7 Solo-Baric Subwoofer Enclosure Manual
12-Inch 750-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This L7 series 12" loaded sub box by Kicker comes with one Solo-Baric L7S sub loaded into a custom engineered to spec subwoofer enclosure made of thick MDF construction with a custom port design. Heavy internal bracing with thick black carpeting complement the Kicker embroidered logo on this box.
This 12-inch L7 subwoofer enclosure is best suited with 750W RMS of amplified power.
Specifications
Type
single
Woofer [in, cm]
Solo-Baric L7 12"
Impedance [Ohms]
2
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
SENSITIVITY [dB 1w/1m]
86.9
Box Top Depth (in, cm):
14 3/4, 37.4
Box Bottom Depth (in, cm):
17 7/8, 45.5
Box Height (in, cm):
16, 40.6
Box Width (in, cm):
18-3/4, 47.6
Kicker L7 Solo-Baric Subwoofer Enclosure Manual

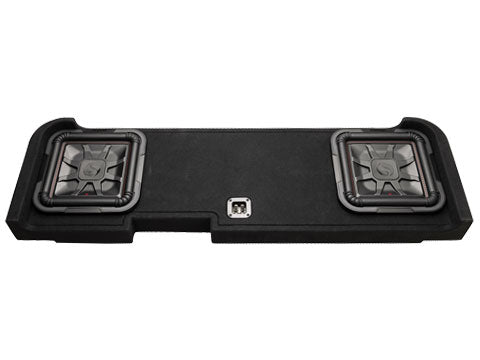

Dual 12-Inch 1200-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This L7 series dual 12" loaded sub box by Kicker comes with two Solo-Baric L7S sub loaded into a custom engineered to spec subwoofer enclosure made of thick MDF construction with a custom port design. Heavy internal bracing with thick black carpeting complement the Kicker embroidered logo on this box.
This 12-inch L7 dual subwoofer enclosure is best suited with 1200W RMS of amplified power.
Specifications
Type
dual
Woofers/size [in, cm]
2 Solo-Baric L7R 12"
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
1200
SENSITIVITY [dB 1w/1m]
95
Box Top Depth (in, cm):
15 1/4, 38.7
Box Bottom Depth (in, cm):
20 3/8, 51.8
Box Height (in, cm):
15 7/8, 40.2
Box Width (in, cm):
33 3/4, 85.7
10-Inch 500-Watt Square Subwoofer Driver, 2-Ohm or 4-Ohm DVC
This L7 series 10" square woofer by Kicker hosts a heavy-duty motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. On board the chassis of this 500W driver you will find dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, ribbed santoprene surround with blue stitching and a UniPlate™ back plate and pole piece, plus perimeter venting for thermal heat management.
The Kicker 45L7R102 and 45L7R104 square subwoofers are rated for 500W of RMS amplified power.
Specifications
SIZE [in, cm]:
10, 25
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY [dB 1w/1m]:
85.9
MOUNTING DEPTH [in, cm]:
6 1/8, 15.7
MOUNTING DIAMETER [in, cm]:
9 5/16, 23.7
MIN SEALED BOX VOL [cu. ft, L]:
.66, 18.7
MAX SEALED BOX VOL [cu. ft, L]:
1, 28.3
MIN VENTED BOX VOL [cu. ft, L]:
1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Kicker L7R Subwoofer Manual
12-Inch 600-Watt Square Subwoofer Driver, 2-Ohm or 4-Ohm DVC
This L7 series 12" square woofer by Kicker hosts a heavy-duty motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. On board the chassis of this 600W driver you will find dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, ribbed santoprene surround with blue stitching and a UniPlate™ back plate and pole piece, plus perimeter venting for thermal heat management.
The Kicker 45L7R122 and 45L7R124 square subwoofers are rated for 600W of RMS amplified power.
Specifications
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
SENSITIVITY [dB 1w/1m]:
86.7
MOUNTING DEPTH [in, cm]:
6 7/8, 17.4
MOUNTING DIAMETER [in, cm]:
11 1/16, 28.1
MIN SEALED BOX VOL [cu. ft, L]:
.88, 24.92
MAX SEALED BOX VOL [cu. ft, L]:
2, 56.64
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
3.25, 92
Kicker L7R Subwoofer Manual
15-Inch 900-Watt Square Subwoofer Driver, 2-Ohm or 4-Ohm DVC
This L7 series 15" square woofer by Kicker hosts a heavy-duty motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. On board the chassis of this 900W driver you will find dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, ribbed santoprene surround with blue stitching and a UniPlate™ back plate and pole piece, plus perimeter venting for thermal heat management.
The Kicker 45L7R152 and 45L7R154 square subwoofers are rated for 900W of RMS amplified power.
Specifications
SIZE [in, cm]:
15, 38
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
900
Peak Power (watts, per ANSI/CTA-2031-A)
1800
SENSITIVITY [dB 1w/1m]:
88.05
MOUNTING DEPTH [in, cm]:
8 3/8, 21.5
MOUNTING DIAMETER [in, cm]:
13 3/4, 34.9
MIN SEALED BOX VOL [cu. ft, L]:
1.5, 42.48
MAX SEALED BOX VOL [cu. ft, L]:
3, 85
MIN VENTED BOX VOL [cu. ft, L]:
3, 85
MAX VENTED BOX VOL [cu. ft, L]:
6, 170
Kicker L7R Subwoofer Manual
10-Inch 500-Watt Loaded Thin Square Subwoofer Enclosure, 2-Ohm Final Impedance
With this TL7R series thin 10" square sub box you get up to 20% more air movement compared to a round driver. This 500W loaded enclosure has an angled back, heavy duty internal bracing, thick MDF construction and black carpeting with a Kicker embroidered logo.
This TL7R subwoofer enclosure contains a single 10 Inch square driver with an RMS power rating of 500W @ 2Ω.
Specifications
Type
single truck
Woofer [in, cm]
Solo-Baric L7R 10"
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
500
SENSITIVITY [dB 1w/1m]
88
Box Top Depth (in, cm):
6 1/2, 16.4
Box Bottom Depth (in, cm):
10, 25.4
Box Height (in, cm):
15, 38.1
Box Width (in, cm):
21 1/2, 54.6
What's in the box?
one loaded enclosure with one 10-inch subwoofermounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)one owner's manualtwo stickers
10-Inch 500-Watt Loaded Square Subwoofer Enclosure, 2-Ohm Final Impedance
With this L7R series 10" square sub box you get up to 20% more air movement compared to a round driver. This 500W loaded enclosure has an angled back, heavy duty internal bracing, thick MDF construction and black carpeting with a Kicker embroidered logo.
This L7R subwoofer enclosure contains a single 10 Inch square driver with an RMS power rating of 500W @ 2Ω.
Specifications
Type
single
Woofer [in, cm]
Solo-Baric L7R 10"
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
500
SENSITIVITY [dB 1w/1m]
88.8
Box Top Depth (in, cm):
8 1/4, 21
Box Bottom Depth (in, cm):
13 7/8, 35.1
Box Height (in, cm):
13, 33
Box Width (in, cm):
24, 61
What's in the box?
one loaded enclosure with one 10-inch subwoofermounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)one owner's manualtwo stickers
12-Inch 600-Watt Loaded Square Subwoofer Enclosure, 2-Ohm Final Impedance
With this L7R series 12" square sub box you get up to 20% more air movement compared to a round driver. This 600W loaded enclosure has an angled back, heavy duty internal bracing, thick MDF construction and black carpeting with a Kicker embroidered logo.
This L7R subwoofer enclosure contains a single 12 Inch square driver with an RMS power rating of 600W @ 2Ω.
Specifications
Type
single
Woofer [in, cm]
Solo-Baric L7R 12"
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
600
SENSITIVITY [dB 1w/1m]
94
Box Top Depth (in, cm):
8 1/2, 21.7
Box Bottom Depth (in, cm):
14 7/8, 37.8
Box Height (in, cm):
15, 38.1
Box Width (in, cm):
28, 71.1
What's in the box?
one loaded enclosure with one 12-inch subwoofermounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)one owner's manualtwo stickers
30-Watt 3.5-Inch Coaxial Speakers, 4-Ohm
These CS series 3.5" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 30W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 3 and a 1/2" speakers work best with 30 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
3 1/2 [89]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.2
Peak Power | Watts
90
Continuous Power | Watts, RMS
30
Sensitivity [SPLo] | dB @ 1W, 1m
88
Effective Frequency Range | Hz
80-20k
Mounting Hole Diameter | in [mm]
3 [78]
Top Mount Depth | in [mm]
1/4 [6]
Bottom Mount Depth | in [mm]
1 11/16 [42]
Tweeter Protrusion | in [mm]
1/8 [3]
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
4-Inch 50-Watt Coaxial Speakers, 4-Ohm
These CS series 4" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 50W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 4" speakers work best with 50 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
4 [100]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
150
Continuous Power | Watts, RMS
50
Sensitivity [SPLo] | dB @ 1W, 1m
88
Effective Frequency Range | Hz
60-20k
Mounting Hole Diameter | in [mm]
3 3/4 [95]
Top Mount Depth | in [mm]
1/4 [6]
Bottom Mount Depth | in [mm]
1 13/16 [46]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
50-Watt 4x6-Inch Coaxial Speakers, 4-Ohm
These CS series 4x6" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 50W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 4 by 6" speakers work best with 50 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
4x6 [100x160]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
150
Continuous Power | Watts, RMS
50
Sensitivity [SPLo] | dB @ 1W, 1m
88
Effective Frequency Range | Hz
50-20k
Mounting Hole Diameter | in [mm]
4 x 6 [101x152]
Top Mount Depth | in [mm]
5/16 [7]
Bottom Mount Depth | in [mm]
1 11/16 [43]
Tweeter Protrusion | in [mm]
0
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
75-Watt 5 1/4-Inch Coaxial Speakers, 4-Ohm
These CS series 5.25" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 75W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
The Kicker CS series 5 and a 1/4" speakers work best with 75 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
5 1/4 [130]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.4
Peak Power | Watts
225
Continuous Power | Watts, RMS
75
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
45-20k
Mounting Hole Diameter | in [mm]
4 1/2 [115]
Top Mount Depth | in [mm]
1/4 [7]
Bottom Mount Depth | in [mm]
1 3/4 [45]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
100-Watt 6.5-Inch Coaxial Speakers, 4-Ohm
These CS series 6.5" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 and a 1/2" speakers work best with 100 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 1/2 [160]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
4 13/16 [123]
Top Mount Depth | in [mm]
3/8 [9]
Bottom Mount Depth | in [mm]
1 11/16 [43]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
100-Watt 6.75-Inch Coaxial Speakers, 4-Ohm
These CS series 6.75" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
The Kicker CS series 6 and a 3/4" speakers work best with 100 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 3/4 [165]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
5 1/2 [140]
Top Mount Depth | in [mm]
3/16 [4]
Bottom Mount Depth | in [mm]
1 13/16 [47]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
75-Watt 6x8-Inch Coaxial Speakers, 4-Ohm
These CS series 6x8" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 75W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 by 8" speakers work best with 75 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6x8 [160x200]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
225
Continuous Power | Watts, RMS
75
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
45-20k
Mounting Hole Diameter | in [mm]
5 x 7 3/16 [126x182]
Top Mount Depth | in [mm]
3/8 [9]
Bottom Mount Depth | in [mm]
2 3/16 [56]
Tweeter Protrusion | in [mm]
0
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
150-Watt 6x9-Inch Coaxial Speakers, 4-Ohm
These CS series 6x9" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 150W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 by 9" speakers work best with 150 watts of recommended power.
Specifications
Speaker Design
3 - way
Woofer Size | in [mm]
6x9 [160x230]
Mid Size | in [mm]
2 [50]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
450
Continuous Power | Watts, RMS
150
Sensitivity [SPLo] | dB @ 1W, 1m
92
Effective Frequency Range | Hz
30-20k
Mounting Hole Diameter | in [mm]
5 5/8 x 8 7/16 [143x215]
Top Mount Depth | in [mm]
7/16 [12]
Bottom Mount Depth | in [mm]
3 3/16 [81]
Tweeter Protrusion | in [mm]
1/16 [1]
Grilles
Yes
Tweeter Magnet Material
Electric Crystal Motor
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
100-Watt Component Speakers Six-1/2" Drivers
The CS Series 6-1/2-inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality.
The Kicker CS Series 6-1/2" speakers work best with up to 100-watts of recommended power.
Specifications
Woofer Size | in [mm]
6 1/2 [160]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power | [watts]
300
Continuous Power | [watts RMS]
100
Effective Frequency Range | Hz
35-21k
Woofer Mounting Hole Diameter | in [mm]
4 13/16 [123]
Woofer Bottom Mount Depth | in [mm]
1 11/16 [43]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
Yes
Kicker CS Component Speaker Manual
100-Watt Component Speakers 6.75-Inch Drivers
The CS Series 6-3/4-inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality.
The Kicker CS Series 6-3/4" speakers work best with up to 100-watts of recommended power.
Specifications
Woofer Size | in [mm]
6 3/4 [165]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power | [watts]
300
Continuous Power | [watts RMS]
100
Effective Frequency Range | Hz
35-21k
Woofer Mounting Hole Diameter | in [mm]
5 1/2 [140]
Woofer Bottom Mount Depth | in [mm]
1 13/16 [47]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
Yes
Kicker CS Component Speaker Manual
75-Watt Component Speakers Six-x-Eight" Drivers
The CS Series 6-x-8 inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality.
The Kicker CS Series six-by-eight" speakers work best with up to 75-watts of recommended power.
Specifications
Woofer Size | in [mm]
6x8 [160x200]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power | [watts]
225
Continuous Power | [watts RMS]
75
Effective Frequency Range | Hz
40-21k
Woofer Mounting Hole Diameter | in [mm]
5 x 7 3/16 [126x182]
Woofer Bottom Mount Depth | in [mm]
2 3/16 [56]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
No
Kicker CS Component Speaker Manual
150-Watt Component Speakers Six-x-Nine" Drivers
The CS Series 6-x-9 inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality.
The Kicker CS Series six-by-nine" speakers work best with up to 150-watts of recommended power.
Specifications
Woofer Size | in [mm]
6x9 [160x230]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power | [watts]
450
Continuous Power | [watts RMS]
150
Effective Frequency Range | Hz
30-21k
Woofer Mounting Hole Diameter | in [mm]
5 5/8 x 8 7/16 [143x215]
Woofer Bottom Mount Depth | in [mm]
3 3/16 [81]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
Yes
Kicker CS Component Speaker Manual
Mono Amplifier, 1200-Watts at 2-Ohm, 600-Watts at 4-Ohm
This CX-Series 1-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
This Kicker 46CXA12001t amplifier delivers as much as 1,200W into one bass channel.
Specifications
MODEL
CXA1200.1
Power (watts/ch) 4 Ohm
600x1
Power (watts/ch) 2 Ohm
1200x1
Power (watts/ch) 1 Ohm
1200x1 +/-10%
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm)
(all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)12, 30.6
Frequency Response (Hz):
25-200Hz
Input Sensitivity:
250mV-10V (Low Level)1V-40V (High Level)
Signal-to-Noise Ratio:
95dB
Active Crossover:
Variable Lo-pass 50Hz–200Hz, 12dB/octave
Subsonic Filter:
25Hz @24dB/octave
KickEQ™ Boost
Variable 0-6dB @40Hz
Kicker CXA Mono Amplifier Manual
Mono Amplifier, 1800-Watts at 2-Ohm, 900-Watts at 4-Ohm
This CX-Series 1-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
This Kicker 46CXA18001t amplifier delivers as much as 1,800W into one bass channel.
Specifications
MODEL
CXA1800.1
Power (watts/ch) 4 Ohm
900x1
Power (watts/ch) 2 Ohm
1800x1
Power (watts/ch) 1 Ohm
1800x1 +/-10%
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm)
(all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)14-3/8, 36.4
Frequency Response (Hz)
25-200Hz
Input Sensitivity
250mV-10V (Low Level)1V-40V (High Level)
Signal-to-Noise Ratio
95dB
Active Crossover
Variable Lo-pass 50Hz–200Hz, 12dB/octave
Subsonic Filter
25Hz @24dB/octave
KickEQ™ Boost
Variable 0-6dB @40Hz
Kicker CXA Mono Amplifier Manual
Kicker CX-Series Four-Channel Amplifier, 60-Watts x 4-Channel at 4-Ohm or 65-Watts x 4-Channel at 4-Ohm
This CX-Series 4-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
This Kicker 46CXA3604t amplifier delivers as much as 90W into 4 audio channels.
Specifications
MODEL
CXA360.4
Power (watts/ch) 4 Ohm Stereo
65W x 4ch
Power (watts/ch) 2 Ohm Stereo
90W x 4ch
Power (watts/ch) 4 Ohm Mono
180W x 2ch
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm)
(all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)12-1/2, 31.7
Frequency Response (Hz):
10Hz-20kHz
Input Sensitivity:
250mV-10V (Low Level)1V-40V (High Level)
Signal-to-Noise Ratio:
95dB
Active Crossover:
HI, LO or OFF; Variable 50–200Hz @ 12dB/Octave
Subsonic Filter:
n/a
KickEQ™ Boost
Variable 0-6dB @40Hz
Kicker 46CXA3604t Manual
Mono Amplifier, 300-Watts at 2-Ohm, 150-Watts at 4-Ohm
This CX-Series 1-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
This Kicker 46CXA4001t amplifier delivers as much as 400W into one bass channel at 1-Ohm.
Specifications
MODEL
CXA400.1
Power (watts/ch) 4 Ohm
150x1
Power (watts/ch) 2 Ohm
300x1
Power (watts/ch) 1 Ohm
400x1
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm): (all models 2 3/8, 5.9H x 6 3/4, 17W x ...L)
8 1/8, 20.6
Frequency Response (Hz):
25-200, +0/-1dB
Input Sensitivity:
250mV-10V (Low Level)1V-40V (High Level)
Signal-to-Noise Ratio:
>95dB, a-weighted, re: rated power
Active Crossover:
Variable Lo-pass 50Hz–200Hz, 12dB/octave
Subsonic Filter:
25Hz @24dB/octave
KickEQ™ Boost
Variable 0-6dB @40Hz
Kicker CXA Mono Amplifier Manual
Five-Channel Amplifier, 65-Watts x 4ch +, 300-Watts x 1ch at 2-Ohm or 150W @ 4-Ohm
This CX-Series 1-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
This Kicker 46CXA6605t amplifier delivers as much as 300W into one bass channel.
Specifications
MODEL
CXA660.5
Power (watts/ch) 4 Ohm Stereo
65x4
Power (watts/ch) 2 Ohm Stereo
90x4
Power (watts/ch) 4 Ohm Mono
180x2
Power (watts/ch) 4 Ohm Mono Sub Ch
150x1
Power (watts/ch) 2 Ohm Mono Sub Ch
300x1
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm)
(all models 2-3/8, 5.9H x 6-3/4, 17 W x ...L)14-1/8, 35.7
Frequency Response (Hz):
10Hz-20kHz
Frequency Response (Hz – Sub Ch.):
25Hz-200Hz
Input Sensitivity:
250mV-10V (Low Level)1V-40V (High Level)
Signal-to-Noise Ratio:
90dB
Active Crossover:
Amp 1-2: High Pass 10-200Hz @ 12dB/OctaveSub Channel: Low Pass 50-200Hz @ 12dB/Octave
Subsonic Filter:
25Hz @24dB/Octave
KickEQ™ Boost
Variable 0-6dB @40Hz
Kicker 46CXA6605t Manual
Mono Amplifier, 600-Watts at 2-Ohm, 300-Watts at 4-Ohm
This CX-Series 1-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
This Kicker 46CXA8001t amplifier delivers as much as 600W into one bass channel.
Specifications
MODEL
CXA800.1
Power (watts/ch) 4 Ohm
300x1
Power (watts/ch) 2 Ohm
600x1
Power (watts/ch) 1 Ohm
800x1
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm)
(all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)8-1/8, 20.6
Frequency Response (Hz):
25-200, +0/-1dB
Input Sensitivity:
250mV-10V (Low Level)1V-40V (High Level)
Signal-to-Noise Ratio:
>95dB, a-weighted, re: rated power
Active Crossover:
Variable Lo-pass 50Hz–200Hz, 12dB/octave
Subsonic Filter:
25Hz @24dB/octave
KickEQ™ Boost
Variable 0-6dB @40Hz
Kicker CXA Mono Amplifier Manual
Kicker Bass-Knob for Mono CX, DX and PX Series Amplifiers
Customize your bass, right from your front seat with the Kicker 46CXARC add-on mono-amplifier bass-knob.
Kicker 46CXARC Manual
10-Inch Thin Subwoofer Driver, 500-Watt RMS, 2-Ohm or 4-Ohm Dual-Voice-Coil
The Kicker Solo-Baric® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Uses a sealed or ported enclosure
Square sub design moves 20% more air than round subwoofers
Easily mounts under or behind a deat
Dual voice coil design
Ribbed santoprene surround resists heat And degrading
Bumped top plate for more excursion & smoother performance
SoloKon™ cone with 360-degree back bracing
UniPlate™ solid pole pPiece & backplate for excellent heat dissipation
Durable steel basket
Specifications
Size (IN.,CM)
10, 25
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
Sensitivity (dB 1w/1m)
85.98
Frequency Response (Hz)
25-100
Mounting Depth (IN.,CM)
3-3/4, 9.5
Mounting Cutout, Square (IN.,CM)
9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters)
.4, 11.3
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 28.3
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Kicker L7T Subwoofer Manual
12-Inch Thin Subwoofer Driver, 600-Watt RMS, 2-Ohm or 4-Ohm Dual-Voice-Coil
The Kicker Solo-Baric® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Uses a sealed or ported enclosure
Square sub design moves 20% more air than round subwoofers
Easily mounts under or behind a deat
Dual voice coil design
Ribbed santoprene surround resists heat And degrading
Bumped top plate for more excursion & smoother performance
SoloKon™ cone with 360-degree back bracing
UniPlate™ solid pole pPiece & backplate for excellent heat dissipation
Durable steel basket
Specifications
Size (IN.,CM)
12, 30
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
86.54
Frequency Response (Hz)
25-100
Mounting Depth (IN.,CM)
4-1/8, 9.5
Mounting Cutout, Square (IN.,CM)
11-1/16, 28.1
Min Rec Sealed Box Volume (CU. FT., Liters)
.55, 15.6
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
2.25, 63.7
Kicker L7T Subwoofer Manual
8-Inch Thin Subwoofer Driver, 350-Watt RMS, 2-Ohm or 4-Ohm Dual-Voice-Coil
The Kicker Solo-Baric® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Uses a sealed or ported enclosure
Square sub design moves 20% more air than round subwoofers
Easily mounts under or behind a deat
Dual voice coil design
Ribbed santoprene surround resists heat And degrading
Bumped top plate for more excursion & smoother performance
SoloKon™ cone with 360-degree back bracing
UniPlate™ solid pole pPiece & backplate for excellent heat dissipation
Durable steel basket
Specifications
Size (IN.,CM)
8, 20
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
350
Peak Power (watts, per ANSI/CTA-2031-A)
700
Sensitivity (dB 1w/1m)
84.835
Frequency Response (Hz)
30-100
Mounting Depth (IN.,CM)
2-3/4, 7
Mounting Cutout, Square (IN.,CM)
7-3/8, 18.8
Min Rec Sealed Box Volume (CU. FT., Liters)
0.2, 5.66
Max Rec Sealed Box Volume (CU. FT., Liters)
.75, 21.2
Min Rec Vented Box Volume (CU. Ft., Liters)**
.8, 22.7
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.2, 34
Kicker L7T Subwoofer Manual
10-Inch Thin Loaded Subwoofer Enclosure, 500-Watts RMS, 2-Ohm or 4-Ohm Impedance
Barely seven inches deep, the Kicker TL7T 10-Inch thin subwoofer enclosure is perfect for big bass under or behind your seats.
Genuine Kicker L7T subwoofer included
Angled design for excellent fit
Heavy internal bracing
Single 2-Ohm terminal
Easy to install and wire
Thick black carpeting
Rounded corners
Embroidered Kicker logo
Thick MDF construction
Specifications
Type
single truck
Woofer [in, cm]
Solo-Baric L7T 10" 2Ω or 4 Ω
Impedance [Ohms]
2 or 4
Recommended Amplifier Power [watts RMS]
500
SENSITIVITY [dB 1w/1m]
85.98
Box Top Depth (in, cm):
4-3/8, 11.3
Box Bottom Depth (in, cm):
7-1/4, 18.5
Box Height (in, cm):
12, 30.4
Box Width (in, cm):
20-1/4, 51.5
What's in the box?
one loaded enclosure with one 10-inch subwoofermounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)one owner's manualtwo stickers
Kicker L7T Subwoofer Enclosure Manual
